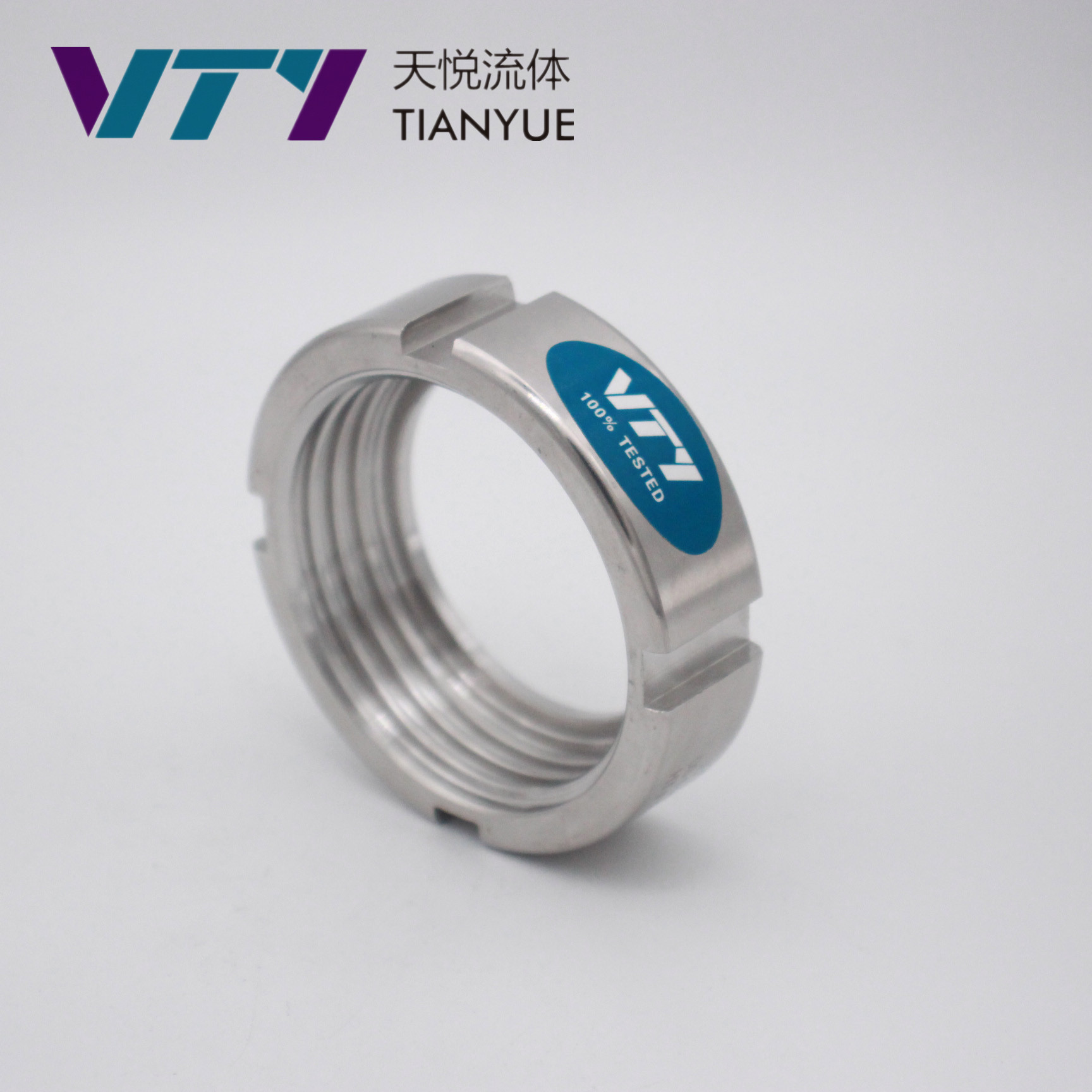

Description
| Standard | DIN,3A,SMS,RJT,ISO,IDF,DS,Macon,GB |
| Size | 1”-6” DN10-DN200 17.2-168.3 |
| Steel material | 304,304L,316,316L(Forging) |
| Seal material | NBR,Silicone,EPDM,EFPM,PTFE |
| Surface qualities | 1.Ra≤1.6µm |
| 2.Ra≤0.87µm | |
| 3.Ra≤0.4µm(Polished) |
0%
| Size | A | B | C | M | H |
| 10 | 13/12 | 10/9 | 38 | Rd28X1/8” | 34 |
| 15 | 19/18 | 16/15 | 44 | Rd34X1/8” | 34 |
| 20 | 23/22 | 20/19 | 54 | Rd44X1/6” | 36 |
| 25 | 29/28 | 26/25 | 63 | Rd52X1/6” | 45 |
| 32 | 35/34 | 32/31 | 70 | Rd58X1/6” | 51 |
| 40 | 41/40 | 38/37 | 78 | Rd65X1/6” | 53 |
| 50 | 53/52 | 50/49 | 92 | Rd78X1/6” | 57 |
| 65 | 70 | 66 | 112 | Rd95X1/6” | 65 |
| 80 | 85 | 81 | 119 | Rd110X1/4” | 75 |
| 100 | 104 | 100 | 148 | Rd130X1/4” | 89 |
| 125 | 129 | 125 | 178 | Rd160X1/4” | 70 |
| 150 | 154 | 150 | 210 | Rd190X1/4” | 76 |
| Standard | DIN,3A,SMS,RJT,ISO,IDF,DS,Macon,GB |
| Size | 1”-6” DN10-DN200 17.2-168.3 |
| Steel material | 304,304L,316,316L(Forging) |
| Seal material | NBR,Silicone,EPDM,EFPM,PTFE |
| Surface qualities | 1.Ra≤1.6µm |
| 2.Ra≤0.87µm | |
| 3.Ra≤0.4µm(Polished) |
