| Material | Contact product parts | 304L/316L（1.4307/1.4404）forged |
| Non-contact product parts | 304（1.4301） | |
| Provide EN 10204 3.1B certificate | ||
| Seal material | Standard | EODM |
| Option | FPM,Silicone,NBR | |
| All seal materials comply with FDA 177.2600 | ||
| Temperature | Working temperature | -20~+135℃（EPDM） |
| Sterilization temperature | 150℃（MAX 20min） |
| Pressure | Working pressure | 0~10bar |
| Control air pressure | 5~8bar |
| Surface treatment | Internal surface | R≤0.8µm |
| External surface | R≤1.6µm |

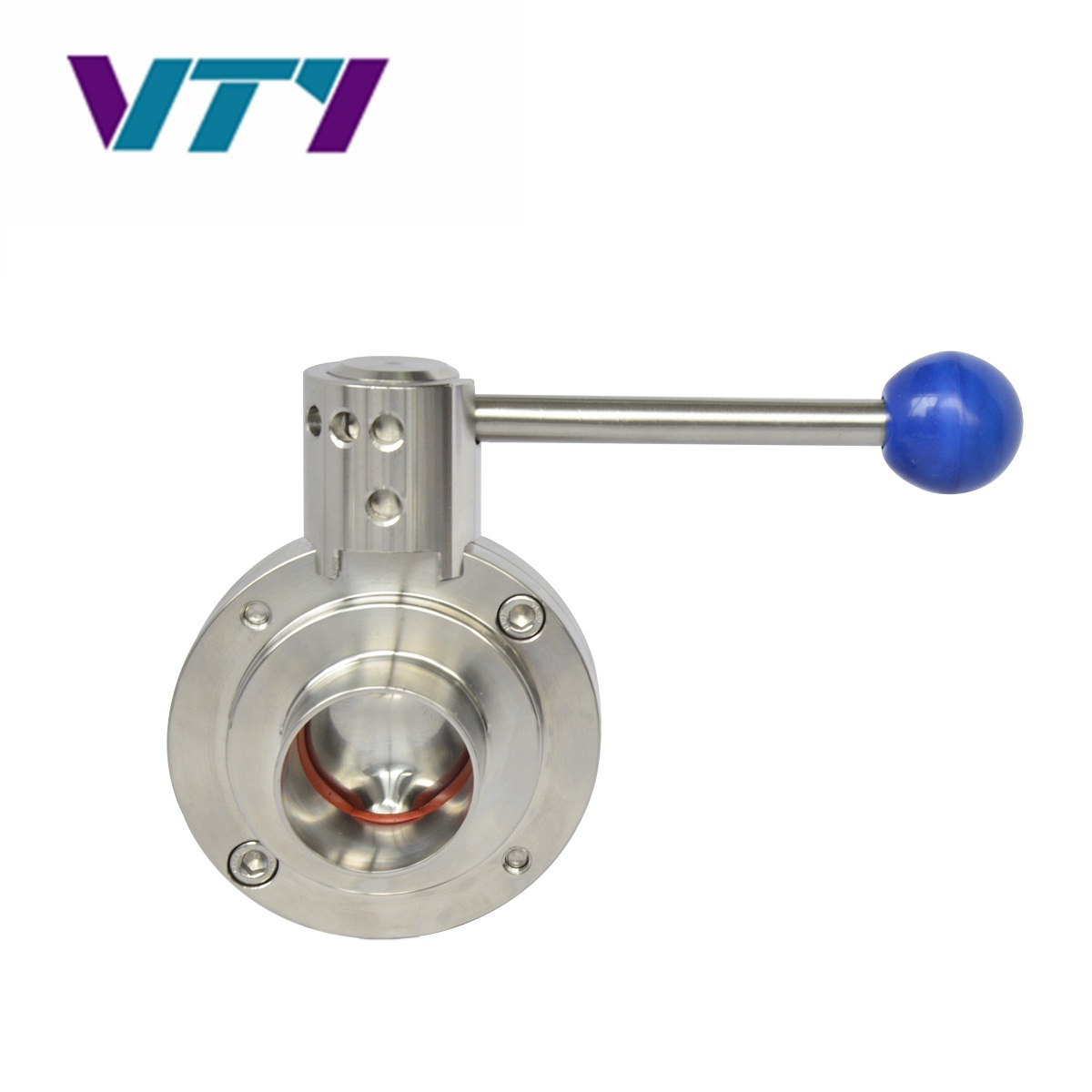

| Connection | Connection standard | Welded end :DIN 11850 Series0,2 |
| Welded end: INCH pipe standard | ||

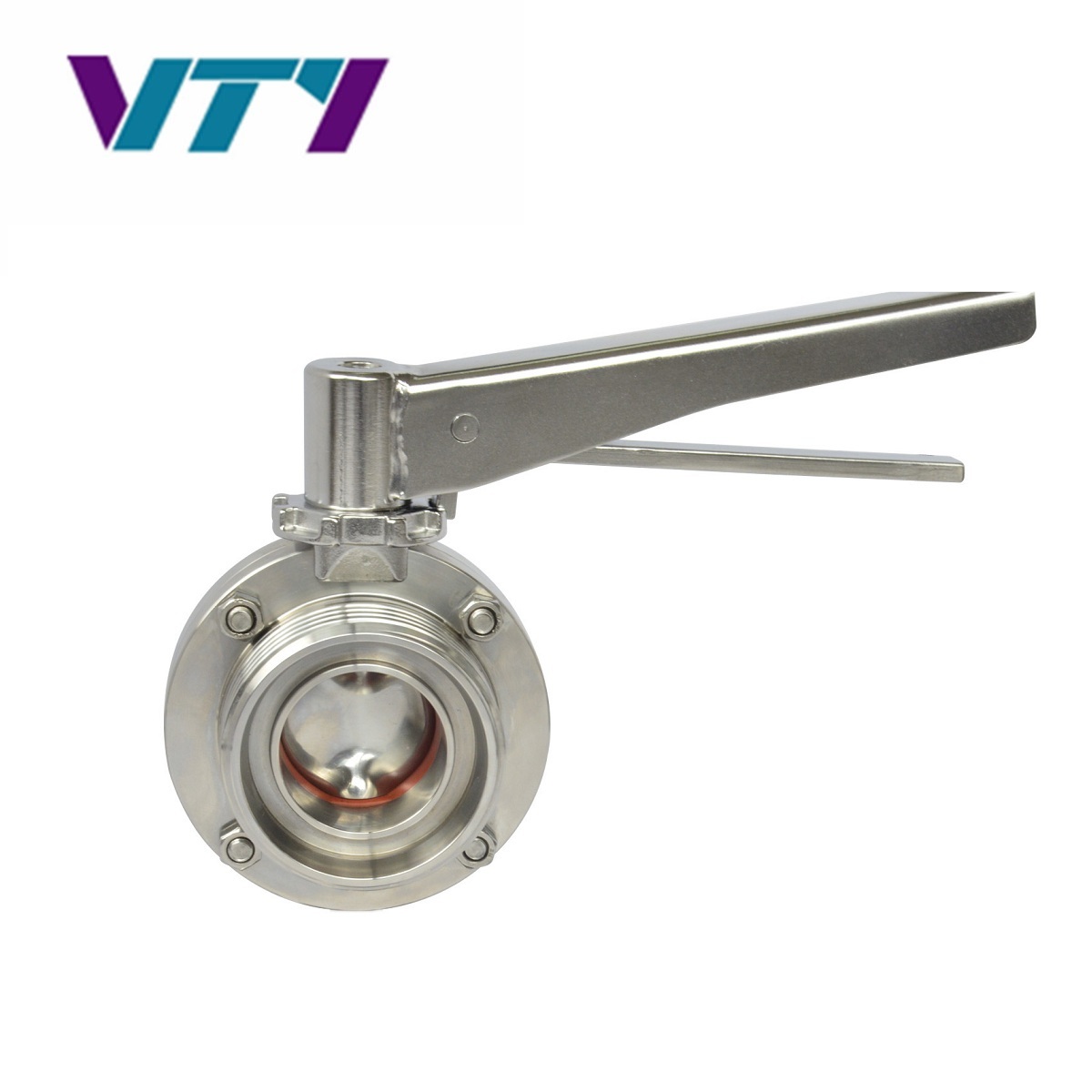

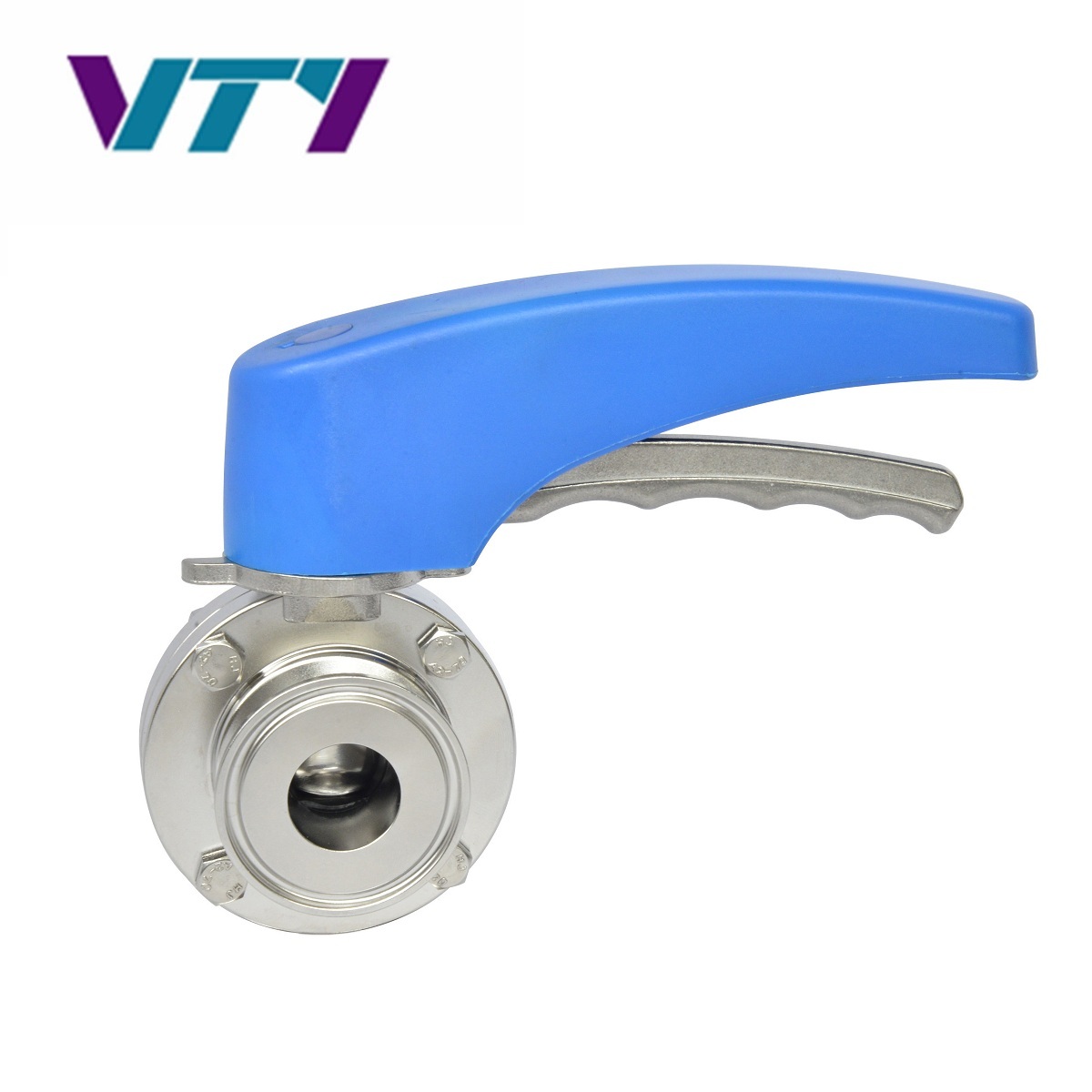

| Connection method:welding、thread、clamp、flange | ||
| Option | Intelligent controller | 24V DC |
| 1/2 electromagnetism valve | ||
| Position sensor | 24V DC | |
| 2 NPN/PNP position sensor |

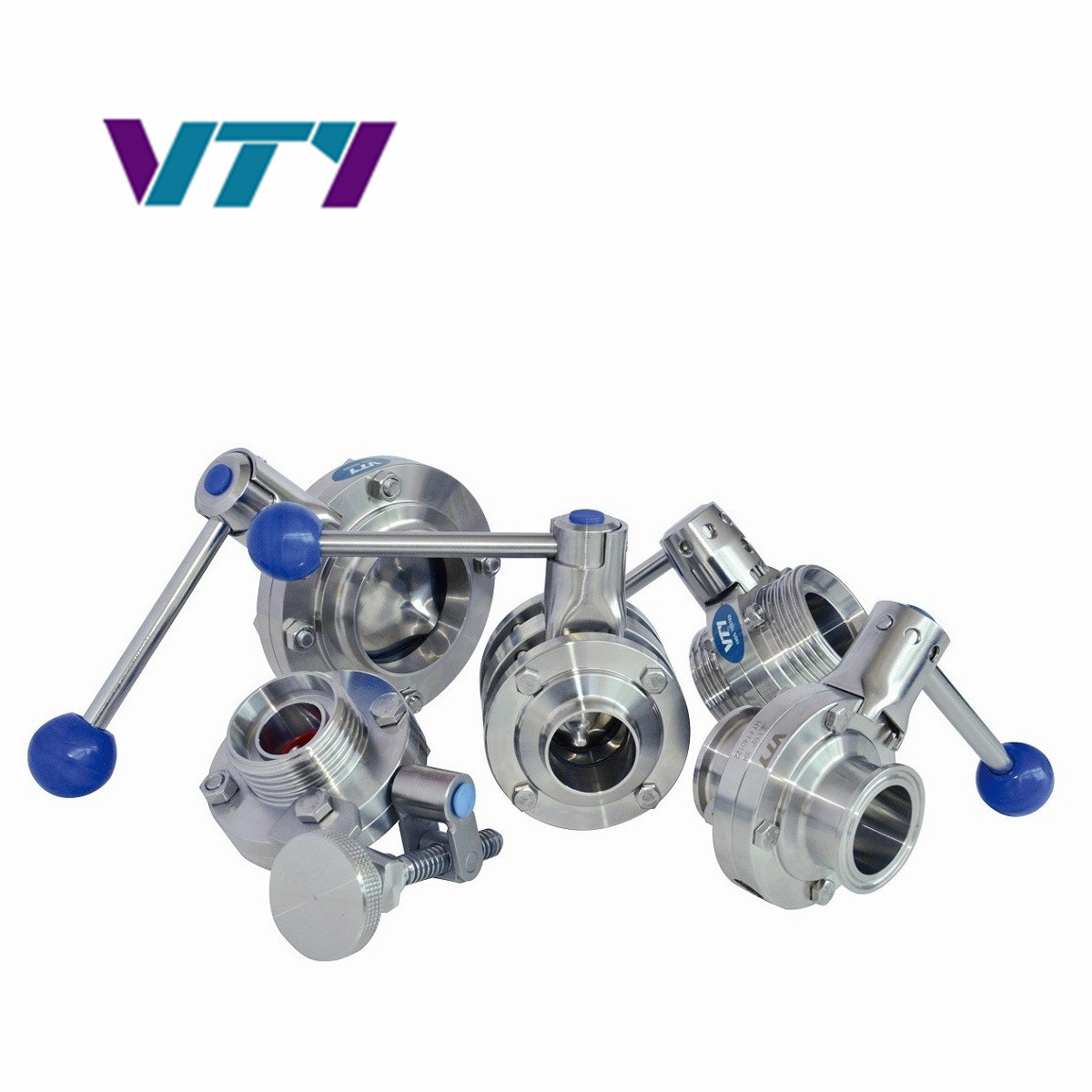

Download:ISO/RJT/IDF Butterfly Valve
