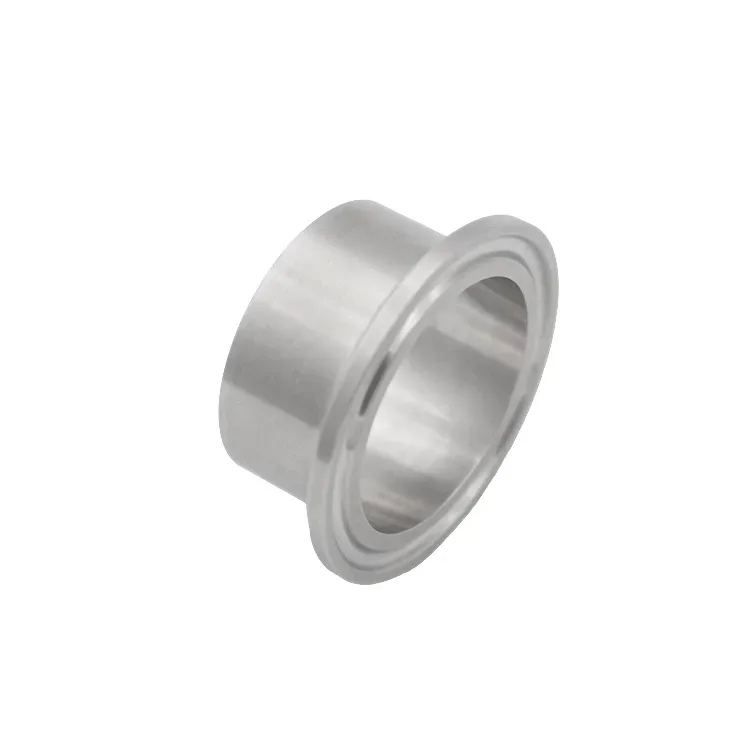

The Sanitary 3A (Tri-Clamp) Ferrule from VTY factory is a ferrule used to connect the clamp joint end with the welding end on the hygienic production line. It is assembled with two clamp ferrules, one gasket, and one tri-clamp. These ferrules are designed in accordance with 3A standards, so they can be compatible with current 3A piping systems.
They are precision machined using CNC, and all materials are from reliable suppliers, making them an excellent choice for hygienic processes. VTY can offer a wide range of Sanitary 3A Ferrules applied to food, beverages, dairy products, pharmaceuticals, and beer industries.
| Item | Details |
|---|---|
| Size Range | 1’’–12’’ |
| Standard | 3A |
| Material Grade | 304, 304L, 316, 316L (Forged) |
| Seal Material | NBR, Silicone, EPDM, FPM, PTFE |
| Surface Finish | Ra≤0.4µm Internal PolishedRa≤1.6µm External Finish |
Precision CNC Machining
Manufactured on 134 advanced CNC machines, including over 90% MAZAK machining centers, ensuring superior dimensional accuracy and consistency.
Hygienic Surface Finish
Internal surface roughness Ra≤0.4μm.
High Corrosion Resistance
Available in SS304, SS304L, SS316 and SS316L forged stainless steel.
Easy Installation
Compatible with standard 3A Tri Clamp systems.
Long Service Life
Designed for demanding sanitary processing environments.
Tri-clamp sanitary ferrules are commonly used in the beverage, food, and biopharmaceutical manufacturing industries - where preventing contamination and impurities is one of the biggest concerns. To achieve this goal, every component in the system needs to work properly. If the accessories are not installed correctly, any contaminants may cause the product to deteriorate or be recalled, resulting in loss of productivity.
VTY sanitary ferrules are widely used in hygienic process systems where cleanliness, product purity, and easy maintenance are critical.
Used in processing lines for sauces, juices, edible oils, and packaged food production.
Ideal for soft drinks, bottled water, juice production, and beverage filling systems.
Applied in milk, yogurt, cream, cheese, and dairy product manufacturing facilities.
Widely used in breweries, wineries, fermentation tanks, filtration systems, and CIP pipelines.
Suitable for sterile production systems requiring sanitary and contamination-free fluid transfer.
Supports clean process environments for biotech and laboratory applications.
Increasingly used in industrial liquid cooling and thermal management systems requiring high-purity fluid circulation.
Approximately 95% of VTY products are exported to European markets, including:
Our hygienic fittings, sanitary valves, ferrules, unions, sight glasses, filters, and custom fluid handling components are trusted by customers across Europe, North America, South America, and Asia.

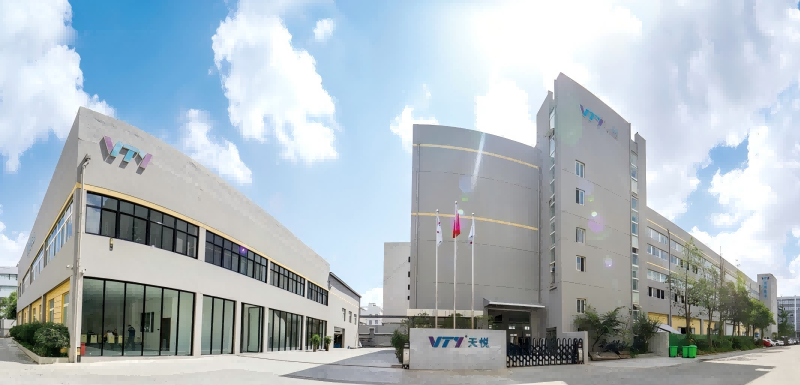

As a professional hygienic fluid equipment manufacturer established in 2013, VTY provides high-quality sanitary fittings trusted by customers worldwide.
Every ferrule undergoes comprehensive inspection before shipment.

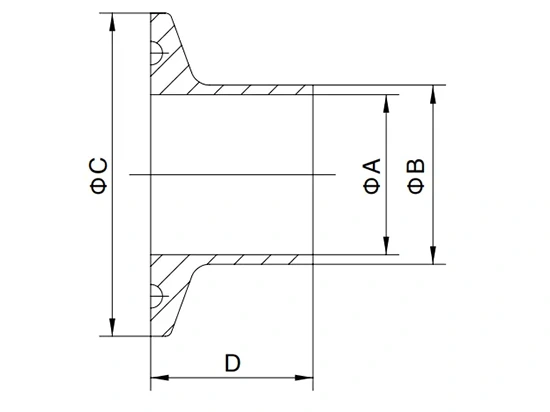

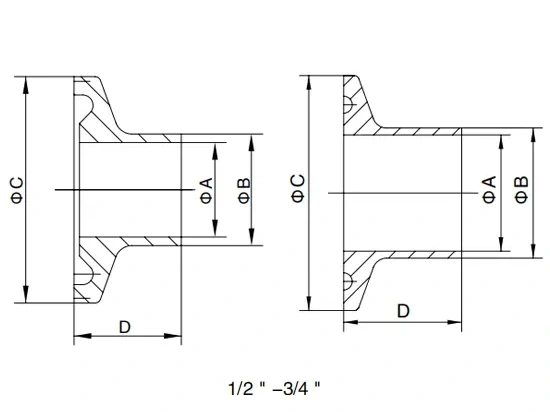

| Size | A | B | C | D | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| WMP | 14MMP | 14AMP | ||||||||
| 1/2" | 9.4 | 12.7 | 25.2 | 12.7 | 21.5 | 28.6 | ||||
| 3/4" | 15.75 | 19.05 | 25.2 | 12.7 | 21.5 | 28.6 | ||||
| 1" | 22.2 | 25.4 | 50.5 | 12.7 | 21.5 | 28.6 | ||||
| 1-1/2" | 34.8 | 38.1 | 50.5 | 12.7 | 21.5 | 28.6 | ||||
| 2" | 47.5 | 50.8 | 64.0 | 12.7 | 21.5 | 28.6 | ||||
| 2-1/2" | 60.2 | 63.5 | 77.5 | 12.7 | 21.5 | 28.6 | ||||
| 3" | 72.9 | 76.2 | 91.0 | 12.7 | 21.5 | 28.6 | ||||
| 4" | 97.38 | 101.6 | 119.0 | 15.8 | 21.5 | 28.6 | ||||
| 6" | 146.86 | 152.4 | 166.8 | 21.5 | 28.6or38.1 | |||||
| 8" | 197.66 | 203.2 | 217.7 | 21.5 | 28.6or38.1 | |||||
| 10" | 247.2 | 254.0 | 268.5 | 21.5 | 28.6or38.1 | |||||
| 12" | 298 | 304.8 | 319.3 | 21.5 | 28.6or38.1 | |||||

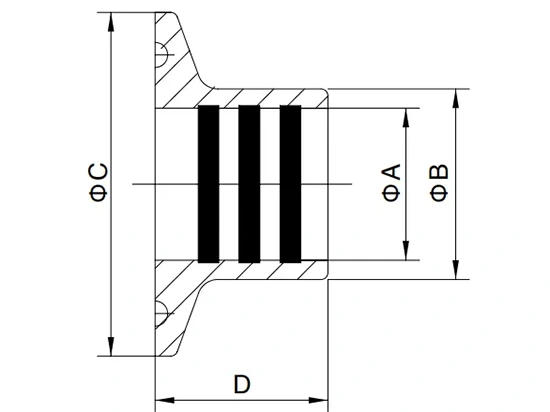

| Size | A | B | C | D | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1" | 22.1 | 29.4 | 50.5 | 41.3 | ||||||
| 1-1/2" | 34.8 | 42.5 | 50.5 | 41.3 | ||||||
| 2" | 47.5 | 55.6 | 64.0 | 44.5 | ||||||
| 2-1/2" | 60.2 | 68.7 | 77.5 | 44.5 | ||||||
| 3" | 72.9 | 81.8 | 91.0 | 46 | ||||||
| 4" | 97.38 | 108 | 119.0 | 54 | ||||||
| Size | A | B | C | D | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1" | 25.5 | 29.5 | 50.5 | 19.1 | ||||||
| 11/2" | 38.2 | 42.6 | 50.5 | 28.6 | ||||||
| 2" | 50.9 | 55.7 | 64.0 | 33.3 | ||||||
| 21/2" | 63.6 | 68.8 | 77.5 | 34.9 | ||||||
| 3" | 76.3 | 81.9 | 91.0 | 36.5 | ||||||
| 4" | 101.7 | 108.1 | 119.0 | 38.1 | ||||||
| Size | A | B | ||
|---|---|---|---|---|
| 3A | DIN | ISO1127 | ||
| 1/2"-3/4" | 25.2 | 6.4 | ||
| DN10-20 | DN17.2-21.3 | 34 | 6.4 | |
| 1"-11/2" | DN25-40 | DN26.9-42.4 | 50.5 | 6.4 |
| 2" | DN50 | 48.3 | 64.0 | 6.4 |
| 21/2" | 60.3 | 77.5 | 6.4 | |
| 3" | DN65 | 76.1 | 91.0 | 6.4 |
| DN80 | 88.9 | 106.0 | 7.9 | |
| 4" | DN100 | 119.0 | 7.9 | |
| 114.3 | 130.0 | 7.9 | ||
| DN125 | 139.7 | 155.0 | 11.1 | |
| 6" | 166.8 | 11.1 | ||
| DN150 | 168.3 | 183.0 | 11.1 | |
| 8" | 217.7 | 11.1 | ||
| DN200 | 219.1 | 233.5 | 11.1 | |
| 10" | 268.5 | 11.1 | ||
| 12" | 319.3 | 11.1 | ||
| Size | B | B1 | ||
|---|---|---|---|---|
| 3A | DIN | ISO1127 | ||
| 1/2"-3/4" | 21.8 | |||
| DN10-20 | 10.2-21.3 | 36.2 | 34 | |
| 1.5" | DN25-40 | 26.9-42.4 | 52.7 | 50.5 |
| 2" | DN50 | 48.3 | 66.2 | 64 |
| 2.5" | 60.3 | 79.7 | 77.5 | |
| 3" | DN65 | 76.1 | 93.2 | 91 |
| DN80 | 88.9 | 108.2 | 106 | |
| 4" | DN100 | 121.2 | 119 | |
| 4.5” | 114.3 | 132.2 | 130 | |
| DN125 | 139.7 | 157.2 | 155 | |
| 6" | 169 | 166.8 | ||
| DN150 | 168.3 | 185.2 | 183 | |
| 8" | 219.9 | 217.7 | ||
| DN200 | 219.1 | 235.7 | 233.5 | |
| 10" | DN250 | 270.7 | 268.5 | |
| 12" | DN300 | 321.5 | 319.3 | |
