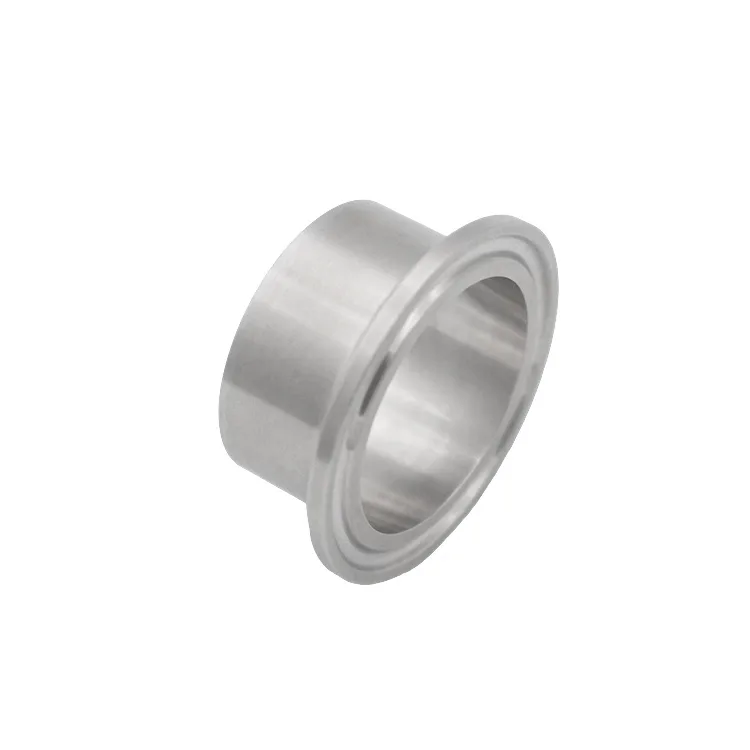

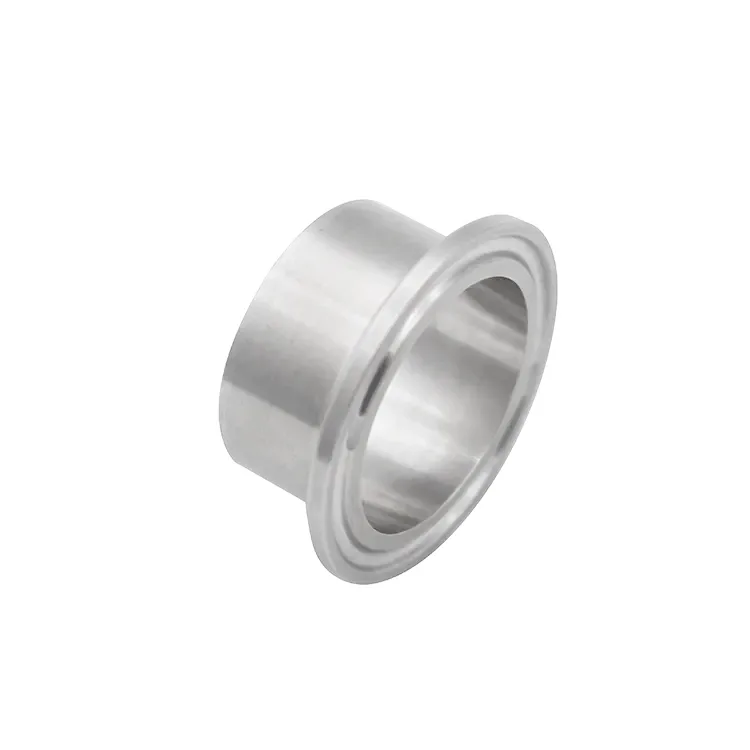

A sanitary clamp ferrule is a specialized flanged fitting used to securely connect two pieces of sanitary tubing or equipment. It is the foundation of a hygienic, leak-proof piping connection used in industries with strict cleanliness standards.
It provides a crevice-free, sterile connection for hygienic piping systems. The primary advantage is the ability to enable fast, tool-free assembly and disassembly, which drastically reduces downtime during mandatory Clean-in-Place (CIP) and Sterilize-in-Place (SIP) cleaning routines.
Sanitary ferrules are commonly used in food, beverage, biopharmaceutical, pharmaceutical, cosmetics, personal care, and chemical processing industries.
Food and Beverage Processing
Utilized extensively to transport liquids like dairy, beer, wine, and juices. The smooth, non-porous stainless steel prevents product residue from lingering, which protects against contamination and simplifies clean-in-place (CIP) and sterilization-in-place (SIP) processes.
Pharmaceutical and Biotech Manufacturing
Essential for active pharmaceutical ingredient (API) production and sterile processes. Ferrules must meet strict FDA and 3-A standards to ensure zero dead zones where microbes could grow, protecting batch integrity during medication and vaccine development.
Cosmetics and Personal Care
Used to transfer thick, viscous liquids like lotions, shampoos, and creams. The quick-release mechanism allows operators to rapidly swap out hoses or reconfigure filling equipment between product batches without cross-contamination.
These codes designate the length of the ferrule shank and the specification standard (typically ASME BPE or 3A sanitary standards):
14WMP: The most common standard long-weld ferrule. The extended shank gives automatic orbital welding heads enough room to grip the tube.
14MMP: A short-weld ferrule. It is more compact and used in tight spacing where manual welding is often required.
14AMP: A roll-on/expandable ferrule. Rather than being welded, the pipe is inserted inside the ferrule and expanded mechanically into place using an expansion tool.
304 Stainless Steel: Economical and highly effective for general food, dairy, and brewery operations.
316L Stainless Steel: Contains molybdenum, which provides superior resistance to corrosion from acids, salts, and harsh Clean-In-Place (CIP) chemicals. It is the mandatory standard for pharmaceutical applications and high-acid foods (like tomatoes or citrus). The "L" stands for low carbon, which helps prevent carbide precipitation during welding.
The single most common mistake with tri-clamp sizing is measuring the outside diameter (OD) of the flange wheel and assuming that is the size. Tri-clamp sizes are always designated by the Outside Diameter (Tube OD) of the tubing they connect to, not the flange itself.
Because of this system, smaller tubing sizes share the exact same flange diameter:
0.5" and 0.75" Tube OD share a 0.984" (25mm) Flange OD.
1.0" and 1.5" Tube OD share a 1.984" (50.5mm) Flange OD.
2.0" Tube OD uses a 2.516" (64mm) Flange OD.
VTY specializes in manufacturing premium sanitary tri-clamp ferrules, engineered specifically for high-purity industries. Operating under strict ISO 9001 quality management, we control every phase of workshop production with a rigorous, full in-house testing suite—including material verification, thickness and hardness testing, precision tolerance audits, and advanced surface roughness (Ra) measurement.
We cater to bespoke engineering needs, manufacturing strictly to customer drawings or samples, with mandatory pre-production sample approval to guarantee absolute accuracy before mass production. Built on reliability and precision, 95% of our production is exported to the EU market, reliably serving clients across Germany, France, Italy, and Spain. Technical communication is seamless from start to finish, led directly by our General Manager, Ms. Renee Zhang, ensuring fluent, clear, and efficient English collaboration.
