A sanitary Y-Type Filter, also called a sanitary Y strainer, is installed in hygienic pipeline systems to remove solid particles from process liquids before they enter downstream equipment. It helps prevent particles such as metal fragments, welding residues, rust, gasket debris, and other contaminants from reaching pumps, valves, flow meters, heat exchangers, and filling equipment.

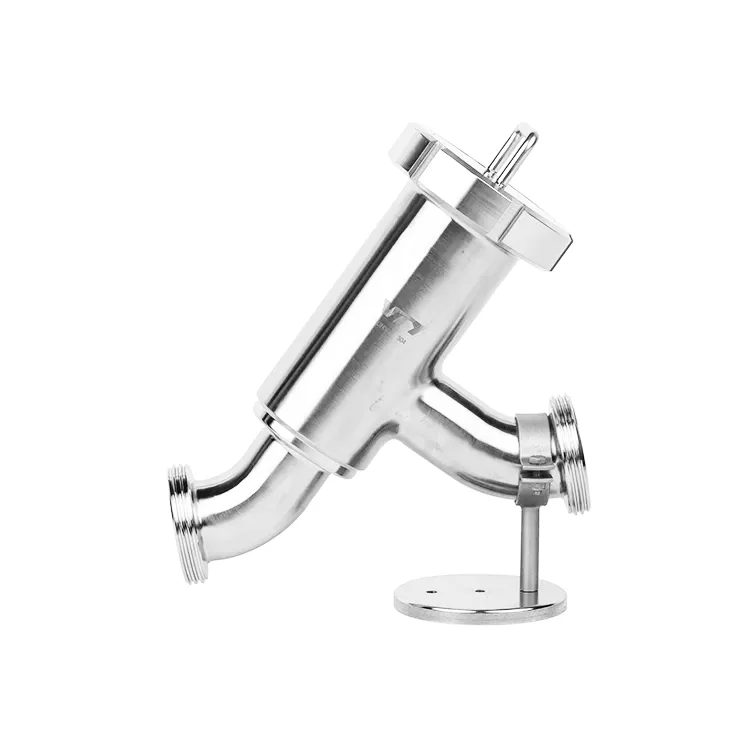

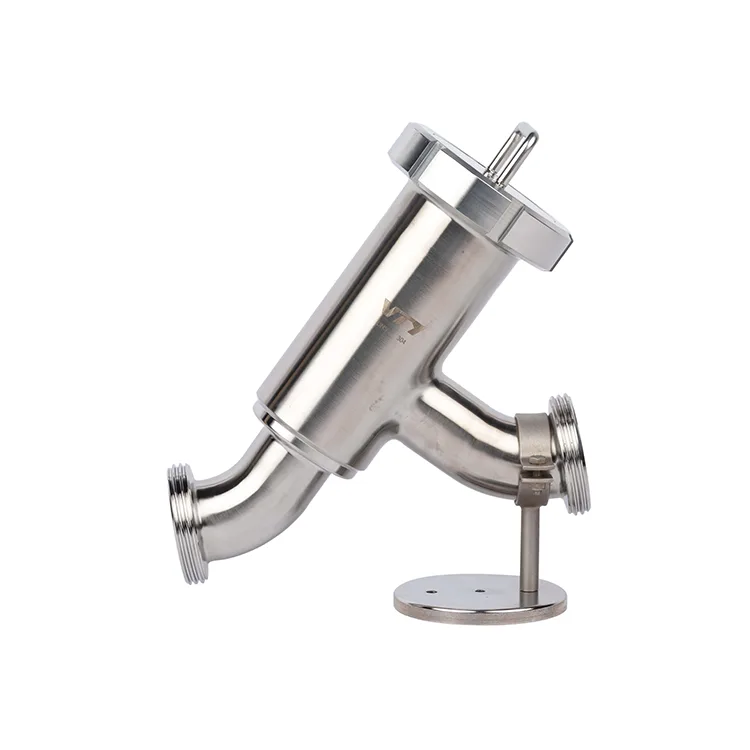

The filter consists of a Y-shaped stainless steel body and a removable filter screen. During operation, liquid flows through the screen while solid particles are retained inside the filter element. The filtered liquid continues through the pipeline with limited flow resistance. When the screen becomes blocked, it can be removed for cleaning or replacement without replacing the filter body.
Sanitary Y-Type Filters are typically manufactured from 304 or 316L stainless steel. The product-contact surfaces are mechanically polished to facilitate cleaning and reduce product retention. The design is compatible with CIP (Clean-in-Place) and SIP (Sterilize-in-Place) procedures commonly used in hygienic processing systems.
Filter screens are available in different mesh sizes to meet various filtration requirements. Common connection types include Tri Clamp, butt weld, threaded, and flanged ends, allowing the filter to be integrated into different pipeline systems.
Sanitary Y-Type Filters are used in food processing, dairy production, beverage manufacturing, pharmaceutical processing, biotechnology, cosmetics, and other applications where process liquids require particle filtration before entering production equipment.

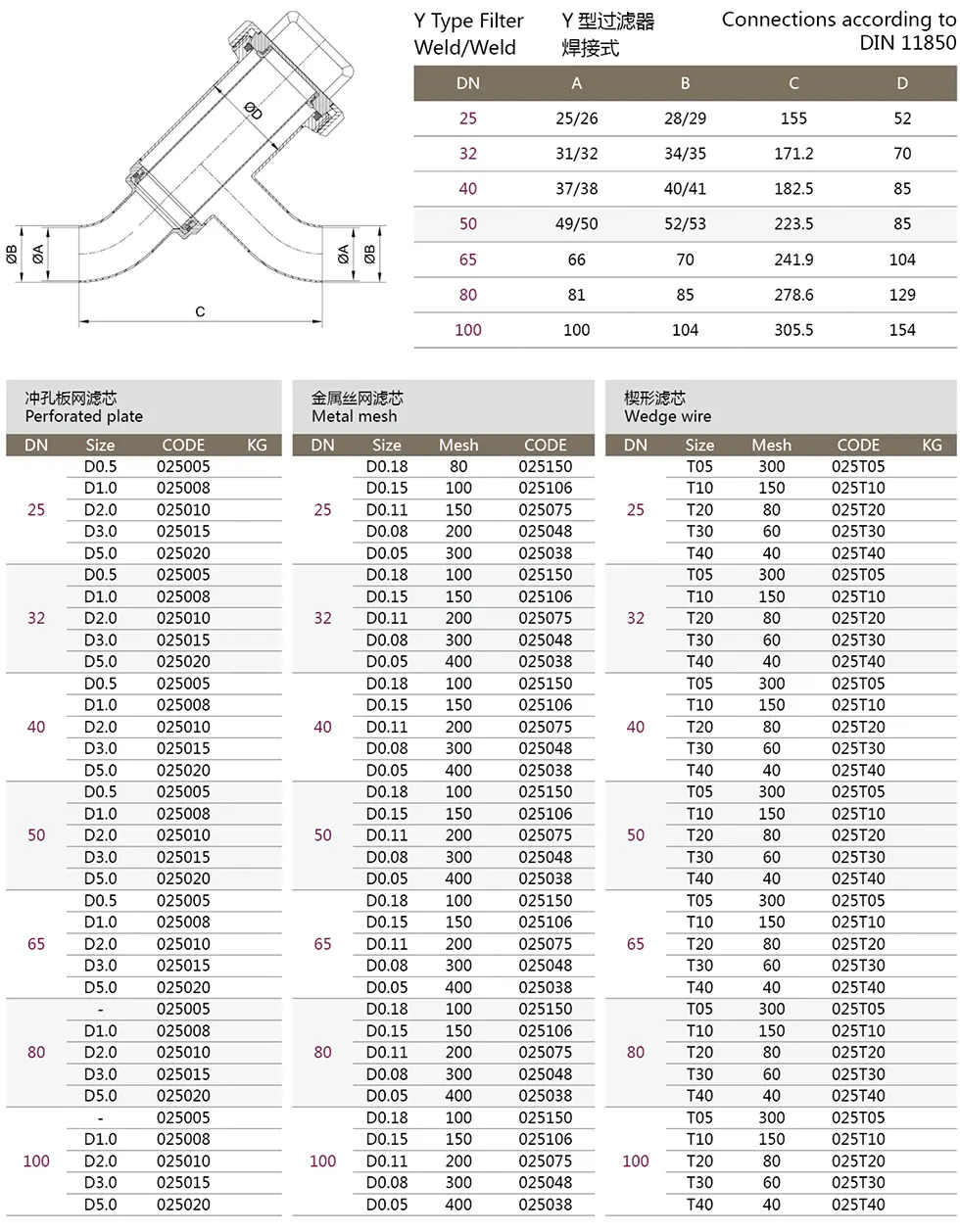

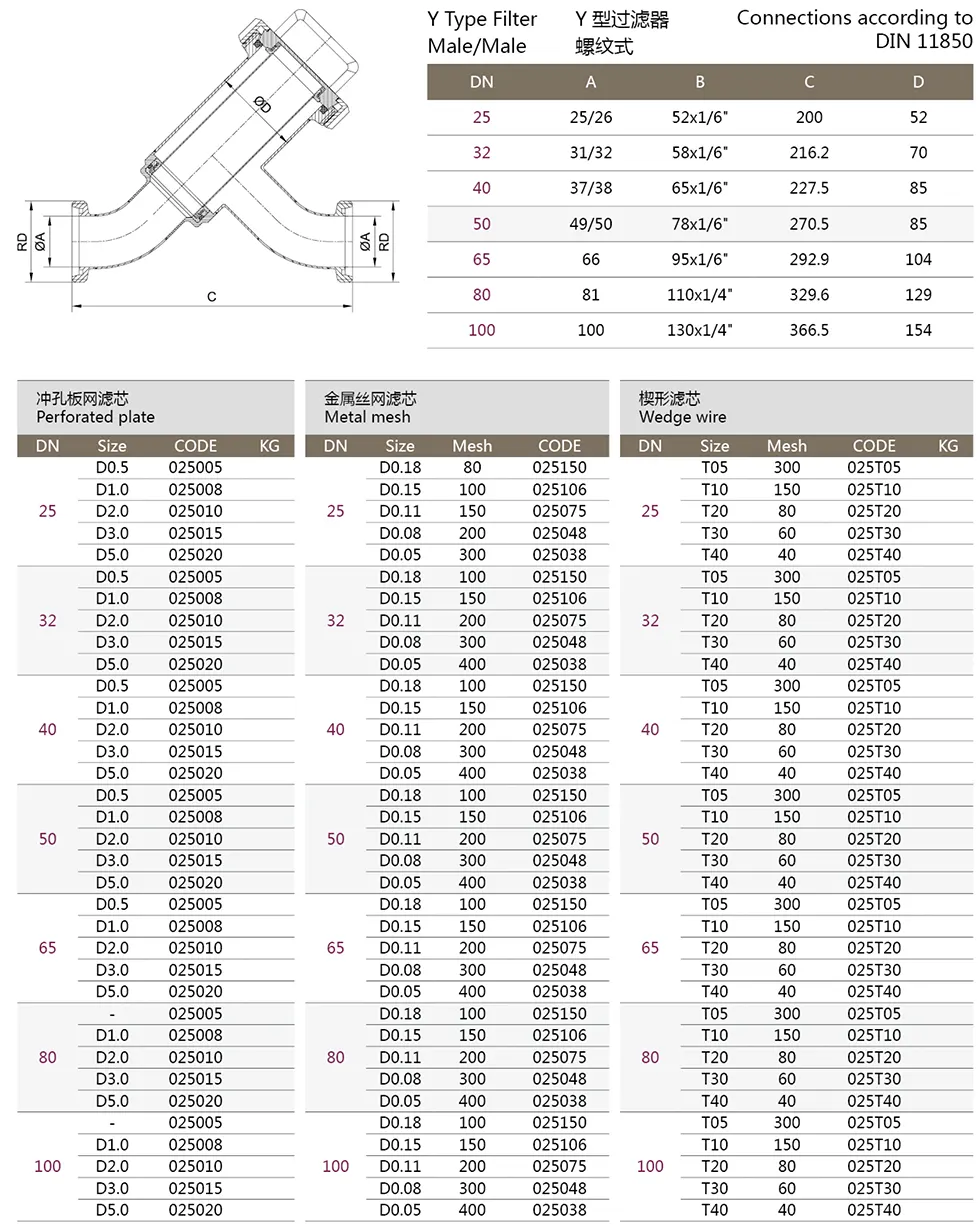

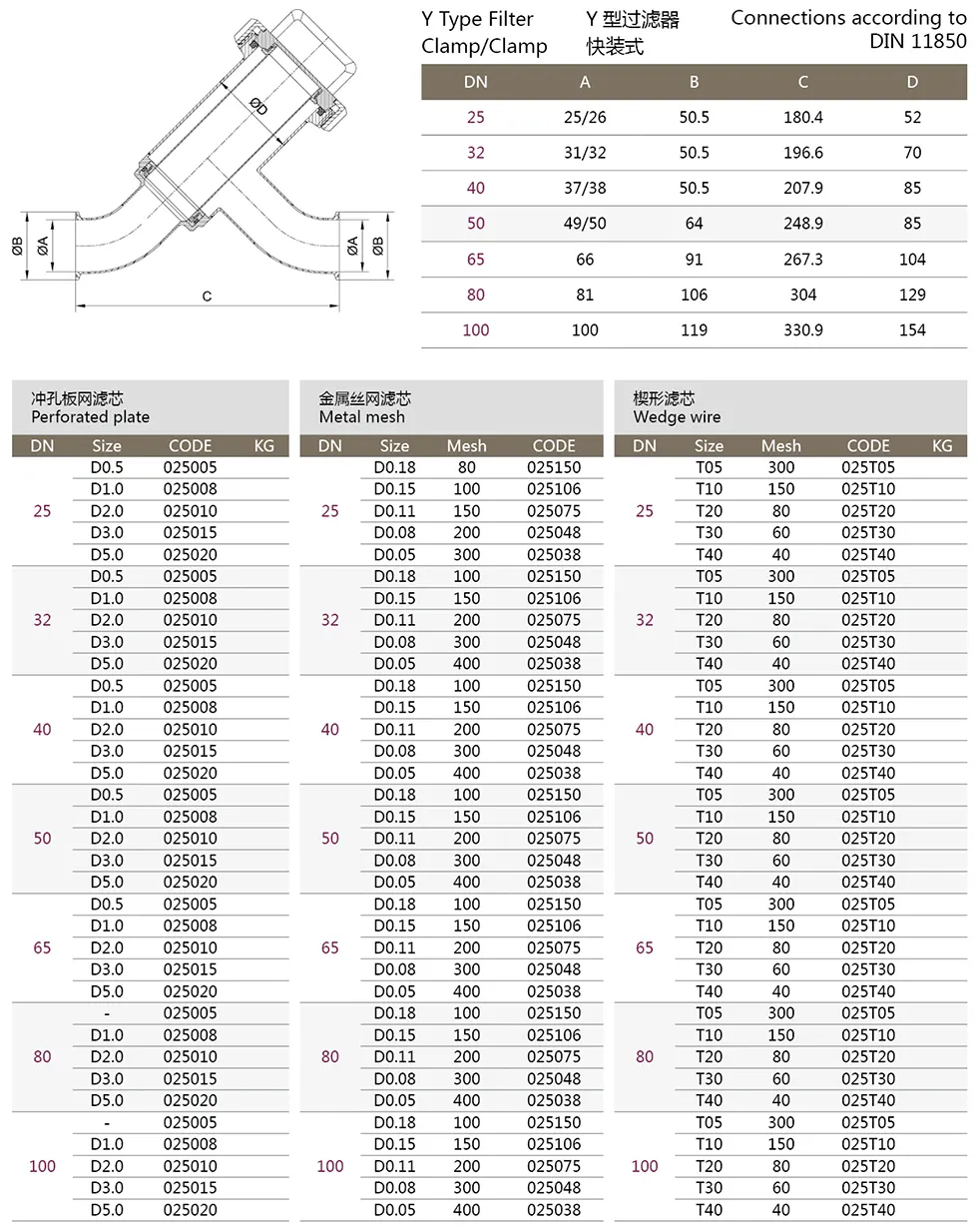

| Item | Specifications / Options |
| Applicable Standards | DIN, 3A, SMS, RJT, ISO, IDF, DS |
| Size Range | 1’’–6’’, DN10–DN200, 17.2–168.3 mm |
| Metal Material | 304, 304L, 316, 316L |
| Seal Material | NBR, Silicone, EPDM, FPM, PTFE |
| Surface Roughness | 1. Ra≤1.6µm (external surface)2. Ra≤0.8µm3. Ra≤0.4µm |
The working principle of a sanitary Y-Type Filter is simple yet highly effective. Process liquid enters the filter body through the inlet and passes through a precision stainless steel mesh installed inside the Y-shaped chamber.
As the liquid flows through the mesh, solid contaminants such as metal particles, pipe scale, gasket fragments, sand, crystals, or other impurities are trapped inside the filter element. The purified liquid then continues through the outlet and flows safely to pumps, control valves, filling machines, heat exchangers, and other critical process equipment.
Because the filtration chamber is positioned at an angle, accumulated debris naturally collects in the lower section of the filter, allowing operators to remove the filter screen easily during routine maintenance without dismantling the entire pipeline.
This design offers several important operational advantages:
Whether installed in milk processing lines, beverage production systems, pharmaceutical process piping, or cosmetic manufacturing facilities, the sanitary Y-Type Filter provides reliable protection while helping manufacturers maintain hygienic production standards and product quality.
1.Superior Hygiene and Corrosion Resistance: These Y Type Filters are made of high-quality stainless steel (typically 304 or 316L), are non-porous, corrosion-resistant, and suitable for in-situ cleaning (CIP) or in-situ sterilization (SIP) processes.
2.Optimal Protection for Equipment: They efficiently remove solid particles from liquids and gases, protecting sensitive equipment like flow meters and pumps from damage.
3.Compact and Versatile Design: The compact structure allows for installation in tight spaces, both horizontally and vertically.
4.Easy Maintenance: The design allows for quick removal of the filter screen for inspection and cleaning, reducing downtime.
5.Low Pressure Loss: Engineered for high flow capacity with minimal pressure drop.
Selecting the right stainless steel material is one of the most important decisions when purchasing a sanitary Y-Type Filter. While both SS304 and SS316L offer excellent corrosion resistance and hygienic performance, they are designed for different operating environments. Understanding their differences helps improve equipment reliability, extend service life, and reduce maintenance costs.
| Feature | SS304 Stainless Steel | SS316L Stainless Steel |
|---|---|---|
| Corrosion Resistance | Excellent | Superior, especially against chlorides and aggressive chemicals |
| Molybdenum Content | None | 2–3% Molybdenum for enhanced corrosion protection |
| Hygienic Performance | Excellent | Excellent |
| Acid & Alkali Resistance | Good | Excellent |
| Chloride Resistance | Moderate | Outstanding |
| High-Temperature Performance | Good | Better under harsh operating conditions |
| Typical Applications | Food, beverage, dairy, purified water | Pharmaceutical, biotechnology, cosmetics, chemical processing, seawater applications |
| Service Life | Long | Longer in corrosive environments |
| Cost | More economical | Higher initial investment with lower long-term maintenance costs |
For more than a decade, VTY has specialized in manufacturing sanitary flow control components for hygienic processing industries worldwide. Since our establishment in 2013, we have continuously invested in advanced manufacturing technologies, precision inspection equipment, and product innovation to provide reliable hygienic solutions for global customers.

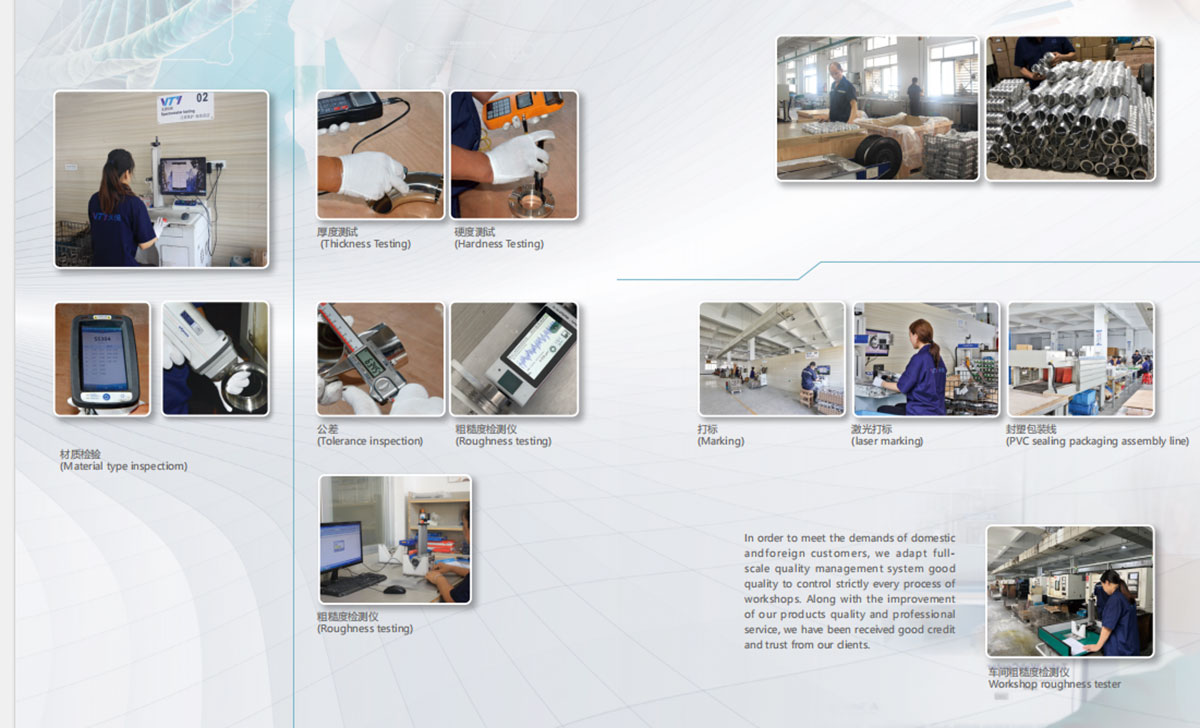

Today, VTY operates a 13,000-square-meter manufacturing facility with 180 skilled employees, integrating research & development, precision machining, welding, polishing, assembly, inspection, and testing into one complete production system.
Our sanitary product portfolio includes:
Sanitary Y-Type Filters
Butterfly Valves
Ball Valves
Check Valves
Sampling Valves
Sight Glasses
Vacuum Valves
Pressure Relief Valves
Sanitary Pipe Fittings
Clamp Unions
Aseptic Components
All products are manufactured according to internationally recognized hygienic standards, including 3A, DIN, SMS, ISO, IDF, RJT, and DIN11851/11864, ensuring compatibility with global processing systems.
More than 95% of our products are exported to Europe, serving customers in Germany, Denmark, France, Italy, Spain, and the Netherlands. Our products are widely applied in dairy processing, breweries, beverage production, pharmaceutical manufacturing, biotechnology, cosmetics, and liquid cooling industries.
Beyond manufacturing, VTY provides comprehensive OEM and customized engineering services. Our experienced technical team works closely with customers from initial design consultation through production, inspection, and after-sales support to deliver reliable and cost-effective hygienic solutions.
1. Can this Y Type Filter be installed vertically?
Yes, but the liquid must flow downward so gravity naturally pushes trapped particles into the diagonal filter pocket.
2. When does the mesh need to be cleaned?
Clean it when you notice a significant drop in fluid pressure, which means debris is blocking the flow.
3. Is it fully compatible with automated CIP?
The housing can be flushed, but you should manually remove the mesh basket to wash away tightly trapped chunks or sticky residue.

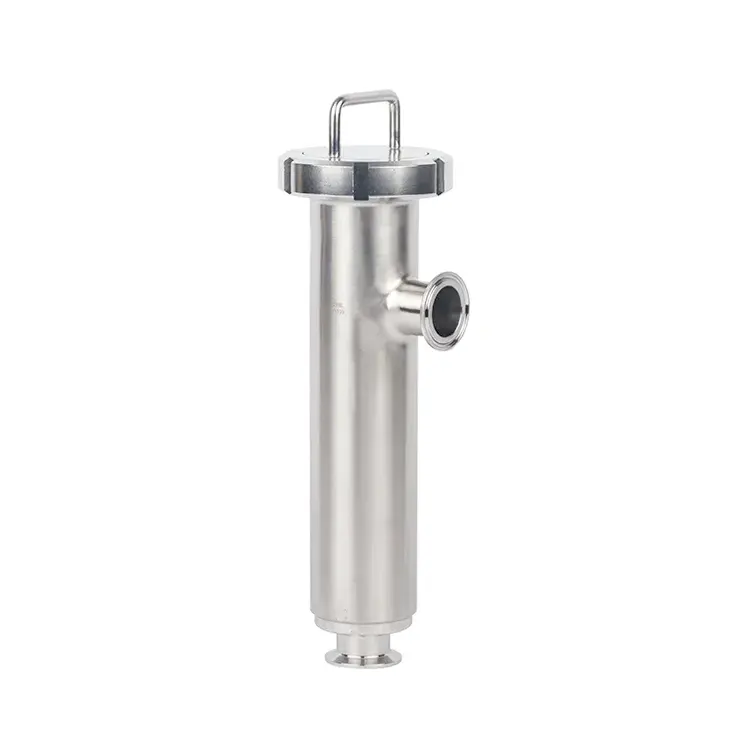

4. What is the difference between a Y-filter and an Angle filter?
A Y-filter goes into a straight pipeline, while an angle filter replaces a 90-degree corner elbow.
