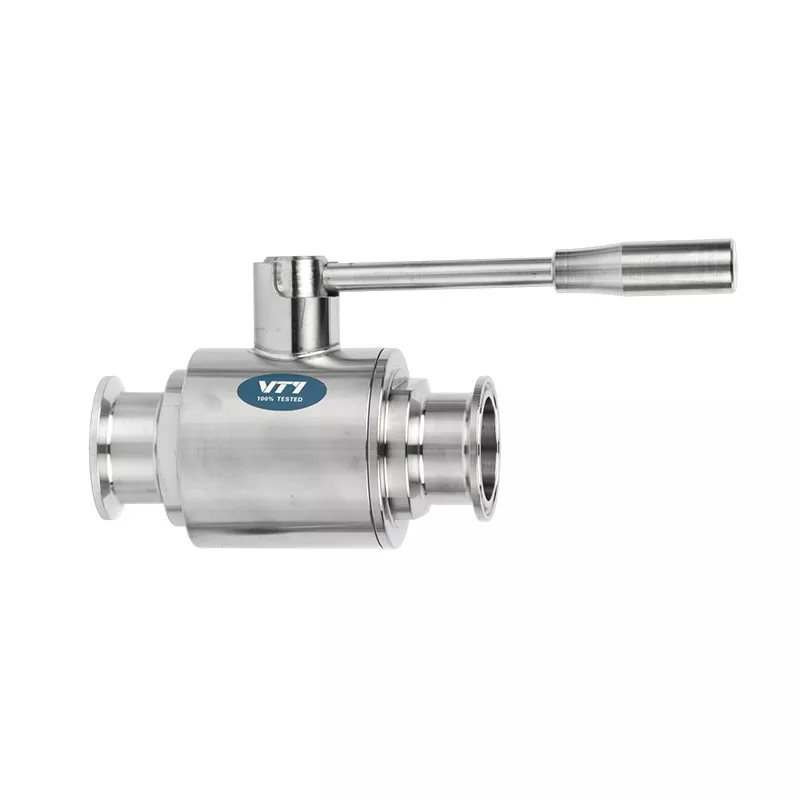

2 PC Ball Valve

The 2 PC Ball Valve from VTY factory is called a stainless steel ball valve. It is composed of two left and right valve bodies connected by bolts. When fixing, the two valve bodies clamp the ball valve. The maintenance is relatively difficult. The most important thing is to look at the tightness of the screws in the middle.

How, this is directly related to whether the seal is tight. In addition, it is mainly used in normal pressure and high pressure environments. Like non-standard valves with nominal diameters below DN50, they are also two-piece valves.

This valve is fixed by two pieces of valve body sandwiching the sphere, and the maintenance is more complicated. The tightness of the middle screw is very important, and the relationship is whether there is air leakage. It is a commonly used valve.

Key Features

1.Easier repairs: The valve can be opened to replace seals or clean internal components.

2.Better for high-pressure systems: Often used in industrial settings.

3.Longer lifespan: Servicing extends its usability compared to a 1-piece valve.

Specification

Standard: DIN, 3A, SMS, RJT, ISO, IDF, DS, Macon

Size: 1’’-6’’, DN10-DN200, 17.2-168.3

Material Grade: 304, 304L, 316, 316L

Seal Material: EPDM, PTFE

Roughness: 1.Ra≤1.6µm 2.Ra≤0.8µm 3.Ra≤0.4 (Polished)

Applications

1.Widely applicable for controlling the flow of liquids and gases, such as in water treatment, petroleum and natural gas, chemical manufacturing, and heating systems.

2.Suitable for high pressures, high temperatures, and low temperatures, meeting various operational requirements.

Product advantages

1.The fluid resistance is very low. The 2 PC Ball Valve is about the same as a pipe with the same length.

2.The structure is simple, the size is small, and it is very light in weight.

3.It is tight and dependable. Plastic is commonly used as the sealing material in ball valves. It provides excellent sealing and is also widely used in vacuum systems.

4.It is easy to operate and opens or closes very fast. You only need to turn it 90 degrees to go from fully open to fully closed. This makes it easy to control from a distance.

5.It is easy to maintain. Ball valves have a simple design, and the seals are usually movable, so they are easy to take out and replace.

FAQ

Q1: What is the difference between a 2 PC Ball Valve and one-piece and three-piece ball valves?

A:One-piece: Integrated valve body, small in size and low in cost, but cannot be maintained online.

Two-piece: Main valve body + auxiliary valve body bolted together, can be disassembled and maintained online, suitable for most industrial conditions.

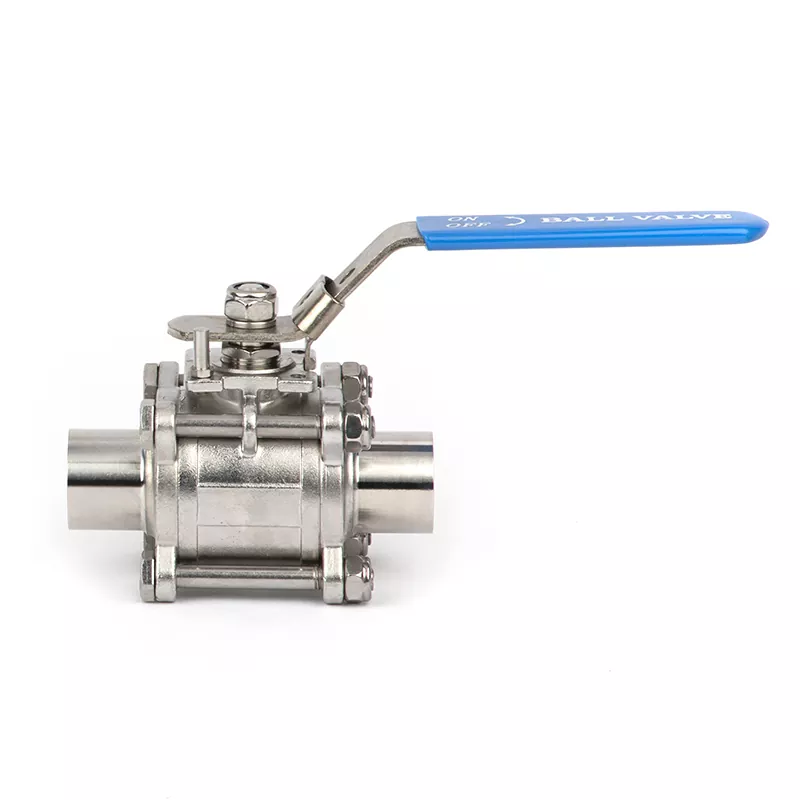

Three-piece: An additional middle body in between, can be disassembled as a whole and thoroughly cleaned inside, suitable for occasions requiring high cleanliness or frequent replacement of seals.

Q2: What is the minimum order quantity? Can you provide samples?

A: Standard sizes have no minimum order quantity restrictions and support mixed batch purchasing. We also offer paid sample services, and sample orders enjoy technical support and quality assurance as well, with material reports and test records available according to customer requirements.

Q3: What is delivery time?

A: Standard stock products: 3-7 working days

Custom products (non-standard size/special material/special interface): 30-45 days

We maintain stock of 304/316L stainless steel blanks and semi-finished products, and cooperate with multiple international logistics companies to support sea, air, and express door-to-door services.

Q4: What are VTY's technical advantages in ball valve manufacturing?

A: VTY owns 134 MAZAK brand CNC machines, which offer high machining precision and good consistency. At the same time, we have mass production capabilities for the full range of ball valves from DN15 to DN100, independently controlling the entire process from blank forging to finished product assembly, ensuring stable quality and controllable delivery times.

Get Quotes and Technical Support

You are welcome to contact the VTY sales team through the following methods. We will respond within one working day and provide detailed technical data, drawings, and the most competitive prices.

Email：vty@wzvty.com

Tel. / WhatsApp：+86-13567797796 / +86-15857712312

Add: No.729, Road 3, Binhai Industrial Zone, Wenzhou, Zhejiang, China

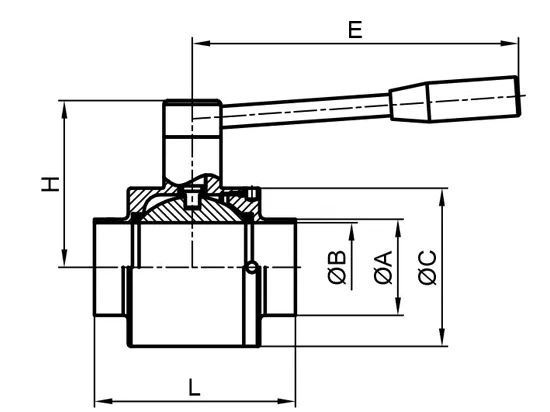

Manual Ball Valve, Welded End

SIZE	A	B	C	E	H	L
DN25	29	26	50	125	64.8	91
DN32	35	32	59	125	70	100
DN40	41	38	70	140	75.5	101
DN50	53	50	89	184	93.8	113
DN65	70	66	110	215	106.8	133
DN80	85	81	140	245	131.5	158
DN100	104	100	163	275	143.5	188
1"	25.4	22.4	50	125	64.8	87
11/4”	31.8	28.8	59	125	70	95
11/2"	38.1	35.1	70	140	75.5	104
2"	50.8	47.8	78	184	82.8	115
21/2"	63.5	60.2	100	215	96.8	138
3"	76.2	72.9	114	245	105.5	165
4"	101.6	97.6	163	275	143.5	197

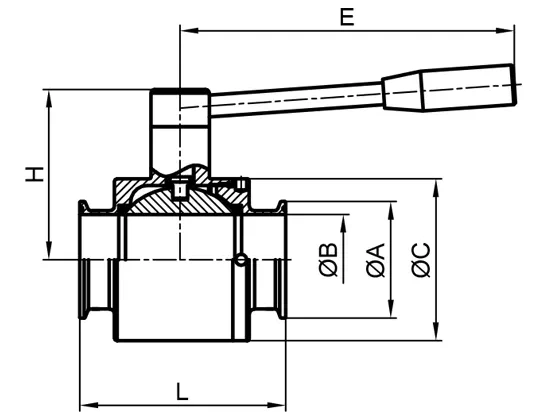

Manual Ball Valve, Clamp End

SIZE	A	B	C	E	H	L
DN25	50.5	26	50	125	64.8	91
DN32	50.5	32	59	125	70	100
DN40	50.5	38	70	140	75.5	101
DN50	64	50	89	184	93.8	113
DN65	91	66	110	215	106.8	133
DN80	106	81	140	245	131.5	158
DN100	119	100	163	275	143.5	188
1"	50.5	22.4	50	125	64.8	87
11/4”	50.5	28.8	59	125	70	95
11/2"	50.5	35.1	70	140	75.5	104
2"	64	47.8	78	184	82.8	115
21/2"	77.5	60.2	100	215	96.8	138
3"	91	72.9	114	245	105.5	165
4"	119	97.6	163	275	143.5	197

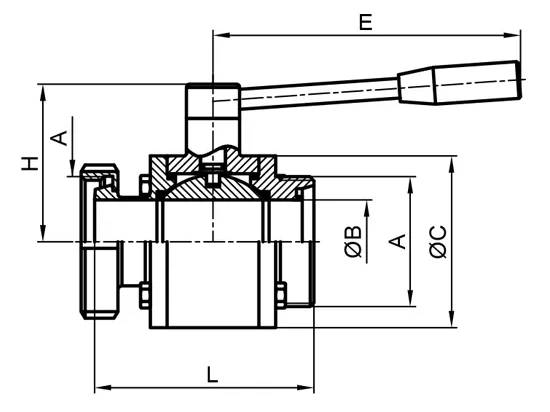

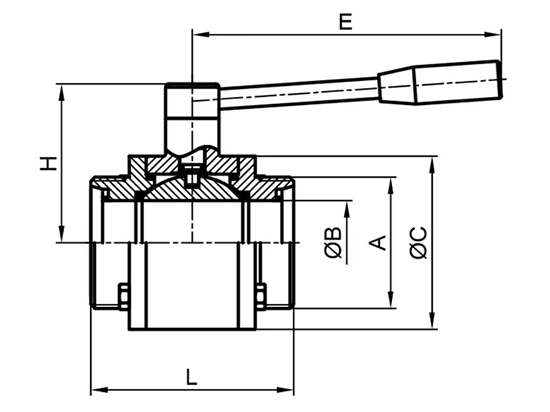

Manual Ball Valve, Male Threaded End

SIZE	A	B	C	E	H	L
DN25	Rd52x1/6"	26	50	125	64.8	91
DN32	Rd58x1/6"	32	59	125	70	100
DN40	Rd65x1/6"	38	70	140	75.5	101
DN50	Rd78x1/6"	50	89	184	93.8	113
DN65	Rd95x1/6"	66	110	215	106.8	133
DN80	Rd110x1/4"	81	140	245	131.5	158
DN100	Rd130x1/4"	100	163	275	143.5	188
25	Rd40x1/6"	22.4	50	125	64.8	87
32	Rd48x1/6"	28.8	59	125	70	95
38	Rd60x1/6"	35.1	70	140	75.5	104
51	Rd70x1/6"	47.8	78	184	82.8	115
63.5	Rd85x1/6"	60.2	100	215	96.8	138
76	Rd98x1/6"	72.9	114	245	105.5	165
101.6	Rd132x1/6"	97.6	163	275	143.5	197

Manual Ball Valve, Male/Union

SIZE	A	B	C	E	H	L
DN25	Rd52x1/6"	26	50	125	64.8	106
DN32	Rd58x1/6"	32	59	125	70	115
DN40	Rd65x1/6"	38	70	140	75.5	116
DN50	Rd78x1/6"	50	89	184	93.8	129
DN65	Rd95x1/6"	66	110	215	106.8	150
DN80	Rd110x1/4"	81	140	245	131.5	175
DN100	Rd130x1/4"	100	163	275	143.5	208
25	Rd40x1/6"	22.4	50	125	64.8	95
32	Rd48x1/6"	28.8	59	125	70	103
38	Rd60x1/6"	35.1	70	140	75.5	113
51	Rd70x1/6"	47.8	78	184	82.8	124
63.5	Rd85x1/6"	60.2	100	215	96.8	147
76	Rd98x1/6"	72.9	114	245	105.5	175
101.6	Rd132x1/6"	97.6	163	275	143.5	209

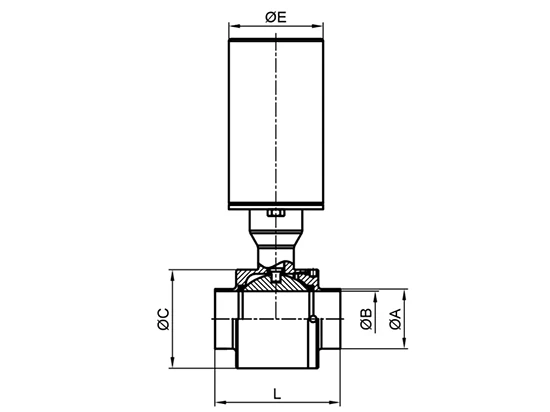

Vertical Pneumatic Ball Valve, Welded End

SIZE	A	B	C	E	L
DN25	29	26	50	85	91
DN32	35	32	59	85	100
DN40	41	38	70	85	101
DN50	53	50	89	85	113
DN65	70	66	110	85	133
DN80	85	81	140	85	158
DN100	104	100	163	85	188
1"	25.4	22.4	50	85	87
11/4"	31.8	28.8	59	85	95
11/2"	38.1	35.1	70	85	104
2"	50.8	47.8	78	85	115
21/2"	63.5	60.2	100	85	138
3"	76.2	72.9	114	85	165
4"	101.6	97.6	163	85	197

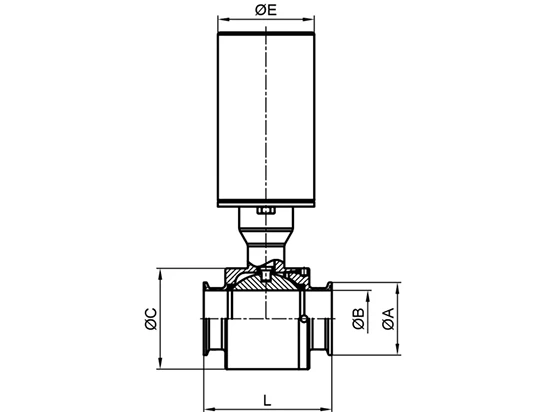

Vertical Pneumatic Ball Valve, Clamp End

SI	A	B	C	E	L
DN25	50.5	26	50	85	91
DN32	50.5	32	59	85	100
DN40	50.5	38	70	85	101
DN50	64	50	89	85	113
DN65	91	66	110	85	133
DN80	106	81	140	85	158
DN100	119	100	163	85	188
1"	50.5	22.4	50	85	87
11/4"	50.5	28.8	59	85	95
11/2"	50.5	35.1	70	85	104
2"	64	47.8	78	85	115
21/2"	77.5	60.2	100	85	138
3"	91	72.9	114	85	165
4"	119	97.6	163	85	197

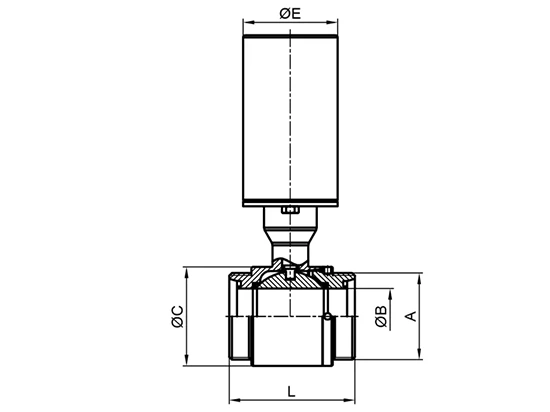

Vertical Pneumatic Ball Valve, Male Threaded End

SIZE	A		B		C		E	L
DN25	Rd52x1/6"		26		50		85	91
DN32	Rd58x1/6"		32		59		85	100
DN40	Rd65x1/6"		38		70		85	101
DN50	Rd78x1/6"		50		89		85	113
DN65	Rd95x1/6"		66		110		85	133
DN80	Rd110x1/4"		81		140		85	158
DN100	Rd130x1/4"		100		163		85	188
25	Rd40x1/6"		22.4		50		85	87
32	Rd48x1/6"		28.8		59		85	95
38	Rd60x1/6"		35.1		70		85	104
51	Rd70x1/6"		47.8		78		115
63.5	Rd85x1/6"		60.2		100		85	138
76	Rd98x1/6"		72.9		114		85	165
101.6	Rd132x1/6"		97.6		163		85	197

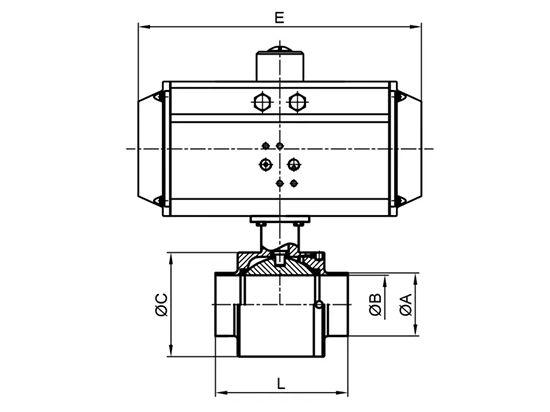

Horizontal Pneumatic Ball Valve, Welded End

SI	A	B		C		E		L
DN25	29	26		50		163		91
DN32	35	32		59		214		100
DN40	41	38		70		214		101
DN50	53	50		89		252		113
DN65	70	66		110		270		133
DN80	85	81		140		316		158
DN100	104	100		163		354		188
1"	25.4	22.4		50		163		87
11/4"	31.8	28.8		59		214		95
11/2"	38.1	35.1		70		214		104
2"	50.8	47.8		78		252		115
21/2"	63.5	60.2		100		270		138
3"	76.2	72.9		114		316		165
4"	101.6	97.6		163		354		197

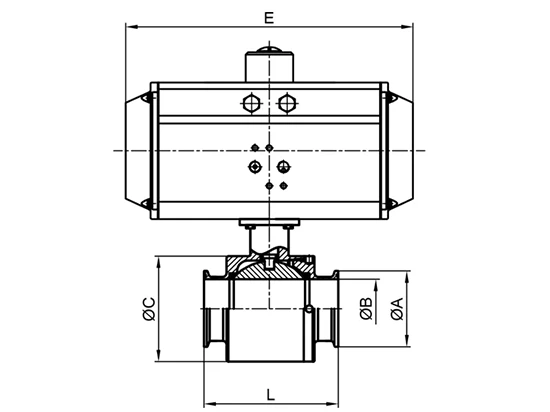

Horizontal Pneumatic Ball Valve, Clamp End

SIZE		A	B		C		E		L
DN25		50.5	26		50		163		91
DN32		50.5	32		59		214		100
DN40		50.5	38		70		214		101
DN50		64	50		89		252		113
DN65		91	66		110		270		133
DN80		106	81		140		316		158
DN100		119	100		163		354		188
1"		50.5	22.4		50		163		87
11/4"		50.5	28.8		59		214		95
11/2"		50.5	35.1		70		214		104
2"		64	47.8		78		252		115
21/2"		77.5	60.2		100		270		138
3"		91	72.9		114		316		165
4"		119	97.6		163		354		197

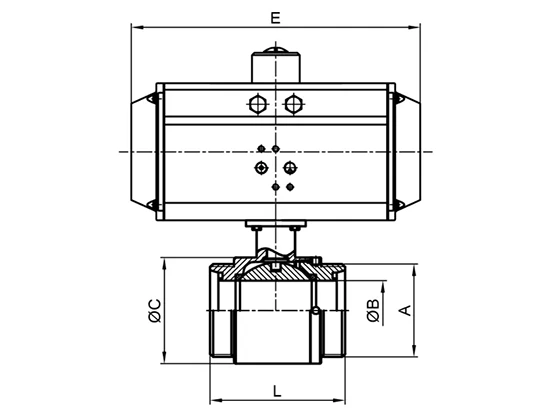

Horizontal Pneumatic Ball Valve, Male Threaded End

SIZE	A			B		C		E		L
DN25	Rd52x1/6"			26		50		163		91
DN32	Rd58x1/6"			32		59		214		100
DN40	Rd65x1/6"			38		70		214		101
DN50	Rd78x1/6"			50		89		252		113
DN65	Rd95x1/6"			66		110		270		133
DN80	Rd110x1/4"			81		140		316		158
DN100	Rd130x1/4"			100		163		354		188
25	Rd40x1/6"			22.4		50		163		87
32	Rd48x1/6"			28.8		59		214		95
38	Rd60x1/6"			35.1		70		214		104
51	Rd70x1/6"			47.8		78		252		115
63.5	Rd85x1/6"			60.2		100		270		138
76	Rd98x1/6"			72.9		114		316		165
101.6	Rd132x1/6"			97.6		163		354		197
