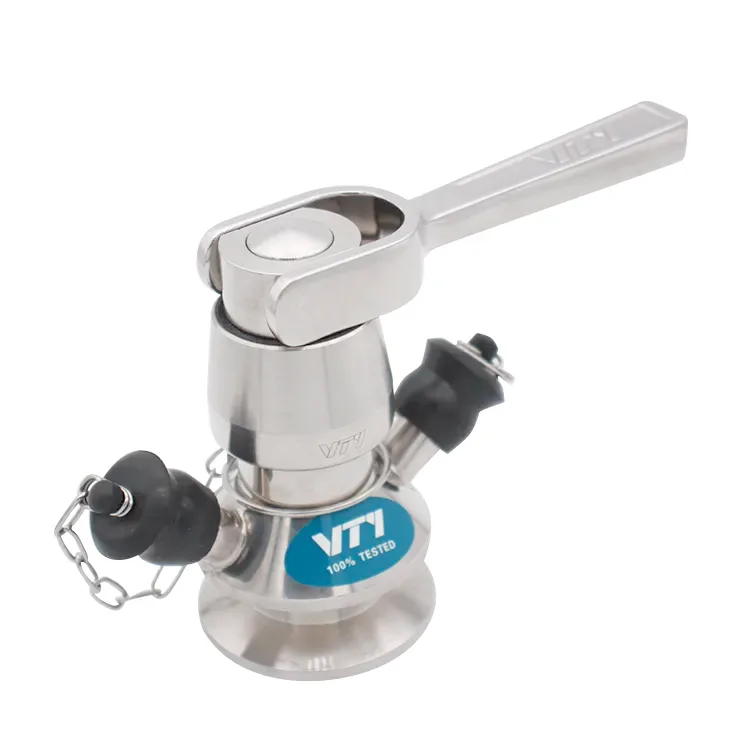

Aseptic Sampling Valves

VTY aseptic sampling valves are built for safe, contamination-free sampling in food, beverage, and lab production. Thanks to their smart design, these valves can be cleaned with CIP or sterilized with steam using SIP while closed, protecting the diaphragm and valve chamber.

The flush-mounted diaphragm prevents product buildup and ensures zero dead legs, while the body design allows for complete draining. Available in manual or pneumatic versions, they are easy to use, interchangeable, and fully autoclavable. VTY also offers customizable options to match your specific project needs.

Key features

1.Easy Sterilization: You can easily sterilize the valve on-site using either steam or alcohol.

2.Zero Dead Ends: We replaced the traditional seal ring with a high-quality diaphragm. This removes dead corners, preventing product buildup and ensuring a more thorough sterilization.

3.Quick Draining: The enlarged outlet quickly flushes out dirt and residue immediately after sterilization.

4.Flexible Sampling: The adjustable design allows you to easily switch between large-volume sampling and micro-sampling.

5.Versatile Connections: The valve features mini tri-clamp connections on both the inlets and outlets. Additionally, the valve heads are available with various operation styles and membrane types to fit your needs.

Applications

VTY aseptic sampling valves are widely used in:

• Dairy processing systems
• Brewery and craft beer production
• Beverage and juice manufacturing
• Pharmaceutical sterile production
• Liquid cooling systems
• Laboratory and biotech systems

Quality and Certification

1. ISO 9001 Quality Management System
2. ISO 14001 Environmental Management

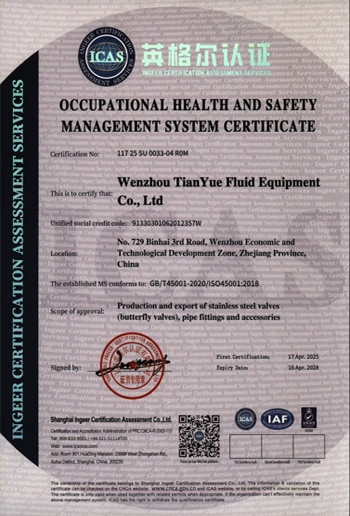

3. ISO 45001 Occupational Health & Safety

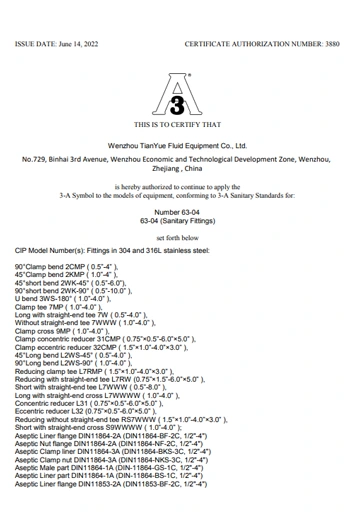

4. 3A Sanitary Standard Compliance
5. National patents & intellectual property system

FAQ

Q1: What is an aseptic sampling valve used for?

It is used to safely collect sterile samples from processing systems without contamination.

Q2: Can VTY sampling valves be sterilized?

Yes, they support both CIP cleaning and SIP steam sterilization.

Q3: What industries use aseptic sampling valves?

They are widely used in food, beverage, dairy, pharmaceutical, and biotech industries.

Q4: What materials are available?

Stainless steel 304 and 316L with food-grade diaphragm options.

Q5: Do you support customization?

Yes, VTY provides OEM/ODM customization based on drawings or requirements.

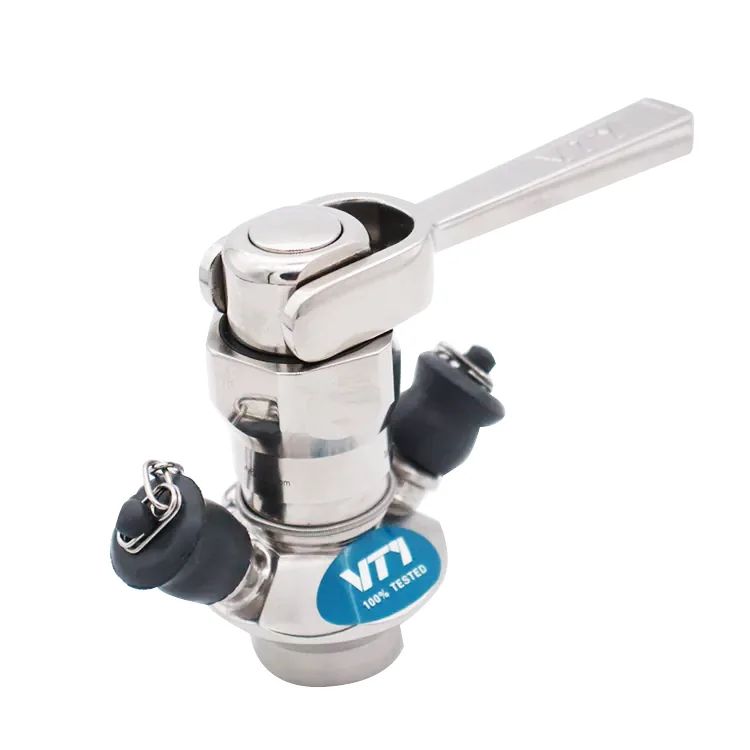

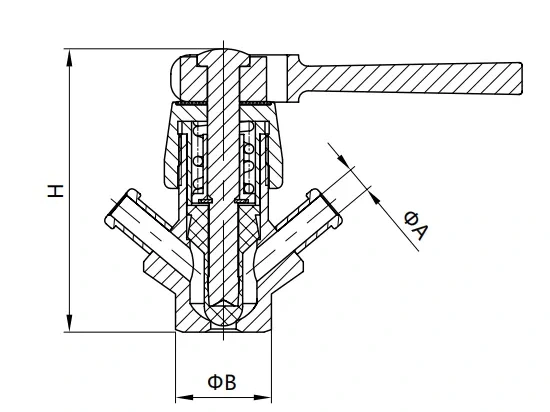

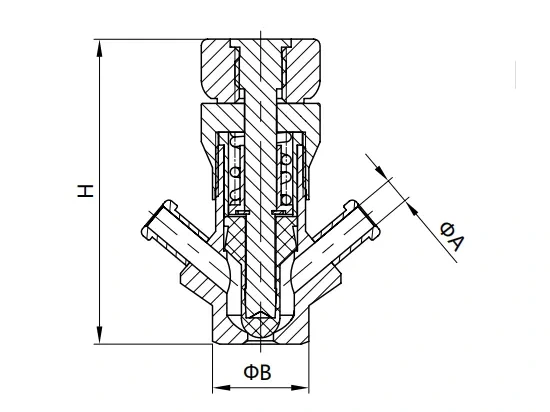

PW1-0R3

Manual Aseptic Sampling Valve, Welded End

Size	A	B	H
8	8	30	88.7
10	10	30	88.7

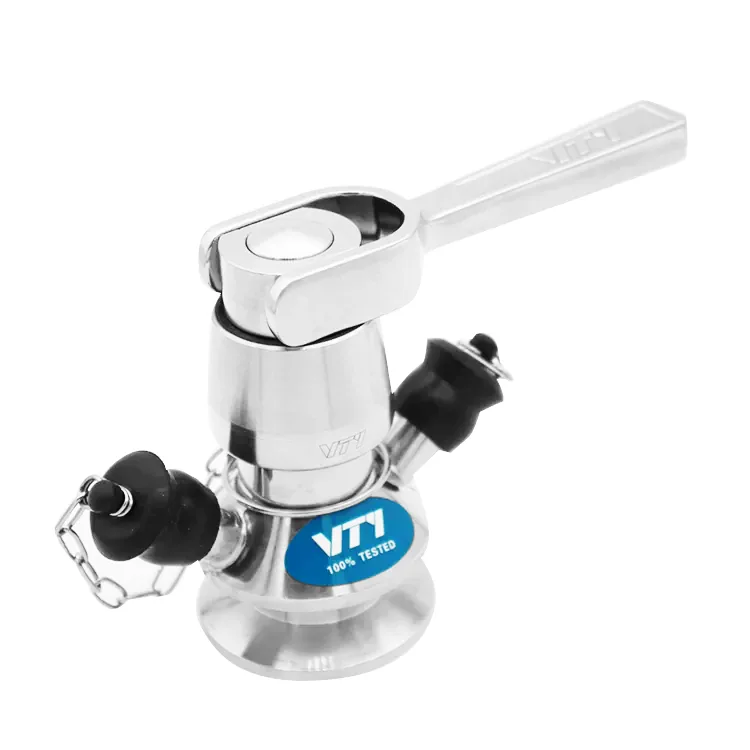

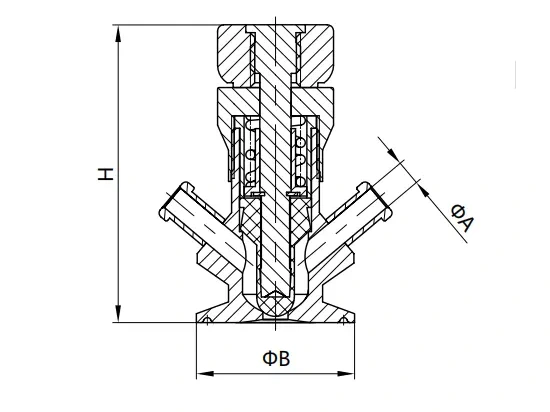

PW1-0R2

Manual Aseptic Sampling Valve, Clamp End

Size	A	B	H
8-34	8	34.0	88.7
8-50	8	50.5	88.7
8-64	8	64.0	88.7
10-34	10	34.0	88.7
10-50	10	50.5	88.7
10-64	10	64.0	88.7

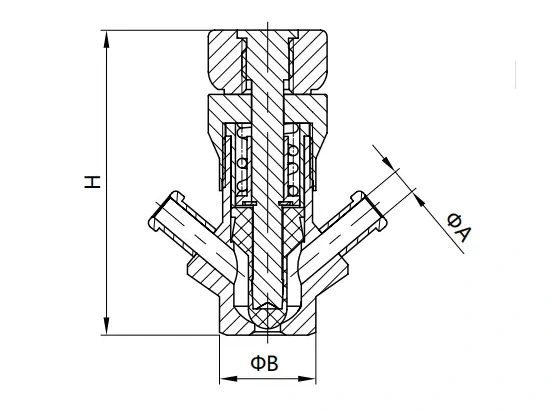

PW10-0R3

Manual Aseptic Sampling Valve, Welded End

Size	A	B	H
8	8	30	95
10	10	30	95

PW10-0R2

Manual Aseptic Sampling Valve, Clamp End

Size	A	B	H
8-34	8	34.0	95
8-50	8	50.5	95
8-64	8	64.0	95
10-34	10	34.0	95
10-50	10	50.5	95
10-64	10	64.0	95

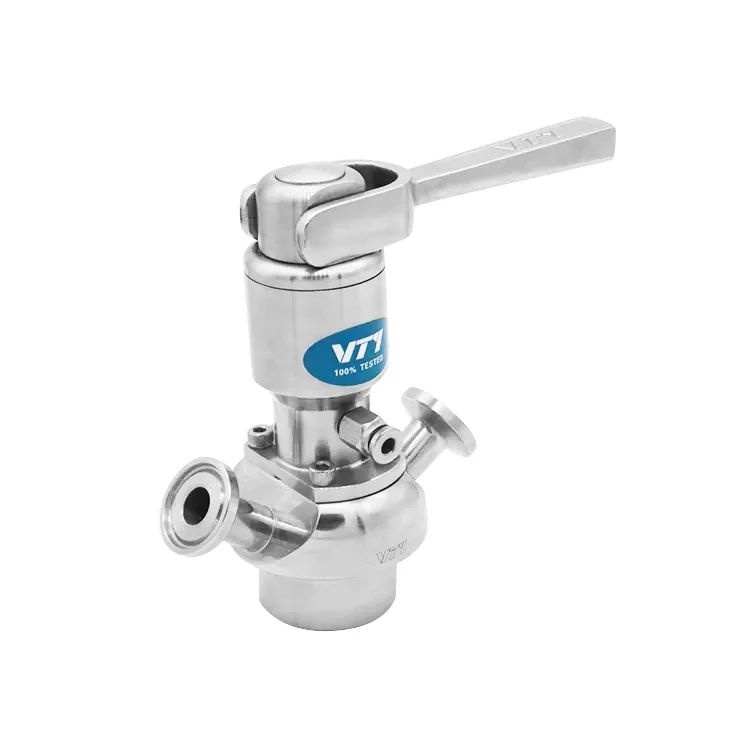

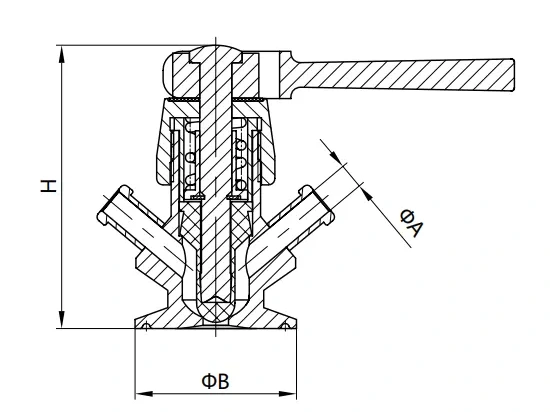

PW3-022

Manual Aseptic Sampling Valve, Clamp End

Size	A	B	H
1/2"-34	25	34.0	91.6
1/2"-50	25	50.5	91.6
1/2"-64	25	64.0	91.6

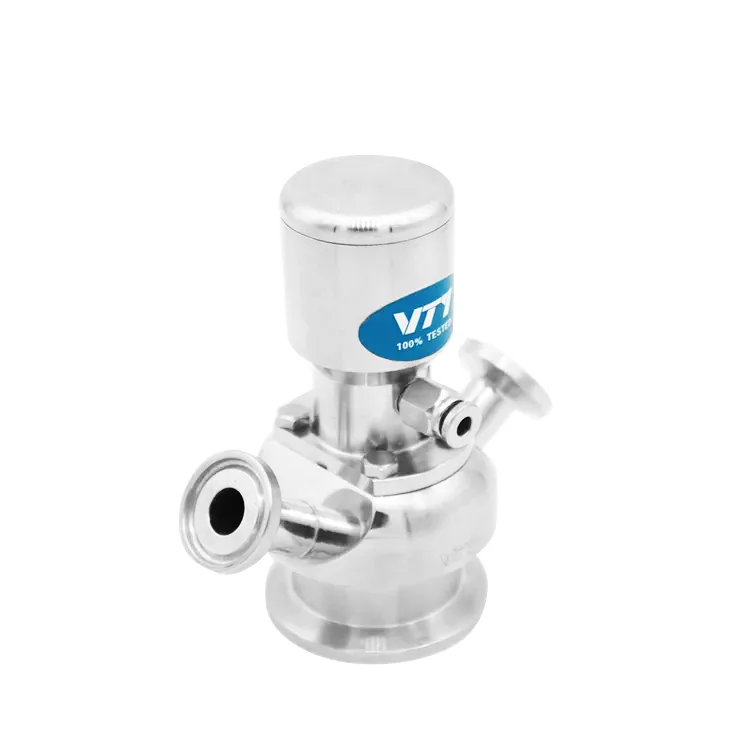

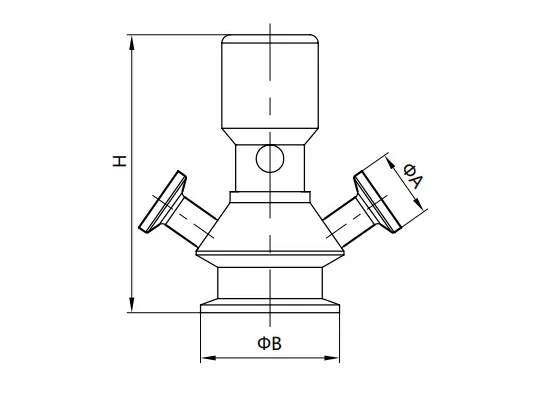

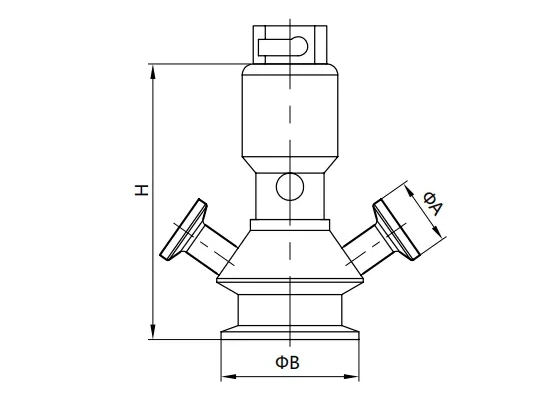

PW2-002

Pneumatic Aseptic Sampling Valve, Clamp End

Size	A	B	H
1/2"-34	25	34.0	100
1/2"-50	25	50.5	100
1/2"-64	25	64.0	100

PW2-003

Manual / Pneumatic Aseptic Sampling Valve, Clamp End

Size	A	B
1/2"-34	25	34.0	100
1/2"-50	25	50.5	100
1/2"-64	25	64.0	100
