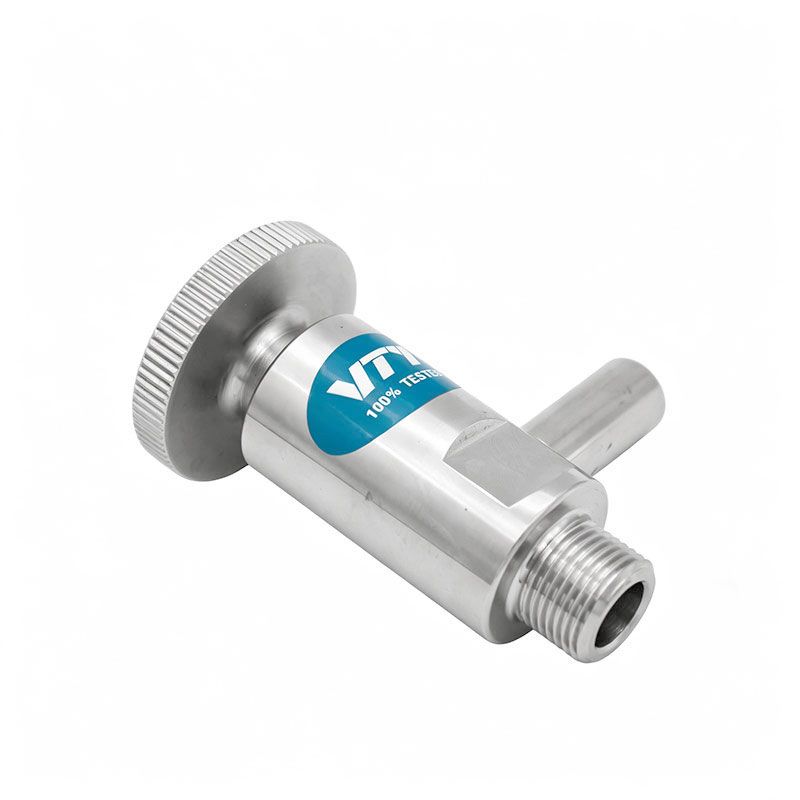

Sanitary Sampling Valve

The sanitary sampling valve from VTY is a device designed to collect liquid samples for analysis in hygienic or aseptic processes. These valves are completely autoclavable. They allow for sampling at the center of the line, obtaining the desired representative sample.

They are inexpensive and easy to use, and are applied to aseptic collection of material sample in the hygienic industries like brewery, semiconductor and biopharmaceutical water systems etc. With different pipe fitting connection ends, they can be easily applied in pipelines and tank equipment.

These valves make it easy for operators to retrieve samples from the line without disrupting production. VTY can offer sanitary sampling valves in a wide range of industries, including pharmaceuticals, food & beverage, and dairy.

Key features:

Zero Contamination: No hidden spots where germs can hide. So new samples never mix with old product.

Premium Materials: Made from rust-proof 316L and 304 stainless steel. All seals use FDA-safe materials like PTFE, EPDM, or Silicone.

Smooth Surface: The inside is super smooth, so nothing sticks to it. That makes it very easy to clean.

Application

Sanitary Sampling Valves are used in clean industries like food, drinks, medicine, and chemicals. They give you a simple, cheap, and reliable way to take the same sample again and again for safety testing.

For example, in soft drink factories, workers use these valves to collect samples from water tanks and pipes to check for harmful bacteria or chemicals. This makes sure every drink you buy is safe. In pharma, they help test drugs during production to meet strict health rules. In chemicals, they sample fluids from reactors to prevent contamination.

We offer a wide range of stainless-steel sample valves for beverage, pharma, and semiconductor use. Every valve is thoroughly cleaned in a special washing chamber with spray injectors to keep it sterile. A clean valve means better quality, lower maintenance costs, and better performance for your equipment.

Why Choose VTY Sampling Valve?

Wenzhou Tianyue Fluid Equipment Co., Ltd. is a state-certified high-tech manufacturer specializing in hygienic fluid equipment.

Advantages:

• 13,000㎡ factory with CNC machining system
• 134 MAZAK CNC machines
• Full testing lab (CMM, roughness, hardness, spectrometer)
• 95% export to EU market
• Compliance with 3A, DIN, SMS, ISO standards

PV1-0R2

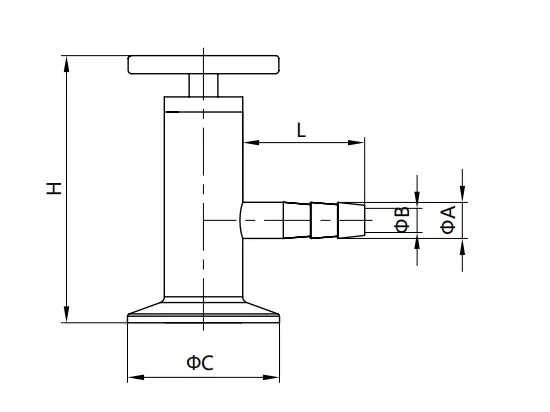

PV1 Sampling Valve, Clamp End

Size	A	B	C	H	L
6-25	10	6	25.2	87	40.5
6-34	10	6	34.0	87	40.5
6-50	10	6	50.5	87	40.5
6-64	10	6	64.0	87	40.5
8-25	12	8	25.2	87	40.5
8-34	12	8	34.0	87	40.5
8-50	12	8	50.5	87	40.5
8-64	12	8	64.0	87	40.5
10-25	14	10	25.2	87	40.5
10-34	14	10	34.0	87	40.5
10-50	14	10	50.5	87	40.5
10-64	14	10	64.0	87	40.5

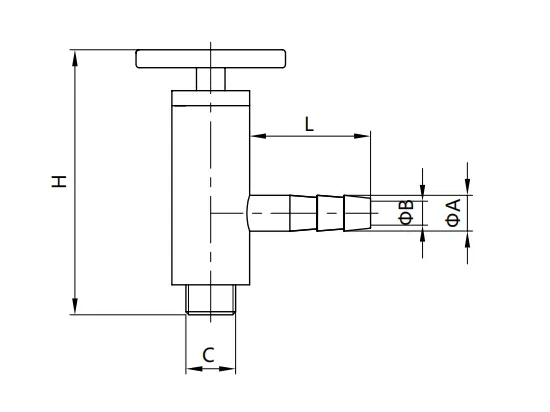

PV1-0R1

PV1 Sampling Valve, Threaded End

Size	A	B	C	L	T
6-3/8"	12	8	BSP3/8	87	40.5
6-1/2"	12	8	BSP1/2	87	40.5
8-3/8"	12	8	BSP3/8	87	40.5
8-1/2"	12	8	BSP1/2	87	40.5
10-3/8"	14	10	BSP3/8	87	40.5
10-1/2"	14	10	BSP1/2	87	40.5

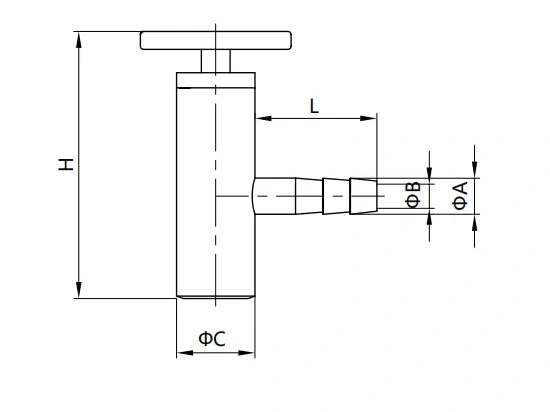

PV1-033

PV1 Sampling Valve, Welded End

Size	A	B	C	L	T
6	10	6	26	87	40.5
8	12	8	26	87	40.5
10	14	10	26	87	40.5

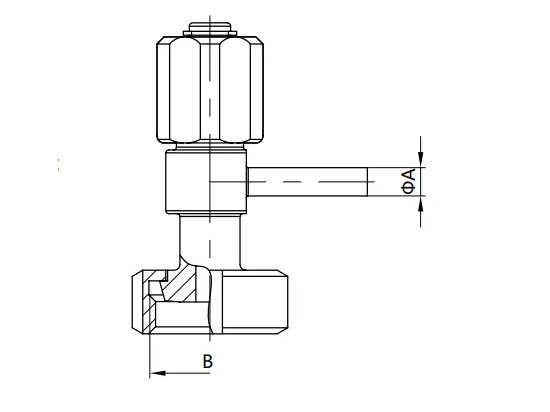

PV2-036

PV2 Sampling Valve, Union End

Size		A		B
6-10		8		Rd28x1/8"
6-15		8		Rd34x1/8"
6-20		8		Rd44x1/6"

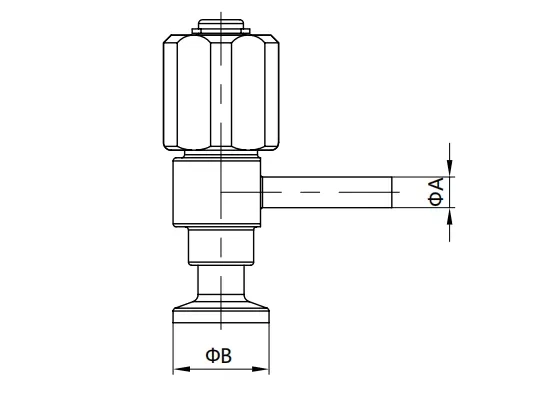

PV2-032

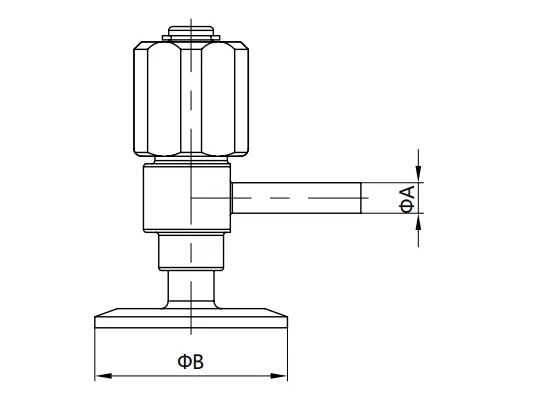

PV2 Sampling Valve, Clamp End

Size	A	B
6-25	8	25.2
6-25	8	34.0

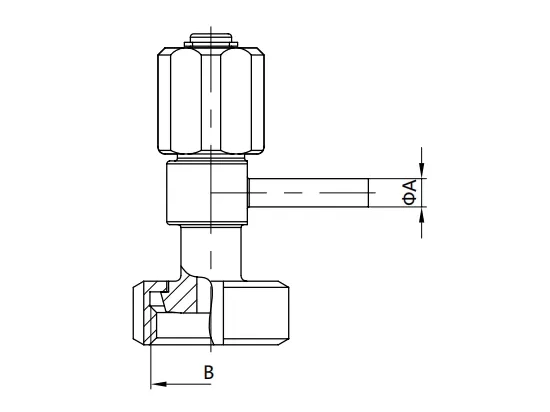

PV2-031

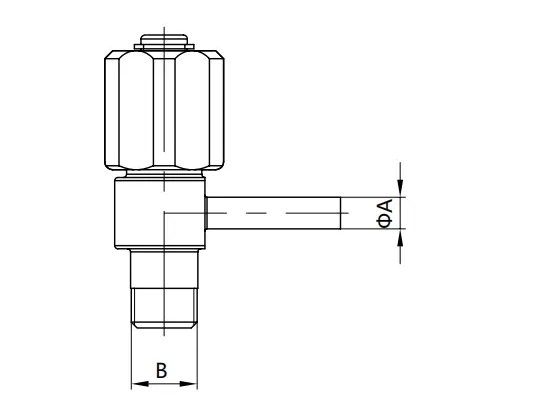

PV2 Sampling Valve, Threaded End

Size	A	B
6-1/4	8	BSP1/4
6-38	8	BSP3/8
6-1/2	8	BSP1/2
6-5/8	8	BSP5/8

PV2-032

PV2 Sampling Valve, Clamp End

Size	A	B
6	8	50.5

PV2-033

PV2 Sampling Valve, Welded End

Size	A	B
6	8	12
6	8	13
6	8	18

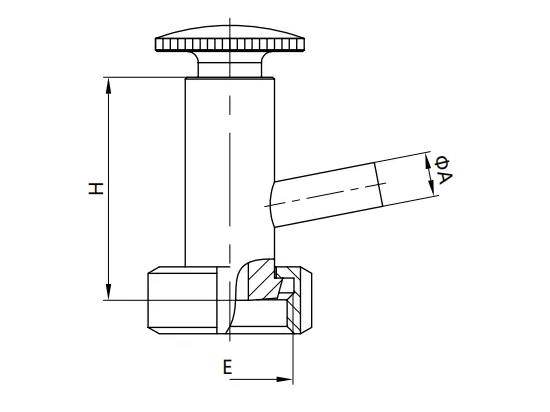

PV3-036

PV3 Sampling Valve, Union End

Size	A	B	H
8-10	10	Rd28×1/8"	60
8-15	10	Rd34×1/8"	60
8-20	10	Rd44×1/6"	60
10-10	12	Rd28×1/8"	60
10-15	12	Rd34×1/8"	60
10-20	12	Rd44×1/6"	60
12-10	14	Rd28×1/8"	60
12-15	14	Rd34×1/8"	60
12-20	14	Rd44×1/6"	60

PV3-031

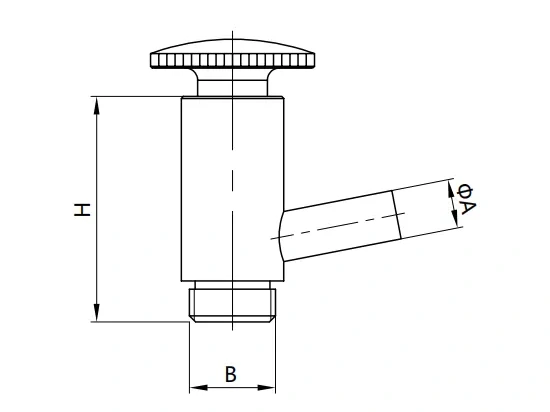

PV3 Sampling Valve, Threaded End

Size	A	B	H
8-3/8"	10	BSP3/8	55
8-1/2"	10	BSP1/2	55
10-3/8"	12	BSP3/8	55
10-1/2"	12	BSP1/2	55
12-3/8"	14	BSP3/8	55
12-1/2"	14	BSP1/2	55

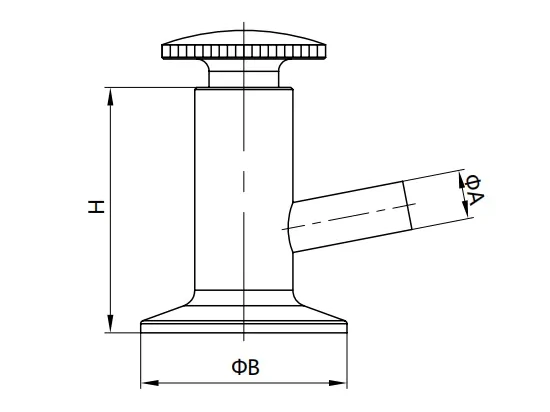

PV3-032

PV3 Sampling Valve, Clamp End

Size	A	B	H
8-25	10	25.2	60
8-34	10	34.0	60
8-50	10	50.5	60
8-64	10	64.0	60
10-25	12	25.2	60
10-34	12	34.0	60
10-50	12	50.5	60
10-64	12	64.0	60
12-25	14	25.2	60
12-34	14	34.0	60
12-50	14	50.5	60
12-64	14	64.0	60
