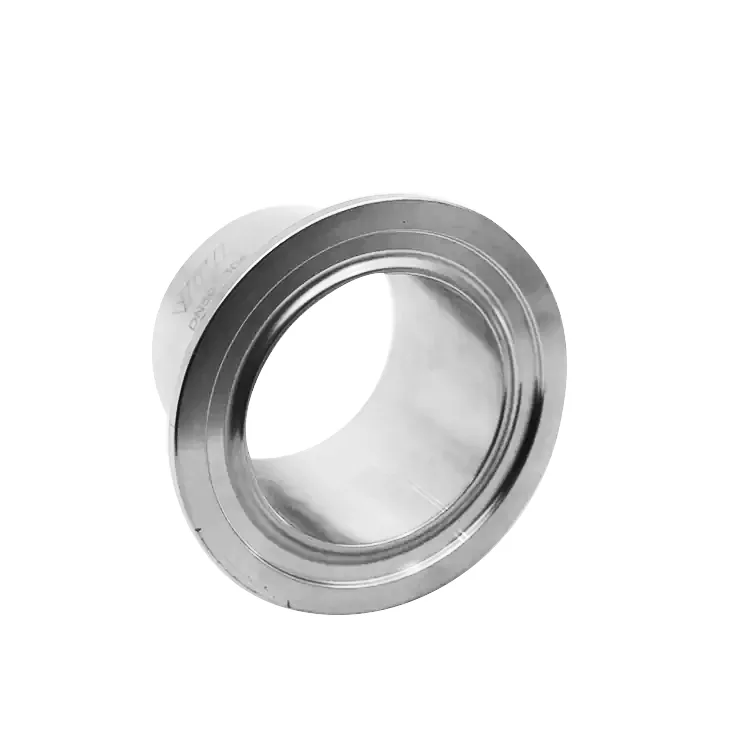

DIN 11864 and DIN 11853 Aseptic Clamp Connection

The DIN 11864 and DIN 11853 Aseptic Clamp Connection from VTY factory has been developed by the German hygienic industry to meet the exacting needs of the pharmaceutical, food and fine chemical industries.

DIN 11864 → Long ends, suitable for permanent aseptic piping systems requiring welding integration.

DIN 11853 → Short ends, ideal for compact or frequently reconfigured aseptic lines.

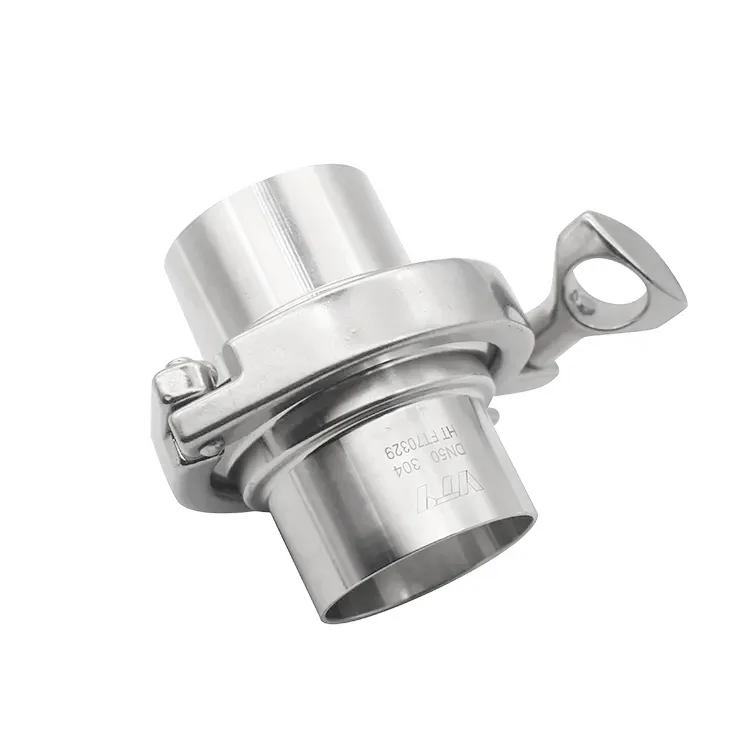

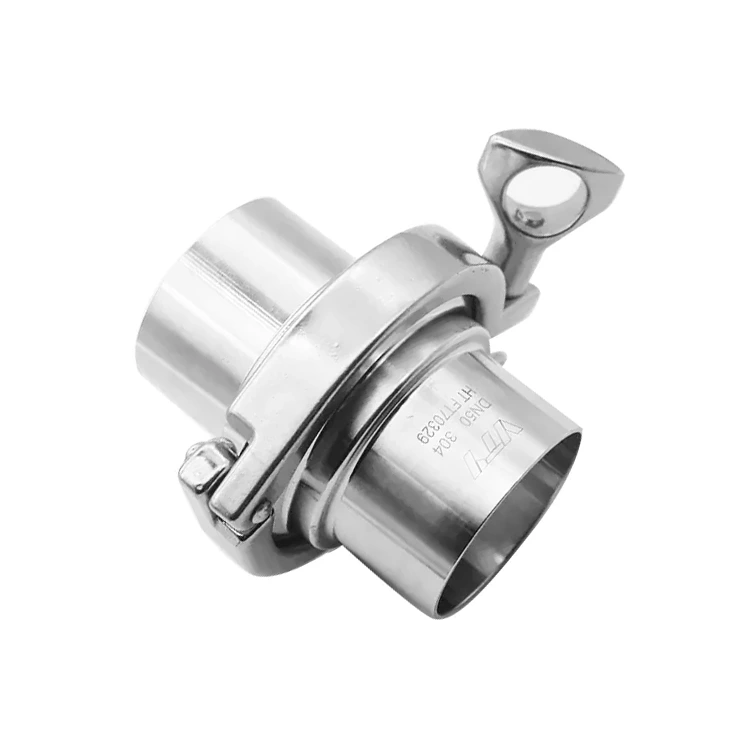

Defines Aseptic Clamp Connections specifically engineered for hygienic and aseptic environments, such as in the food, pharmaceutical, and biotechnology industries. A complete Aseptic Clamp Connection is consisted of a Clamp Nut, a Clamp Liner, an O-ring and a Heavy Duty Clamp.

These connections from VTY utilize a clamp mechanism that enables rapid assembly and disassembly, making them ideal for systems that require frequent cleaning, maintenance, or reconfiguration.

Real application

DIN 11864 is preferred in biotech fermentation skids; DIN 11853 is widely chosen in dairy and liquid filling lines where space is constrained.

Key Features

Aseptic clamp coupling.

Features tool-less assembly paired with a dead-space-eliminating sealing design compliant with DIN 11864.

Optimized for systems needing regular, rapid connection and disconnection.

Why Choose VTY?

1. In-house Precision Manufacturing

134 CNC machine tools (over 90% Mazak), including machining centers and laser cutting machines.

2. Independent Quality Laboratory

Coordinate measuring machine, surface roughness tester, spectrometer, hardness tester, thickness gauge—every batch of products undergoes inspection.

3. Comprehensive Certifications

3A Certification, ISO 9001, ISO 14001, ISO 45001 Certifications, National Sanitary License.

4. EU Market Verification

Approximately 95% of products are exported to Germany, Denmark, the Netherlands, Italy, France, and Spain.

5. Direct Communication

General Manager Renee Zhang (fluent in English) leads technical discussions.

Factory and Quality Assurance

👉 [View VTY's 13,000 square meter factory and MAZAK CNC production line →]

👉 [Download product catalog →]

FAQ

Q1: What is the difference between DIN 11864 and DIN 11853?

A: DIN 11864 has longer weld ends, better for permanent aseptic piping. DIN 11853 has shorter ends for compact systems.

Q2: Can VTY produce non-standard sizes?

A: Yes. VTY supports custom-engineered aseptic connections based on drawings.

Q3: Are these clamps compatible with other EU standards?

A: Yes. VTY also manufactures SMS, 3A, ISO, IDF, RJT, and DIN11851 variants.

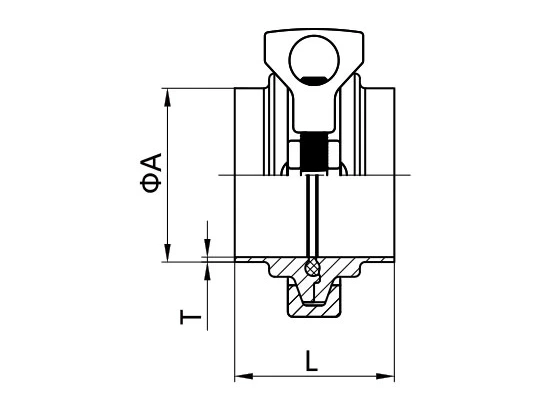

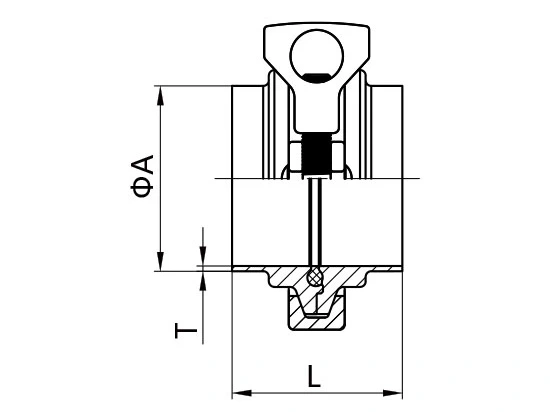

DIN Tube (Form A)

DIN11853-K-A / DIN11864-K-A

Aseptic Clamp Connection, Welded End

Size		A		L		L(Long)		T
10		13		44		76		1.5
15		19		44		76		1.5
20		23		44		76		1.5
25		29		44		77		1.5
32		35		48		88		1.5
40		41		48		88		1.5
50		53		49		89		1.5
65		70		53		113		2.0
80		85		57		117		2.0
100		104		60		120		2.0

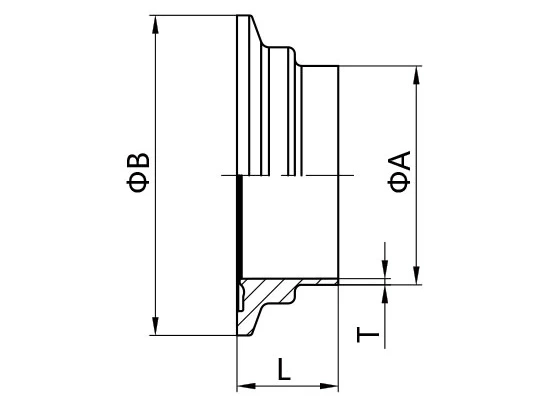

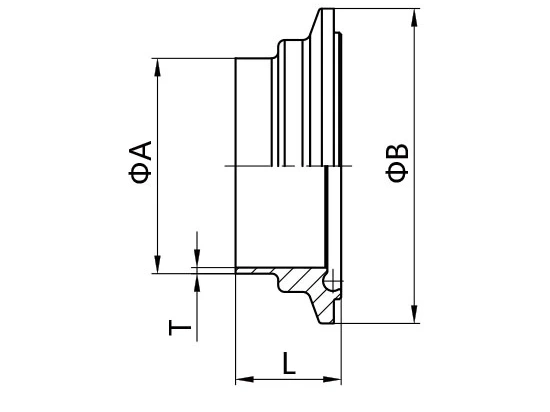

DIN11853-BKS-3A / DIN11864-BKS-3A

Aseptic Nut, Clamp End

Size	A		B		L		ong)		T
10	13		34.0		23.5		39.5		1.5
15	19		34.0		23.5		39.5		1.5
20	23		50.5		23.5		39.5		1.5
25	29		50.5		23.5		40.0		1.5
32	35		50.5		25.5		45.5		1.5
40	41		64.0		25.5		45.5		1.5
50	53		77.5		26.0		46.0		1.5
65	70		91.0		28.0		58.0		2.0
80	85		106.0		30.0		60.0		2.0
100	104		130.0		31.5		61.5		2.0

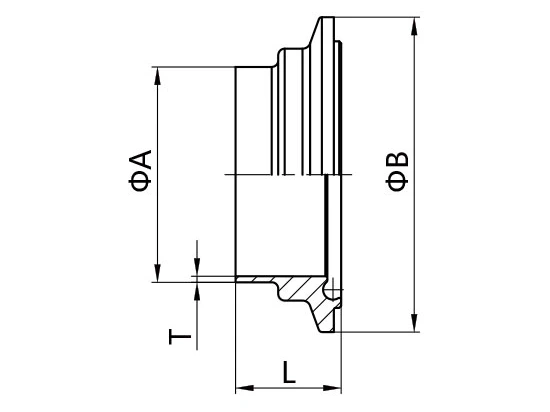

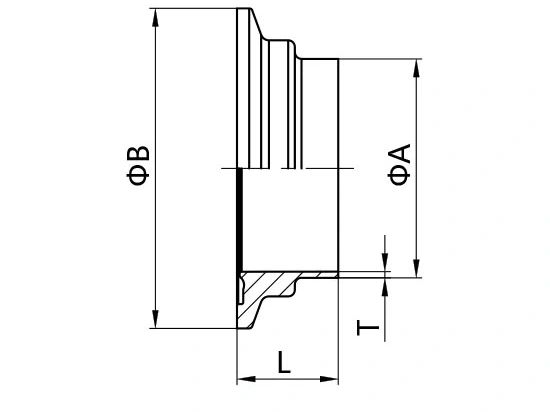

DIN11853-BBKS-3A / DIN11864-BBKS-3A

Aseptic Liner, Clamp End

Size	A		B		L		L(L ong)		T
10	13		34.0		22.0		38.0		1.5
15	19		34.0		22.0		38.0		1.5
20	23		50.5		22.0		38.0		1.5
25	29		50.5		22.5		38.5		1.5
32	35		50.5		24.0		44.0		1.5
40	41		64.0		24.0		44.0		1.5
50	53		77.5		24.5		44.5		1.5
65	70		91.0		26.5		56.5		2.0
80	85		106.0		28.5		58.5		2.0
100	104		130.0		30.0		60.0		2.0

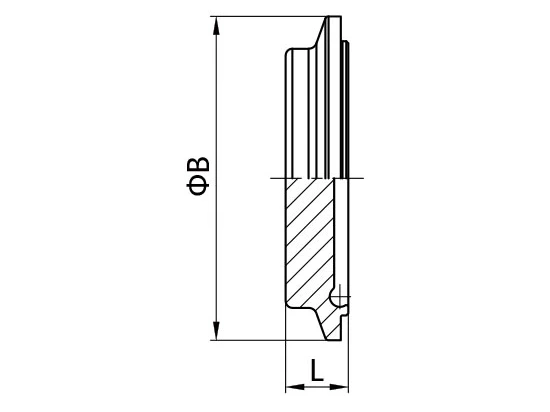

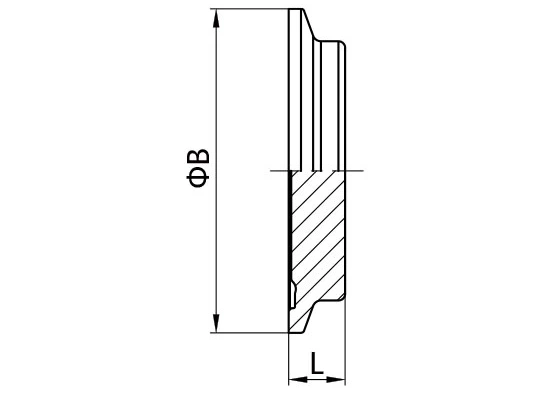

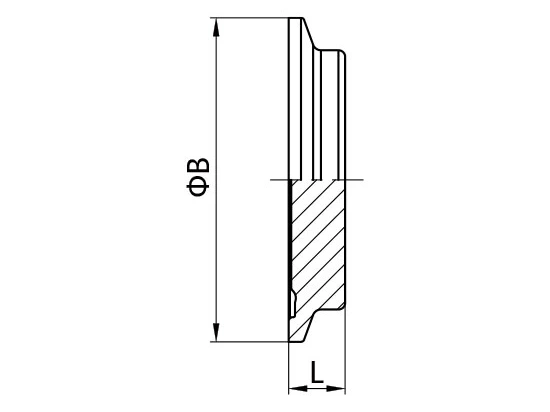

DIN11853-BNKS-3A / DIN11864-BNKS-3A

Aseptic Blank Liner, Clamp End

Size			B				L
10			34.0				11.5
15			34.0				11.5
20			50.5				11.5
25			50.5				11.5
32			50.5				11.5
40			64.0				11.5
50			77.5				13.5
65			91.0				13.5
80			106.0				13.5
100			130.0				13.5

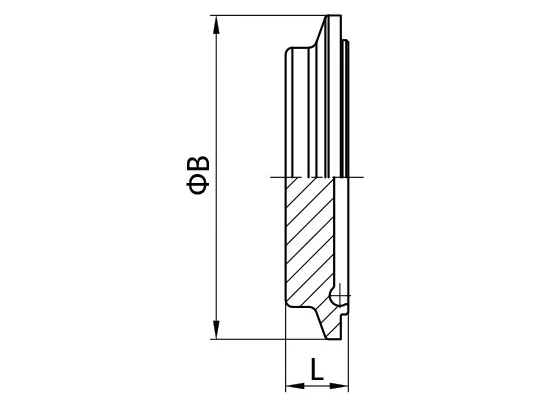

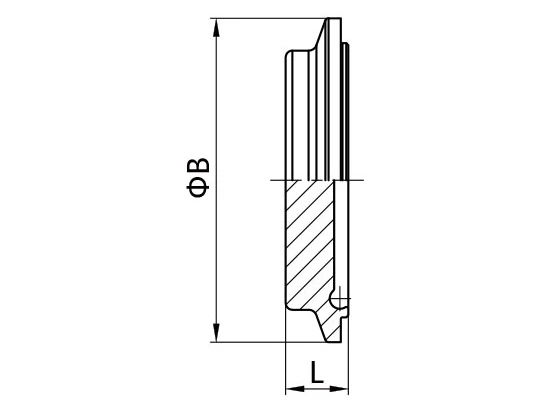

DIN11853-R-A / DIN11864-R-A

Aseptic Blank Nut, Clamp End

Size	B	L
10	34.0	13
15	34.0	13
20	50.5	13
25	50.5	13
32	50.5	13
40	64.0	13
50	77.5	15
65	91.0	15
80	106.0	15
100	130.0	15

DIN11853-R-A / DIN11864-R-A

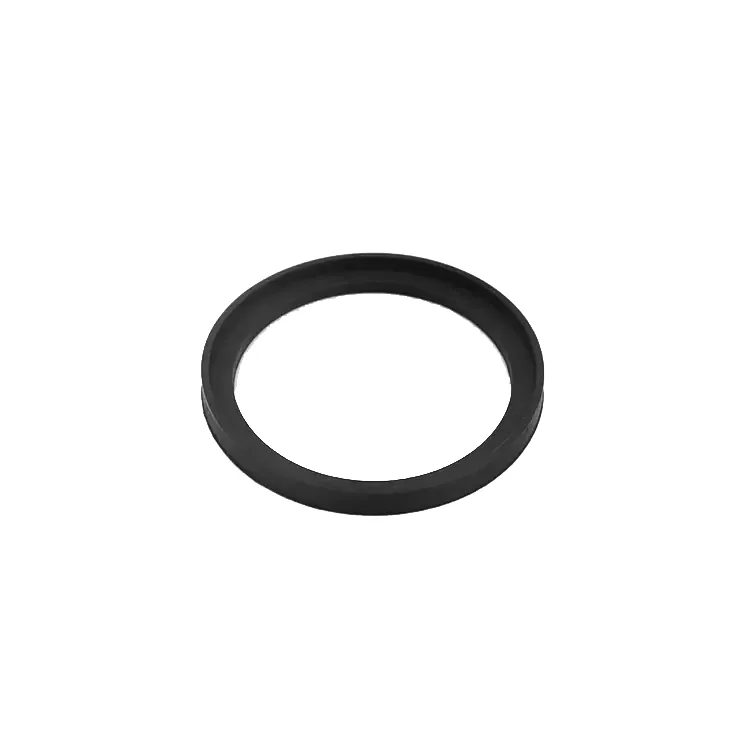

O-Ring

Size	A	L
10	12	3.5
15	18	5.0
20	22	5.0
25	28	5.0
32	34	3.5
40	40	3.5
50	52	3.5
65	68	5.0
80	83	5.0
100	102	5.0
125	127	5.0
150	152	5.0

ISO Tube (Form B)

DIN11853-K-B / DIN11864-K-B

Aseptic Clamp Connection, Welded End

Size	A		L		L(Long)		T
13.5	13.5		44		76		1.6
17.2	17.2		44		76		1.6
21.3	21.3		44		78		1.6
26.9	26.9		44		78		1.6
33.7	33.7		48		88		2.0
42.4	42.4		48		88		2.0
48.3	48.3		50		90		2.0
60.3	60.3		54		114		2.0
76.1	76.1		57		117		2.0
88.9	88.9		62		122		2.3

DIN11853-NKS-3B / DIN11864-NKS-3B

Aseptic Nut, Clamp End

Size	A	B		L		L(Long)		T
13.5	13.5	34.0		23.5		39.5		1.6
17.2	17.2	34.0		23.5		39.5		1.6
21.3	21.3	34.0		23.5		40.5		1.6
26.9	26.9	50.5		23.5		40.0		1.6
33.7	33.7	50.5		25.5		45.5		2.0
42.4	42.4	64.0		25.5		45.5		2.0
48.3	48.3	64.0		26.5		46.5		2.0
60.3	60.3	91.0		28.5		58.5		2.0
76.1	76.1	106.0		30.0		60.0		2.0
88.9	88.9	119.0		32.5		62.5		2.3

DIN11853-BKS-3B / DIN11864-BKS-3B

Aseptic Liner, Clamp End

Size	A	B		L		ong)		T
13.5	13.5	34.0		22.0		38.0		1.6
17.2	17.2	34.0		22.0		38.0		1.6
21.3	21.3	34.0		22.0		39.0		1.6
26.9	26.9	50.5		22.0		39.0		1.6
33.7	33.7	50.5		24.0		44.0		2.0
42.4	42.4	64.0		24.0		44.0		2.0
48.3	48.3	64.0		25.0		45.0		2.0
60.3	60.3	91.0		27.0		57.0		2.0
76.1	76.1	106.0		28.5		58.5		2.0
88.9	88.9	119.0		31.0		61.0		2.3

DIN11853-BNF-2B / DIN11864-BNF-2B

Aseptic Blank Cap, Clamp End

Size	B	L
13.5	54	11.5
17.2	59	11.5
21.3	62	11.5
26.9	69	11.5
33.7	74	11.5
42.4	82	11.5
48.3	88	11.5
60.3	103	11.5
76.1	125	13.5
88.9	137	13.5
114.3	168	15.5

DIN11853-R-B / DIN11864-R-B

O-Ring

Size	A	B
13.5	12.0	3.5
17.2	16.0	3.5
21.3	20.0	3.5
26.9	26.0	3.5
33.7	32.0	5.0
42.4	40.5	5.0
48.3	46.5	5.0
60.3	58.5	5.0
76.1	73.5	5.0
88.9	86.5	5.0
114.3	111.0	5.0

INCH Tube (Form C)

DIN11853-K-C / DIN11864-K-C

Aseptic Clamp Connection, Welded End

Size		A		L		L(Long)			T
1/2"		12.7		44		76			1.65
3/4"		19.05		44		76			1.65
1"		25.4		44		77			1.65
11/2"		38.1		48		88			1.65
2"		50.8		49		89			1.65
21/2"		63.5		55		115			1.65
3"		76.2		57		117			1.65
4"		101.6		59		119			2.11

DIN11853-NKS-3C / DIN11864-NKS-3C

Aseptic Nut, Clamp End

Size	A		B		L		L(Long)			T
1/2"	12.7		34.0		23.5		39.5			1.65
3/4"	19.05		34.0		23.5		39.5			1.65
1"	25.4		50.5		23.5		40.0			1.65
11/2"	38.1		64.0		25.5		45.5			1.65
2"	50.8		77.5		26.0		46.0			1.65
21/2"	63.5		91.0		29.0		59.0			1.65
3"	76.2		106.0		30.0		60.0			1.65
4"	101.6		130.0		31.0		61.0			2.11

DIN11853-BKS-3C / DIN11864-BKS-3C

Aseptic Liner, Clamp End

Size	A		B		L		ong)			T
1/2"	12.7		34.0		22.0		38.0			1.65
3/4"	19.05		34.0		22.0		38.0			1.65
1"	25.4		50.5		22.0		38.5			1.65
11/2"	38.1		64.0		24.0		44.0			1.65
2"	50.8		77.5		24.5		44.5			1.65
21/2"	63.5		91.0		27.5		57.5			1.65
3"	76.2		106.0		28.5		58.5			1.65
4"	101.6		130.0		29.5		59.5			2.11

DIN11853-BBKS-3C / DIN11864-BBKS-3C

Aseptic Blank Cap, Clamp End

Size			B					L
1/2"			34.0					11.5
3/4"			34.0					11.5
1"			50.5					11.5
11/2"			64.0					11.5
2"			77.5					13.5
21/2"			91.0					13.5
3"			106.0					13.5
4"			130.0					13.5

DIN11853-BNKS-3C / DIN11864-BNKS-3C

Aseptic Blank Cap, Clamp End

Size	B	L
1/2"	34.0	13
3/4"	34.0	13
1"	50.5	13
11/2"	64.0	13
2"	77.5	15
21/2"	91.0	15
3"	106.0	15
4"	130.0	15

DIN11853-R-C / DIN11864-R-C

O-Ring

Size	A	B
1/2"	12	3.5
3/4"	18	3.5
1"	24	3.5
11/2"	37	5.0
2"	50	5.0
21/2"	62	5.0
3"	75	5.0
4"	100	5.0
