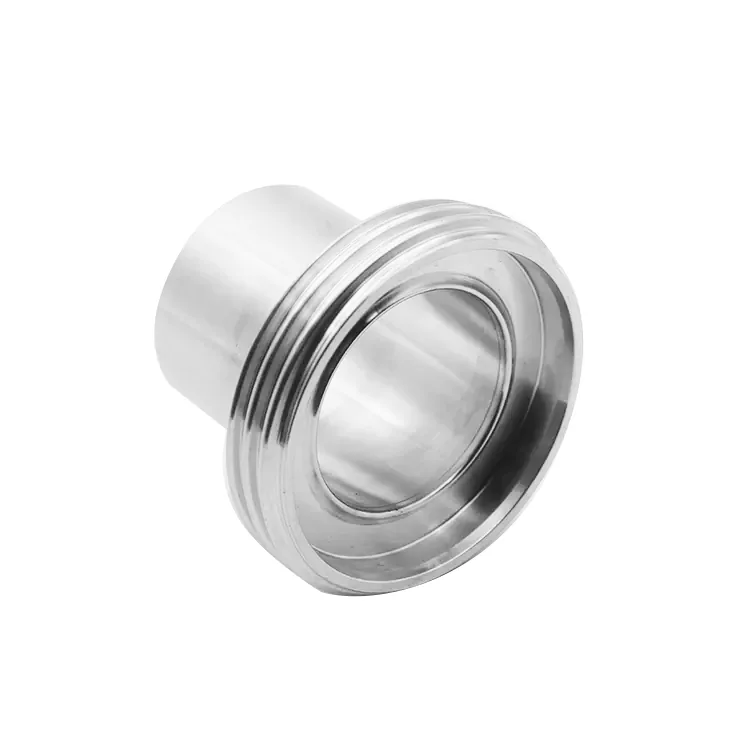

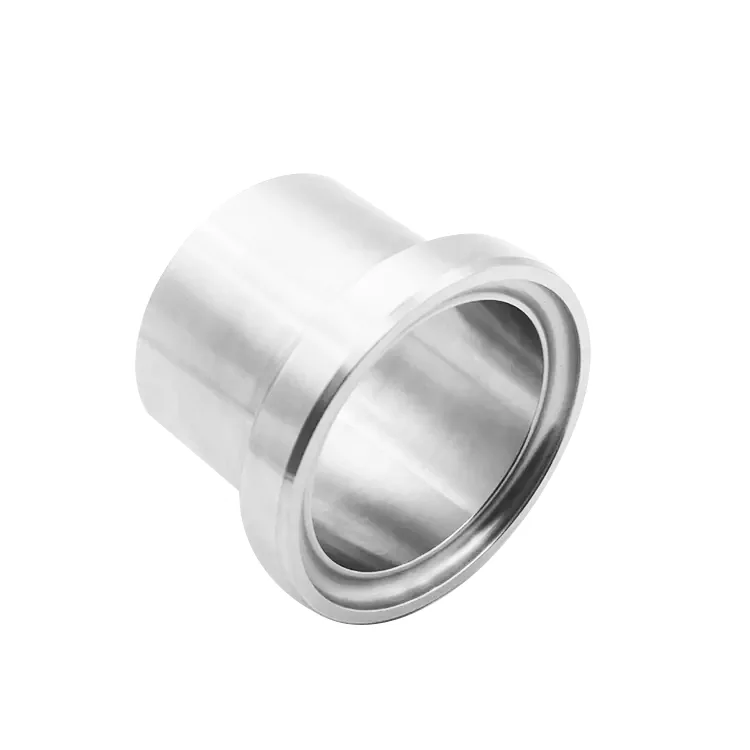

DIN 11864 and DIN 11853 Aseptic Screwed Union

Developed by the German hygienic industry, the DIN 11864 and DIN 11853 Aseptic Screwed Union from VTY factory is a stainless steel fitting series for the aseptic, chemical and pharmaceutical industry. DIN 11864 Unions have long ends while Din 11853 Unions have short ends. The design of the aseptic threaded joint can ensure that the O-ring part is inserted into the O-ring fixed collar connection to avoid squeezing, ensuring that the components are connected in a smooth, gap-free and O-ring connection to reduce residue retention and effectively improve production efficiency and reduce cleaning time.

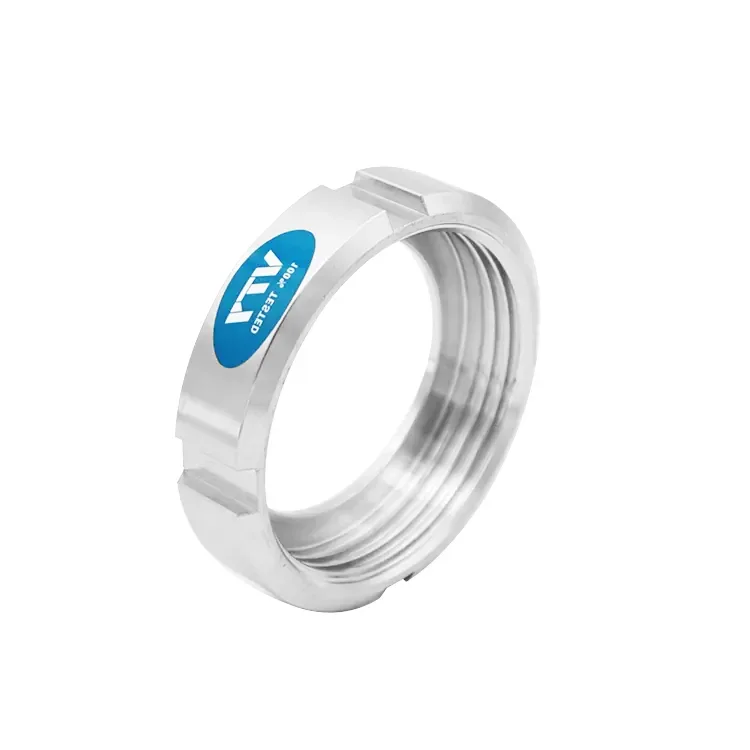

A complete aseptic screwed union from VTY consists of a Male part, a Liner, an O-ring and a Nut. These Aseptic Screwed Unions are for secure but detachable connections.

What is DIN 11864 and DIN 11853 Aseptic Screwed Union?

Developed by the German hygienic industry, the DIN 11864 and DIN 11853 are aseptic screwed unions designed for stainless steel piping systems requiring sterile, residue-free connections — widely used in pharmaceutical, biotech, chemical and high-purity food processing.

Key difference

DIN 11864 → long ends, ideal for permanent aseptic piping systems with high mechanical robustness.

DIN 11853 → short ends, suitable for compact installations.

✅ VTY has been exporting these aseptic unions to Germany, Denmark, Netherlands since 2015.

Key Features

Aseptic screw connection featuring precise metallic force transfer.

The coupling nut produces a consistent sealing pressure on the aseptic seal.

Ideal for permanently fixed piping systems demanding high mechanical robustness.

Where Do VTY Aseptic Unions Work?

✅ Pharmaceutical API transfer lines

✅ Bioreactor sterile connections

✅ High-purity chemical dosing systems

✅ Aseptic beverage and dairy lines

✅ Cosmetic and personal care production

Why Industrial Engineers Trust VTY?

FAQ

Q1: Can you make DIN11864 with 3A sanitary finish?

Yes. We can combine internal Ra ≤ 0.4μm with DIN11864 dimensions.

Q2: Do you offer EPDM and FKM O-rings?

Yes. EPDM for food/pharma, FKM for chemical resistance.

Q3: Can you provide a sample before bulk order?

Yes. Pre-production sample is our standard procedure.

Q4: Are your unions compatible with German-made fittings?

Yes. Our MAZAK CNC ensures precision within DIN tolerance.

Contact VTY

📧 Email

vty@wzvty.com

qc@wzvty.com

📞 Tel:

+86-13567797796

+86-15857712312

+86-13567797796 +86-15857712312 (Manager Qiu)

DIN Tube (Form A)

DIN11853-V-A / DIN11864-V-A

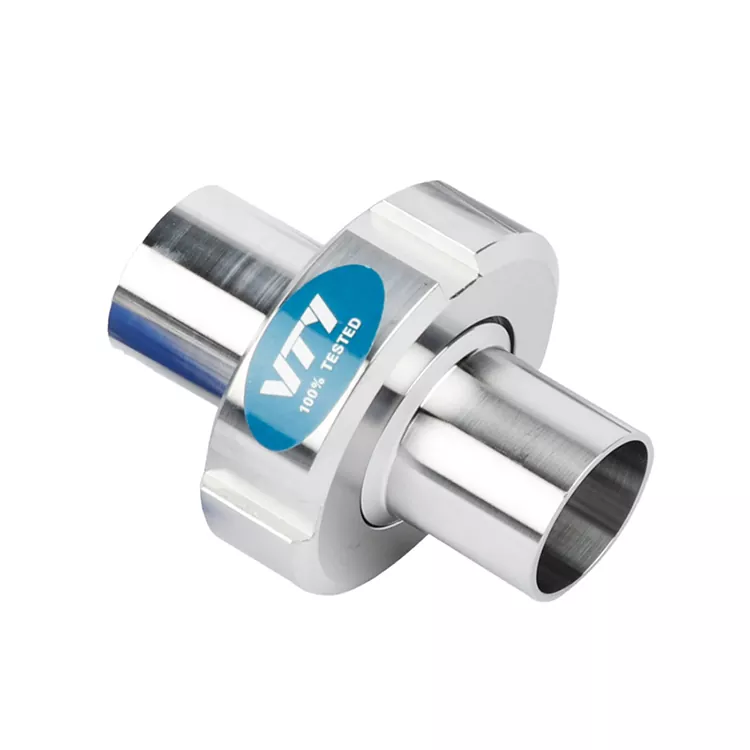

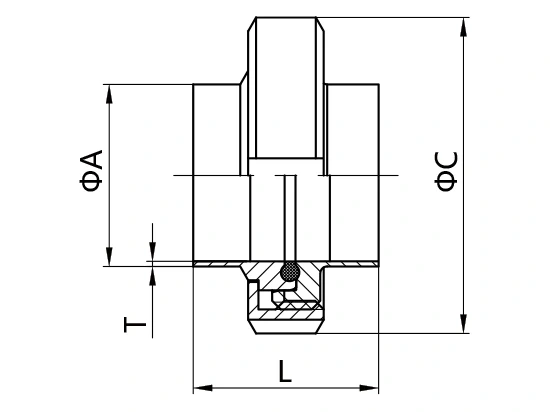

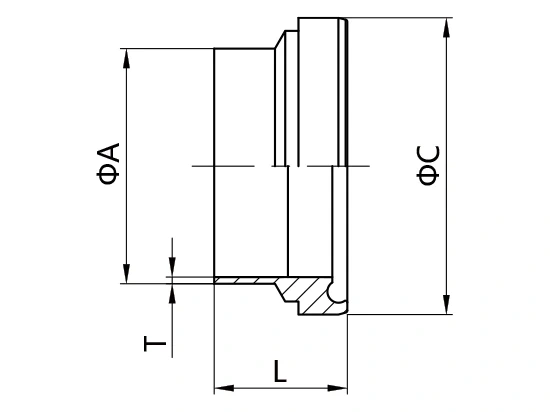

Aseptic Union, Welded

Size		A		C		L		L(Long)		T
10		13		38		32		76		1.5
15		19		44		32		76		1.5
20		23		54		34		76		1.5
25		29		63		42		77		1.5
32		35		70		48		88		1.5
40		41		78		50		88		1.5
50		53		92		54		89		1.5
65		70		112		62		113		2.0
80		85		127		72		117		2.0
100		104		148		86		120		2.0

DIN11853-BS-1A / DIN11864-BS-1A

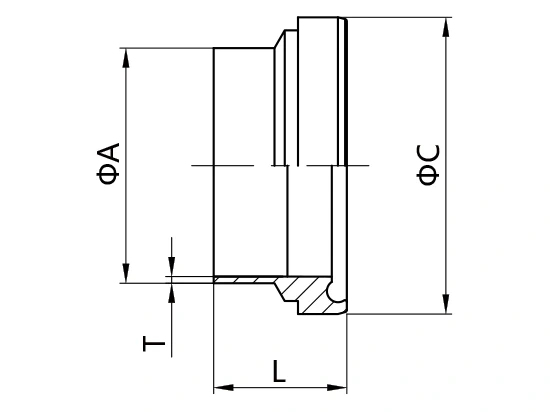

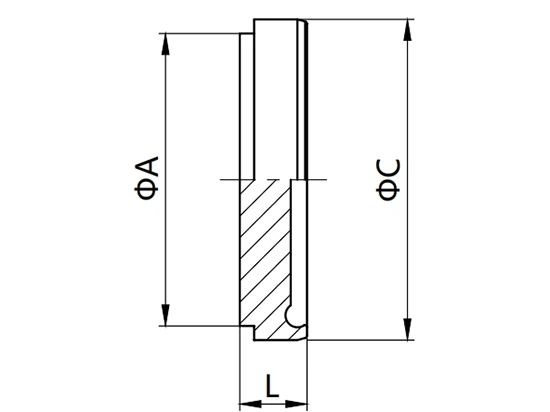

Aseptic Liner, Short End, Welded

Size		A		C		L		L(L ong)		T
10		13		21.9		17		39		1.5
15		19		27.9		17		39		1.5
20		23		35.9		18		38		1.5
25		29		42.9		22		40		1.5
32		35		48.9		25		47		1.5
40		41		54.9		26		47		1.5
50		53		66.9		30		48		1.5
65		70		84.9		34		61		2.0
80		85		98.9		38		61		2.0
100		104		118.9		46		66		2.0

DIN11853-GS-1A / DIN11864-GS-1A

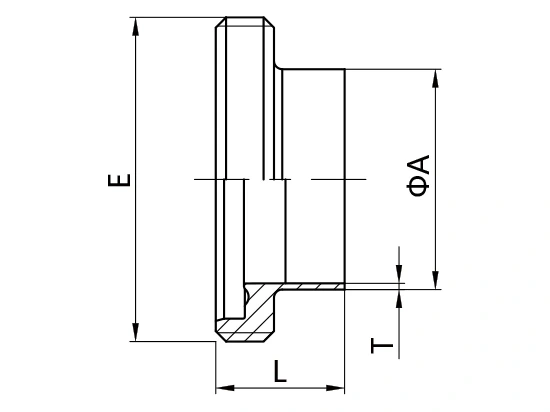

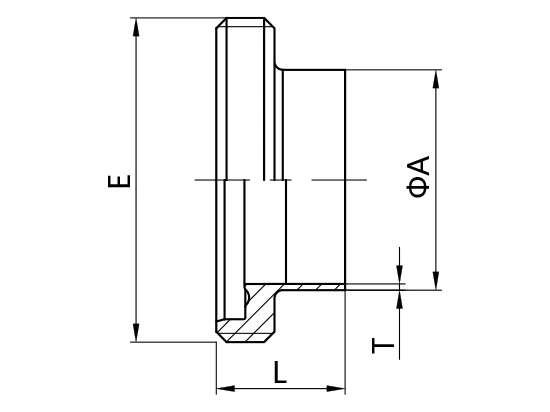

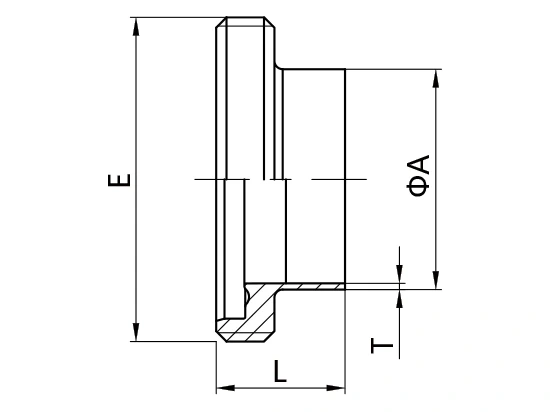

Aseptic Male, Short End, Welded

Size	A		T		L		E		L(Long)
10	13		1.5		19		Rd28×1/8"		41
15	19		1.5		19		Rd34×1/8"		41
20	23		1.5		21		Rd44×1/6"		43
25	29		1.5		26		Rd52×1/6"		43
32	35		1.5		30		Rd58×1/6"		48
40	41		1.5		31		Rd65×1/6"		48
50	53		1.5		31		Rd78×1/6"		48
65	70		2.0		36		Rd95×1/6"		60
80	85		2.0		42		Rd110×1/4"		64
100	104		2.0		50		Rd130×1/4"		64

DIN11853-BGS-1A / DIN11864-BGS-1A

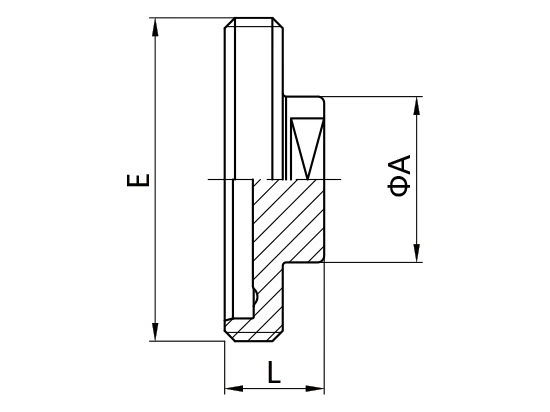

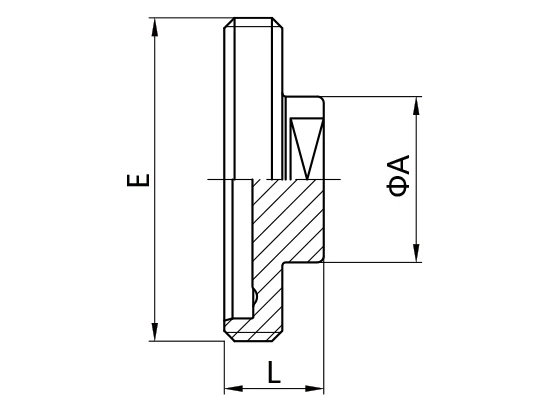

Aseptic Blank Male

Size			A			E			L
10			22			Rd28×1/8"			24
15			22			Rd34×1/8"			24
20			22			Rd44×1/6"			24
25			40			Rd52×16"			24
32			40			Rd58×1/6”			24
40			40			Rd65×16"			24
50			40			Rd78×1/6"			24
65			48			Rd95×1/6”			28
80			48			Rd110×1/4"			28
100			48			Rd130×1/4"			30

DIN11853-BBS-1A / DIN11864-BBS-1A

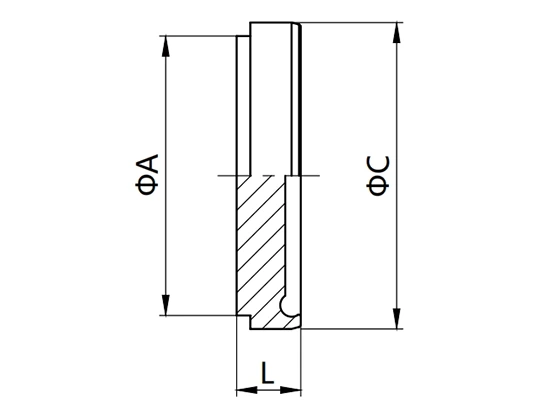

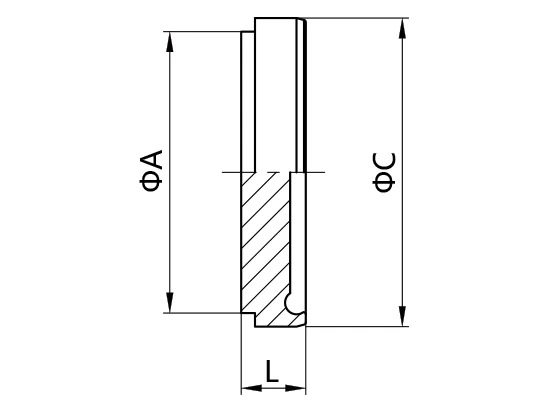

Aseptic Blank Liner

Size	A	C	L
10	18	21.9	9
15	24	27.9	9
20	30	35.9	10
25	35	42.9	12
32	41	48.9	13
40	48	54.9	13
50	61	66.9	14
65	79	84.9	16
80	93	98.9	16
100	114	118.9	20

DIN11853-R-A / DIN11864-R-A

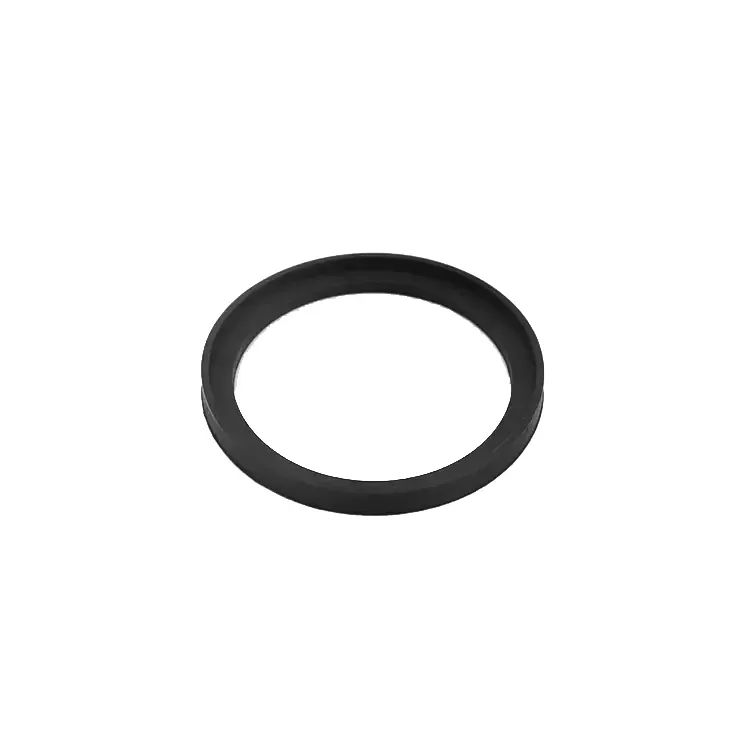

O-Ring

Size	A	L
10	12	3.5
15	18	5.0
20	22	5.0
25	28	5.0
32	34	3.5
40	40	3.5
50	52	3.5
65	68	5.0
80	83	5.0
100	102	5.0
125	127	5.0
150	152	5.0

ISO Tube (Form B)

DIN11853-V-B / DIN11864-V-B

Aseptic Union, Welded

Size		A		C		L		L(Long)		T
13.5		13.5		38		32		76		1.6
17.2		17.2		44		32		76		1.6
21.3		21.3		54		34		78		1.6
26.9		26.9		63		42		78		1.6
33.7		33.7		70		48		88		2.0
42.4		42.4		78		50		88		2.0
48.3		48.3		92		54		90		2.0
60.3		60.3		112		62		114		2.0
76.1		76.1		127		72		117		2.0
88.9		88.9		148		86		122		2.3

DIN11853-BS-1B / DIN11864-BS-1B

Aseptic Liner, Short End, Welded

Size		A		C		L		L(L ong)		T
13.5		13.5		21.9		17		39		1.6
17.2		17.2		27.9		17		39		1.6
21.3		21.3		35.9		18		40		1.6
26.9		26.9		42.9		22		41		1.6
33.7		33.7		48.9		25		47		2.0
42.4		42.4		54.9		26		47		2.0
48.3		48.3		66.9		30		48		2.0
60.3		60.3		84.9		34		62		2.0
76.1		76.1		98.9		38		61		2.0
88.9		88.9		118.9		46		68		2.3

DIN11853-GS-1B / DIN11864-GS-1B

Aseptic Male, Short End, Welded

Size	A		T		L		E		L(Long)
13.5	13.5		1.6		19		Rd28×1/8"		41
17.2	17.2		1.6		19		Rd34×1/8"		41
21.3	21.3		1.6		21		Rd44×1/6"		43
26.9	26.9		1.6		26		Rd52×1/6"		43
33.7	33.7		2.0		30		Rd58×1/6"		48
42.4	42.4		2.0		31		Rd65×1/6"		48
48.3	48.3		2.0		31		Rd78×1/6"		49
60.3	60.3		2.0		36		Rd95×1/6"		60
76.1	76.1		2.0		42		Rd110×1/4"		64
88.9	88.9		2.3		50		Rd130×1/4"		64

DIN11853-BGS-1B / DIN11864-BGS-1B

Aseptic Blank Male

Size			A			E			L
13.5			22			Rd28×1/8"			24
17.2			22			Rd34×1/8"			24
21.3			22			Rd44×1/6"			24
26.9			40			Rd52×1/6"			24
33.7			40			Rd58×1/6"			24
42.4			40			Rd65×1/6"			2
48.3			40			Rd78×1/6"			24
60.3			48			Rd95×1/6"			28
76.1			48			Rd110×1/4"			28
88.9			48			Rd130×1/4"			30

DIN11853-BBS-1B / DIN11864-BBS-1B

Aseptic Blank Liner

Size	A	C	L
13.5	18	21.9	9
17.2	24	27.9	9
21.3	30	35.9	10
26.9	35	42.9	12
33.7	41	48.9	13
42.4	48	54.9	13
48.3	61	66.9	14
60.3	79	84.9	16
76.1	93	98.9	16
88.9	114	118.9	20

DIN11853-R-B / DIN11864-R-B

O-Ring

Size	A	B
13.5	12.0	3.5
17.2	16.0	3.5
21.3	20.0	3.5
26.9	26.0	3.5
33.7	32.0	5.0
42.4	40.5	5.0
48.3	46.5	5.0
60.3	58.5	5.0
76.1	73.5	5.0
88.9	86.5	5.0
114.3	111.0	5.0

INCH Tube (Form C)

DIN11853-V-C / DIN11864-V-C

Aseptic Union, Welded

Size	A		C		L		L(Long)		T
1/2"	12.7		38		32		76		1.65
3/4"	19.05		44		32		76		1.65
1"	25.4		63		42		77		1.65
11/2"	38.1		78		50		88		1.65
2"	50.8		92		54		89		1.65
21/2"	63.5		112		63		115		1.65
3"	76.2		127		72		117		1.65
4"	101.6		148		86		119		2.11

DIN11853-BS-1C / DIN11864-BS-1C

Aseptic Liner, Short End, Welded

Size	A		C		L		L(Long)		T
1/2"	12.7		21.9		17		39.0		1.65
3/4"	19.05		27.9		17		39.0		1.65
1"	25.4		42.9		22		40.0		1.65
11/2"	38.1		54.9		26		46.5		1.65
2"	50.8		66.9		30		47.5		1.65
21/2"	63.5		84.9		34		63.0		1.65
3"	76.2		98.9		38		61.0		1.65
4"	101.6		118.9		46		65.0		2.11

DIN11853-GS-1C / DIN11864-GS-1C

Aseptic Male, Short End, Welded

Size	A	T		L		E		L(Long)
1/2"	12.7	1.65		19		Rd28×1/8"		41.0
3/4"	19.05	1.65		19		Rd34×1/8"		41.0
1"	25.4	1.65		26		Rd52×1/6"		43.0
11/2"	38.	1.6		5    3		Rd65×1/6"		48.5
2"	50.8	1.65		31		Rd78×1/6"		48.5
21/2"	63.5	1.65		36		Rd95×1/6"		60.0
3"	76.2	1.65		42		Rd110×1/4"		64.0
4"	101.6	2.11		50		Rd130×1/4"		64.0

DIN11853-BGS-1C / DIN11864-BGS-1C

Aseptic Blank Male

Size			A		E			L
1/2"			22		Rd28×1/8"			24
3/4"			22		Rd34×1/8"			24
1"			40		Rd52×1/6"			24
11/2"			40		Rd65×1/6"			24
2"			40		Rd78×1/6"			28
21/2"			48		Rd95×1/6"			28
3"			48		Rd110×1/4"			28
4"			48		Rd130×1/4"			30

DIN11853-BBS-1C / DIN11864-BBS-1C

Aseptic Blank Liner

Size	A	C	L
1/2"	18	21.9	9
3/4"	24	27.9	9
1"	35	42.9	12
11/2"	48	54.9	13
2"	61	66.9	14
21/2"	79	84.9	16
3"	93	98.9	16
4"	114	118.9	20

DIN11853-R-C / DIN11864-R-C

O-Ring

Size	A	B
1/2"	12	3.5
3/4"	18	3.5
1"	24	3.5
11/2"	37	5.0
2"	50	5.0
21/2"	62	5.0
3"	75	5.0
4"	100	5.0
