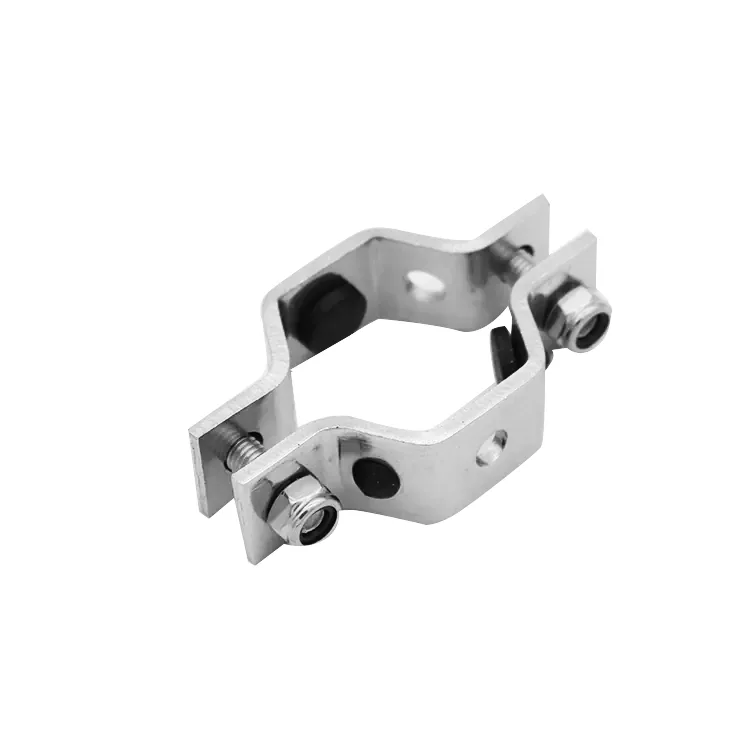

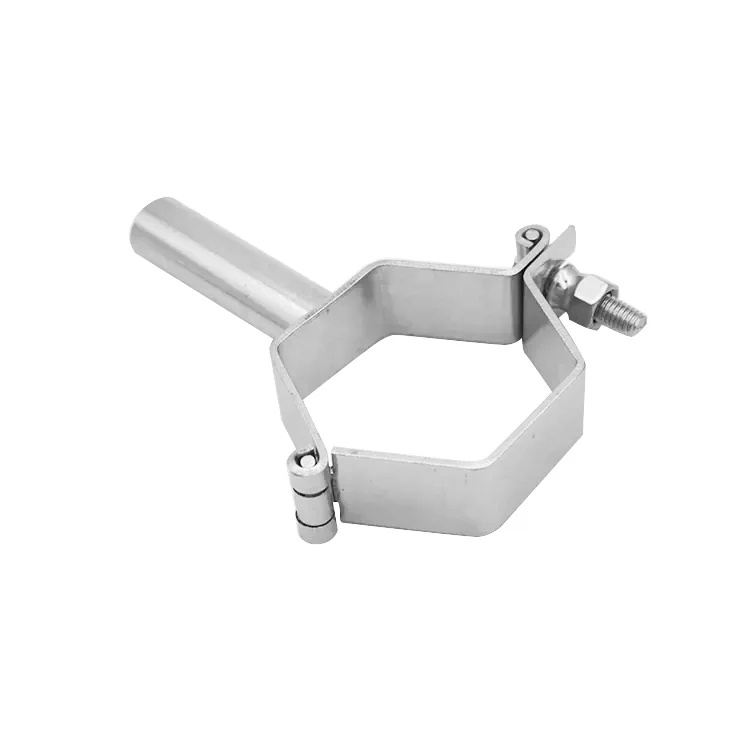

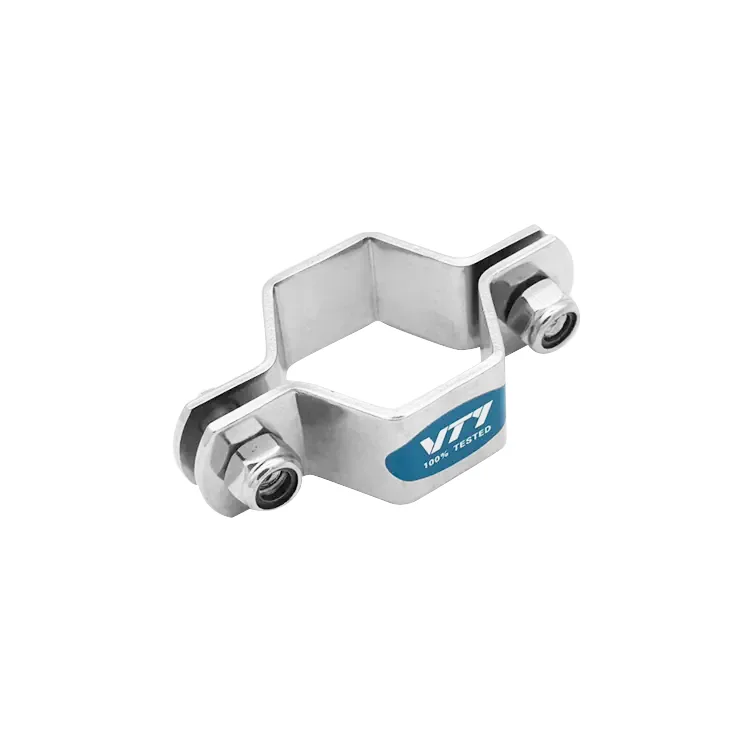

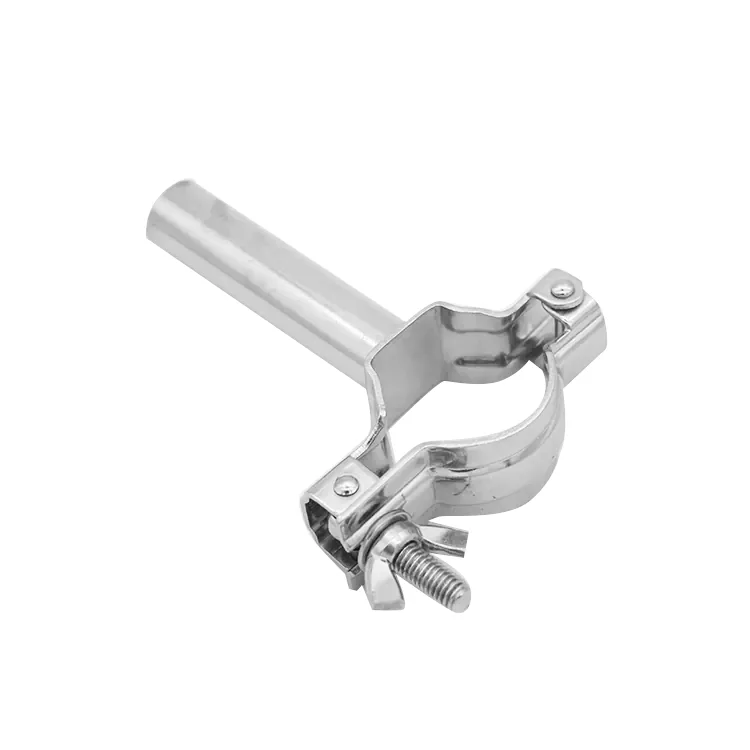

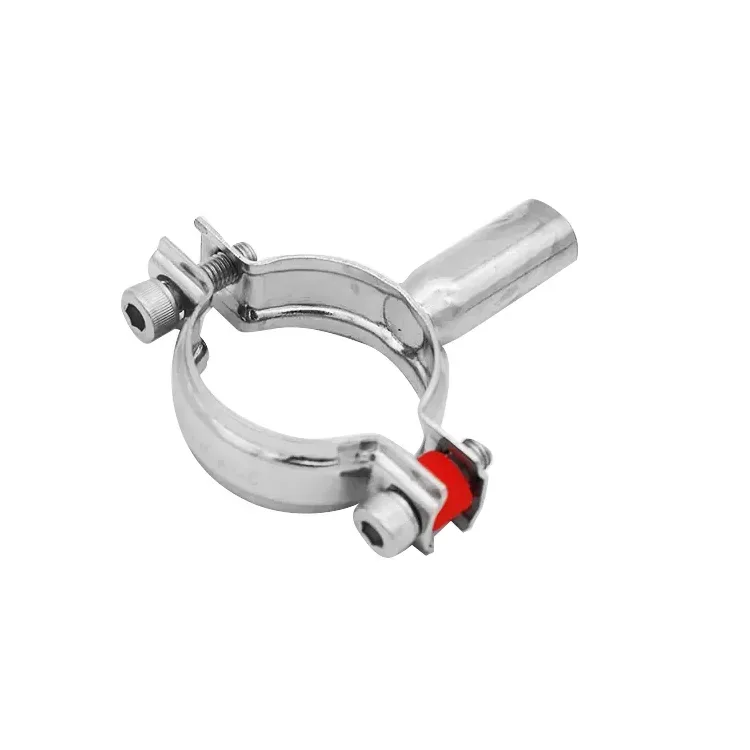

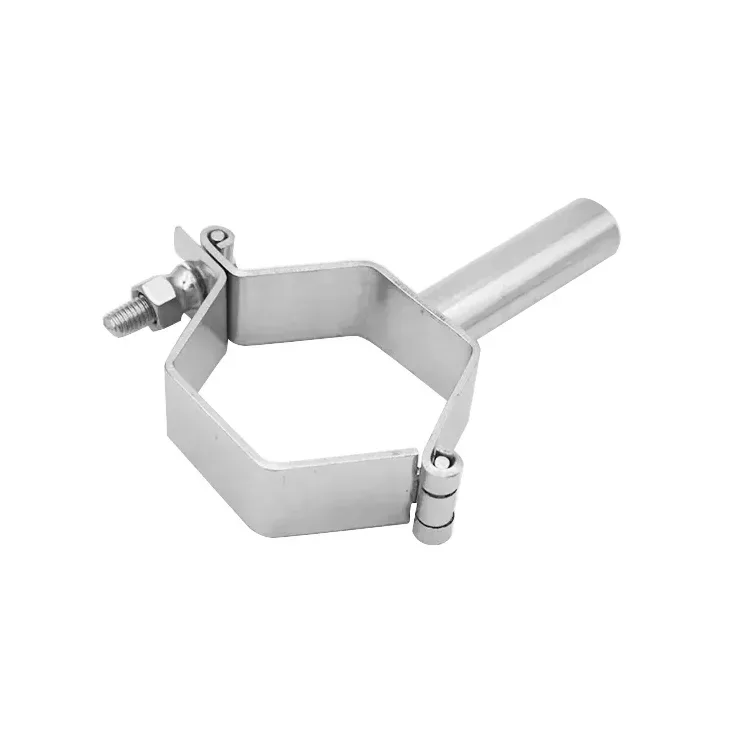

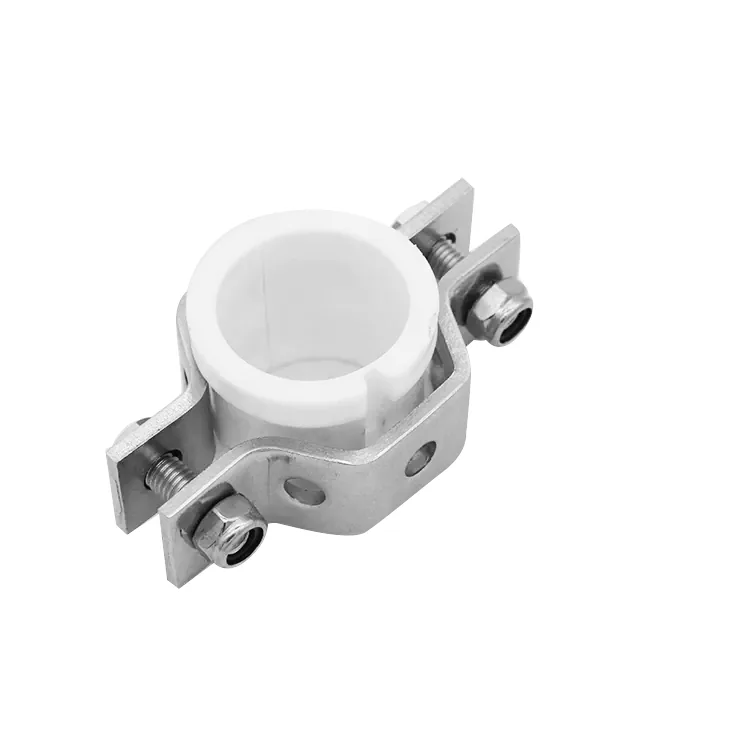

A hex tube holder is a hygienic pipe support component designed to securely hold stainless steel tubing in sanitary process systems. It helps maintain pipeline stability, reduces vibration, and ensures proper alignment of process lines in food, beverage, dairy, pharmaceutical, biotechnology, and liquid cooling applications.
Standard: DIN, 3A, SMS, RJT, ISO, IDF, DS
Size: 1’’-6’’, DN10-DN200, 17.2-168.3
Material grade: 304, 304L, 316, 316L
Manufactured from SS304 or SS316L stainless steel for sanitary process piping applications.
Compatible with CIP and SIP cleaning processes and commonly used in food, beverage, dairy, and pharmaceutical production lines.
Designed to secure process pipelines and help maintain proper pipe positioning during operation.
Can be welded, suspended, or directly mounted according to installation requirements.
Manufactured using MAZAK CNC machining equipment to achieve accurate dimensions and repeatable production.
Dairy Processing Plants
Used to support sanitary pipelines for milk, cream, yogurt, whey, and other dairy products.
Beverage Production Lines
Applied in process piping systems for juice, soft drinks, bottled water, and other beverages.
Brewing and Distilling Systems
Installed in brewhouses, fermentation systems, transfer lines, and CIP piping networks.
Pharmaceutical Processing Facilities
Used for stainless steel tubing installations in pharmaceutical production and fluid transfer systems.
Biotechnology Applications
Supports process tubing used in bioprocessing, fermentation, and laboratory systems.
Liquid Cooling Systems
Used to secure stainless steel piping in data center cooling, industrial cooling, and heat transfer systems.

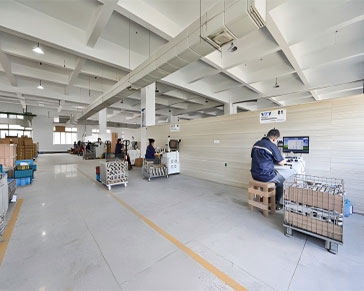

Every hex tube holder undergoes:
Material Verification
Spectrometer Testing
Wall Thickness Inspection

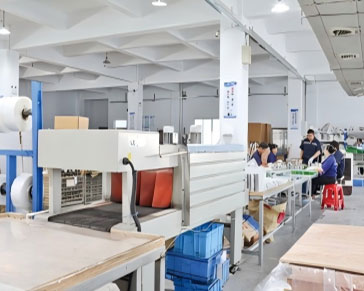

Hardness Testing
Tolerance Inspection
Surface Roughness Testing

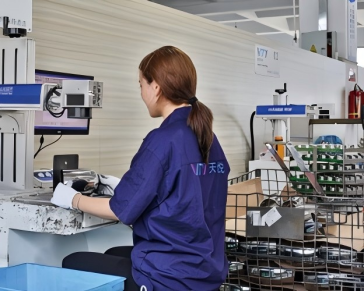

Dimensional Measurement
Pressure Testing
Supported by:
3D Coordinate Measuring Machine
Surface Roughness Tester
Spectrometer
Hardness Tester
What is a hex tube holder used for?
Hex tube holders are used to support and stabilize stainless steel sanitary tubing systems.
What materials are available?
SS304, SS304L, SS316 and SS316L.
Can you manufacture according to drawings?
Yes. VTY provides OEM and custom manufacturing services.
What standards are supported?
DIN, SMS, RJT, ISO, IDF, DS and 3A.
Is SS316L available for pharmaceutical applications?
Yes.
What industries use sanitary tube holders?
Food, dairy, beverage, brewery, pharmaceutical and liquid cooling industries.

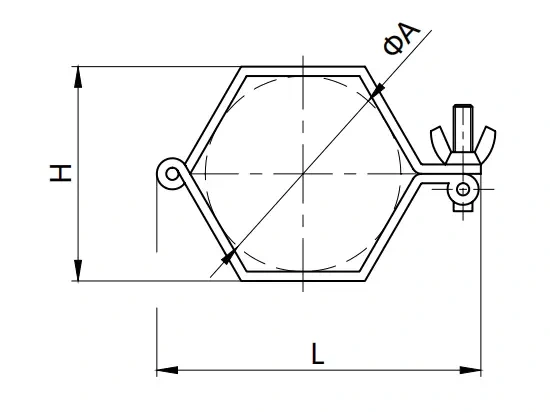

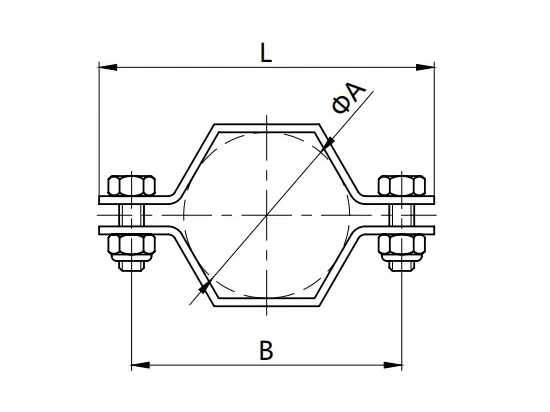

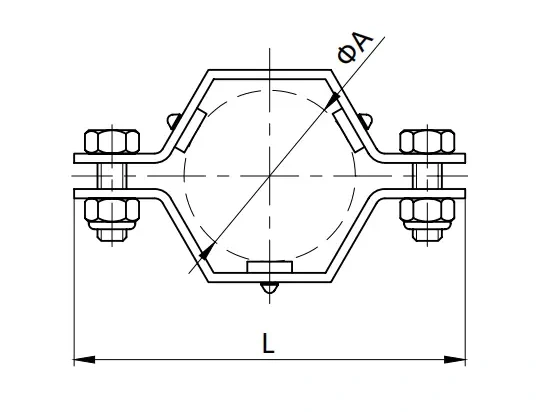

| Siz | A | H | L |
|---|---|---|---|
| 1" | 25.4 | 28 | 87.0 |
| 11/2" | 38.1 | 40 | 101.6 |
| 2" | 50.8 | 52 | 114.3 |
| 21/2" | 63.5 | 66 | 120.6 |
| 3" | 76.2 | 77 | 139.7 |
| 4" | 101.6 | 104 | 171.4 |

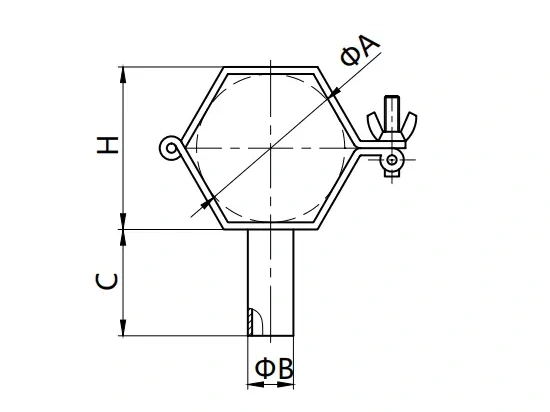

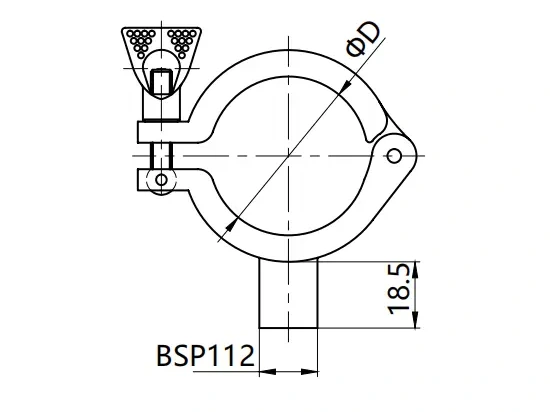

| Size | A | B | C | H | |||||
|---|---|---|---|---|---|---|---|---|---|
| 1" | 25.4 | 19 | 86.0 | 28 | |||||
| 11/2" | 38.1 | 19 | 80.0 | 40 | |||||
| 2" | 50.8 | 19 | 74.0 | 52 | |||||
| 21/2" | 63.5 | 19 | 67.0 | 66 | |||||
| 3" | 76.2 | 19 | 61.5 | 77 | |||||
| 4" | 101.6 | 19 | 48.0 | 104 | |||||
| Size | A | B | L | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 21.3 | 21.3 | 48 | 68 | ||||||
| 33.7 | 26.9 | 55 | 74 | ||||||
| 42.4 | 33.7 | 63 | 82 | ||||||
| 48.3 | 42.4 | 74 | 93 | ||||||
| 60.3 | 48.3 | 82 | 101 | ||||||
| 26.9 | 60.3 | 95 | 114 | ||||||
| 88.9 | 88.9 | 130 | 149 | ||||||
| 114.3 | 114.3 | 158 | 177 | ||||||
| Size | A | T | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 1" | 25.4 | 87.0 | |||||||
| 11/2" | 38.1 | 101.6 | |||||||
| 2" | 50.8 | 114.3 | |||||||
| 21/2" | 63.5 | 120.6 | |||||||
| 3" | 76.2 | 139.7 | |||||||
| 4" | 101.6 | 171.4 | |||||||
| Size | D |
|---|---|
| 1" | 25.4 |
| 11/4" | 31.8 |
| 11/2" | 38.1 |
| 2" | 50.8 |
| 21/2" | 63.5 |
| 3" | 76.2 |
| 31/2" | 89.0 |
| 4" | 101.6 |
