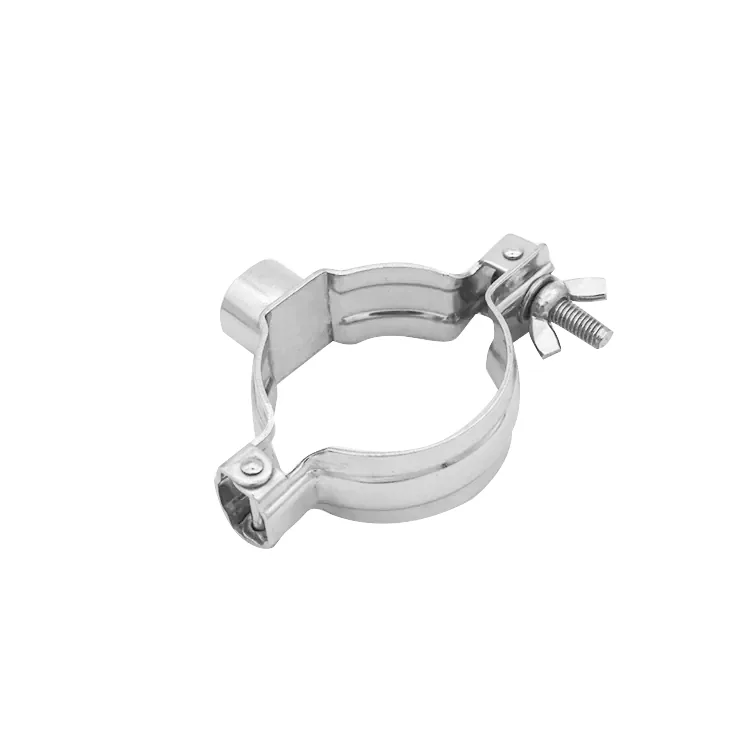

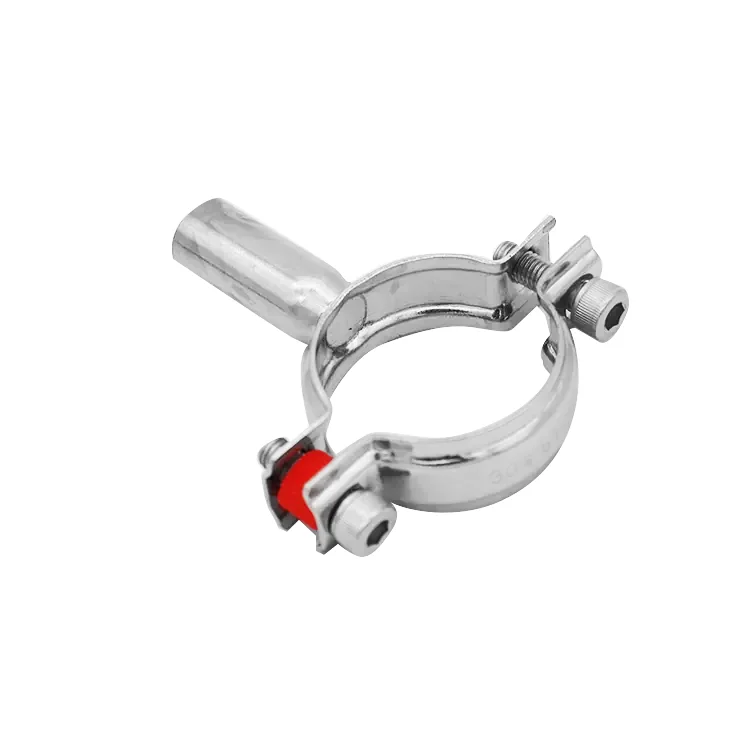

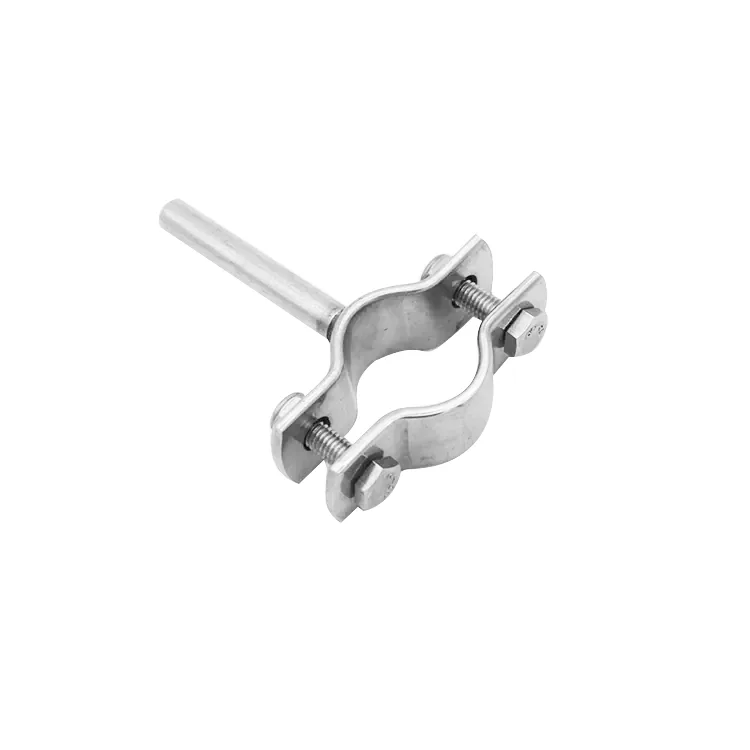

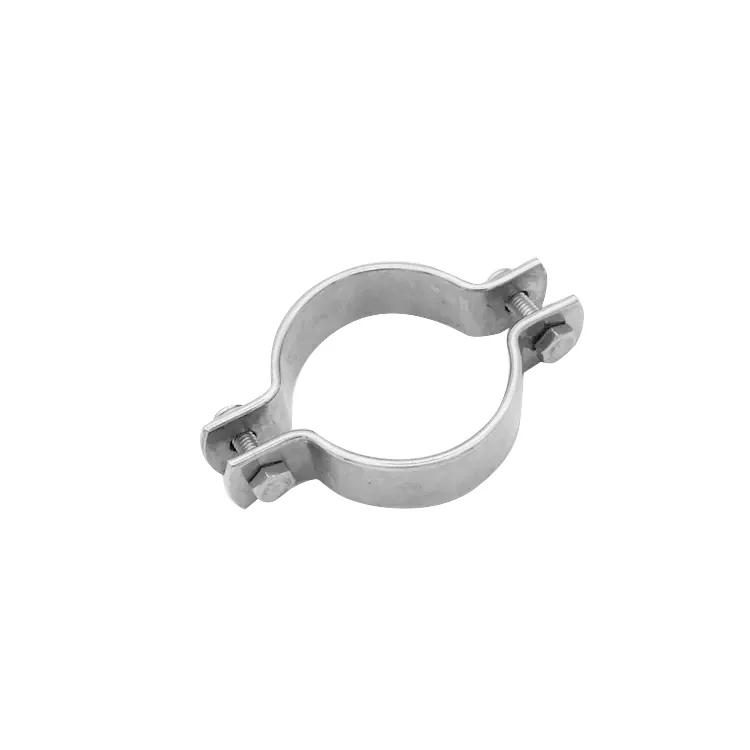

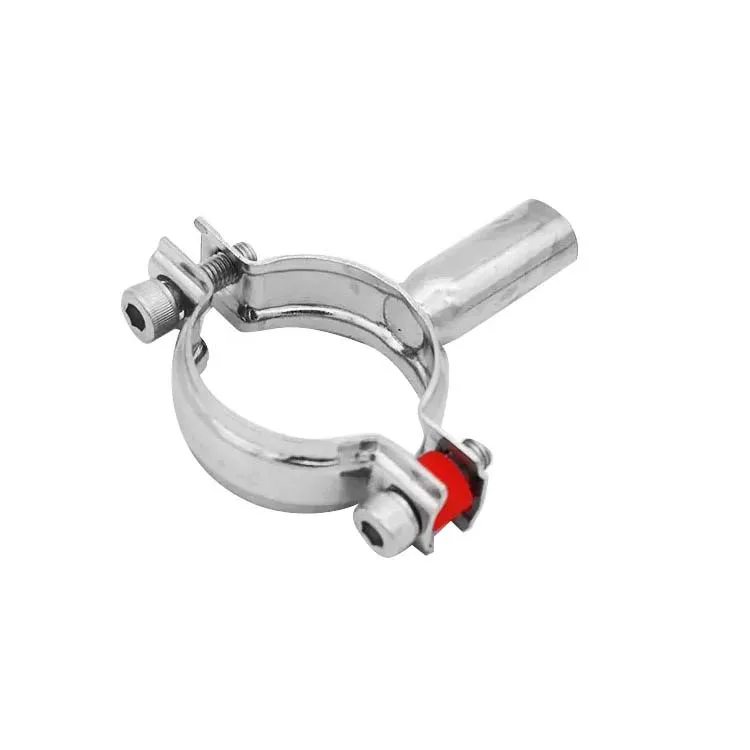

Round Tube Holder

The round tube holder from VTY factory is a critical component in maintaining clean, safe, and efficient piping systems. Round Pipe Hanger is a structure of pipe holder–the tubing support system for the hygienic industries.

Sanitary Round Tube Holder is a stainless steel support component designed to securely hold and stabilize hygienic process pipelines. It helps prevent vibration, movement, and stress on tubing systems while maintaining proper alignment in food, beverage, dairy, pharmaceutical, biotechnology, and liquid cooling applications.

Manufactured from high-quality stainless steel 304 and 316L, VTY sanitary tube holders comply with international standards including DIN, SMS, 3A, RJT, ISO, IDF, and DS.

Specification

Standard: DIN, 3A, SMS, RJT, ISO, IDF, DS

Size: 1’’-6’’, DN10-DN200, 17.2-168.3

Material grade: 304, 304L, 316, 316L

Features

Corrosion Resistance

Manufactured from SS304 and SS316L stainless steel for use in food processing, dairy, beverage, pharmaceutical, and other sanitary piping systems.

Polished Surface Finish

Smooth polished surfaces help reduce product residue accumulation and support CIP/SIP cleaning processes.

Pipe Support Function

Designed to secure sanitary tubing and help reduce pipe displacement caused by operation or fluid flow.

Compatibility with Multiple Standards

Available for DIN, SMS, RJT, ISO, IDF, DS, and 3A sanitary tube systems.

CNC Machined Components

Manufactured using MAZAK CNC machining equipment to maintain dimensional accuracy and meet sanitary installation requirements.

Custom Sizes Available

Available in various tube sizes and configurations to match different sanitary process piping applications.

Applications

VTY sanitary pipe supports are widely used in:

Dairy Processing Plants

Milk pipelines

Cheese production lines

Yogurt systems

Brewery Industry

Beer transfer pipelines

Fermentation systems

Craft brewing equipment

Beverage Industry

Juice production

Soft drink processing

Mineral water systems

Pharmaceutical Industry

Sterile process pipelines

Cleanroom production systems

WFI systems

Biotechnology Industry

Bioprocess equipment

Cell culture systems

Laboratory pipelines

Liquid Cooling Industry

Data center cooling systems

Industrial liquid cooling loops

Thermal management equipment

Why Choose VTY as Your Sanitary Tube Holder Supplier?

With over a decade of manufacturing experience, VTY has become a trusted supplier of hygienic stainless steel fittings and valves worldwide.

Our Strengths

✔ 13,000㎡ Manufacturing Facility

✔ 134 CNC Machines

✔ 90% MAZAK Equipment

✔ ISO9001 Certified

✔ ISO14001 Certified

✔ ISO45001 Certified

✔ 3A Sanitary Certification

✔ Exported to Germany, Denmark, Netherlands, France, Italy and Spain

✔ OEM & ODM Service Available

✔ Fast Delivery

FAQ

What is a sanitary round tube holder used for?

A sanitary round tube holder supports and stabilizes hygienic process tubing systems, preventing vibration and maintaining alignment.

What materials are available?

VTY offers SS304, SS304L, SS316 and SS316L stainless steel options.

Is 316L better than 304?

316L provides superior corrosion resistance and is preferred for pharmaceutical and high-purity applications.

Can you manufacture according to drawings?

Yes. VTY provides OEM and custom manufacturing services based on customer drawings and samples.

Which industries use sanitary pipe supports?

Food processing, dairy, beverage, brewery, pharmaceutical, biotechnology and liquid cooling industries.

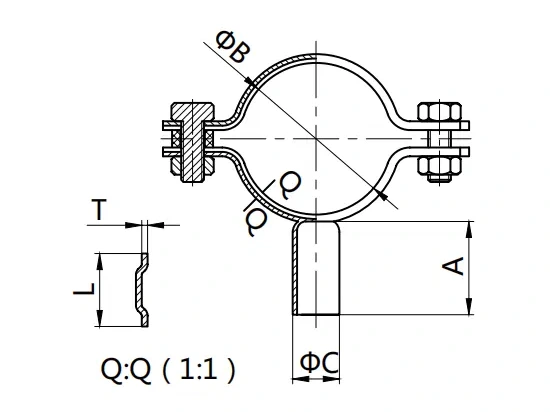

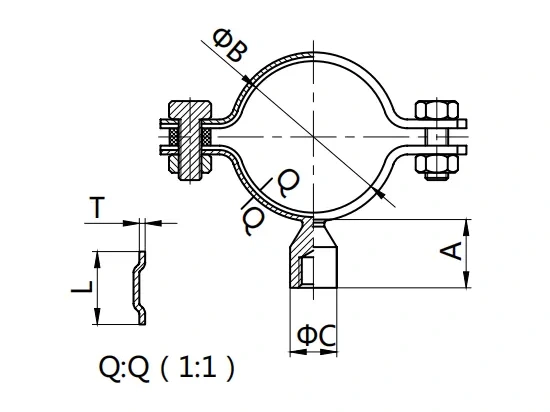

TH1

Tube Holder

Size	A	B		C		L		T
1/2"	47	12.7		8		12		1.5
3/4"	47	19.1		19		25		1.5
1"	47	25.4		19		25		1.5
11/2"	47	38.1		19		25		1.5
2"	47	50.8		19		25		1.5
21/2"	47	63.5		19		25		2.0
3"	47	76.2		19		25		2.0
4"	47	101.6		19		28		2.0
6"	47	154.0		19		28		2.0
8"	47	204.0		25		35		3.0
10"	47	254.0		25		35		3.0
12"	47	304.0		25		35		3.0

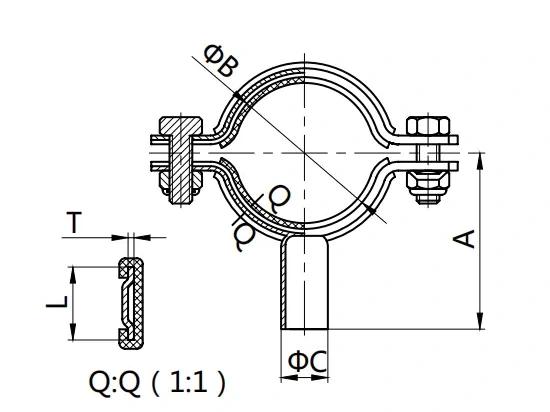

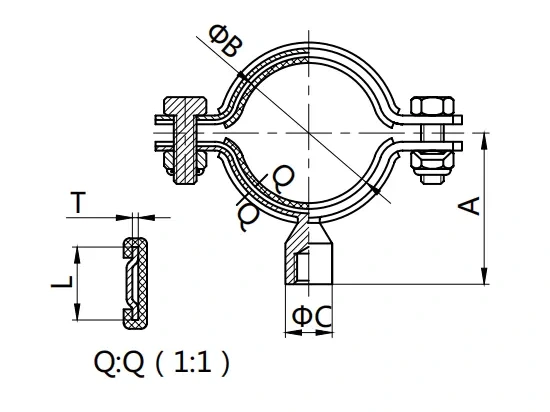

TH2

Tube Holder

Size	A	B		C		L		T
1/2"	90	12.7		8		12		1.5
3/4"	90	19.1		19		25		1.5
1"	90	25.4		19		25		1.5
11/2"	90	38.1		19		25		1.5
2"	90	50.8		19		25		1.5
21/2"	90	63.5		19		25		2.0
3"	90	76.2		19		25		2.0
4"	90	101.6		19		28		2.0
6"	130	154.0		19		28		2.0
8"	155	204.0		25		35		3.0
10"	180	254.0		25		35		3.0
12"	205	304.0		25		35		3.0

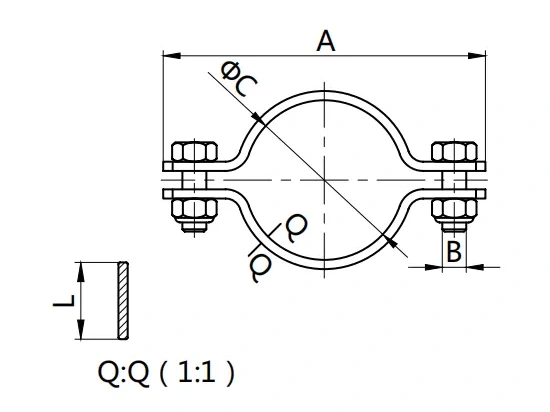

TH3

Tube Holder

Size	A		B		C		L
10	52		M6		12		20
15	62		M6		18		20
20	62		M6		22		20
25	69		M6		28		20
32	80		M6		34		20
40	88		M8		40		20
50	105		M8		52		20
65	125		M8		70		20
80	138		M8		85		25
100	160		M8		104		25
125			M8		129		30
150			M8		154		40

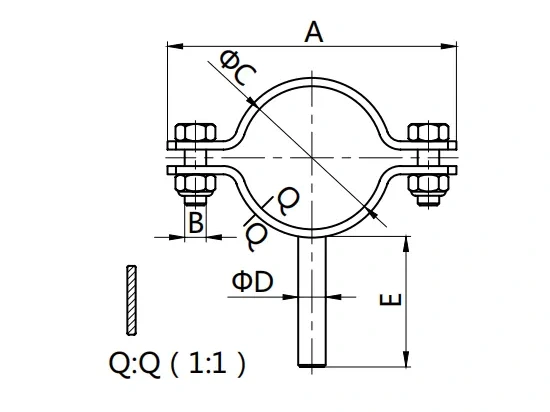

TH4

Tube Holder

Size	A	B	C	D	E
10	52	M6	12	8	60
15	62	M6	18	8	60
20	62	M6	22	8	60
25	69	M6	28	8	60
32	80	M6	34	8	60
40	88	M8	40	10	60
50	105	M8	70	10	70
65	125	M8	52	12	70
80	138	M8	85	12	80
100	160	M8	104	14	80
125		M8	129	14	100
150		M8	154	14	100

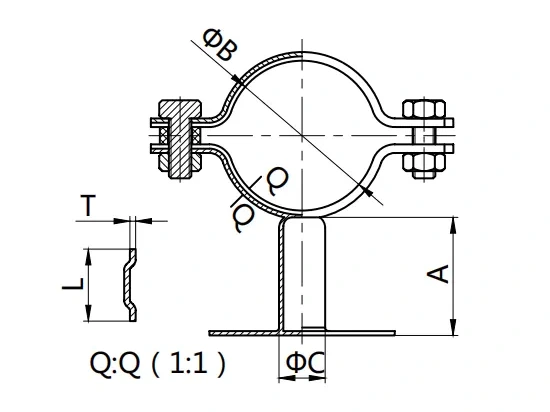

TH5

Tube Holder

Size	A	B	C	L	T
1/2"	47	12.7	8	12	1.5
3/4"	47	19.1	19	25	1.5
1"	47	25.4	19	25	1.5
11/2"	47	38.1	19	25	1.5
2"	47	50.8	19	25	1.5
21/2"	47	63.5	19	25	2.0
3"	47	76.2	19	25	2.0
4"	47	101.6	19	28	2.0
6"	47	154.0	19	28	2.0
8"	47	204.0	25	35	3.0
10"	47	254.0	25	35	3.0
12"	47	304.0	25	35	3.0

TH6

Tube Holder

Size	A	B	C	L	T
1/2"	54.9	12.7	8	12	1.5
3/4"	58.1	19.1	19	25	1.5
1"	61.2	25.4	19	25	1.5
11/2"	67.6	38.1	19	25	1.5
2"	73.9	50.8	19	25	1.5
21/2"	80.8	63.5	19	25	2.0
3"	87.1	76.2	19	25	2.0
4"	99.8	101.6	19	28	2.0
6"	126.0	154.0	19	28	2.0
8"	152.0	204.0	25	35	3.0
10"	177.0	254.0	25	35	3.0
12"	202.0	304.0	25	35	3.0

TH7

Tube Holder

Size	A	B	C	L	T
1/2"	47	12.7	8	12	1.5
3/4"	47	19.1	19	12	1.5
1"	47	25.4	19	25	1.5
11/2"	47	38.1	19	25	1.5
2"	47	50.8	19	25	1.5
21/2"	47	63.5	19	25	2.0
3"	47	76.2	19	25	2.0
4"	47	101.6	19	28	2.0
6"	47	154.0	19	28	2.0
8"	47	204.0	25	35	3.0
10"	47	254.0	25	35	3.0
12"	47	304.0	25	35	3.0

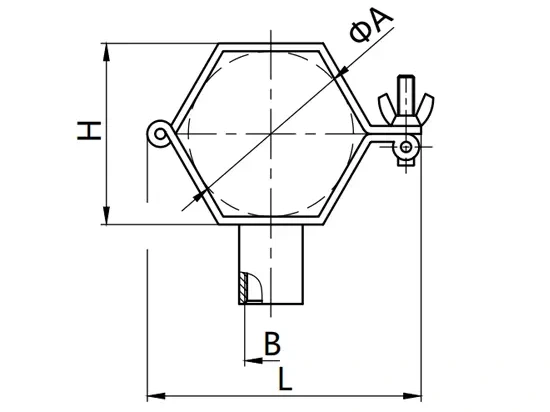

TH10

Tube Holder

Size	A	B	H	L
1"	25.4	G1/2"	28	61
11/2"	38.1	G1/2"	40	76
2"	50.8	G1/2"	52	90
21/2"	63.5	G1/2"	66	106
3"	76.2	G1/2"	77	120
4"	101.6	G1/2"	104	146

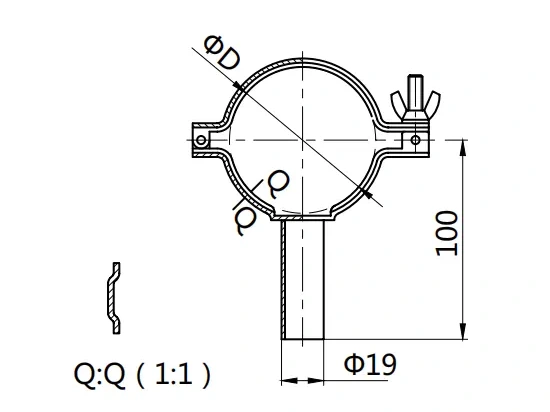

TH13

Tube Holder

Size		D		L
1"		25.4		61
11/2"		38.1		76
2"		50.8		90
21/2"		63.5		106
3"		76.2		120
4"		101.6		146

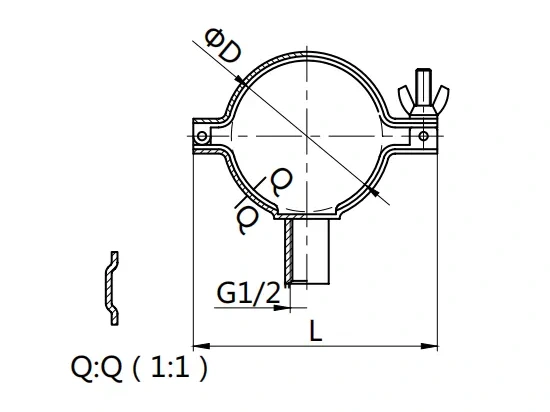

TH14

Tube Holder

Size		D		L
1"		25.4		61
11/2"		38.1		76
2"		50.8		90
21/2"		63.5		106
3"		76.2		120
4"		101.6		146

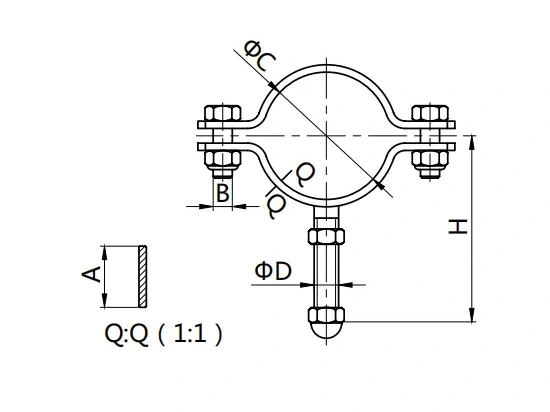

TH16

Tube Holder

Size	A	B	C	D	H
10	20	M6	12	M8	74
15	20	M6	18	M8	77
20	20	M6	22	M8	79
25	20	M6	28	M10	102
32	20	M6	34	M10	105
40	20	M8	40	M10	108
50	20	M8	70	M12	114
65	20	M8	52	M12	123
80	25	M8	85	M12	130
100	25	M8	104	M12	140
125	30	M8	129	M16	168
150	40	M8	154	M16	202
