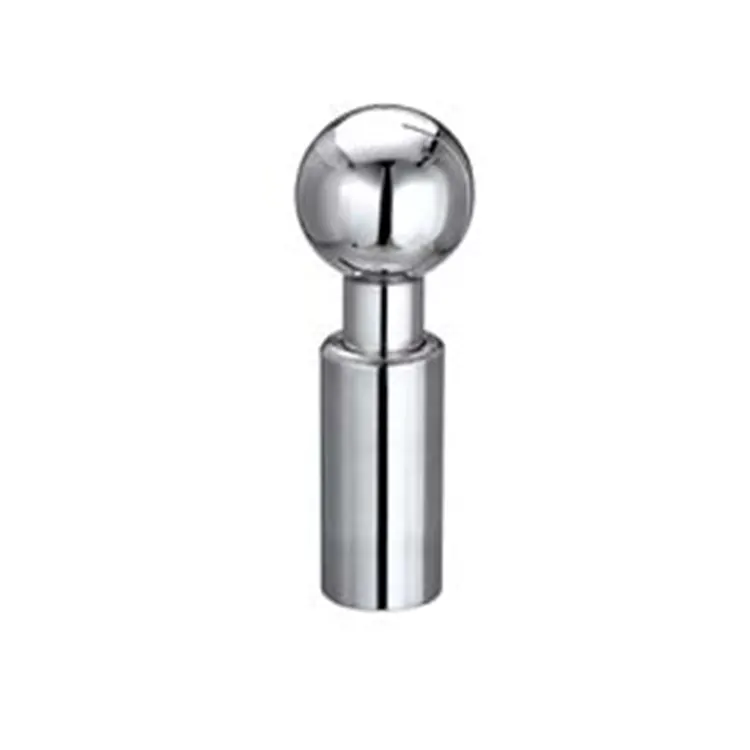

Rotary Spray Ball

The Rotary Spray Ball from VTY is a tank-cleaning device designed to deliver full internal coverage during CIP (Clean-in-Place) processes. These balls use the pressure and flow of the cleaning solution to cause the ball to rotate.

They allow for a cascading effect while cleaning the inside of vessels. This effect helps to nudge any soil load and ensures that all areas of a tank have been hit with cleaners and sanitizers. Rotating spray balls generally provide more thorough coverage than static spray balls.

VTY can offer a wide range of Rotary Spray Balls used across a variety of hygienic processing industries, including Food & Dairy, Beverages, AI Cooling, Direct Air Capture, Brewing, and Cosmetics.

Key Features

1.Extraordinary strong 360° coverage cleanability

2.Easy installation.

3.Self-cleaning

4.Low liquid consumption

5.Clean In Place

Applications

Mash tuns and lauter tuns

Kettles and whirlpools

Syrup and liquid sugar tanks

Distillation vessels and receivers

How Rotary Spray Balls Work?

When CIP fluid enters the cleaning device:

Internal turbine or gear system is activated

Spray head rotates in controlled speed

High-impact jets hit tank surfaces

Full internal coverage is achieved

VTY Rotary Spray Balls are designed for stable rotation under low to medium pressure CIP systems.

VTY Manufacturing Strength

Wenzhou Tianyue Fluid Equipment Co., Ltd. (VTY) manufactures rotary cleaning equipment using:

134 CNC machining centers (MAZAK Japan)

Precision polishing lines

3D coordinate measuring system

Surface roughness & hardness testing lab

All Rotary Spray Balls are produced under ISO-certified quality management systems to ensure hygienic-grade consistency.

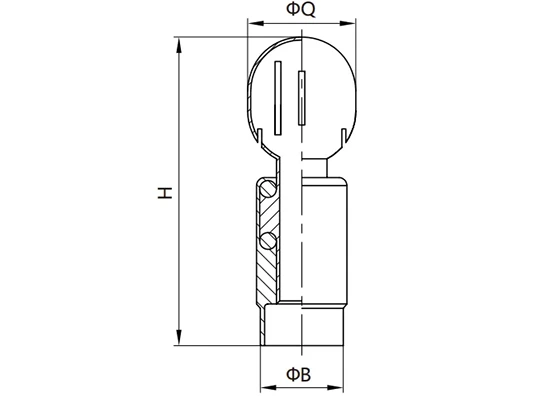

RCB-3

Spray Ball, Welded

DIN	Size			H	Q
	φB	3A	φB
15	18	1/2"	12.7	110	40
20	22	3/4"	19.1	137	53
25	28	1"	25.4	143	53
32	34	11/4"	31.8	145	53
40	40	11/2"	38.1	145	53
50	52	2"	50.8	180	76
65	70	21/2"	63.5	200	76

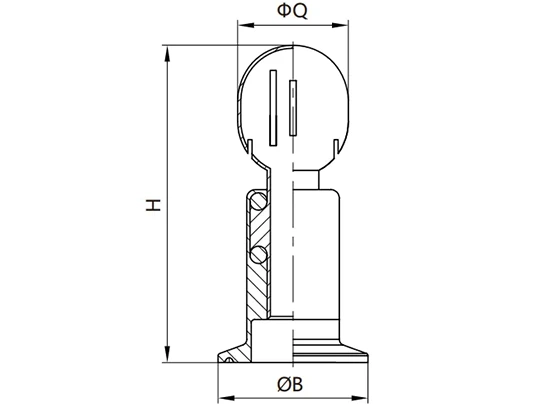

RCB-2

Spray Ball, Clamp

DIN	Size			H	Q
	φB	3A	φB
15	50.5	1/2"	50.5	120	40
20	50.5	3/4"	50.5	138	53
25	50.5	1"	50.5	138	53
32	50.5	11/4"	50.5	138	53
40	50.5	11/2"	50.5	138	53
50	64.0	2"	64.0	168	76
65	91.0	21/2"	91.0	190	76

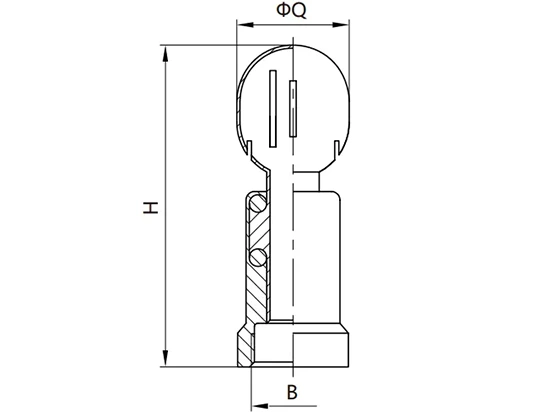

RCB-1

Spray Ball, Male Threaded

DIN	Size			H
	φ B	3A	φB
15	G1/2"	1/2"	G1/2"	110	40
20	G3/4"	3/4"	G3/4"	138	53
25	G1"	1"	G1"	140	53
32	G11/4"	11/4"	G11/4"	160	53
40	G11/2"	11/2"	G11/2"	170	53
50	G2"	2"	G2"	192	76
50	G21/2"	21/2"	G21/2"	220	76

RCB-9

Spray Ball, Bolted

DIN	Size			H	Q
	φB	3A	φB
15	18	1/2"	12.7	110	40
20	22	3/4"	19.1	137	53
25	28	1"	25.4	137	53
32	34	11/4"	31.8	137	53
40	40	11/2"	38.1	150	53
50	52	2"	50.8	168	76
65	70	21/2	63.5	190	76

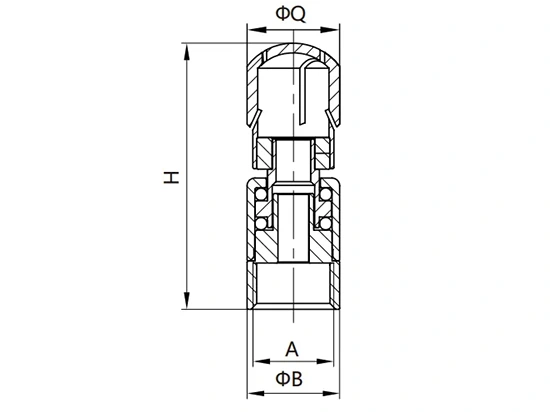

RCB1-1

Spray Ball, Male Threaded

Size		A		ΦB		ΦQ		H
8		1/4"		16.8		16.8		49.0
10		3/8"		24.0		24.0		69.0
15		1/2"		24.0		24.0		71.5
20		3/4"		39.5		44.0		110.5

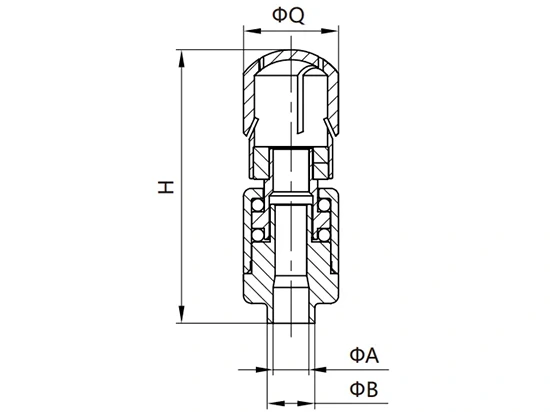

RCB1-3

Spray Ball, Welded

Size		A		φ B		ΦQ		H
10		9/10		12/13		24.0		69.0
15		15/16		18/19		24.0		71.5
20		19/20		22/23		24.0		71.5

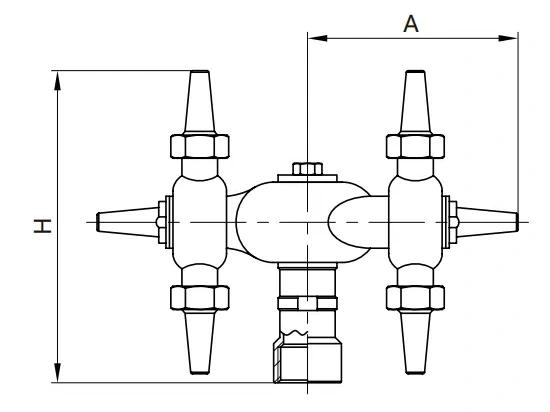

RCB2-1

Spray Ball, Male Threaded

Size	A	H	Pressure  (b ar)		Cleaning radlus(m)		Fluxation (m³ h)
1"	118	165	1.5~2.0		2.0~3.0		23
11/2”	142	189	1.8~2.5		2.5~3.0		38
2"	145	191	2.5~3.0		3.5~4.0		60

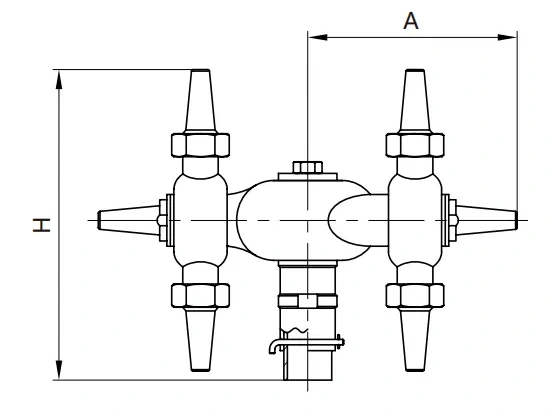

RCB2-9

Spray Ball, Bolted

Size	A	H	Pressure  ( bar)		Cleaning radlus(m)		Fluxation  (m³/h)
1"	118	175	1.5~2.0		2.0~3.0		23
11/2”	142	200	1.8~2.5		2.5~3.0		38
2"	145	205	2.5~3.0		3.5~4.0		60
