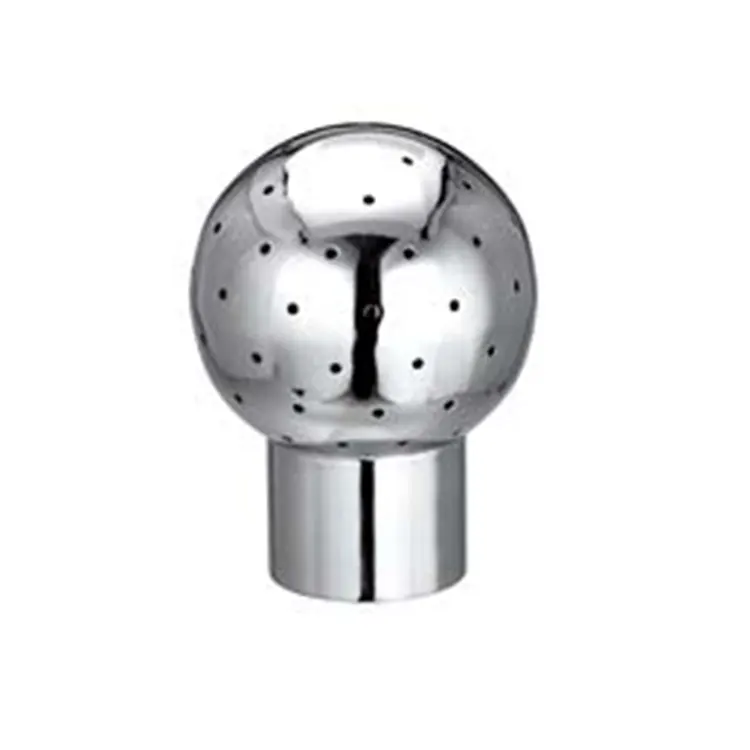

Sanitary Fixed Spray Ball

VTY Sanitary Fixed Spray Balls are designed for efficient CIP (Clean-In-Place) cleaning of tanks, vessels, reactors, fermenters and process equipment.

Manufactured from high-quality SS304 and SS316L stainless steel, our fixed spray balls provide full 360° spray coverage and comply with sanitary standards required in food processing, beverage, dairy, pharmaceutical and liquid cooling industries.

With over 13 years of manufacturing experience, VTY supplies fixed cleaning balls to customers across Germany, Denmark, Netherlands, Italy, France and other European markets.

How Does a Fixed Cleaning Ball Work?

A fixed cleaning ball distributes cleaning fluid through precision-drilled spray holes, creating a high-volume rinse pattern that reaches all internal tank surfaces.

Unlike rotary spray heads, fixed spray balls contain no moving parts, making them a cost-effective and reliable solution for small and medium-sized tanks with predictable soil loads.

Key Features

1.Double bearing design with excellent rotation effects,and better stability and long life bearing

2.Self-cleaning self-luvricating design

3.Cleaning without dead angle

4.Low consumption of liquid,operating under low pressure

5.Compliance with industry standard

Application

Brewery Industry

Cleaning fermentation tanks, bright beer tanks and storage vessels.

Dairy Processing

Suitable for milk tanks, cream storage tanks and CIP return tanks.

Pharmaceutical Industry

Used in hygienic reactors and process vessels requiring sanitary cleaning standards.

Liquid Cooling Industry

Ensures contamination-free cleaning of coolant storage vessels.

Advantages

Simple and Reliable Operation

With no moving parts, Sanitary Fixed Spray Balls offer dependable performance and reduced maintenance requirements.

Lower Initial Cost

A more economical solution than rotary spray heads, making them ideal for projects with budget considerations.

Easy Retrofit Installation

Can be quickly installed in existing tanks and vessels without major modifications.

Ideal for Small and Medium Tanks

Provides effective cleaning performance where high-impact rotary cleaning systems are unnecessary.

Why Choose VTY as Your Fixed Cleaning Ball Manufacturer?

13+ Years Manufacturing Experience

Established in 2013.

13,000㎡ Production Facility

Modern workshop with complete manufacturing capabilities.

134 CNC Machines

More than 90% are MAZAK machining centers from Japan.

Independent Testing Laboratory

Including:

CMM inspection

Surface roughness testing

Hardness testing

Material analysis

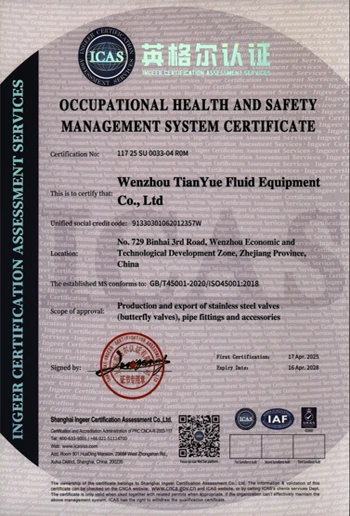

International Certifications

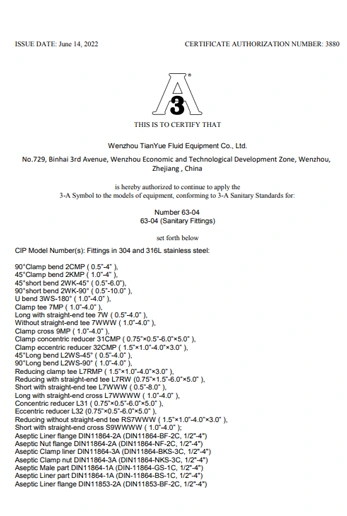

3A

ISO9001

ISO14001

ISO45001

95% Exported to Europe

Trusted by customers in Germany, Denmark, Netherlands, Italy, France and Spain.

FAQ

What is a Sanitary Fixed Spray Ball?

A fixed cleaning ball is a stationary CIP device used to clean the interior surfaces of tanks and vessels through high-volume spray coverage.

What is the difference between a fixed spray ball and a rotary spray head?

Fixed spray balls have no moving parts and require higher flow rates, while rotary spray heads rotate and provide stronger cleaning impact with lower liquid consumption.

What material is used for sanitary cleaning balls?

Typically SS304 or SS316L stainless steel.

Can VTY provide customized connection types?

Yes. Clamp, welded and threaded connections are available.

Which industries use sanitary cleaning balls?

Food processing, brewery, beverage, dairy, pharmaceutical and liquid cooling industries.

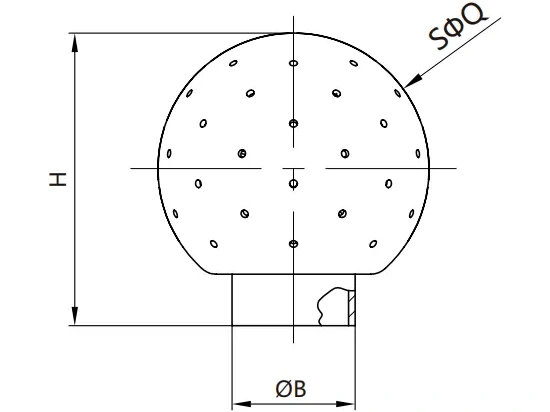

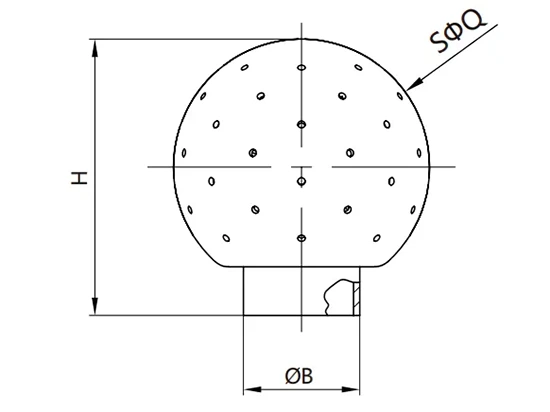

FCB-3

Spray Ball, Welded

DIN	Size			H	Q
	ΦB	3A	ΦB
15	18	1/2"	12.7	54	40
20	22	3/4"	19.1	64	50
25	28	1"	25.4	72	63
32	34	11/4"	31.8	79	65
40	40	11/2"	38.1	85	76
50	52	2"	50.8	87	91
65	70	21/2"	63.5	102	100

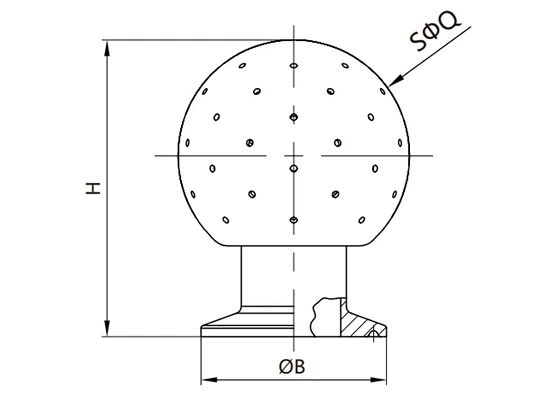

FCB-2

Spray Ball, Clamp

DIN	Size			H	Q
	φB	3A	φB
15	50.5	1/2"	50.5	70	53
20	50.5	3/4"	50.5	77	53
25	50.5	1"	50.5	80	63
32	50.5	11/4"	50.5	93	76
40	50.5	11/2"	50.5	93	76
50	64.0	2"	64.0	108	91
65	77.5	21/2"	77.5	115	100

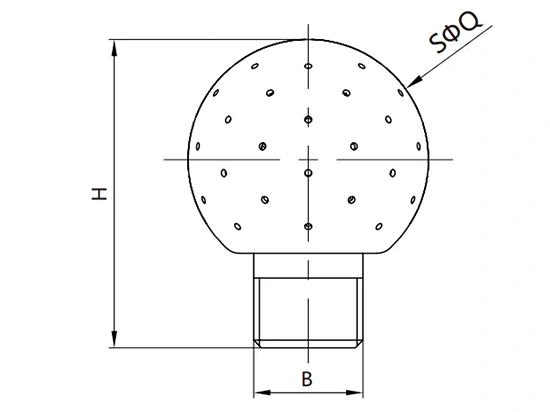

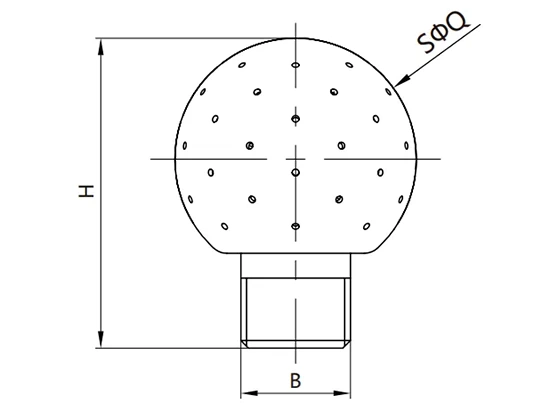

FCB-1

Spray Ball, Male Threaded

DIN	Size			H	Q
	B	3A	B
15	G1/2"	1/2"	G1/2"	70	40
20	G3/4"	3/4"	G3/4"	77	50
25	G1"	1"	G1"	80	63
32	G11/4"	11/4"	G11/4"	93	65
40	G11/2"	11/2"	G11/2"	93	76
50	G2"	2"	G2"	108	91

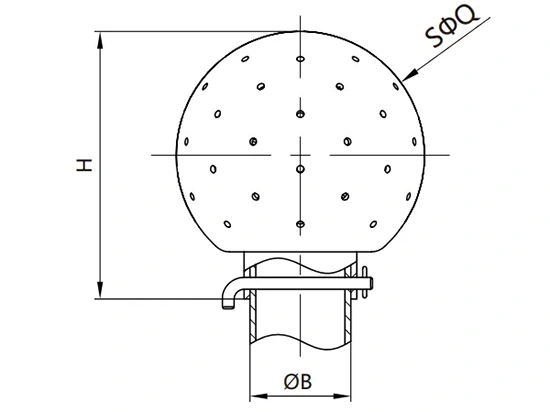

FCB-9

Spray Ball, Bolted

DIN	Size			H	Q
	φB	3A	φB
15	18	1/2"	12.7	54	40
20	22	3/4"	19.1	64	50
25	28	1"	25.4	72	63
32	34	11/4"	31.8	79	65
40	40	11/2"	38.1	85	76
50	52	2"	50.8	87	91
65	70	21/2"	63.5	102	100

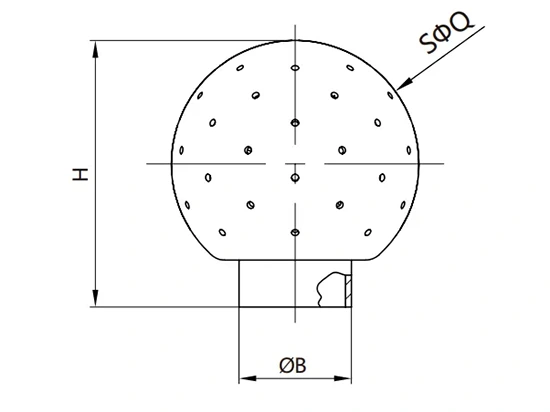

FCB1-3

Spray Ball, Welded

DIN	Size			H	Q
	φB	3A	φB
15	18	1/2"	12.7	45	30
20	22	3/4"	19.1	55	40
25	28	1"	25.4	73	53
32	34	11/4"	31.8	87	63
40	40	11/2"	38.1	91	65
50	52	2"	50.8	100	76
65	70	21/2"	63.5	125	100

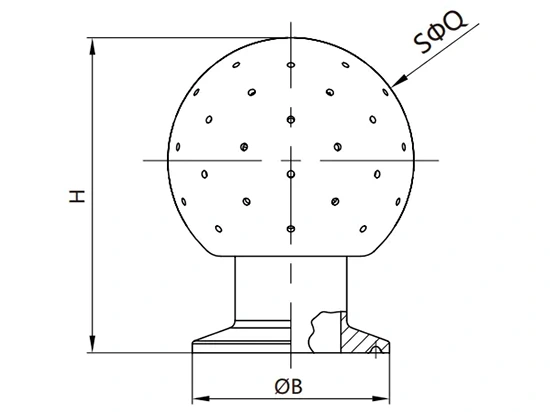

FCB1-2

Spray Ball, Clamp

DIN	Size			H	Q
	φB	3A	φB
15	50.5	1/2"	50.5	84	63
20	50.5	3/4"	50.5	84	63
25	50.5	1"	50.5	84	63
32	50.5	11/4"	50.5	84	63
40	50.5	11/2"	50.5	84	63
50	64.0	2"	64.0	97	76
65	91.0	21/2"	91.0	127	100

FCB1-1

Spray Ball, Male Threaded

DIN	Size			H	Q
	B	3A	B
15	G1/2"	1/2"	G1/2"	53	38
20	G3/4"	3/4"	G3/4"	73	53
25	G1"	1"	G1"	87	63
32	G11/4"	11/4"	G11/4"	90	65
40	G11/2"	11/2"	G11/2"	100	76
50	G2"	2"	G2"	115	91

FCB1-9

Spray Ball, Bolted

DIN	Size			H	Q
	B	3A	φB
15	18	1/2"	12.7	55	32
20	22	3/4"	19.1	68	40
25	28	1"	25.4	86	53
32	34	11/4"	31.8	100	63
40	40	11/2"	38.1	105	65
50	52	2"	50.8	115	76
65	70	21/2"	63.5	140	100
