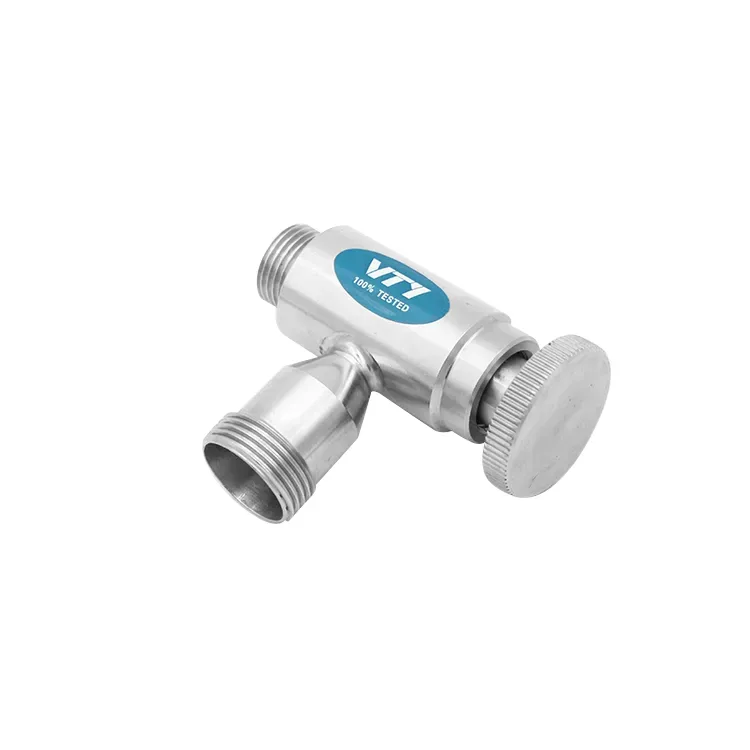

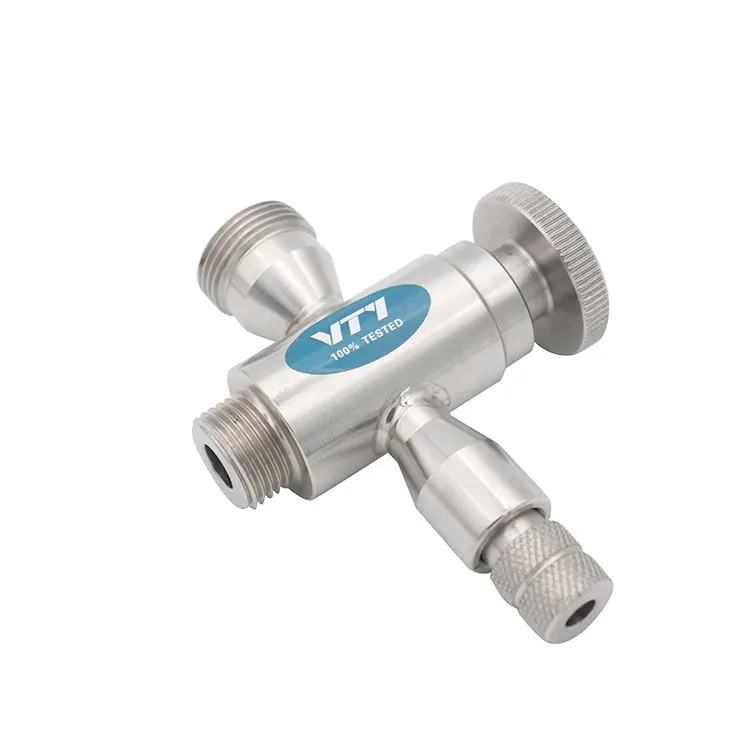

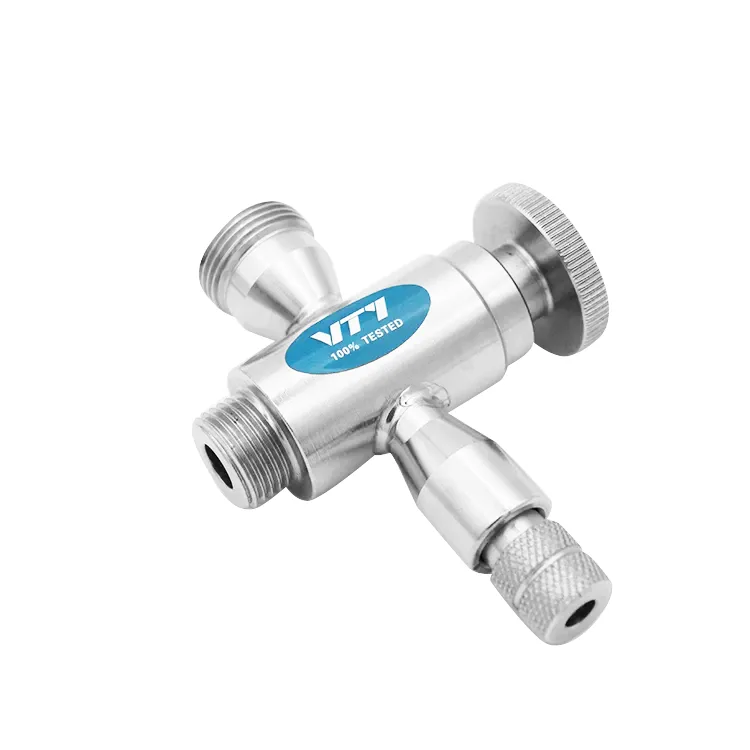

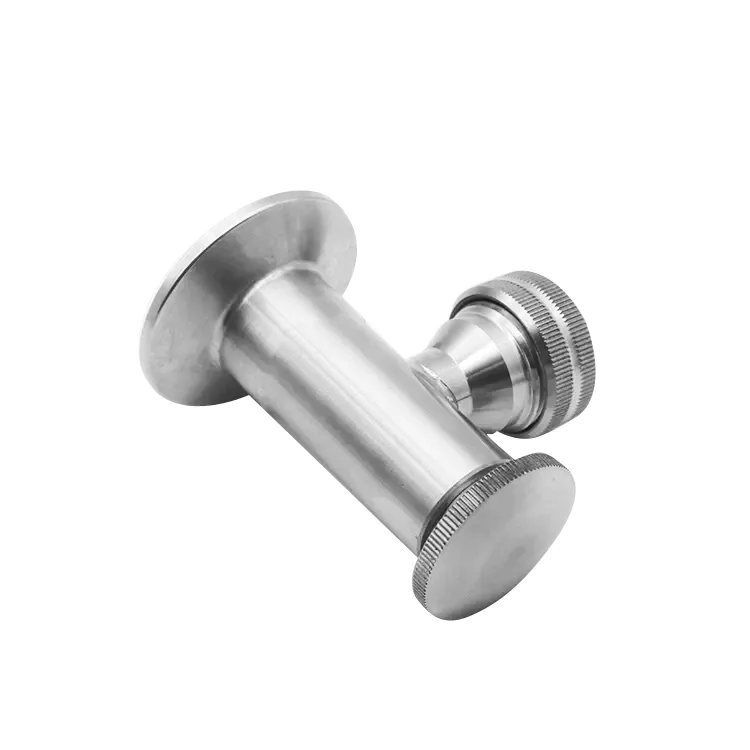

Sanitary Level Gauge

VTY Sanitary Level Gauge is a key component for hygienic processes, providing accurate, real-time fluid level measurement. Made from hygienic stainless steel, it is designed to meet strict industry standards. The  gauge is mainly used on tank equipment, where one or two gauges are installed to monitor liquid levels and collect samples. It helps ensure product quality, prevent overflows, and improve process efficiency.

Features

Dead-Space Free: Designed to prevent process turbulence, corners, or stagnant zones where bacteria could grow.

Flush Diaphragm: Prevents material buildup and is easy to clean.

Technical Data

FAQ

Q1: What is a liquid level gauge?

A liquid level gauge is an instrument used to measure and display the height or depth of a liquid within a container, tank, or vessel.

Q2: What does a liquid level gauge actually do?

A liquid level gauge continuously monitors the amount of fluid inside a tank and provides a visual or electronic readout of how full it is.

Q3: What metal material should a liquid level gauge choose?

A Sanitary Level Gauge should almost always use 316L Stainless Steel, because its low carbon content prevents corrosion at welded joints, while its ultra-smooth finish prevents bacteria from hiding and resists harsh cleaning chemicals.

Q4: What is the difference between a upper level gauge and a lower level gauge?

An upper level gauge measures the fluid at the top of a tank to prevent dangerous overfilling, while a lower level gauge monitors the fluid at the bottom to ensure the tank doesn't run empty or damage pumps.

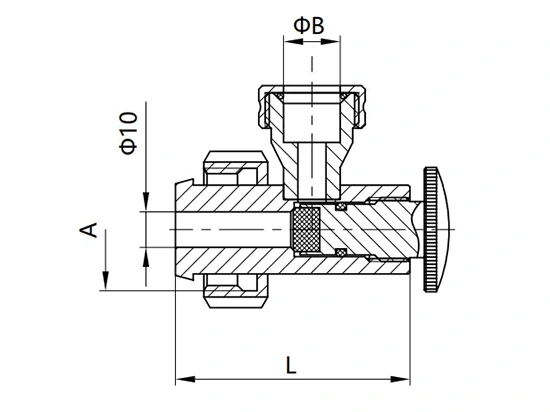

PL1-005

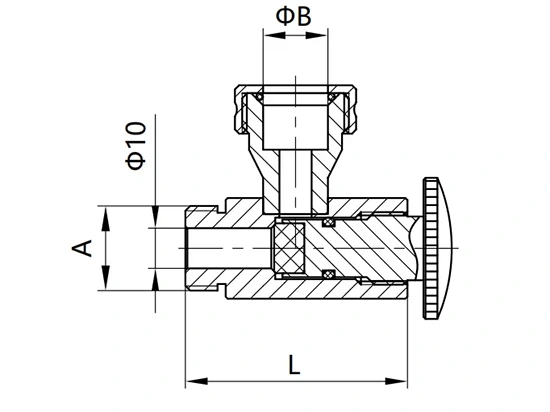

Upper Level Gauge Valve, Union End

Size	A	B	L
16	Rd34×1/8"	16	66
19	Rd34×1/8"	19	66
20	Rd34×1/8"	20	66

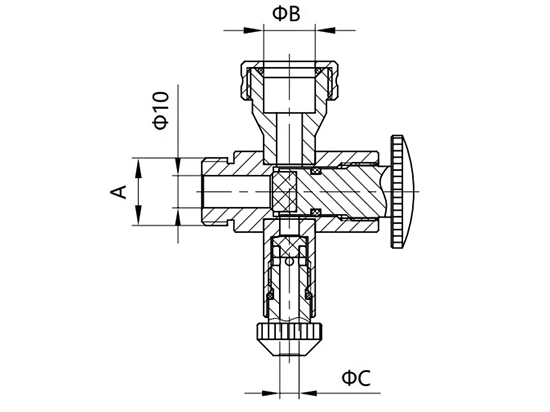

PW1-006

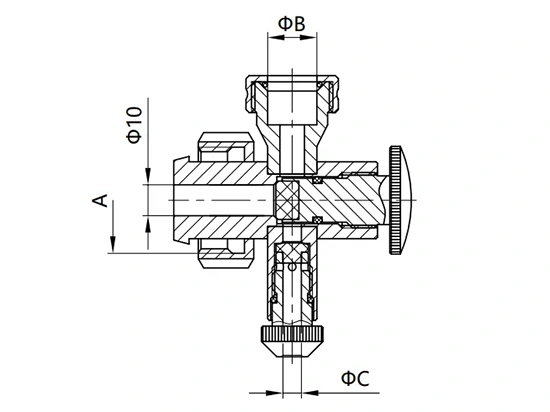

Lower Level Gauge Valve, Union End

Size	A	B	C
16	Rd34×1/8"	16	6
19	Rd34×1/8"	19	6
20	Rd34×1/8"	20	6

PL1-001

Upper Level Gauge Valve, BSP Threaded End

Siz	A	B	H
3/8-16	BSP3/8	16	55
1/2-16	BSP1/2	16	55
3/8-19	BSP3/8	19	55
1/2-19	BSP1/2	19	55
3/8-20	BSP3/8	20	55
1/2-20	BSP1/2	20	55

PL1-002

Lower Level Gauge Valve, BSP Threaded End

Size	A	B	C
3/8-16	BSP3/8	16	6
1/2-16	BSP1/2	16	6
3/8-19	BSP3/8	19	6
1/2-19	BSP1/2	19	6
3/8-20	BSP3/8	20	6
1/2-20	BSP1/2	20	6

PL1-003

Upper Level Gauge Valve, Clamp End

Size	A	B	C
25-16	25.0	16	6
34-16	34.0	16	6
50-16	50.5	16	6
25-19	25.0	19	6
34-19	34.0	19	6
50-19	50.5	19	6
25-20	25.0	20	6
34-20	34.0	20	6
50-20	50.5	20	6

PL1-004

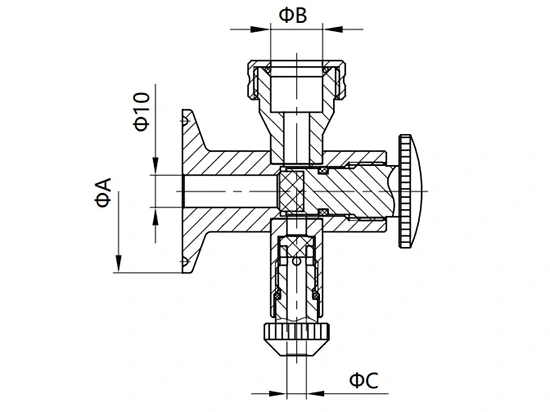

Lower Level Gauge Valve, Clamp End

Size	A	B	C
25-16	25.0	16	6
34-16	34.0	16	6
50-16	50.5	16	6
25-19	25.0	19	6
34-19	34.0	19	6
50-19	50.5	19	6
25-20	25.0	20	6
34-20	34.0	20	6
50-20	50.5	20	6
