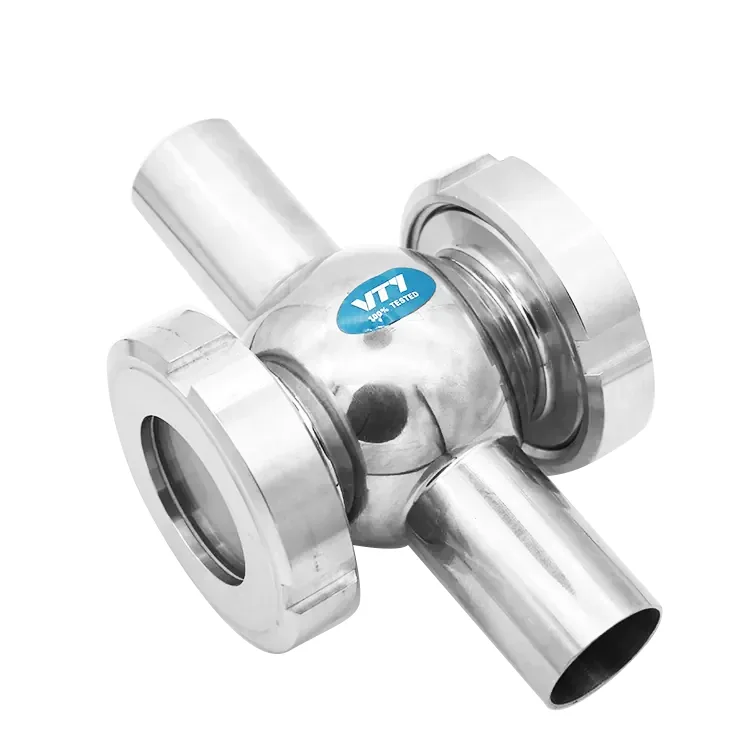

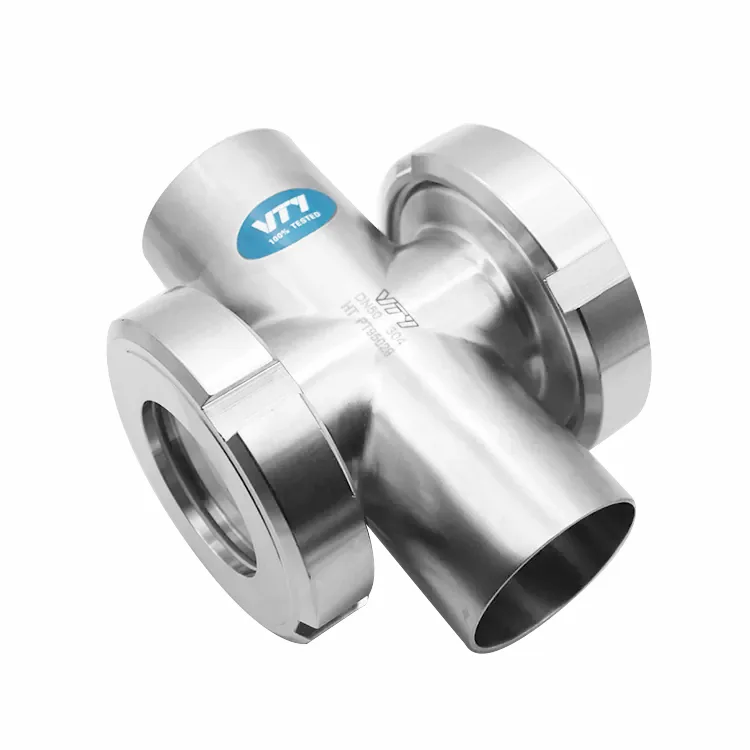

The union type sight glass from VTY is a typical sight glass used to be welded to sanitary tanks. It is made in stainless steel 304 or 316L, with transparent Pyrex or tempered glass, offering excellent clarity, high temperature resistance, and chemical durability. The union weld ends are available in SMS and DIN standards.
The installation size is small, and the operation is simple and fast. It also has good function of flow adjustment and characteristics of closing and sealing. This sight glass is the dominant sight glass in the application domain of large and medium caliber and medium and low pressure.
The design is particularly beneficial in processes where frequent maintenance or manual inspection is necessary. union type sight glass could be used for observing bioreactor, lab. blender, sanitary filters, processing vessel and other closed equipment. VTY can offer a full range of union type sight glass widely used for brewery, dairy, food, cosmetic, bio-pharmaceutical industries.

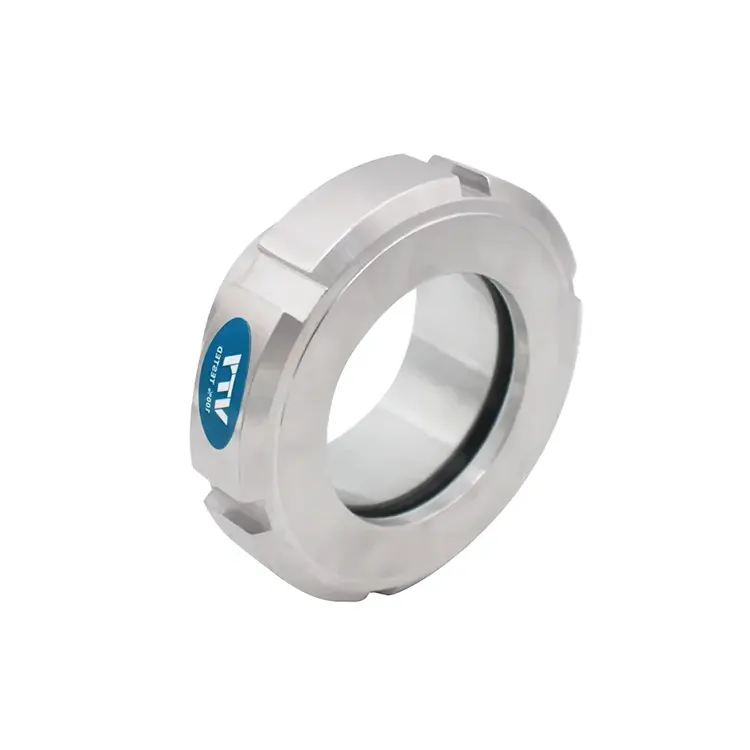

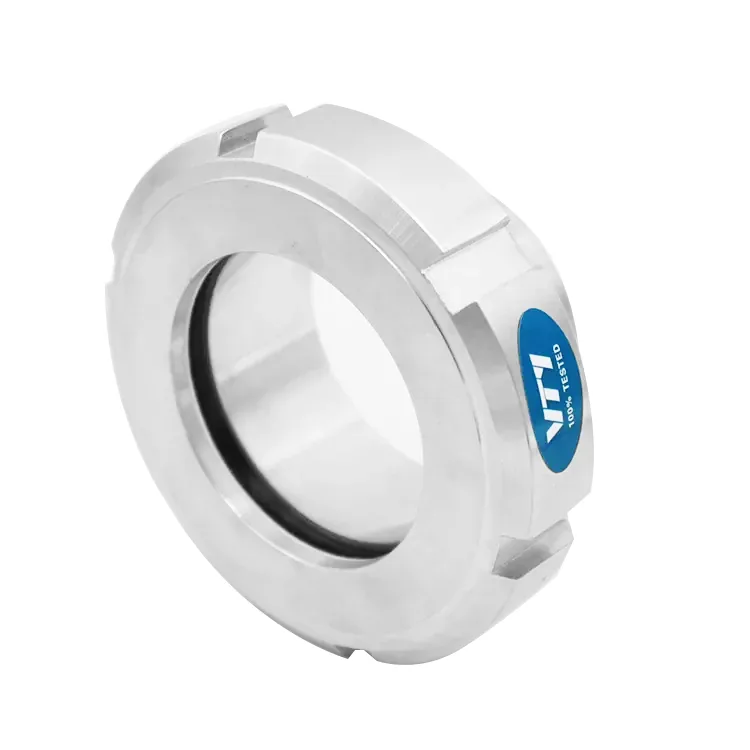

The main structure: nuts and clamp connections in two designs, with a circular transparent tempered glass.
It is used viewing the biologic reactor, blender in laboratory, fitter, processing container, pipeline, and another closed container. Especially apply in pharmacy, food and beverage processing, such as the brewery, dairy.

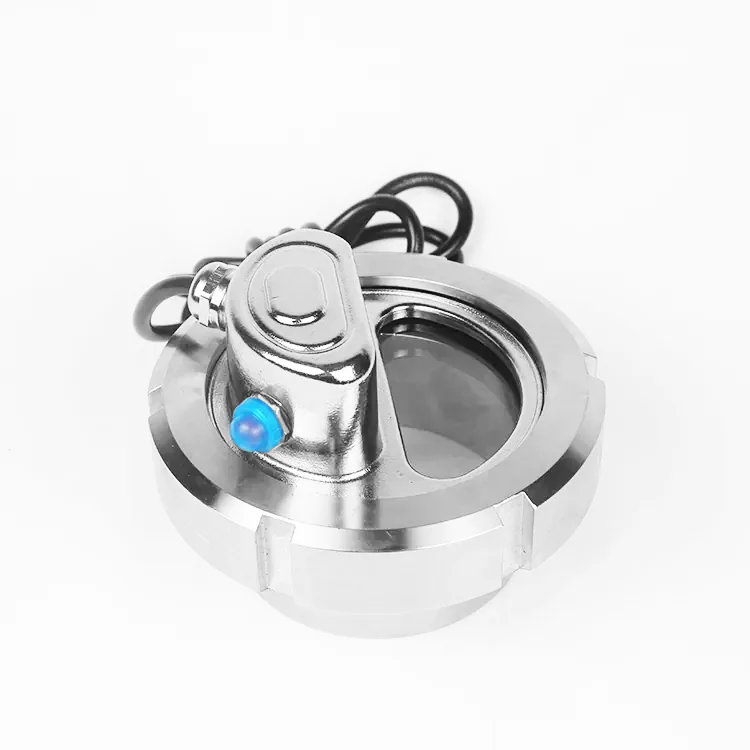

Dust scraping device mainly solves glass transparency decreases because of glass is immersed in the medium for a long time.
Improved operational efficiency.
Enables early detection and quick response to potential issues.
Reliable operation and more uptime.
Quick and easy to install.
Low maintenance requirements.
Improve Process Visibility
Allows operators to observe product flow without interrupting production.
Reduce Downtime
Early identification of operational issues helps prevent costly production interruptions.
Increase Product Safety
Supports quality control by enabling continuous visual inspection.
Simplify Maintenance
Union connection structure allows rapid disassembly and inspection.
Enhance Production Efficiency
Reduces unnecessary system shutdowns and maintenance time.
Established in 2013, VTY specializes in sanitary fluid handling components and hygienic processing equipment.
13,000㎡ production facility
134 CNC machining centers
More than 90% MAZAK equipment
Automated robotic production systems
Every product undergoes comprehensive inspection using:
Coordinate Measuring Machine (CMM)
Surface Roughness Tester
Spectrometer Analysis
Hardness Testing
Thickness Measurement
Pressure Testing

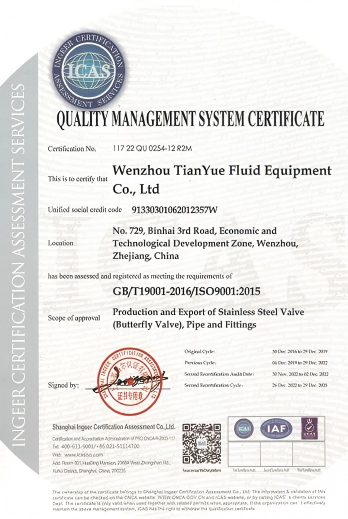

ISO 9001
ISO 14001

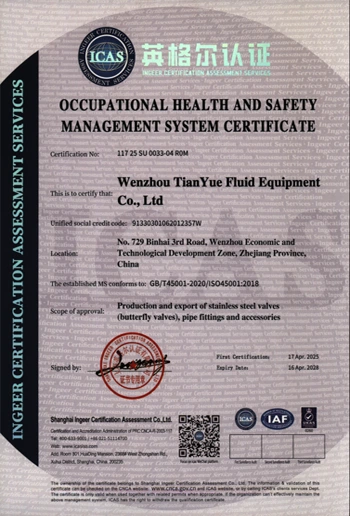

ISO 45001

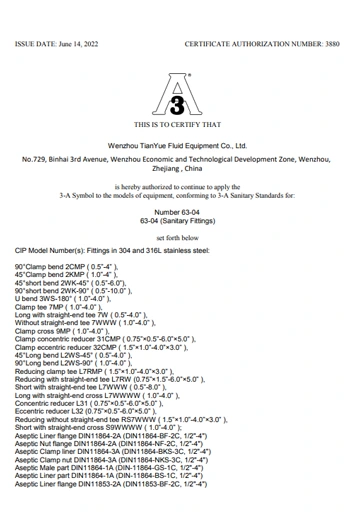

3A Sanitary Standard
National Health License
Intellectual Property Management Certification
Approximately 95% of our products are exported to European markets including:
Germany
Denmark
Netherlands
France
Italy
Spain
Looking for a reliable Sanitary Union Sight Glass manufacturer in China?
VTY provides high-quality sanitary sight glasses, sanitary fittings, sanitary valves, sanitary unions, and customized hygienic fluid handling solutions for food, beverage, dairy, pharmaceutical, biotechnology, and liquid cooling industries.
Send us your drawings, specifications, or project requirements today for a fast quotation and technical support.

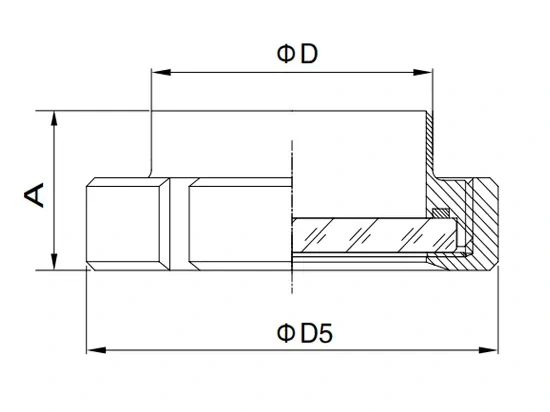

| DN | A | D | D5 |
|---|---|---|---|
| DN25 | 35 | 29 | 63 |
| DN32 | 38 | 35 | 70 |
| DN40 | 40 | 41 | 78 |
| DN50 | 42 | 53 | 92 |
| DN65 | 47 | 70 | 110 |
| DN80 | 52 | 85 | 125 |
| DN100 | 62 | 104 | 146 |
| Size | A | D | D5 |
| 25 | 25 | 25.4 | 54 |
| 32 | 25 | 32.0 | 70 |
| 38 | 28 | 38.1 | 72 |
| 51 | 28 | 50.8 | 92 |
| 63 | 32 | 63.5 | 97 |
| 76 | 33 | 76.2 | 111 |
| 89 | 34 | 88.9 | 125 |
| 102 | 36 | 101.6 | 138 |
