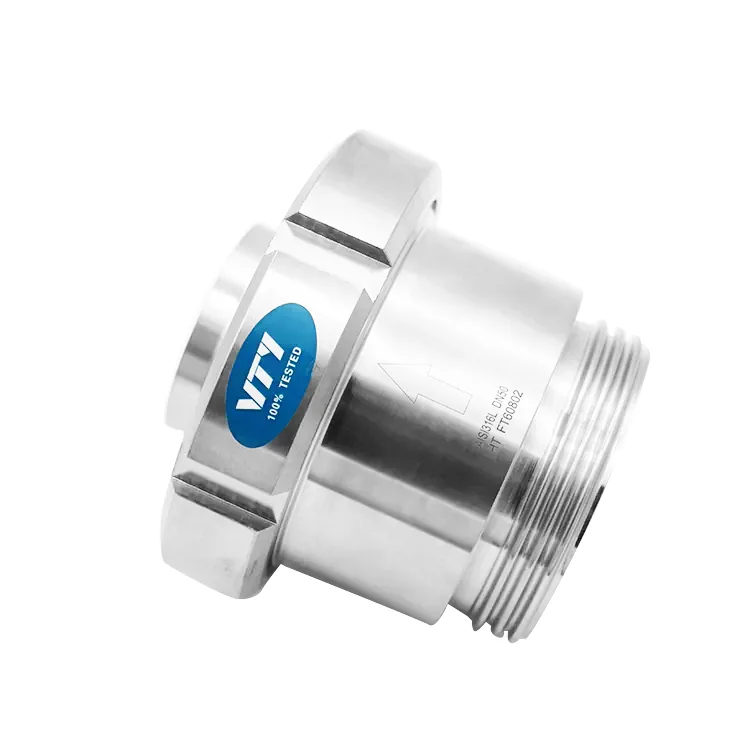

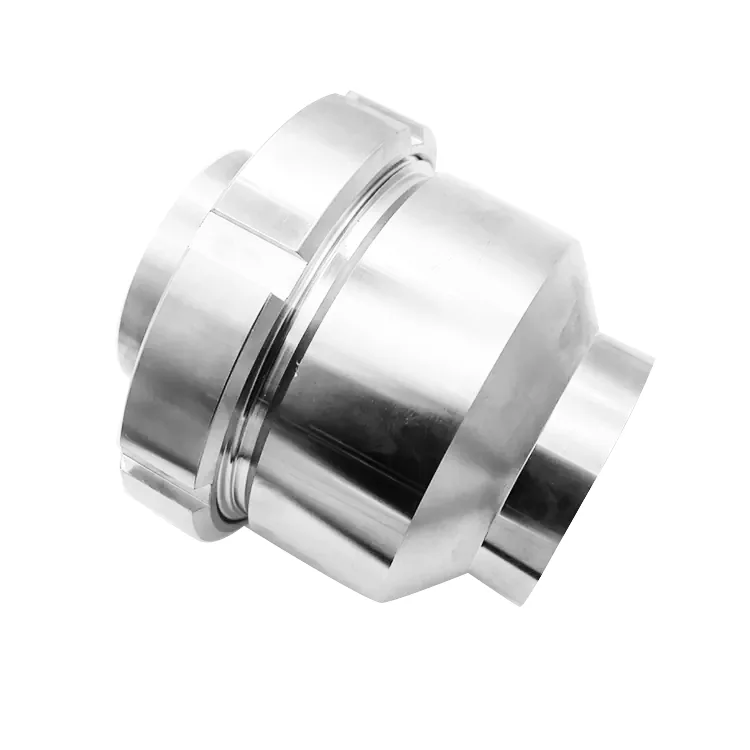

The sanitary Union Type Check Valve from VTY factory is the sanitary check valve of 2 pcs splitted design with spring structure and assembled by union. They are designed to prevent fluid backflow and ensure that it flows only in one direction. This function makes them essential for preventing pumps from emptying and preventing water hammer in industrial plants. It can be used to prevent the loss of prime of the pump and to avoid pipe-hammering. VTY can offer a wide range of din union type check valves in the food-processing, beverage, wine-making, oil-making, cosmetics, pharmaceutical and chemical industries.
Product Contact Parts: 304L/316L (Forged)
Non-product Contact Parts: 304
Provide EN 10204 3.1B Certificate
Standard: EPDM
Option: NBR, FPM, Silicone
All seal materials comply with FDA 177.2600
Running working temperature: -20~+135℃ (EPDM)
Sterilization temperature: 150℃ (max 20 min)
Opening pressure ≈ 0.08 bar
Max working pressure=10bar
Internal surface: Ra≤0.8μm
External surface: Ra≤1.6μm
Connection standard:
Welded End: DIN 11850 series 2
Welded End: INCH pipe standard
Connection method: Welding, thread, clamp, flange
A Union Type Check Valve operates automatically using a spring-loaded valve disc.
When the upstream pressure exceeds the valve opening pressure, the valve opens and allows fluid to pass through the pipeline. Once the flow stops or reverse pressure occurs, the spring immediately forces the valve disc back into the closed position.
This mechanism effectively:
Prevents reverse flow
Protects pumps from losing prime
Reduces water hammer effects
Prevents product contamination
Maintains process efficiency
VTY sanitary DIN check valves are widely used in:
Prevent product backflow and maintain hygienic production environments.
Protect pumps, tanks, and process lines from reverse flow.
Ensure sanitary transfer of milk and dairy products.
Support contamination-free transportation of sensitive process media.
Maintain sterile conditions in process systems.
Ensure stable coolant circulation and prevent reverse flow.
Support hygienic production of creams, lotions, and liquid products.

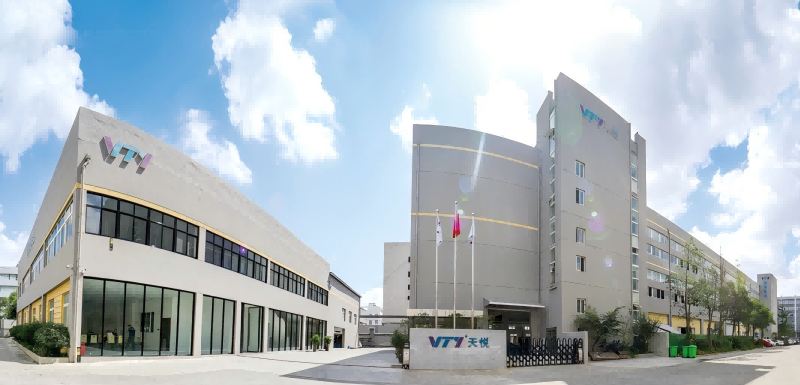

Founded in 2013, VTY specializes in the design and manufacturing of sanitary valves, fittings, unions, filters, sampling valves, and fluid handling components.
13,000㎡ production facility
134 CNC machining centers
More than 90% MAZAK equipment
Automated polishing production lines
Laser cutting systems
Robotic production units
Every valve undergoes comprehensive inspections including:
Material Verification
Thickness Testing
Hardness Testing

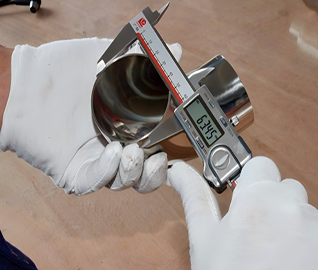

Dimensional Tolerance Inspection

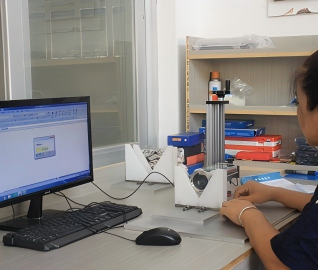

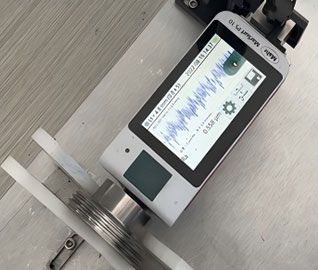

Surface Roughness Testing
Pressure Testing
ISO 9001
ISO 14001
ISO 45001
3A Certification
National Health License
Multiple Patent Technologies
A Union Type Check Valve is a sanitary non-return valve designed to allow fluid flow in one direction while preventing backflow.
Product-contact parts are available in forged SS304L and SS316L stainless steel.
Yes, EN 10204 3.1 material certificates are available.
Food processing, dairy, brewery, beverage, pharmaceutical, biotechnology, cosmetics, and liquid cooling industries.
Yes. VTY supports OEM manufacturing and customized solutions according to customer drawings or samples.
EPDM, NBR, FPM, and Silicone sealing options are available.
Contact VTY today for technical support, customized solutions, OEM service, pricing information, and fast quotation.

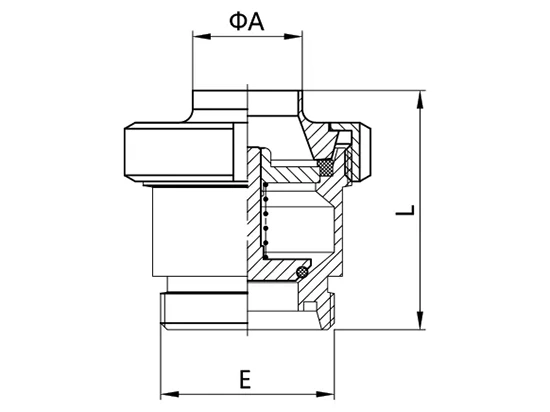

| Size | A | T | E | L |
|---|---|---|---|---|
| 15 | 19 | 1.5 | RD 34×1/8" | 56 |
| 20 | 23 | 1.5 | RD 44×1/6" | 64 |
| 25 | 29 | 1.5 | RD52×1/6" | 81 |
| 32 | 35 | 1.5 | RD 58×1/6" | 84 |
| 40 | 41 | 1.5 | RD65×1/6" | 89 |
| 50 | 53 | 1.5 | RD 78×1/6" | 96 |
| 65 | 70 | 2.0 | RD 95×1/6" | 111 |
| 80 | 85 | 2.0 | RD 110×1/4" | 144 |
| 100 | 104 | 2.0 | RD 130×1/4" | 167 |

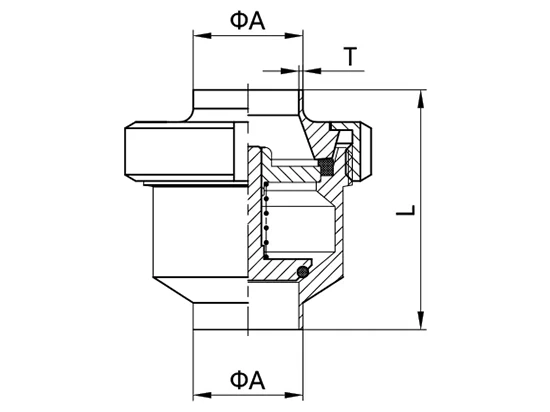

| Size | A | T | L |
|---|---|---|---|
| 15 | 19 | 1.5 | 56 |
| 20 | 23 | 1.5 | 64 |
| 25 | 29 | 1.5 | 81 |
| 32 | 35 | 1.5 | 84 |
| 40 | 41 | 1.5 | 89 |
| 50 | 53 | 1.5 | 96 |
| 65 | 70 | 2.0 | 111 |
| 80 | 85 | 2.0 | 144 |
| 100 | 104 | 2.0 | 167 |
