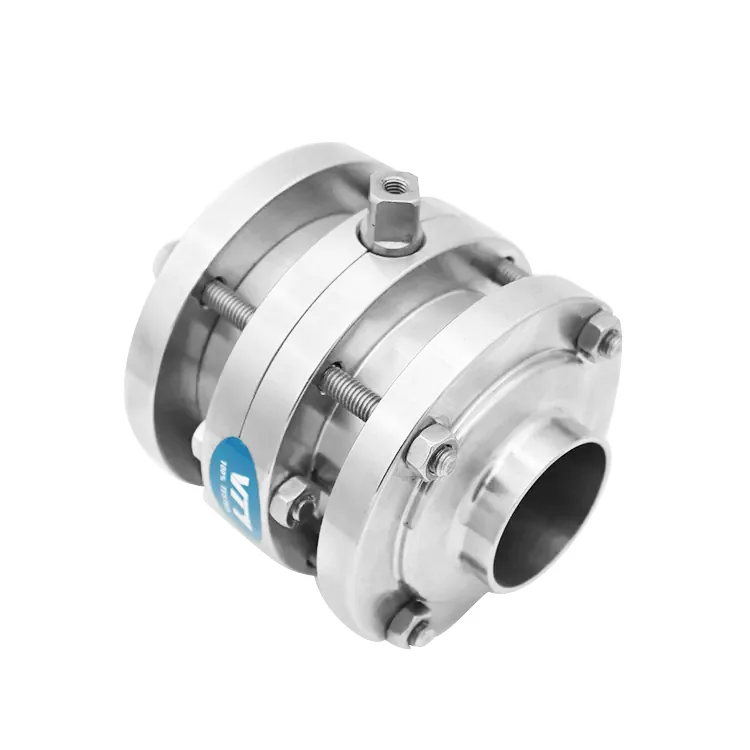

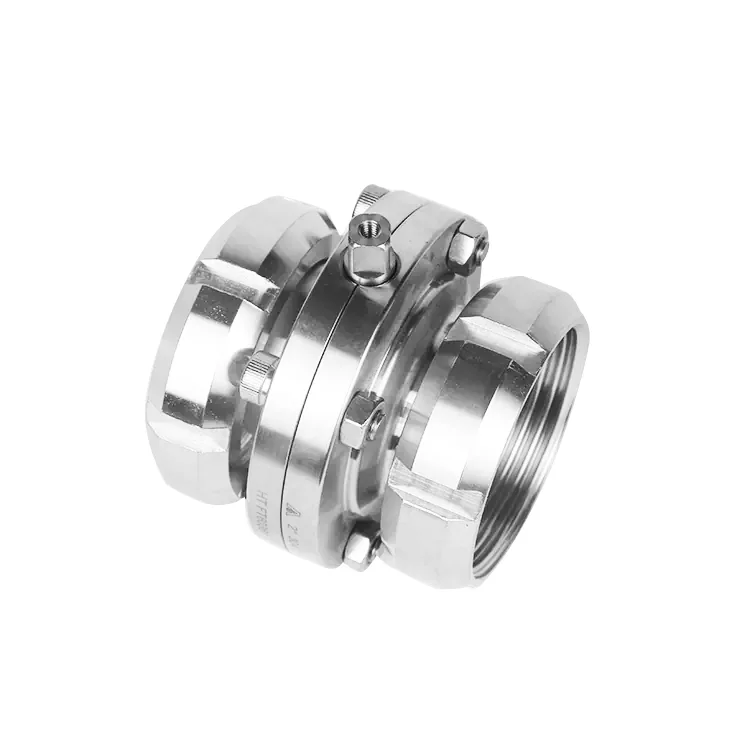

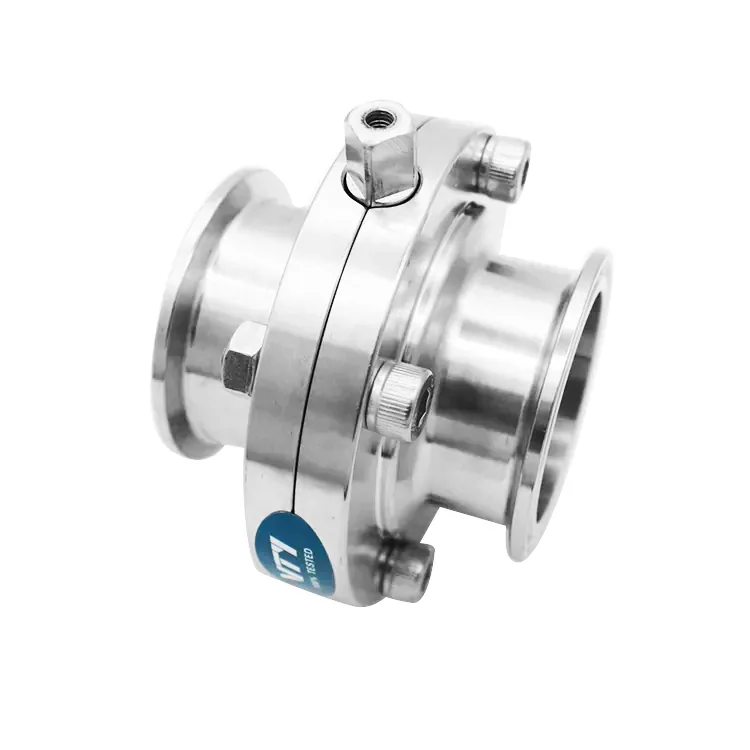

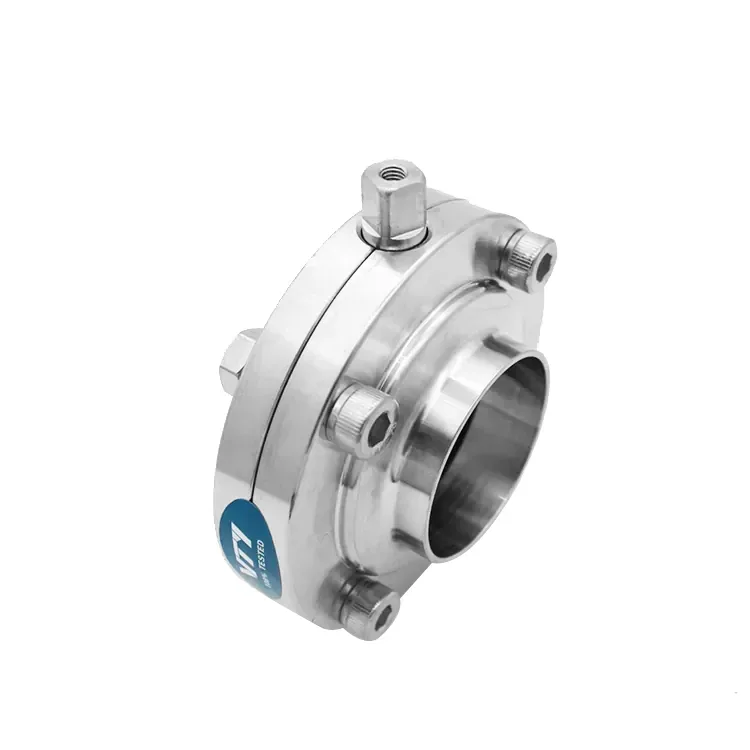

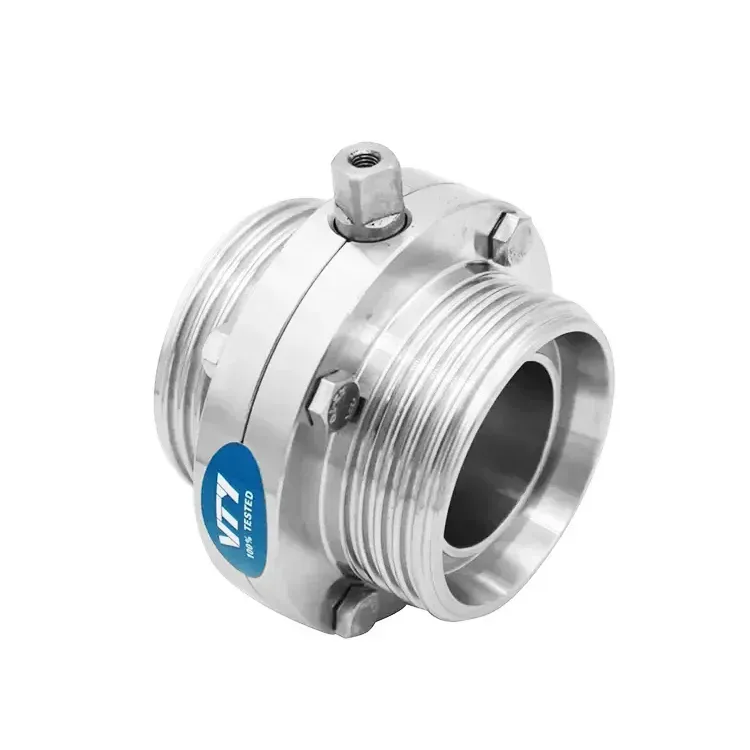

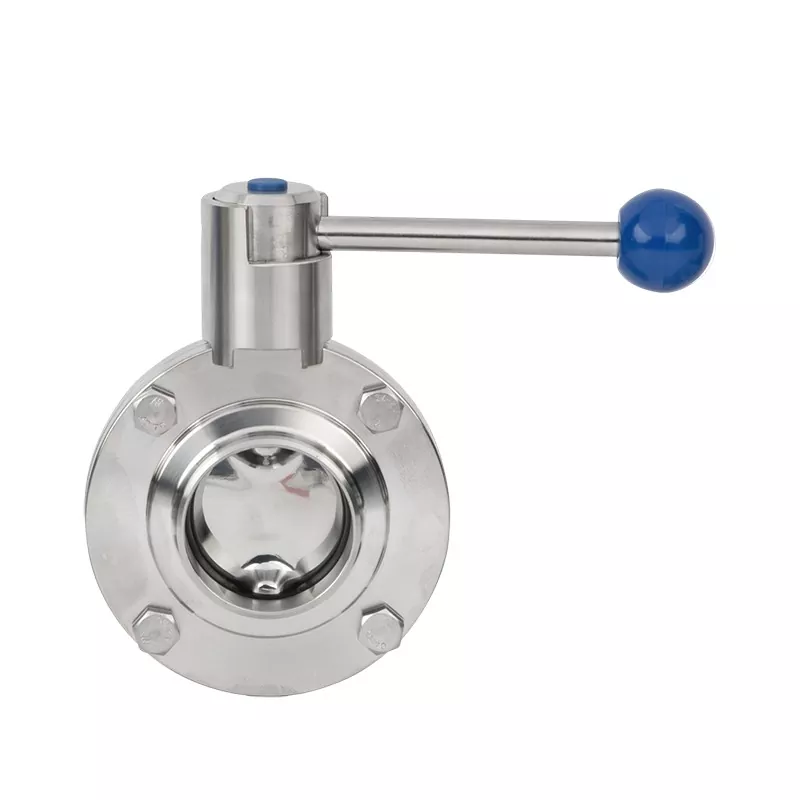

The DIN Sanitary Butterfly Valve from VTY is a type of quarter-turn valve used to control the flow of liquids and gases in pipes. It is designed for high-purity industries such as food processing and pharmaceuticals.

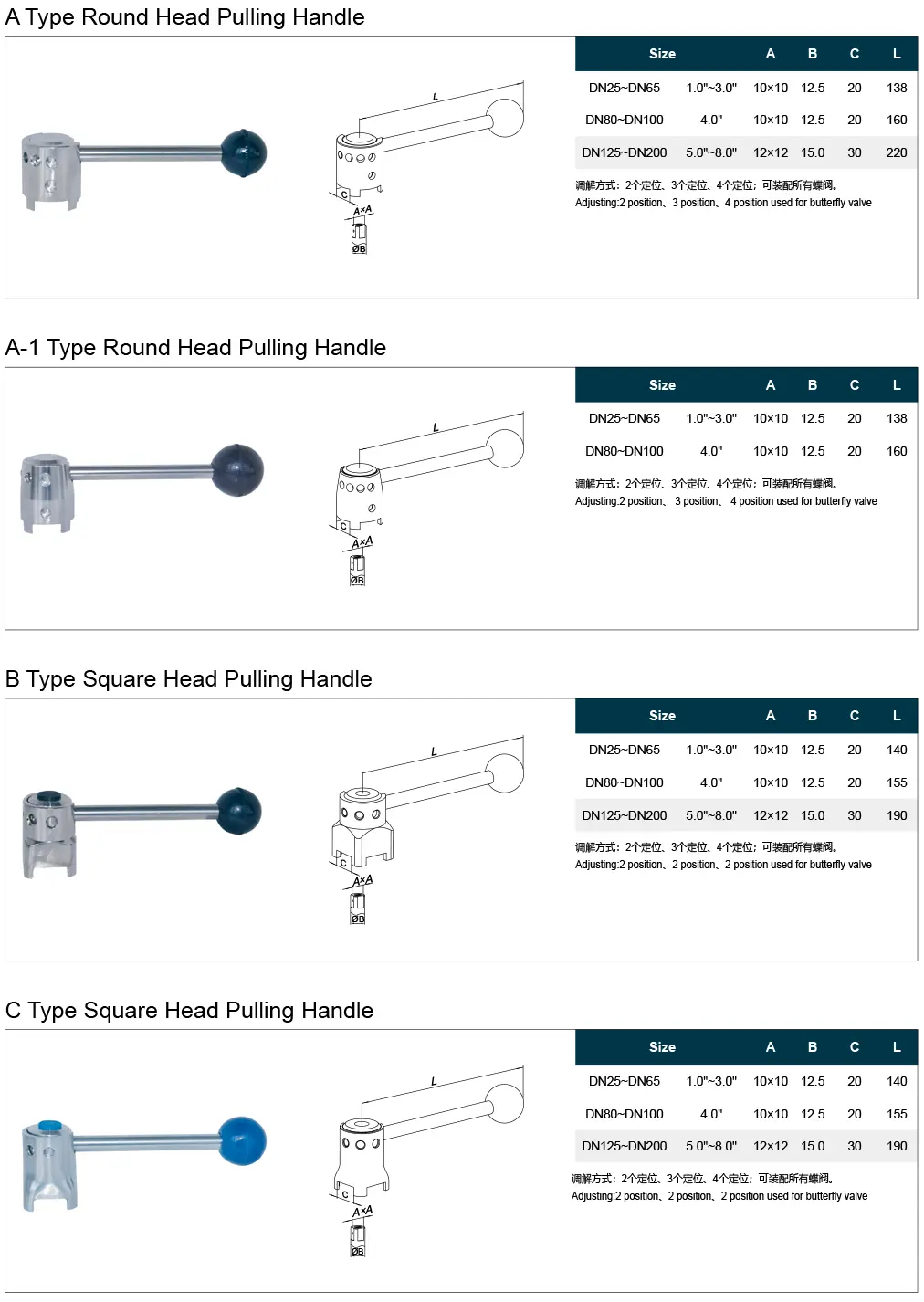

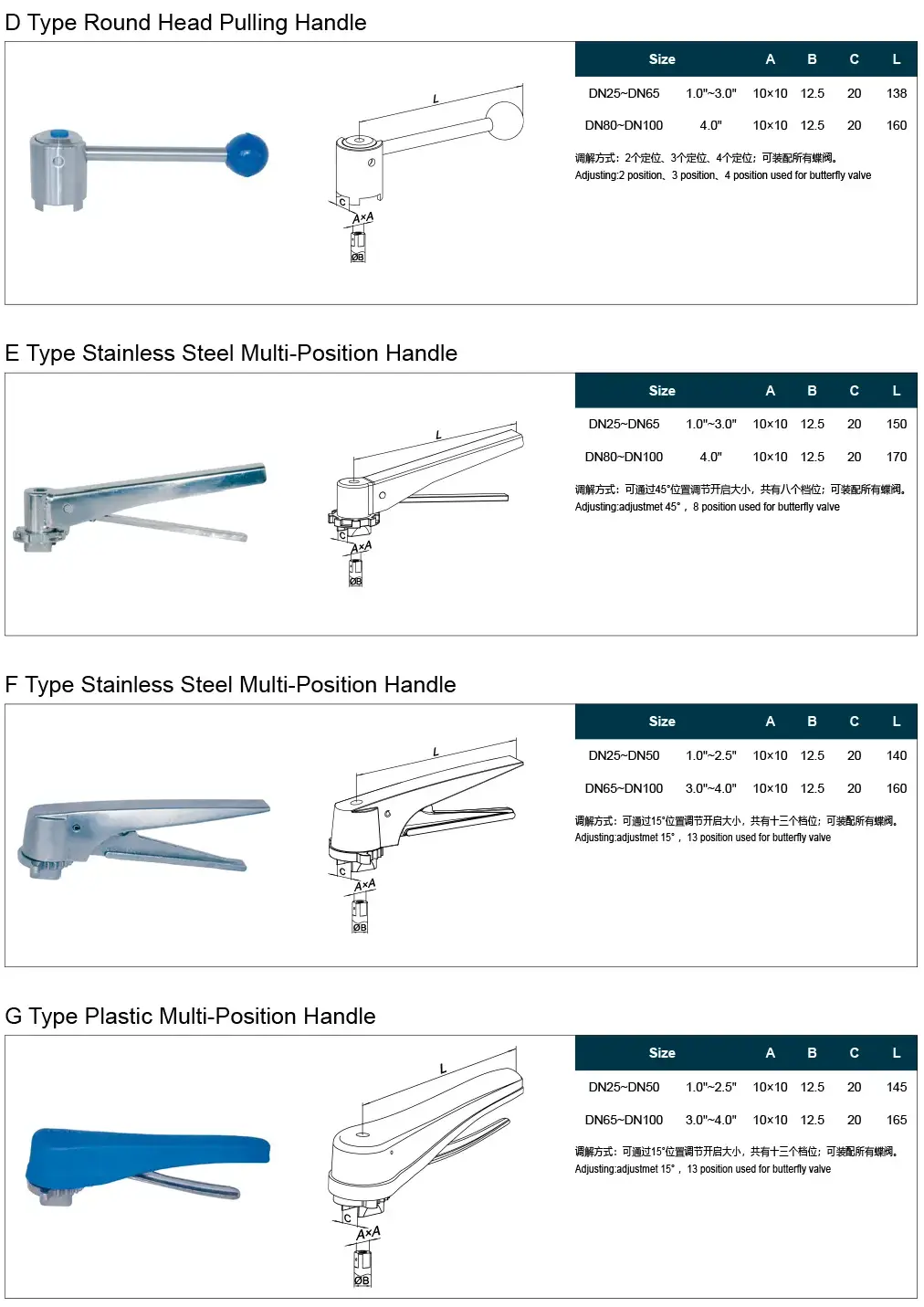

They are commonly and widely used because of low cost, simple structure and easy maintenance. It adopts the German standard DIN11851, which is widely used in the beer industry. We offer it with manual handle and pneumatic or electric actuator operated.
Being quick to install, easy to control, and excellent in performance, the sanitary butterfly valve brings you convenience and cost-saving. VTY can supply a full range of DIN Sanitary Butterfly Valves for the applications of Food, Brewery, Beverage, Dairy, Pharmaceutical etc.
1.low cost
2.simple structure
3.ease of maintenance
4.sanitary design
Because the VTY valve has a flush-bottom design, it fully supports CIP:
Open valve fully – eliminates dead zone in the seal area
CIP cycle – min 15 min at 70–85°C with 1.5–3% alkaline/acid solution
Final rinse – purified water until pH neutral
Never clean with valve partially open – product may accumulate behind the disc.
Observe whether there is leakage when the valve is closed. If leakage is found, it may be due to wear, aging, or foreign matter in the seal
After disassembly, check whether the seal has cracks, deformation, hardening, or scratches. If any of these problems exist, it must be replaced immediately.
Choose a food-grade seal that matches the original model
Ensure that the seal is not twisted or misaligned during installation, and that there are no foreign objects in the valve body sealing groove to avoid secondary leakage due to improper installation.
ISO 9001, ISO 14001, ISO 45001, 3A, National Health License, Intellectual Property Management System.
| Service | VTY Policy |
|---|---|
| Sample | Available before mass production |
| Customization | According to drawing or sample |
| MOQ | No fixed MOQ for standard sizes |
| Lead time | 15–25 days (stock depends) |
| Packaging | Carton + plywood case for export |
| Payment | T/T, L/C |
📎 Download: VTY DIN Sanitary Butterfly Valve Datasheet (PDF)
📎 Request a quote: vty@wzvty.com
Q1: Is VTY DIN butterfly valve FDA compliant?
Yes. EPDM seals are FDA 21 CFR 177.2600 certified.
Q2: Can I get a 3.1 material certificate?
Yes, EN 10204 3.1 certificate is available for each batch.
Q3: Does VTY support OEM?
Yes. We manufacture according to customer drawings or samples.
Q4: Which markets do you export to?
~95% to EU: Germany, Denmark, Netherlands, Italy, France, Spain.
Q5: What is the surface roughness of the wetted parts?
Ra ≤ 0.4µm (mechanically polished).

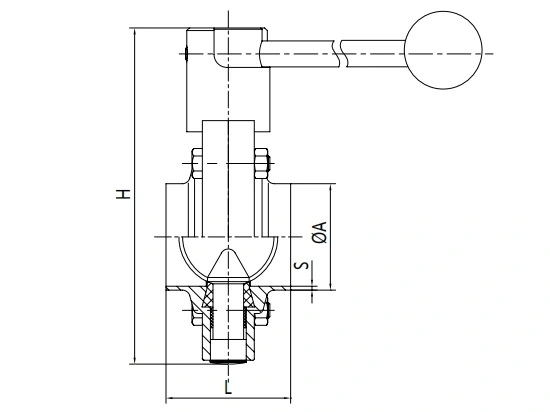

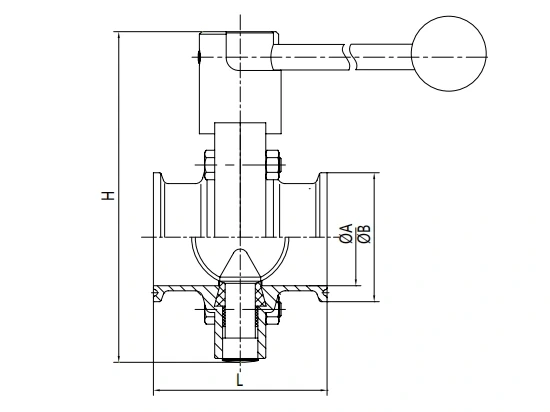

| DN | A | S | L | H | |
|---|---|---|---|---|---|
| Series 1 | Series 2 | ||||
| DN20 | 22 | 23 | 1.5 | 44 | 119.5 |
| DN25 | 28 | 29 | 1.5 | 44 | 119.5 |
| DN32 | 34 | 35 | 1.5 | 44 | 125.8 |
| DN40 | 40 | 41 | 1.5 | 50 | 131 |
| DN50 | 52 | 53 | 1.5 | 50 | 149.6 |
| DN65 | 70 | 2 | 50 | 172.7 | |
| DN80 | 85 | 2 | 60 | 188 | |
| DN100 | 04 | 2 | 64 | 208.3 | |
| DN125 | 1 | 29 | 2 | 70 | 237.6 |
| DN150 | 54 | 2 | 80 | 287 | |

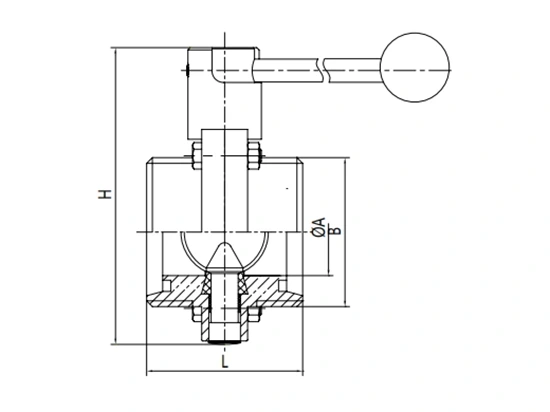

| DN | A | B | L | H |
|---|---|---|---|---|
| DN20 | 20 | RD44X1/6" | 66 | 119.5 |
| DN25 | 26 | RD52X1/6" | 66 | 119.5 |
| DN32 | 32 | RD58X1/6" | 66 | 125.8 |
| DN40 | 38 | RD65X1/6" | 68 | 131 |
| DN50 | 50 | RD78X1/6" | 70 | 149.6 |
| DN65 | 66 | RD95X1/6" | 72 | 172.7 |
| DN80 | 81 | RD110X1/4" | 92 | 188 |
| DN100 | 100 | RD130X1/4" | 96 | 208.3 |
| DN125 | 125 | RD160X1/4" | 106 | 237.6 |
| DN150 | 150 | RD190X1/4" | 120 | 287 |
| DN | A | B | L | H |
|---|---|---|---|---|
| DN20 | 20 | 34 | 66 | 119.5 |
| DN25 | 26 | 50.5 | 66 | 119.5 |
| DN32 | 32 | 50.5 | 66 | 125.8 |
| DN40 | 38 | 50.5 | 68 | 131 |
| DN50 | 50 | 64 | 70 | 149.6 |
| DN65 | 66 | 91 | 72 | 172.7 |
| DN80 | 81 | 106 | 92 | 188 |
| DN100 | 100 | 119 | 98 | 208.3 |
| DN125 | 125 | 155 | 106 | 237.6 |
| DN150 | 150 | 183 | 120 | 287 |

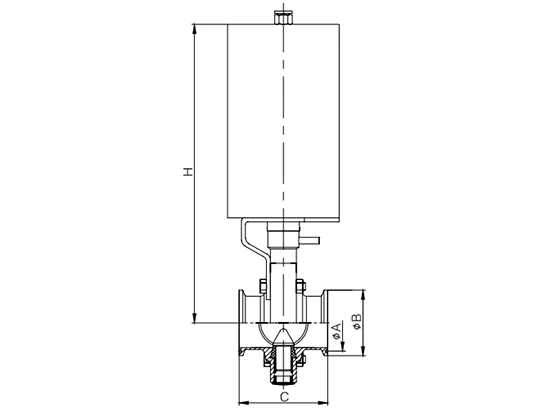

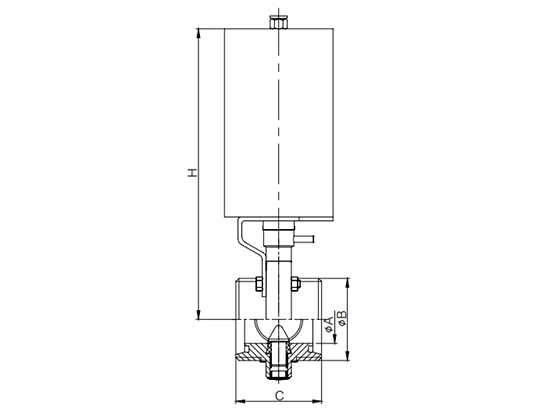

| DN | A | B | C | H | |
|---|---|---|---|---|---|
| series 1 | series 2 | ||||
| DN20 | 22 | 23 | 44 | 1.5 | 223.8 |
| DN25 | 28 | 29 | 44 | 1.5 | 225.2 |
| DN32 | 34 | 35 | 48 | 1.5 | 228.5 |
| DN40 | 40 | 41 | 48 | 1.5 | 232.2 |
| DN50 | 52 | 53 | 48 | 1.5 | 240.7 |
| DN65 | 70 | 50 | 2.0 | 250.6 | |
| DN80 | 85 | 56 | 2.0 | 257.0 | |
| DN100 | 1 | 04 | 60 | 2.0 | 267.3 |

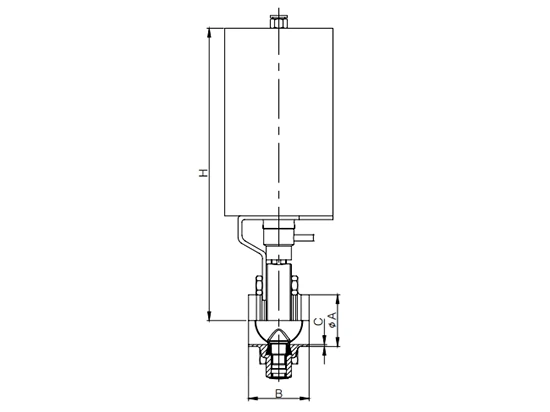

| DN | A | B | C | H |
|---|---|---|---|---|
| DN20 | 20 | 34.5 | 66 | 223.8 |
| DN25 | 26 | 50.5 | 66 | 225.2 |
| DN32 | 32 | 50.5 | 66 | 228.5 |
| DN40 | 38 | 50.5 | 68 | 232.2 |
| DN50 | 50 | 64 | 70 | 240.7 |
| DN65 | 66 | 91 | 72 | 250.6 |
| DN80 | 81 | 106 | 90 | 257.0 |
| DN100 | 100 | 119 | 94 | 267.3 |
| DN | A | B | C | H |
|---|---|---|---|---|
| DN20 | 20 | RD44X1/6" | 66 | 223.8 |
| DN25 | 26 | RD52X1/6" | 66 | 225.2 |
| DN32 | 32 | RD58X1/6" | 66 | 228.5 |
| DN40 | 38 | RD65X1/6" | 68 | 232.2 |
| DN50 | 50 | RD78X1/6" | 70 | 240.7 |
| DN65 | 66 | RD95X1/6" | 72 | 250.6 |
| DN80 | 81 | RD110X1/4" | 92 | 257.0 |
| DN100 | 100 | RD130X1/4" | 96 | 267.3 |
