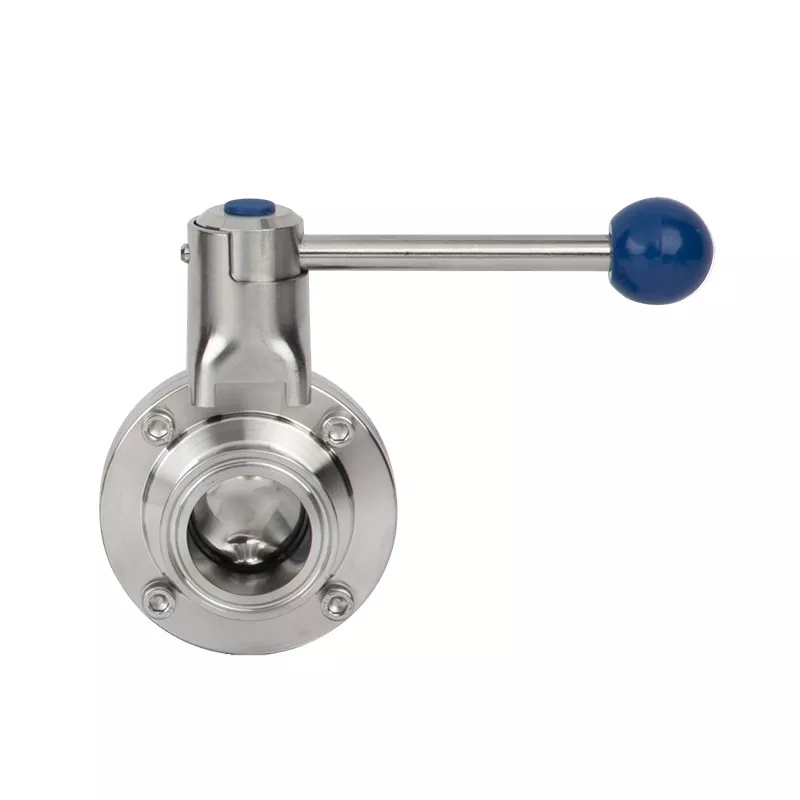

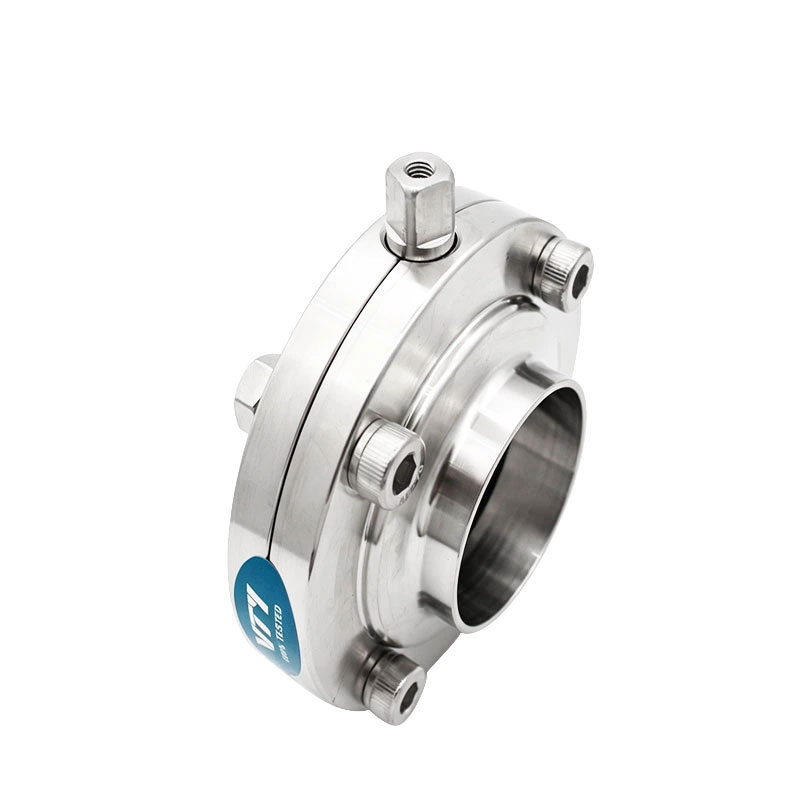

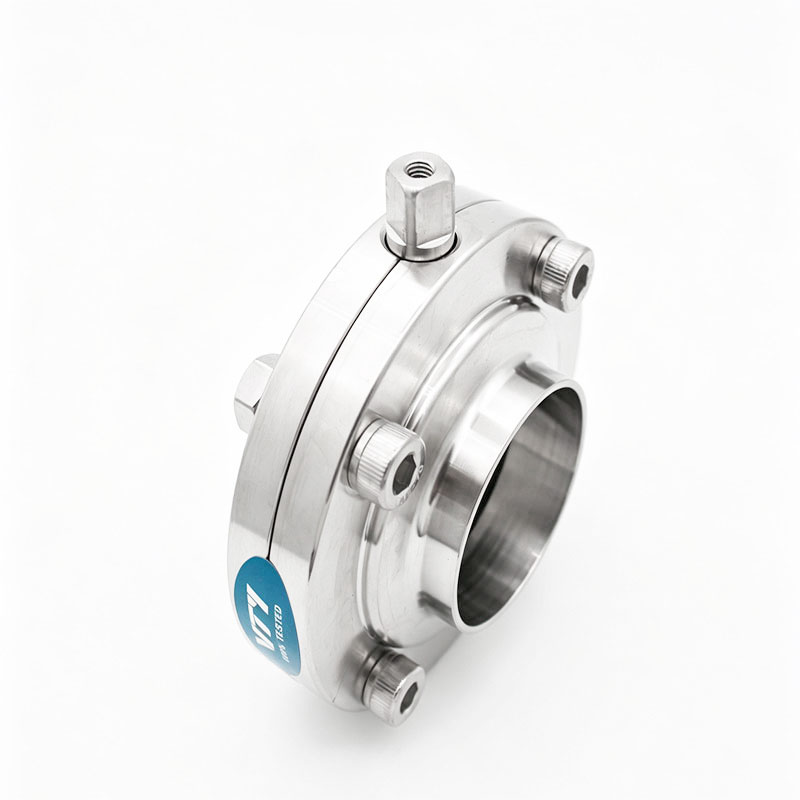

The SMS Sanitary Butterfly Valve is a butterfly valve manufactured according to Swedish Milk Standard. These valves are mainly used in European countries and South Asia. They are widely used in fermented dairy products industry. Thanks to the great hold guaranteed by the fittings SMS, it is one of the most used valves in the dairy and food sector, designed for compact and hygienic flow control in food, beverage, and pharmaceutical pipelines.

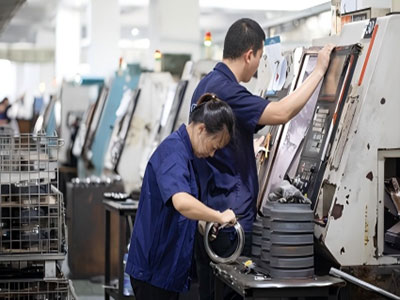

These valves ensure compliance with stringent sanitary requirements, offering smooth, corrosion-resistant surfaces suitable for high-purity applications. We make it by CNC machines to get high precision and high purity surface to meet the request of hygienic industries.
Compact, lightweight valve design.
Quarter-turn operation for quick response.
Excellent shut-off with hygienic sealing materials.
Suitable for manual and automated actuation
VTY SMS Butterfly Valves are widely used in hygienic processing systems requiring reliable flow control and easy cleaning.
Milk processing lines
Yogurt production systems
Cheese manufacturing plants
Juice production
Soft drink processing
Mineral water systems
Craft beer production
Fermentation tanks
CIP cleaning systems
Purified water systems
Process pipelines
Sterile production equipment
Coolant circulation lines
Data center cooling systems
Industrial heat exchange equipment
Sealing Test: After closing the SMS Sanitary Butterfly Valve, apply working pressure to one side of the pipeline and observe whether there is any leakage on the other side to ensure no medium penetrates when closed.
Switch Flexibility Test: Manually or electrically operate the valve and observe whether the butterfly plate rotates smoothly, without sticking or abnormal sounds; check whether the fully open/fully closed positions are accurate to prevent flow control errors due to travel deviation.
Surface Finish Inspection: Touch the interior of the valve body and the surface of the butterfly plate by hand. If roughness, scratches, or dents are found, repair them promptly using a special electrolytic polishing agent, and if serious, replace the valve body.
If the valve is to be out of use for a long period, the following protection measures should be taken:
1.Thoroughly clean the inside of the valve to ensure no medium remains
2.After closing the valve, keep it in a half-open position (rotate the disc 45°) to prevent deformation of the sealing parts due to long-term pressure
3.For pneumatic/electric valves, disconnect the air supply or power to prevent accidental operation
4.Store in a dry and ventilated environment. A thin layer of food-grade anti-rust oil can be applied to the surface of the valve body (only on surfaces not in contact with the medium) to prevent rust.
An SMS Butterfly Valve is a hygienic valve manufactured according to Swedish Milk Standard specifications and widely used in dairy and food processing industries.
VTY offers SS304, SS304L, SS316, and SS316L options.
Yes. Manual, pneumatic, and electric actuator configurations are available.
Yes. We support OEM and custom manufacturing according to drawings or samples.
Our products are manufactured under ISO 9001 quality management systems and comply with 3A sanitary standards.
VTY supports:
OEM manufacturing
Custom drawing production
Sample-based development
Private label branding
Small batch trial orders
Our engineering team provides fast technical support from design to mass production.

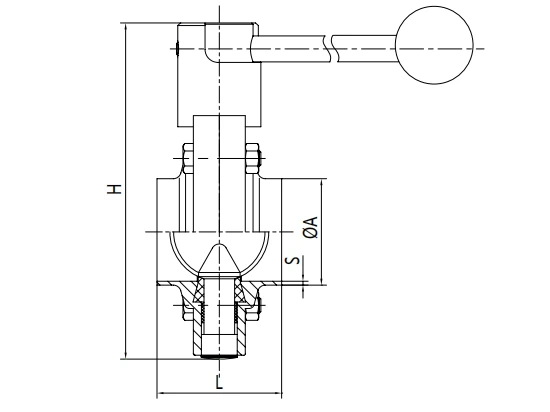

| Size | S | A | L | H |
|---|---|---|---|---|
| SMS25 | 1.25 | 25 | 44 | 119.5 |
| SMS38 | 1.25 | 38 | 44 | 131 |
| SMS51 | 1.25 | 51 | 50 | 149.6 |
| SMS63.5 | 1.5 | 63.5 | 50 | 172.7 |
| SMS76 | 1.6 | 76.1 | 56 | 188 |
| SMS101.6 | 2 | 101.6 | 60 | 208.3 |

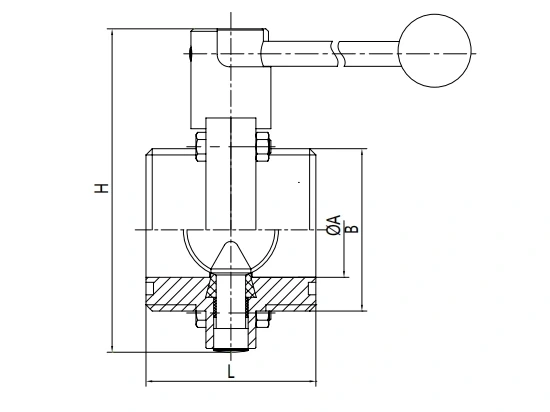

| Size | A | B | L | H |
|---|---|---|---|---|
| SMS25 | 22.5 | RD40X1/6" | 66 | 119.5 |
| SMS38 | 35.5 | RD60X1/6" | 72 | 131 |
| SMS51 | 48.5 | RD70X1/6" | 76 | 149.6 |
| SMS63.5 | 60.5 | RD85X1/6" | 80 | 172.7 |
| SMS76 | 72.9 | RD98X1/4" | 80 | 188 |
| SMS101.6 | 97.6 | RD125X1/4" | 94 | 208.3 |

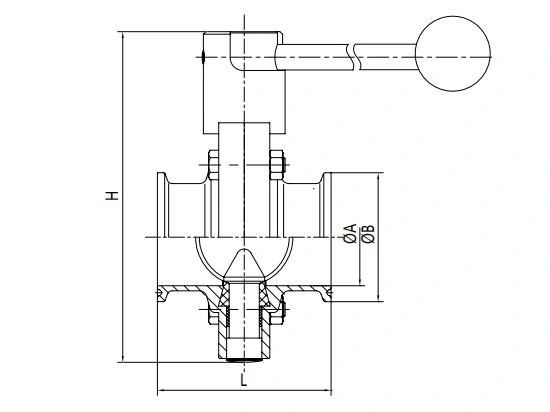

| Size | A | B | L | H |
|---|---|---|---|---|
| 1.0" | 22.1 | 50.5 | 66 | 119.5 |
| 1.5" | 34.8 | 50.5 | 68 | 131 |
| 2.0" | 47.5 | 64 | 70 | 149.6 |
| 2.5" | 60.2 | 77.5 | 72 | 172.7 |
| 3.0" | 72.9 | 91 | 80 | 188 |
| 4.0" | 97.38 | 119 | 94 | 208.3 |

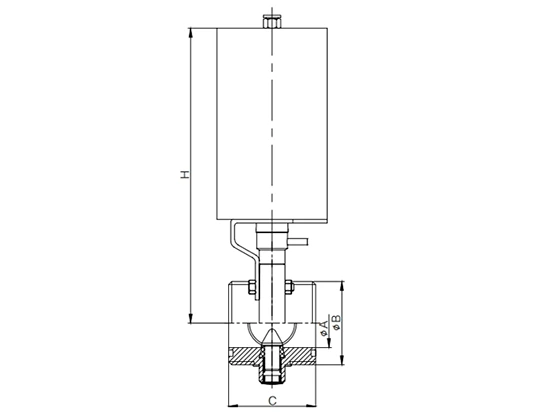

| Size | C | A | B | H |
|---|---|---|---|---|
| SMS25 | 1.25 | 25 | 44 | 223.5 |
| SMS38 | 1.25 | 38 | 44 | 228.5 |
| SMS51 | 1.25 | 51 | 50 | 236.5 |
| SMS63.5 | 1.5 | 63.5 | 50 | 244.3 |
| SMS76 | 1.6 | 76.1 | 56 | 249.5 |
| SMS101.6 | 2 | 101.6 | 60 | 267.3 |

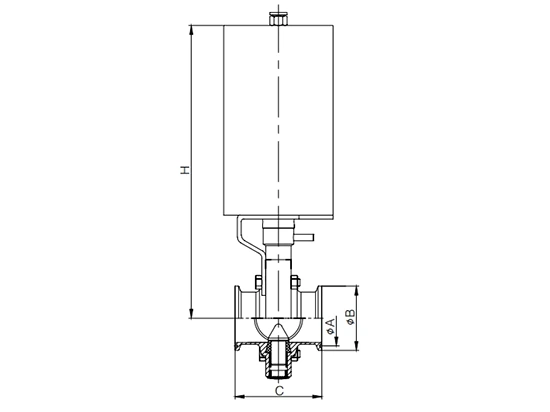

| Size | A | B | C | H |
|---|---|---|---|---|
| 1.0" | 22.1 | 50.5 | 66 | 223.5 |
| 1.5" | 34.9 | 50.5 | 68 | 228.5 |
| 2.0" | 47.5 | 64 | 70 | 236.5 |
| 2.5" | 60.2 | 77.5 | 72 | 244.3 |
| 3.0" | 72.9 | 91 | 80 | 249.5 |
| 4.0" | 97.6 | 119 | 94 | 267.3 |

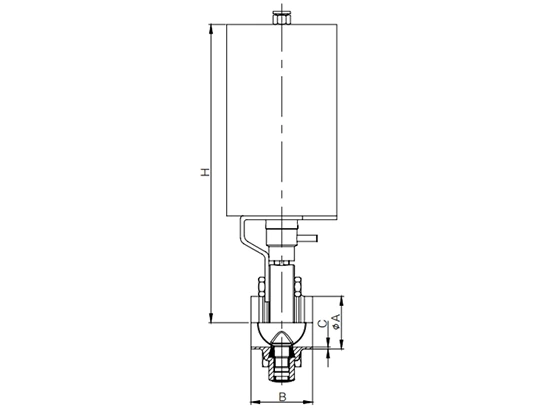

| Size | A | B | C | H |
|---|---|---|---|---|
| SMS25 | 22.5 | RD40X1/6" | 66 | 225.2 |
| SMS32 | 35.5 | RD60X1/6" | 72 | 228.5 |
| SMS51 | 48.5 | RD70X1/6" | 76 | 240.7 |
| SMS63.5 | 60.5 | RD85X1/6" | 80 | 250.6 |
| SMS76 | 72.9 | RD98X1/4" | 80 | 257.0 |
| SMS101.6 | 97.6 | RD125X1/4" | 94 | 267.3 |
