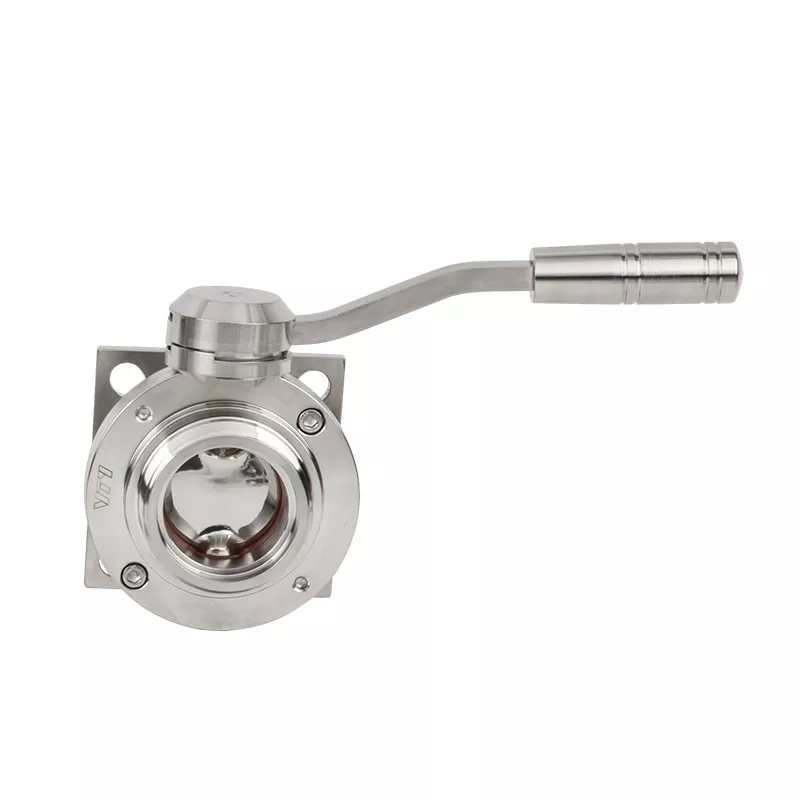

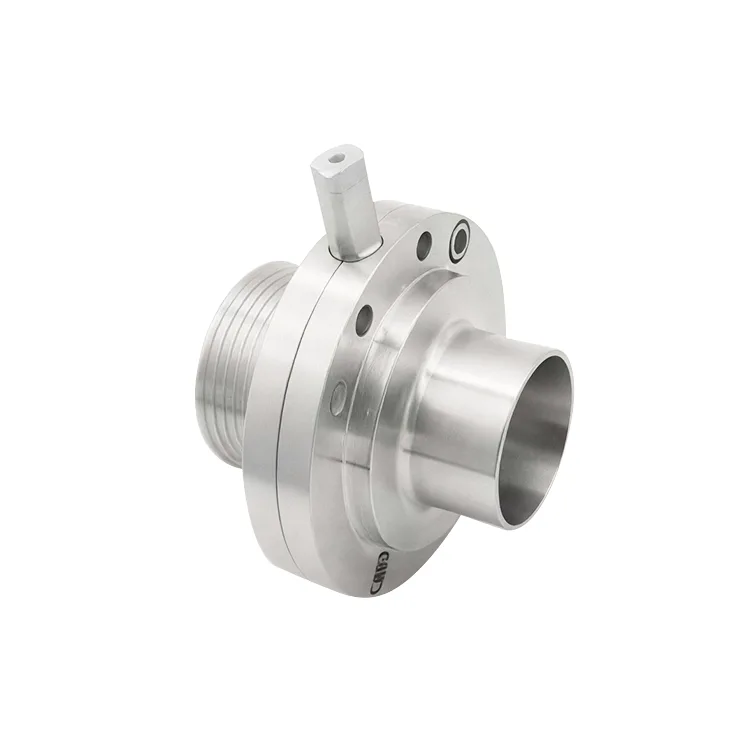

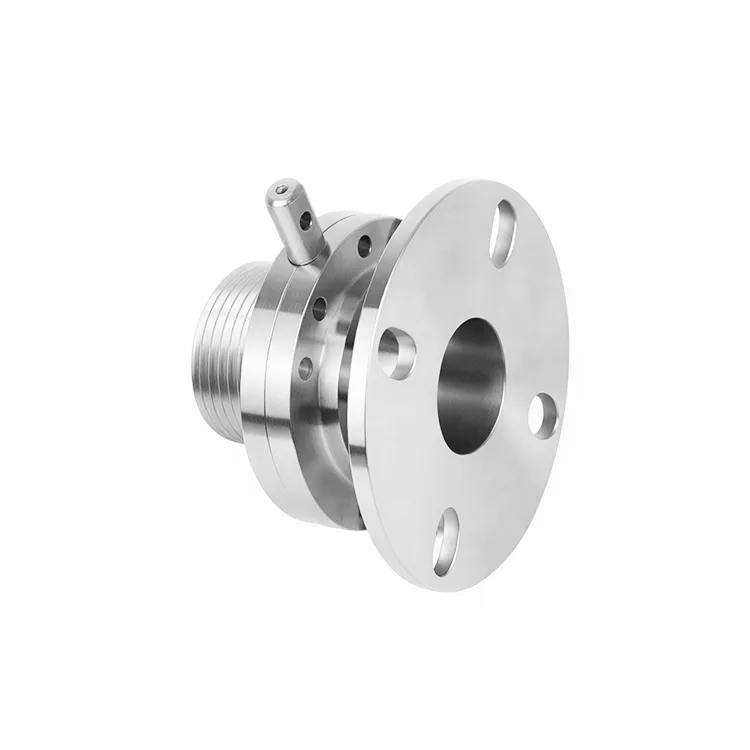

Macon Sanitary Butterfly Valve

The Macon Sanitary Butterfly Valve is a type of sanitary valve specifically designed for use in the wine industry, to regulate, isolate, or control the flow of wine in processing systems. The valve features a circular disc that rotates on a rotating shaft to adjust the flow. These valves are characterized by the typical features of their category, like easy cleanliness and sanitizing. Additionally, they have the Macon thread, which is especially widespread in France and in its ex-colonies. The tank joint is very often requested with the square flange, and these valves can be joined to the various handles suggested in our catalogue. The gasket of the butterfly is available in the most widespread elastomers, like Silicone, Epdm, Viton and others upon request.

What is Sanitary Butterfly Valves?

Macon Sanitary Butterfly Valves are used a lot in many different industries. Their main job is to control the flow of fluids, gases, and liquid stuff. These valves have a round disc that's fixed to a circular pipe or tube. This disc can spin around its own axis. The disc comes with different kinds of bars, like round bars, forged bars, hollow bars, and hexagonal bars. These bars help make a good sealing process. They ensure the valve can close tightly. Also, they stop any pressure build - up or trapping of things that could happen if there were foreign particles around.

What are the advantages of Sanitary Butterfly Valves

1.The rubber seals and valve plates of the butterfly valve are brought in from abroad. This guarantees the butterfly valve's good performance and long service life.

2.We use high - precision CNC machines to turn the valve. This makes sure that different butterfly valves can be easily swapped out and still work reliably. It also avoids the problem of unpredictable performance when the rubber parts are changed.

3.A nylon sleeve is inserted into the valve stem. This reduces friction, making it easy and smooth to open and close the valve.

4.All the steel parts are made of stainless steel, and all the rubber parts are food - grade rubber. So, the valve has a high level of hygiene.

5.The diameter of the valve body is the same as that of the pipeline. When the valve is open, the narrow and streamlined valve plate is in line with the fluid flow. This allows for a large flow rate and low resistance, and prevents materials from building up.

BV6.817

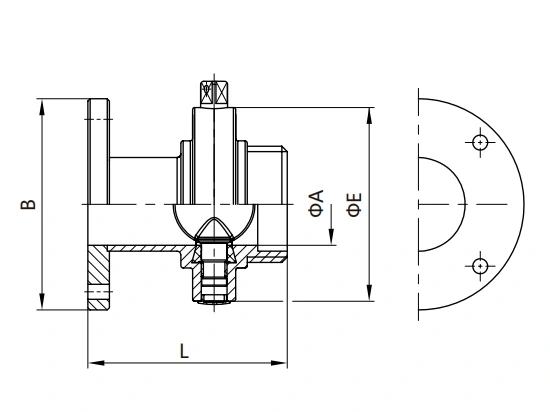

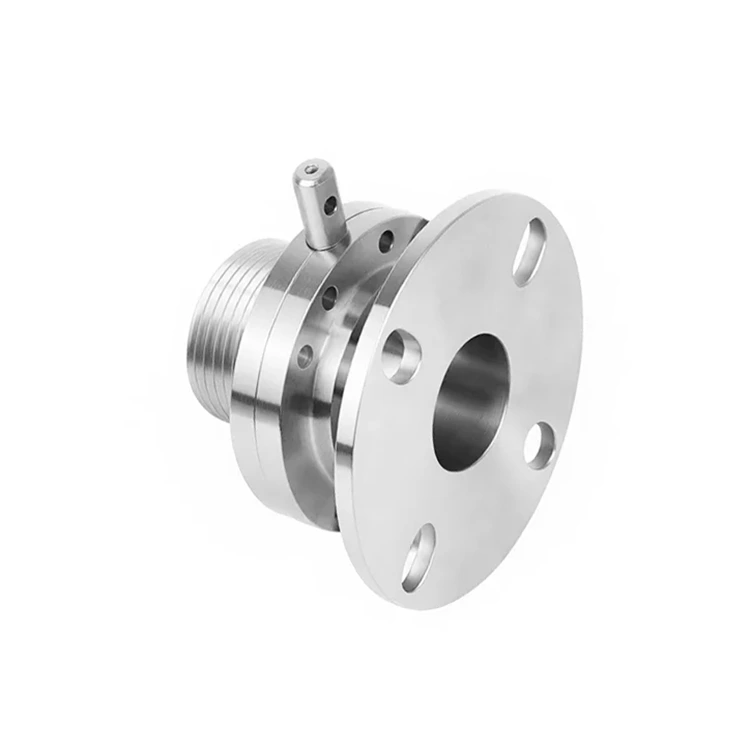

Butterfly Valve (Male x Flange Type C)

Size	A	B	E	L
40	40	130	95	80
50	50	140	105	80
60	60	160	115	82
70	70	160	125	82
80	80	190	135	86
100	100	210	155	86

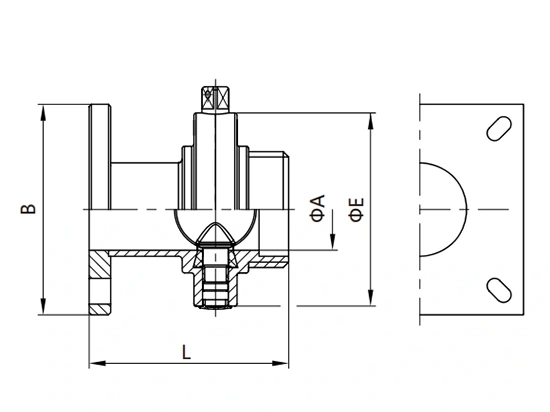

BV6.818A

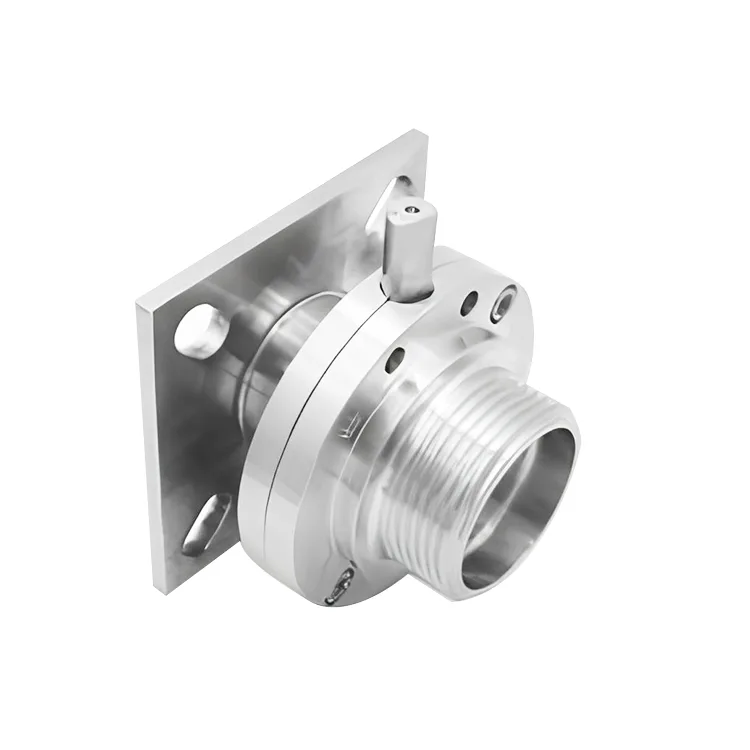

Butterfly Valve (Male x Flange Type A)

Size	A	B	E	L
40	40	100×100	95	80
50	50	100×100	105	80
60	60	120×120	115	82
70	70	120×120	125	82
80	80	140×140	135	86
100	100	140×140	155	86

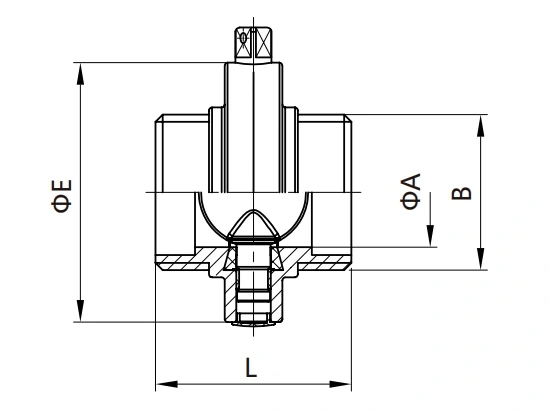

BV6.811

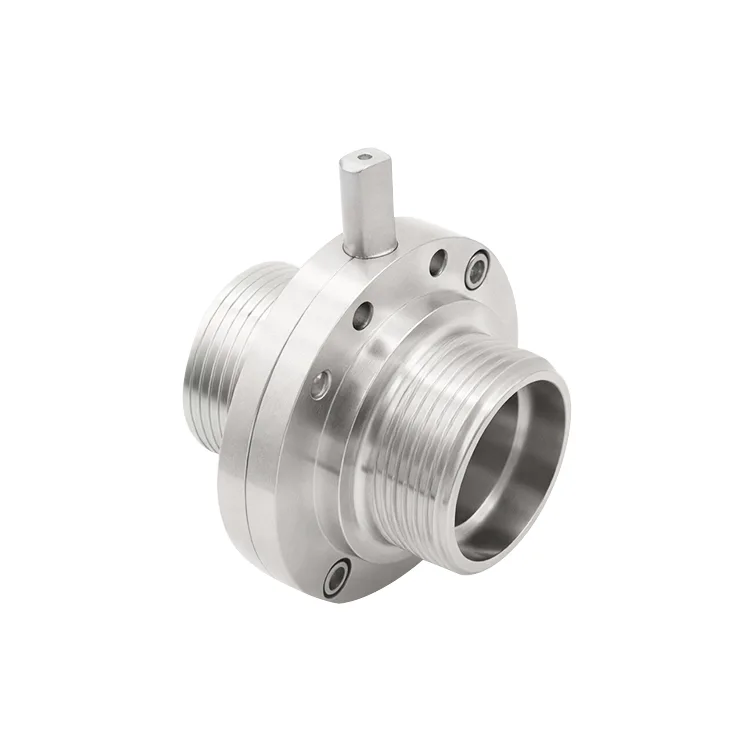

Butterfly Valve, Male Threaded

Size	A	B	E	L
40	40	M55×3.0	95	80
50	50	M67×3.0	105	80
60	60	M79×3.5	115	82
70	70	M90×3.5	125	82
80	80	M102×4.0	135	86
100	100	M125×4.0	155	86

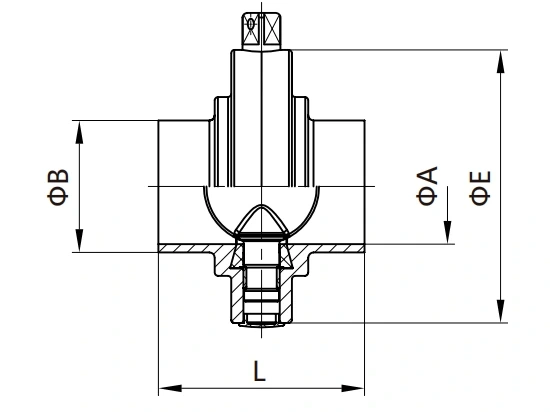

BV6.833

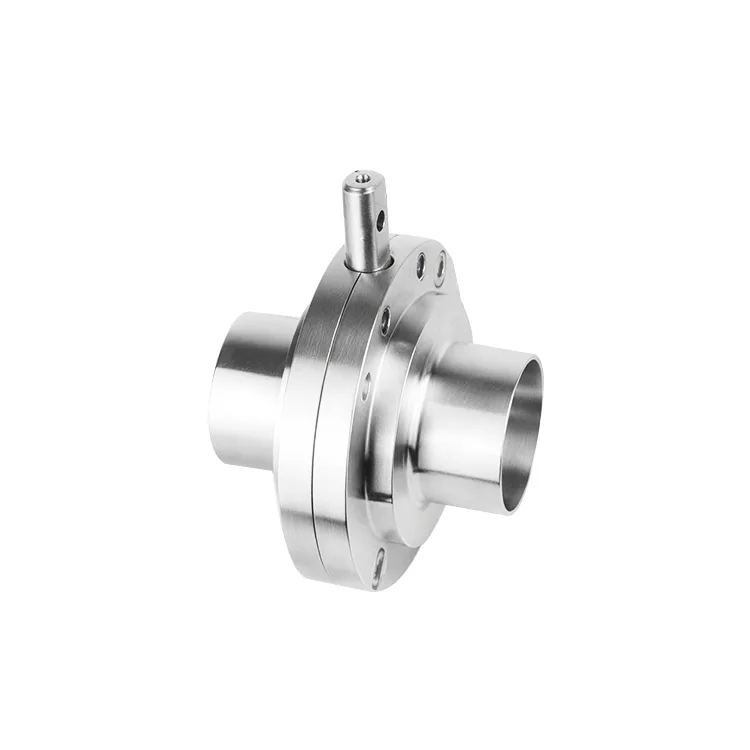

Butterfly Valve, Welded

Size	A	B	E	L
40	40	43	95	80
50	50	53	105	80
60	60	63	115	82
70	70	73	125	82
80	80	83	135	86
100	100	103	155	86

Why Choose VTY Sanitary Butterfly Valve?

Wenzhou Tianyue Fluid Equipment Co., Ltd. (VTY) is a professional manufacturer of sanitary fluid equipment with over 10+ years of export experience.

We provide stable and high-quality production supported by:

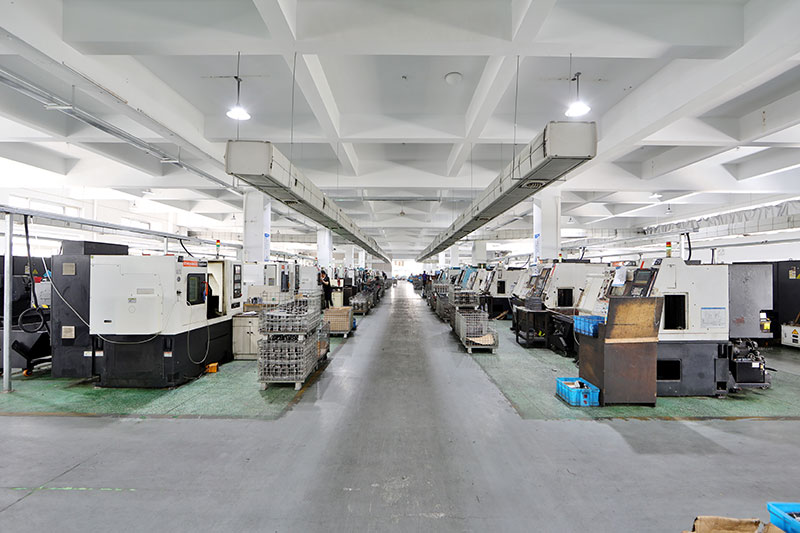

13,000㎡ modern manufacturing facility

134 CNC precision machines (90% MAZAK Japan)

Independent quality inspection laboratory

Full stainless steel machining capability (SS304 / SS316L)

ISO 9001 / ISO 14001 / ISO 45001 certified system

Export experience in Germany, France, Italy, Spain, Netherlands

VTY focuses on mid-to-high-end hygienic valve manufacturing for global markets.
