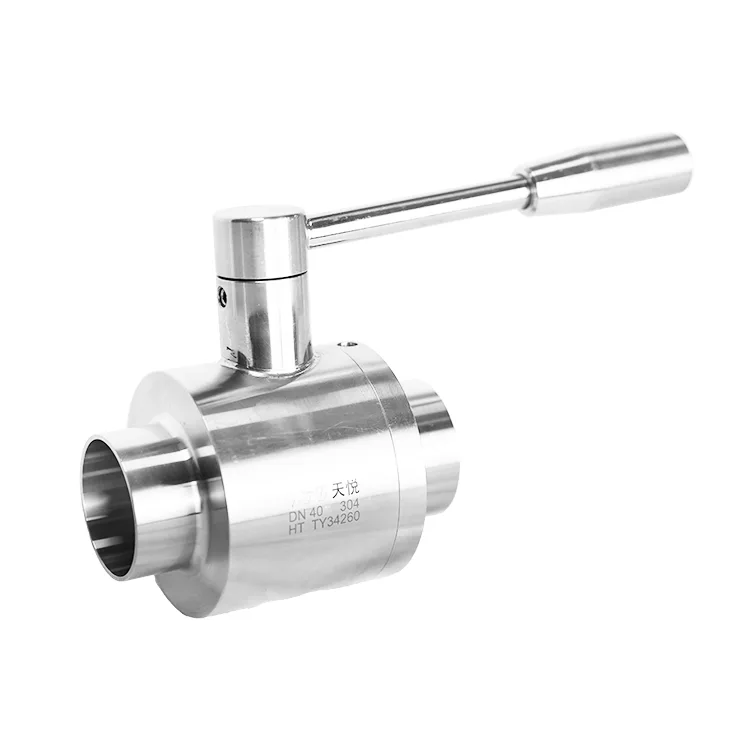

VTY Liquid Cooling 2 Piece Ball Valve is a hygienic type ball valve designed for applications requiring reliable shut-off control, low flow resistance and easy cleaning.

The full bore design provides an unobstructed flow channel, helping minimize turbulence, pressure drop and product residue during operation. It is suitable for pipelines containing solid particles or higher viscosity fluids where smooth flow performance and hygienic requirements are essential.

Manufactured from high-quality stainless steel materials including AISI304 and AISI316L options, the valve provides excellent durability, corrosion resistance and long-term operating reliability.

With manual operation or pneumatic actuator options, the valve can be integrated into different process automation systems for liquid cooling, food processing, beverage production, dairy processing, pharmaceutical and fine chemical industries.

Working Principle

The Liquid Cooling 2 Piece Ball Valve uses a precision-machined spherical ball with a circular bore as the opening and closing component.

When the valve stem rotates 90°, the ball rotates between open and closed positions, allowing or stopping fluid flow.

The straight-through full bore structure reduces flow resistance and pressure loss compared with traditional reduced-port valves. This design helps improve system efficiency and minimizes fluid retention areas in hygienic processing applications.

Features

1. Full Bore Design for Efficient Flow Performance

The full bore flow channel provides smooth fluid passage with minimal restriction, reducing turbulence and pressure loss in liquid cooling and process pipelines.

2. Hygienic Stainless Steel Construction

The valve body and internal components are manufactured from stainless steel AISI304, with AISI316L available for applications requiring enhanced corrosion resistance.

The polished internal surface withRa ≤0.8μmhelps reduce residue accumulation and supports hygienic processing requirements.

3. Flexible Operation Options

Available configurations include:

• Manual handle operation
• Single-acting pneumatic actuator
• Double-acting pneumatic actuator
• Electric actuator

Suitable for both independent operation and automated production systems.

4. Multiple Connection Standards

VTY supports various connection methods:

• Welding
• Clamp
• Threaded
• Flange

Compatible interface standards include:

• DIN11850
• 3A
• ISO
• GB

5. Traceable Manufacturing Process

All valve components are traceable throughout production.

VTY applies strict manufacturing control from material inspection, CNC machining, surface polishing to final assembly inspection, ensuring consistent quality for industrial applications.

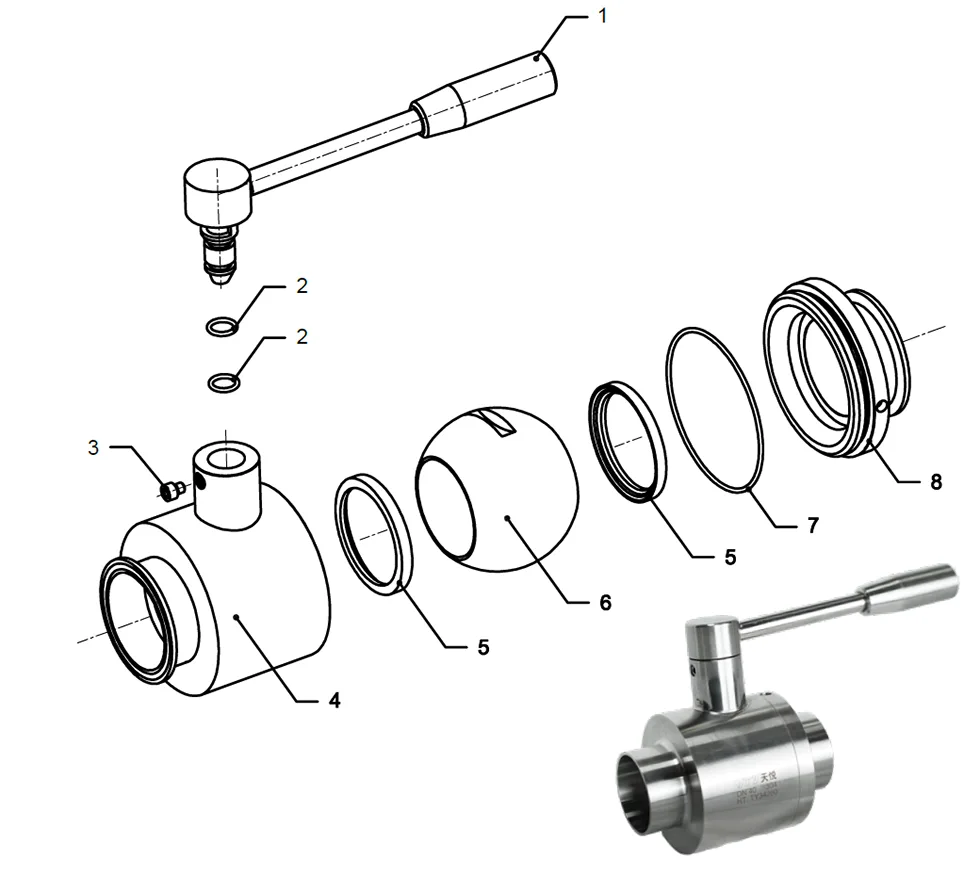

Material

Options

•Valve body material: AISI316L.

•Connection methods: welding, clamp, threaded, flange.

•Electric actuator, single-acting or double-acting pneumatic actuator.

•With proximity switch bracket (induction).

•C-TOP feedback control unit.

•CIP cleaning connection.

•Three-way ball valve.

Technical Data

Material List

Application Industries

VTY Liquid Cooling 2 Piece Ball Valve is widely used in:

Food Processing

For hygienic fluid transfer systems requiring easy cleaning and reliable shut-off control.

Beverage Industry

Suitable for production pipelines requiring stable flow control and corrosion resistance.

Dairy Processing

Designed for sanitary applications where product contamination prevention is critical.

Pharmaceutical Industry

Suitable for hygienic processing environments requiring stainless steel construction and surface finishing control.

Liquid Cooling Systems

Provides reliable flow isolation and low-pressure-loss operation in cooling circulation systems.

Manufacturing Quality Assurance

As a professional hygienic fluid equipment manufacturer established in 2013, VTY produces sanitary valves and fittings in a13,000㎡ manufacturing facility equipped with 134 CNC precision machines and professional inspection equipment.

Each Liquid Cooling 2 Piece Ball Valve undergoes strict quality control procedures including:

• Raw material inspection
• CNC machining inspection
• Surface finish inspection
• Dimensional inspection
• Assembly verification
• Final quality inspection

This ensures stable performance and reliable service for global industrial customers.

How to Select the Right Liquid Cooling Ball Valve?

Choose AISI304 when:

• Used in general hygienic fluid systems
• Standard corrosion resistance is required
• Cost-effective solutions are preferred

Choose AISI316L when:

• Working with corrosive media
• Higher chemical resistance is required
• Pharmaceutical or demanding sanitary applications are involved

Choose Pneumatic Actuation when:

• Automatic control is required
• The valve needs frequent operation
• Integration with PLC systems is needed

FAQ

What industries use VTY Liquid Cooling 2 Piece Ball Valve?

It is commonly used in liquid cooling systems, food processing, beverage, dairy, pharmaceutical and cosmetic industries.

What is the difference between AISI304 and AISI316L?

AISI316L provides higher corrosion resistance and is recommended for more demanding environments.

Can this ball valve be equipped with pneumatic actuators?

Yes. VTY provides single-acting and double-acting pneumatic actuator options.

Is this valve suitable for CIP cleaning?

Yes. CIP cleaning connection options are available for hygienic processing systems.
