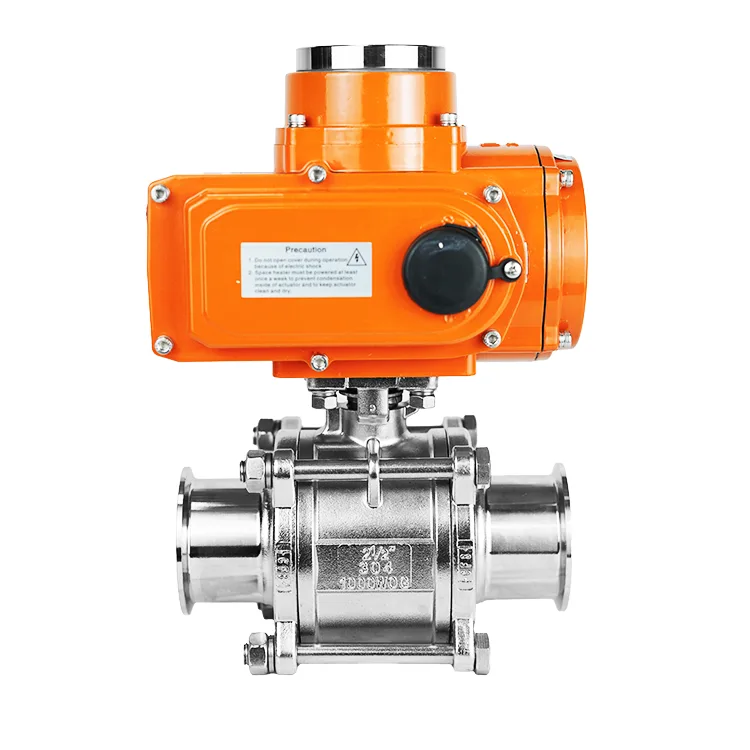

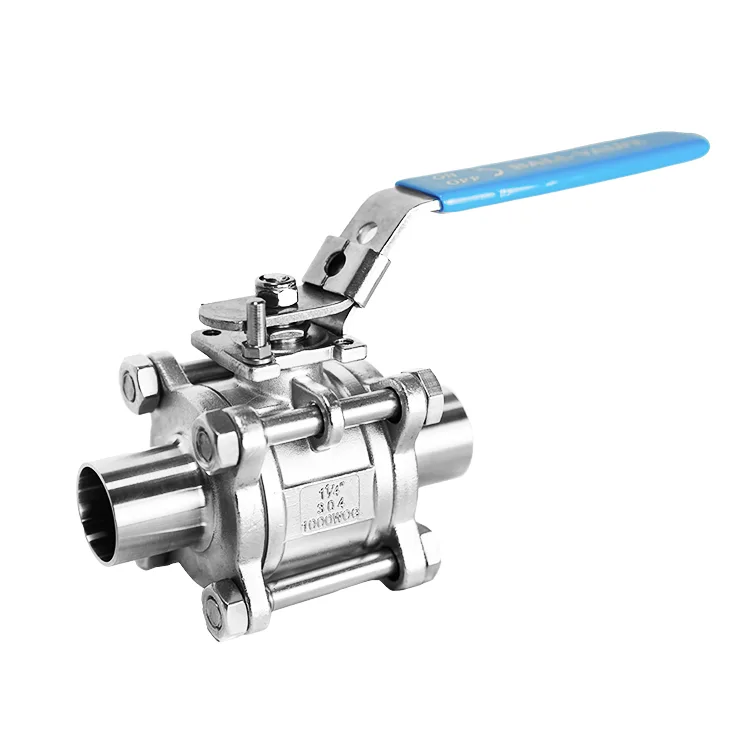

The Liquid Cooling 3 Piece Ball Valve is used for material transportation. The application range of this valve includes the food, beverage, pharmaceutical, chemical industries, as well as the liquid cooling and new energy sectors. Its full-bore design does not create any fluid resistance, making it the best choice for handling viscous fluids or fluids with particles.
A sphere with a circular passage serves as the opening and closing element; the sphere rotates with the valve stem to achieve the opening and closing action. Rotating the sphere 90° with the valve stem can fully open or close the valve. It is suitable for situations requiring the valve to have a fully linear design in order to reduce pipeline turbulence and pressure drop. For important processing applications where minimizing product residue is critical, a fully encapsulated valve seat can also be optionally selected.
•Size specifications range from DN15 to DN100 (1/2"-4").
•The design is robust and compact.
•Low switching torque and stable operation. Lightweight. Simple and aesthetically pleasing appearance.
•Full-bore ball seat design. No retention, highly clean. Meets cleaning (CIP) and sterilization (SIP) requirements.
•Lower pipeline pressure loss.
•The valve body can be compatible with any connection method.
•Interface pipe standards: DIN11850, 3A, ISO, GB.
•All components are traceable.
|
Valve body |
AISI 304 (forged parts) |
|
Handle |
AISI 304 |
|
Other stainless steel parts |
AISI 304 |
|
Gasket |
PTFE |
|
Internal surface finish |
Ra ≤ 0.8 μm |
|
External surface finish |
Machining, Ra ≤ 1.6 μm |
|
Working Temperature |
-10℃ to + 150℃（PTFE） 16 bar(DN15 - DN 100) |
|
Maximum Working Pressure |
14℉ to302℉ 174PSI (DN1/2"-DN4") |
Valve body material: AISI316L
Seals: RPTFE
Connection type: Welding, Quick connect
Operation: Electric, Manual, Pneumatic
Sealing type: Half-bore or Full-bore
|

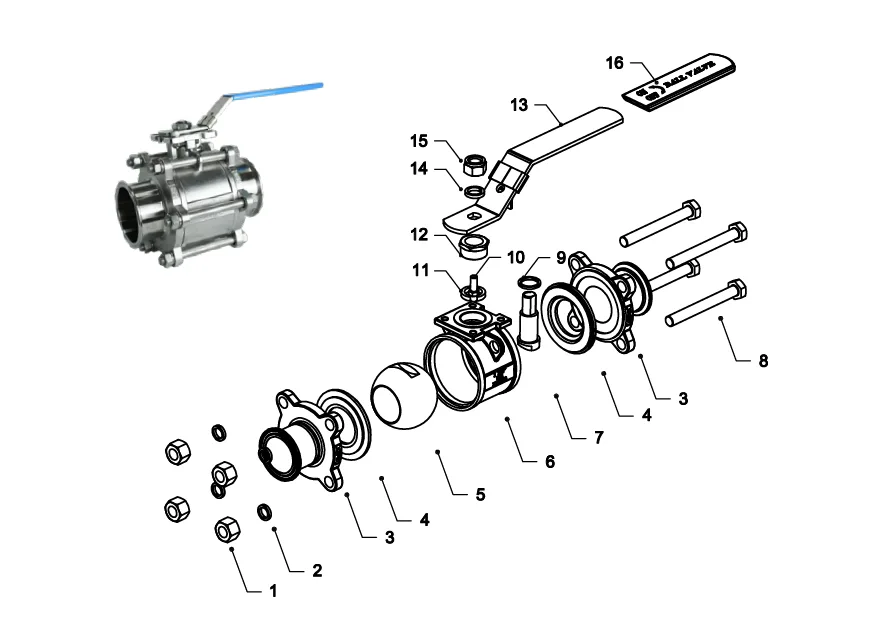

No. |
Qty |
Name |
Code |
Material |
|
1 |
4 |
Nut |
GB/T 6175-2000 |
A2-70 |
|
2 |
4 |
Spring Washer |
GB/T 93-1987 |
304 |
|
3 |
2 |
Valve Cover |
QF81-322-S-150-01 |
CF8/CF3M |
|
4 |
2 |
Valve Seat |
QF81-322-S-150-02 |
PTFE/RPTFE |
|
5 |
1 |
Ball |
QF81-322-S-150-03 |
304/316L |
|
6 |
1 |
Valve Body |
QF81-322-S-150-04 |
CF8/CF3M |
|
7 |
1 |
Valve Stem |
QF81-322-S-150-06 |
304/316L |
|
8 |
4 |
Bolt |
GB/T 5780-2000 |
A2-70 |
|
9 |
1 |
Washer |
16-22-4 |
PTFE |
|
10 |
1 |
Single-ended M6 Screw |
M6-25-6 |
304 |
|
11 |
1 |
Washer |
16-20-2 |
PTFE |
|
12 |
1 |
Bolt with Hole |
M24-16.5-15 |
304 |
|
13 |
1 |
Bolt with Locking Hand |
QF81-322-S-150-05 |
304 |
|
14 |
1 |
Spring Washer |
GB/T 93-1987 |
304 |
|
15 |
1 |
Lock Nut |
GB/T 889.1-2000 |
A2-70 |
|
16 |
1 |
Handle Sleeve |
QF81-322-S-150-07 |
PVC |
