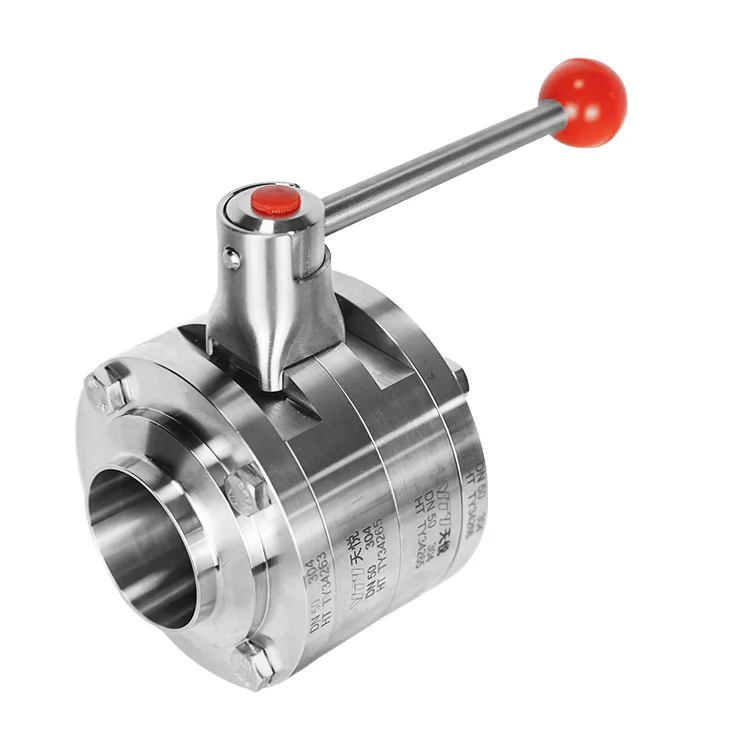

Regarding Liquid Cooling 3 Piece Butterfly Valves, whether manually controlled or pneumatically controlled, they can be used in the production processes of most fluid products, such as liquid cooling, food processing, beverages, beer, biopharmaceuticals, and daily chemical-related industries. The design of the Liquid Cooling 3 Piece Butterfly Valves from VTY features easy disassembly, allowing the sealing elements to be replaced without moving the connected pipes.
•Robust and compact design.
•The butterfly valve with a standard multi-point gear handle is available up to DN100/4".
•The butterfly valve with a standard three-position toggle lever handle is available up to DN250/10".
•Lower pipeline pressure loss.
•The valve body can be interchanged with any connection type.
•Interface pipe standards: DIN11850.3A.1S0.GB.
•All components are traceable.
•Feedback signals can be installed according to customer requirements.
•Forged butterfly disc, thickened, with higher strength.
•Valve body material: AISI 316L.
•Sealing gasket: NBR, VMQ, FPM.
•Connection type: Welding, clamp, threaded, flange.
•Double-size multi-point gear positioning handle.
•Handle: Two-position lever, stepless adjustable, with safety lock, etc.
•Electric actuator, single-acting or double-acting pneumatic actuator.
•The size specifications depend on the torque required to open the valve.
•Electronic pneumatic positioner.
•With proximity switch bracket.
•C-TOP feedback control unit (solenoid valve and proximity switch).
The butterfly valve can be operated automatically through an actuator or manually with a handle to open and close it. There are three standard types of actuators: normally closed (NC), normally open (NO), and air/air (A/A). The actuator converts the axial movement of a piston into a 90° rotational movement of the valve shaft, thereby driving the disc to rotate to open or close the valve. When the disc rotating around the axis within the valve body comes into contact with the butterfly valve seal, the actuator's torque increases. To close the valve, different manually operated handles can be selected to mechanically lock the valve in the open, closed, intermediate, or other positions, enabling adjustment of the flow.
|
Valve core/Butterfly plate |
AISI 304 (forged) AISI |
|
Handle |
AISI 304/PP |
|
Other stainless steel parts |
AISI 304 |
|
Gasket |
EPDM according to FDA177.2600; liquid-cooled specific EPDM |
|
Internal surface treatment |
Ra ≤ 0.8um |
|
External surface treatment |
Machining, Ra ≤ 1.6um |
|
Size range |
DN 10 - DN 200 |
DN 1/2" - DN 8" |
|
Maximum operating temperature |
-10℃ to + 120℃(EPDM) +140 ℃ (SIP, max. 30 min) |
14℉ to 248℉ 284 ℉ |
|
Minimum operating pressure |
0.2 bar (abs. P) |
3 PSI (abs. P) |
|
Maximum operating pressure |
12 bar (DN 25 - DN 250) |
174 PSI (DN 1" - DN 10") |
|
Minimum torque of butterfly valve |
10 N·m (DN 10-DN 40) |
|
|
25 N·m (DN 50- DN 100) |
|
|
Control air source pressure |
5~8 bar |
|
Temperature range |
-25℃ + 90℃ |
|
Air consumption |
0.26xP(Bar) |
|
Maximum output torque (air/spring) |
35N.M(5bar) |
|
Maximum output torque (air/air) |
65N.M(5bar) |
This three-piece butterfly valve allows the user to service any part of the valve's piping while it's in operation, without affecting the normal operation of the equipment on the other side.
|

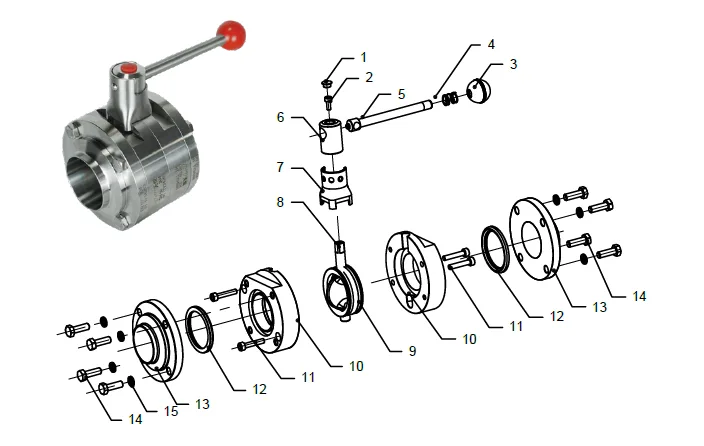

No. |
Qty |
Name |
Code |
Material |
|
1 |
1 |
Plug |
Ø12 |
PE |
|
2 |
1 |
Bolt M5 |
M5 |
304 |
|
3 |
1 |
Handle Ball |
BV6-133-S-000-11 |
Plastic |
|
4 |
1 |
Spring |
BV6-133-S-000-10 |
304 |
|
5 |
1 |
Handle Rod |
BV6-133-S-000-09 |
304 |
|
6 |
1 |
Handle Core |
BV6-133-S-000-08 |
304 |
|
7 |
1 |
Handle Sleeve |
BV6-133-S-000-07 |
304 |
|
8 |
1 |
Butterfly Plate |
BV6-133-S-000-03 |
304/316L |
|
9 |
1 |
Body Gasket |
BV6-133-S-000-02 |
EPDM |
|
10 |
2 |
Valve Body |
BV6-155-S-000(H)-01 |
304/316L |
|
11 |
4/8 |
Bolt 1 |
- |
304 |
|
12 |
2 |
Union Gasket |
DN-12GS |
304 |
|
13 |
2 |
Flange |
BV6-155-S-000(H)-02 |
304/316L |
|
14 |
8/12 |
Bolt 2 |
- |
304 |
|
15 |
8/12 |
Pad |
- |
304 |
