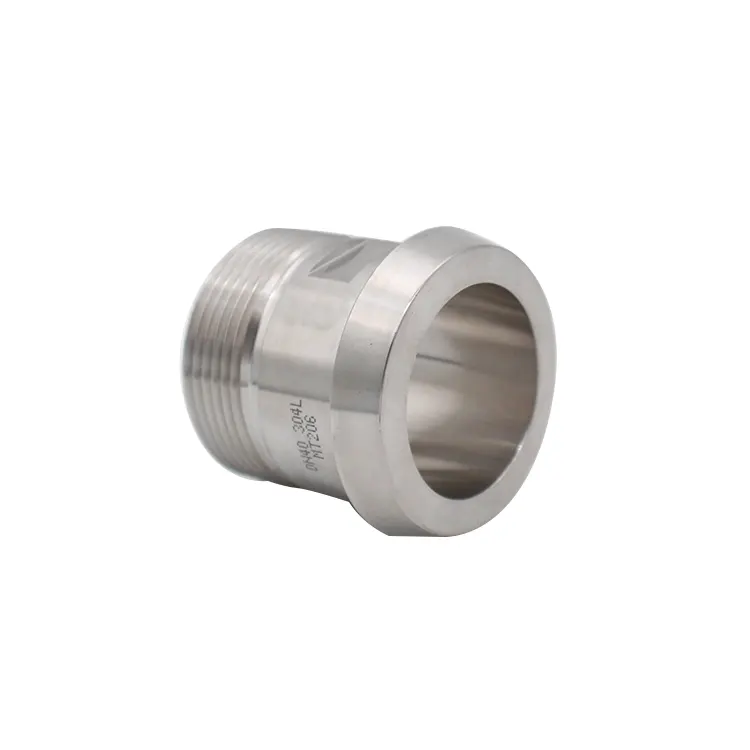

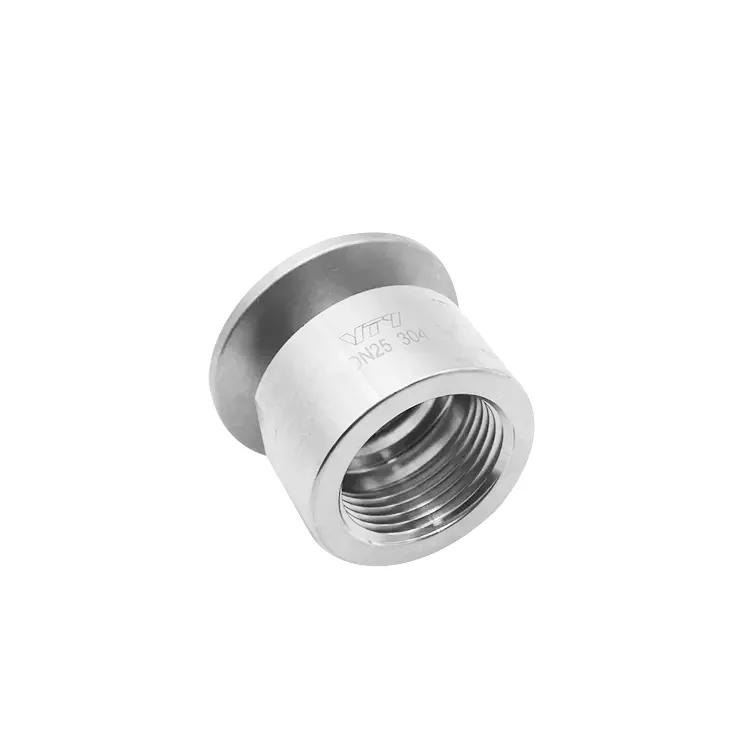

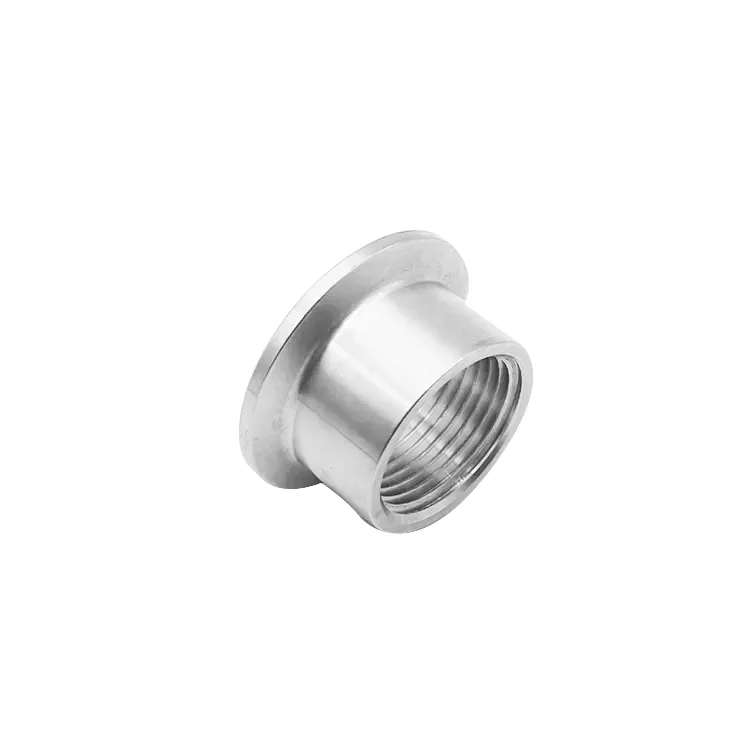

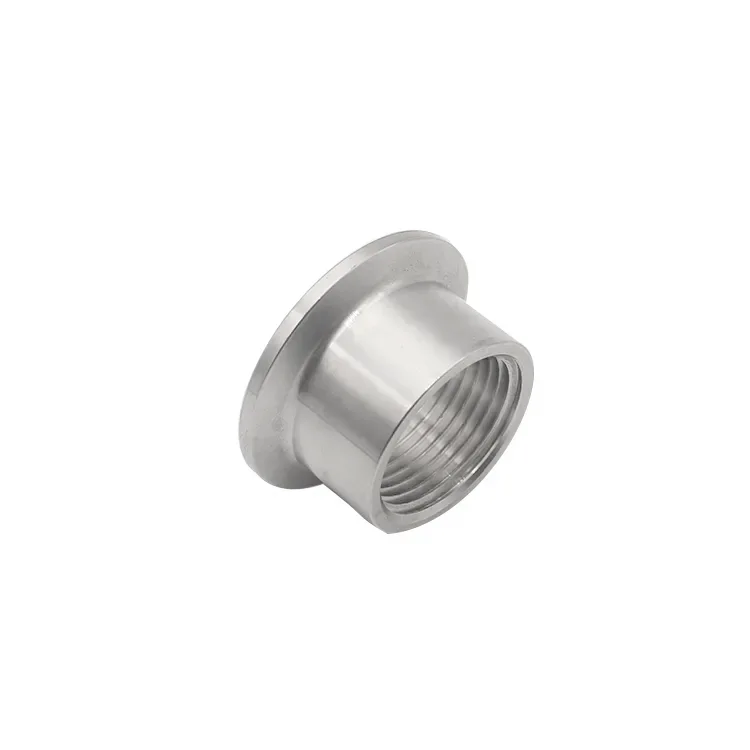

Sanitary Ferrule Adapter

The sanitary ferrule adapter is highly popular because it makes assembling and breaking down production lines incredibly easy. VTY supplies these high-quality ferrule fittings in both 304 and 316 stainless steel. To match your specific needs, we offer various gasket materials, including Silicone, EPDM, and PTFE.

This versatile sanitary ferrule adapter connects different tube sizes and securely joins pipes to hoses or industrial machinery. Meet all strict 3A hygiene standards with VTY pipeline solutions. Our durable fittings are perfect for smooth, leak-free fluid transfer in dairies, breweries, food processing, cosmetics, and pharmaceutical factories.

Technical Data

What are the applications for sanitary ferrule adapters?

1.Food and Beverage Processing: They securely connect stainless steel pipelines to transition milk, juices, and liquid ingredients safely without trapping bacteria.

2.Brewery and Distilling Systems: These adapters bridge the gap between brewing tanks, pumps, and flexible hoses to maintain a sterile environment during fermentation and transfer.

3.Pharmaceutical Manufacturing: They are widely used to join process piping with high-purity equipment where ultra-clean, contamination-free fluid flow is mandatory.

4.Cosmetics and Personal Care Production: These fittings link mixing vessels and filling machines to handle creams, lotions, and soaps while allowing easy disassembly for daily cleaning.

5.Biotech and Laboratory Settings: They connect modular process equipment, filtration systems, and sampling ports under strict sterile conditions.

International Standards and Certifications

VTY products comply with:

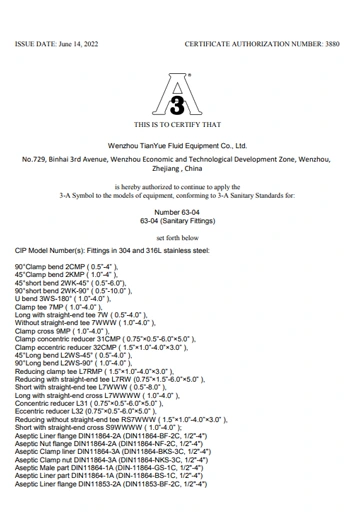

3A Sanitary Standard

DIN 11851 / 11864 / 11853

SMS / ISO / IDF / RJT standards

CE certification

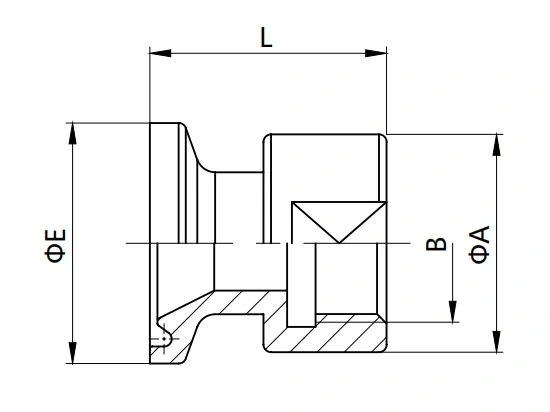

22MP

Clamp Adapter, Clamp to BSPT Female

Size	A	B	E	L
1/2"×1/8"	15	1/8"BSPT	25.4	25
1/2"×1/4"	18	1/4"BSPT	25.4	25
1/2"×3/8"	23	3/8"BSPT	25.4	25
1/2"×1/2"	26	1/2"BSPT	25.4	30
1/2"×3/4"	32	3/4"BSPT	25.4	30
3/4"×1/8"	15	1/8"BSPT	25.4	25
3/4"×1/4"	18	1/4"BSPT	25.4	25
3/4"×3/8"	23	3/8"BSPT	25.4	25
3/4"×1/2"	26	1/2"BSPT	25.4	30
3/4"×3/4"	32	3/4"BSPT	25.4	30

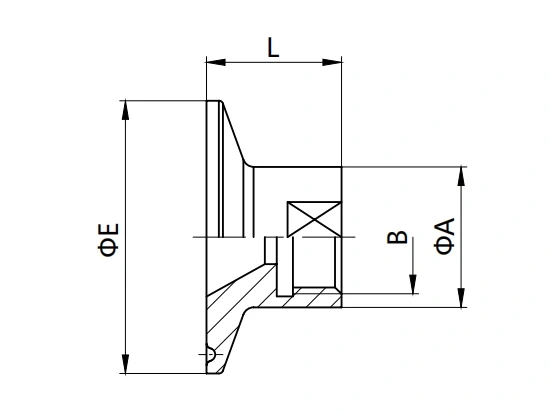

22MP

Clamped Hex Adapter, Clamp to BSPT Female

Size	A	B	E	L
1"×1/8"	15	1/8"BSPT	50.5	25
1"×1/4"	18	1/4"BSPT	50.5	25
1"×3/8"	23	3/8"BSPT	50.5	25
1"×1/2"	26	1/2"BSPT	50.5	25
1"×3/4"	32	3/4"BSPT	50.5	25
1"×1"	38	1"BSPT	50.5	25
11/2"×1/8"	15	1/8"BSPT	50.5	25
11/2"×1/4"	18	1/4"BSPT	50.5	25
11/2"×3/8"	23	3/8"BSPT	50.5	25
11/2"×1/2"	26	1/2"BSPT	50.5	25
11/2"×3/4"	32	3/4"BSPT	50.5	25
11/2"×1"	38	1"BSPT	50.5	25

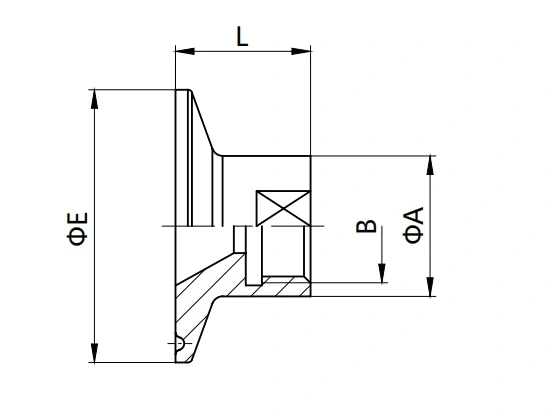

22MP

Clamped Hex Adapter, Clamp to BSPT Female

Size	A	B	E	L
11/2"×11/2"	53	11/2"BSPT	50.5	25
2"×1/2"	26	1/2"BSPT	64.0	25
2"×3/4"	32	3/4"BSPT	64.0	25
2"×1"	38	1"BSPT	64.0	30
2"×11/2"	53	11/2"BSPT	64.0	30
2"×2"	66	2"BSPT	64.0	40

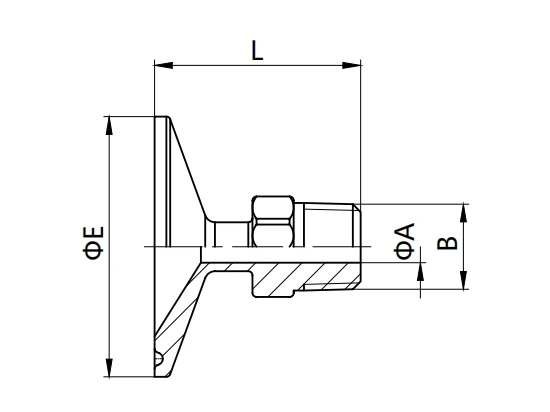

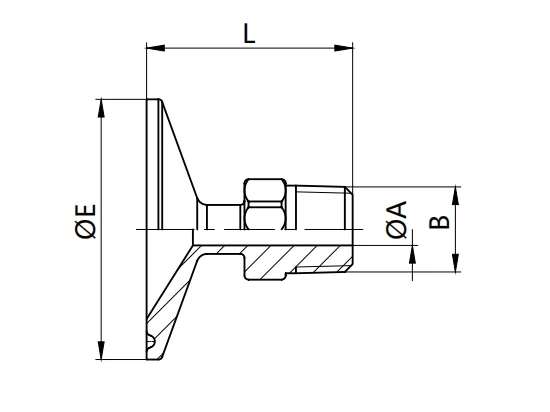

23MP

Clamped Hex Adapter, Clamp to NPT Male

Size	A	B	E	L
1/2"×1/2"	9.4	1/2"NPT	25.4	50.8
1/2"×3/4"	15.8	3/4"NPT	25.4	50.8
3/4"×1/2"	9.4	1/2"NPT	25.4	50.8
3/4"x3/4"	15.8	3/4"NPT	25.4	50.8
1"×1/2"	9.4	1/2"NPT	50.5	55.5
1"×3/4"	15.8	3/4"NPT	50.5	55.5
1"×1"	22.1	1"NPT	50.5	57.2
1"×11/2"	34.8	11/2"NPT	50.5	61.9
1"×2"	47.5	2"NPT	50.5	66.7
11/2"×3/4"	15.8	3/4"NPT	50.5	55.5
11/2"×1"	22.1	1"NPT	50.5	58.7
11/2"×11/4"	28.5	11/4"NPT	50.5	61.9

23MP

Clamped Hex Adapter, Clamp to NPT Male

Size	A	B	E	L
11/2"×11/2"	34.8	11/2"NPT	50.5	61.9
11/2"×2"	47.5	2"NPT	50.5	66.7
2"×1/2"	9.4	1/2"NPT	64.0	57.2
2"×3/4"	15.8	3/4"NPT	64.0	62.7
2"×1"	22.1	1"NPT	64.0	62.7
2"×11/2"	34.8	11/2"NPT	64.0	67.5
2"×2"	47.5	2"NPT	64.0	70.6
21/2"×11/2"	34.8	11/2"NPT	77.5	70.6
21/2"×2"	47.5	2"NPT	77.5	70.6
21/2"×21/2"	60.2	21/2"NPT	77.5	83.3
3"×3"	72.9	3"NPT	91.0	88.9
4"×4"	97.4	4"NPT	119.0	96.8
