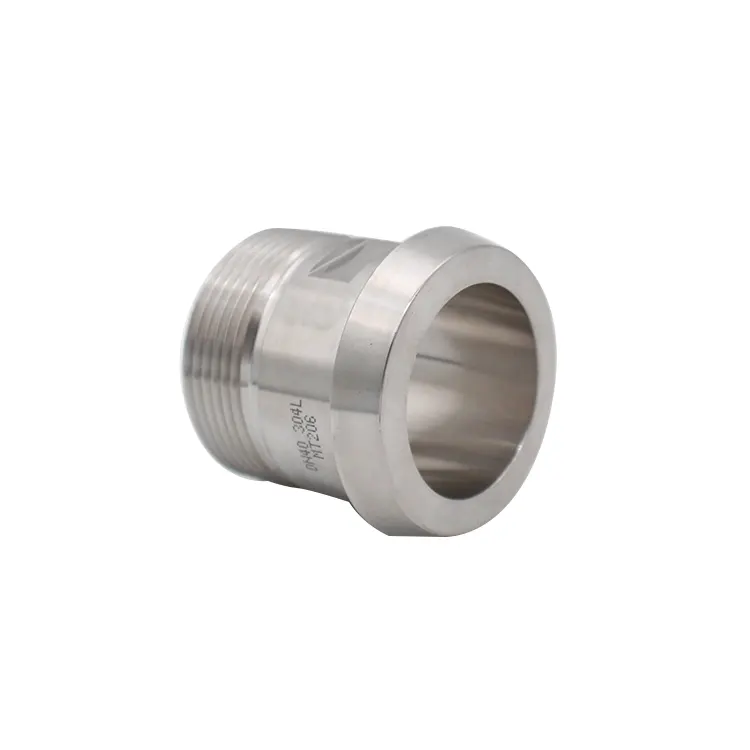

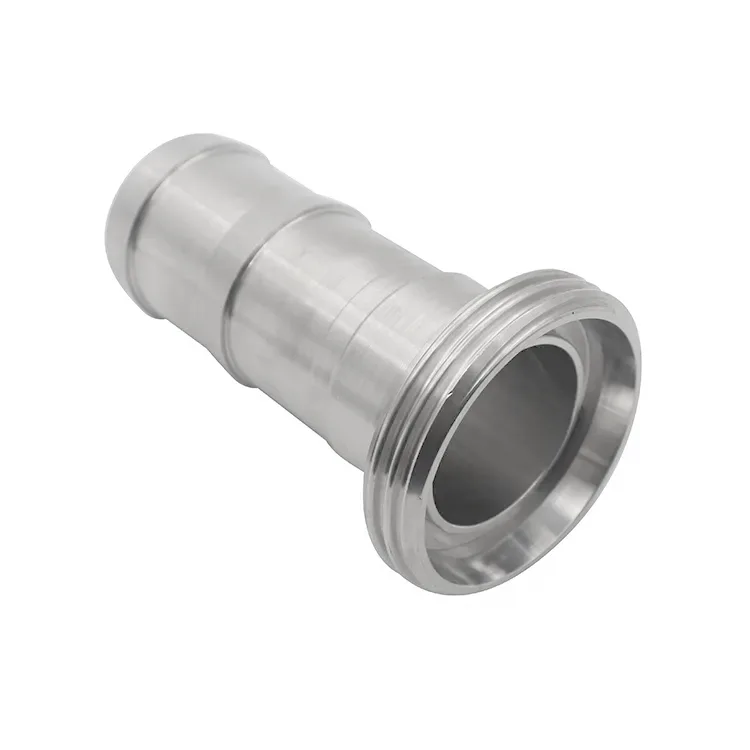

The Sanitary liner adapter from VTY is used to connect pipe systems. Each adapter undergoes independent lab testing to verify its chemical and physical properties, ensuring that they meet industry requirements.
VTY can offer a full range of sanitary liner adapters widely used in the USA, Germany and Japan. It ensures leak-proof sealing, hygienic flow transfer, and compatibility with international standards such as DIN, 3A, SMS, ISO, and RJT.
Our liner adapters are widely used in:
Food and Beverage Processing Systems
Dairy Processing Equipment
Pharmaceutical Production Lines
Brewery and Winery Systems
|
Standard |
DIN, 3A, SMS, RJT, ISO, IDF, DS, GB |
|
Size |
1’’-6’’, DN10-250, 17.2-168.3 |
|
Material Grade |
304, 304L, 316L (forged) |
|
Seal |
NBR, Silicone, EPDM, FPM, PTFE |
|
Roughness |
1.Inside≤0.4~0.8µm |
|
2.Outside≤1.6µm |
1.Crevice-Free Hygiene: Their smooth, precision-machined internal surfaces eliminate dead spaces, preventing product buildup and harmful bacterial growth.
2.High Temperature and Chemical Resistance: They are typically manufactured from premium 316L stainless steel, allowing them to withstand aggressive clean-in-place (CIP) chemicals and rigorous steam sterilization.
3.Leak-Proof Sealing: When paired with a compatible elastomeric gasket and liner nut, they provide an exceptionally tight seal that handles high-pressure processing without dripping.
4.Easy Maintenance and Disassembly: The quick-disconnect design allows plant operators to rapidly disassemble lines for manual inspection, deep cleaning, or regular servicing.
5.Regulatory Compliance: These adapters are engineered to meet strict global sanitation standards, making them fully compliant with FDA, 3-A, and ASME BPE requirements for food, beverage, and pharmaceutical processing.
Wenzhou Tianyue Fluid Equipment Co., Ltd. is a professional manufacturer specializing in hygienic fluid equipment and sanitary pipeline components.
Our factory advantages include:

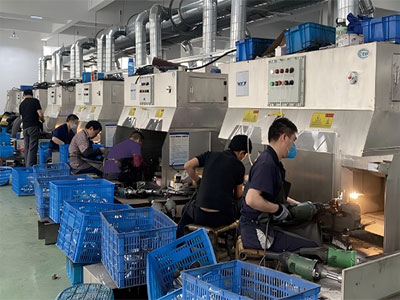

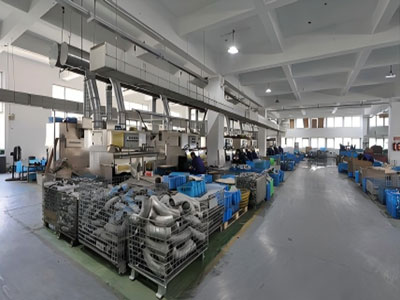

13,000 m² production facility
134 CNC machining centers (majority MAZAK Japan)

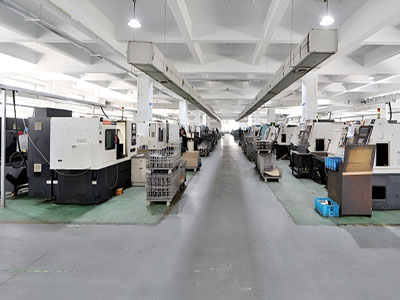

Advanced laser cutting & polishing lines
Independent laboratory with 3D CMM measurement system
Roughness, hardness, thickness, and material testing equipment
ISO 9001 / ISO 14001 / ISO 45001 certified management system
With a strong engineering and QC team, we ensure every sanitary liner adapter meets strict global quality standards.

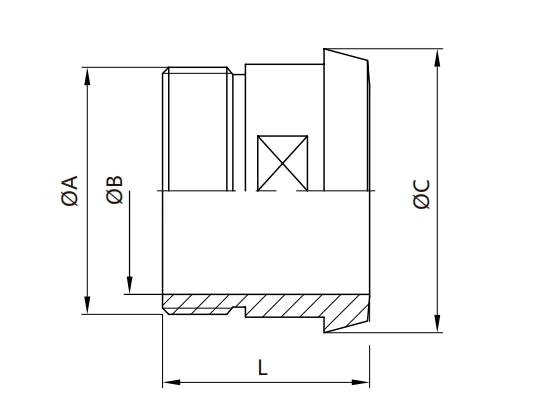

| Size | A | B | C | L |
|---|---|---|---|---|
| 10 | G3/8" | 10 | 22.5 | 38 |
| 15 | G1/2" | 16 | 28.5 | 38 |
| 20 | G3/4" | 20 | 36.5 | 40 |
| 25 | G1" | 26 | 44.0 | 50 |
| 32 | G11/4" | 32 | 50.0 | 50 |
| 40 | G11/2" | 38 | 56.0 | 50 |
| 50 | G2" | 50 | 68.5 | 50 |
| 65 | G21/2" | 66 | 86.0 | 55 |
| 80 | G3" | 81 | 100.0 | 60 |
| 100 | G4" | 100 | 121.0 | 70 |

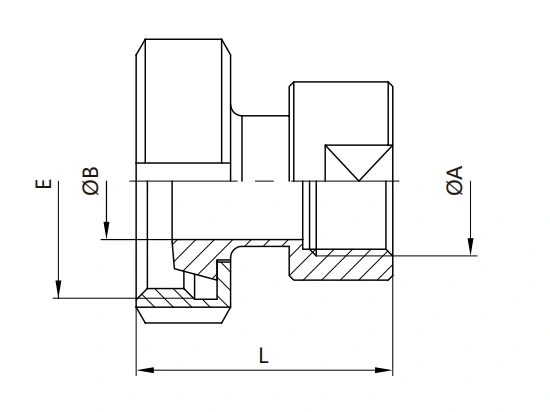

| Size | A | B | E | L | ||
|---|---|---|---|---|---|---|
| 10 | G3/8" | 10 | Rd 28×1/8" | 39 | ||
| 15 | G1/2" | 16 | Rd 34×1/8" | 44 | ||
| 20 | G3/4" | 20 | Rd 44×1/6" | 45 | ||
| 25 | G1" | 26 | Rd 52×1/6” | 49 | ||
| 32 | G11/4" | 32 | Rd 58×1/6" | 52 | ||
| 40 | G11/2" | 38 | Rd 65×1/6" | 53 | ||
| 50 | G2" | 50 | Rd 78×1/6" | 55 | ||
| 65 | G21/2" | 66 | Rd 95×1/6" | 61 | ||
| 80 | G3" | 81 | Rd 110×1/4" | 67 | ||
| 100 | G4" | 100 | Rd 130×1/4" | 76 | ||
