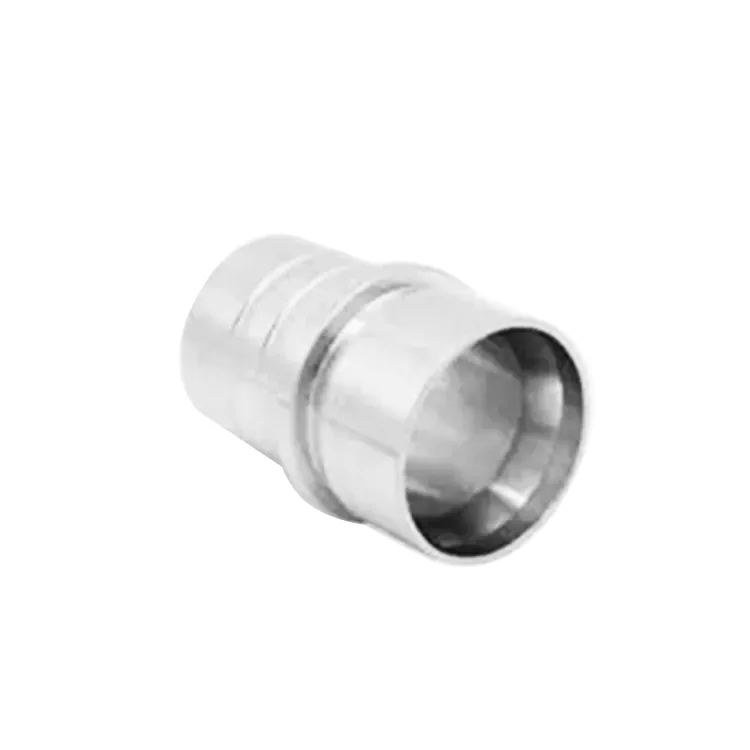

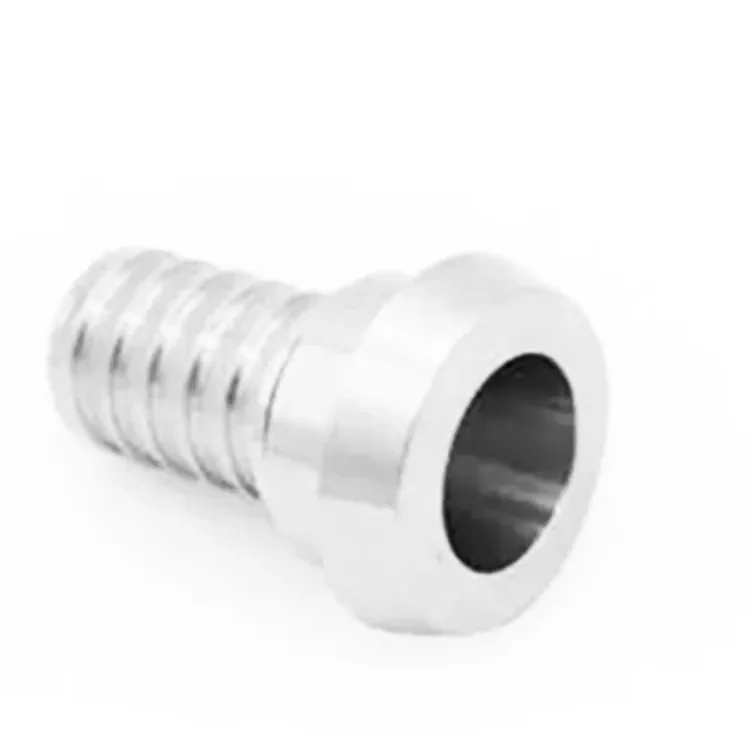

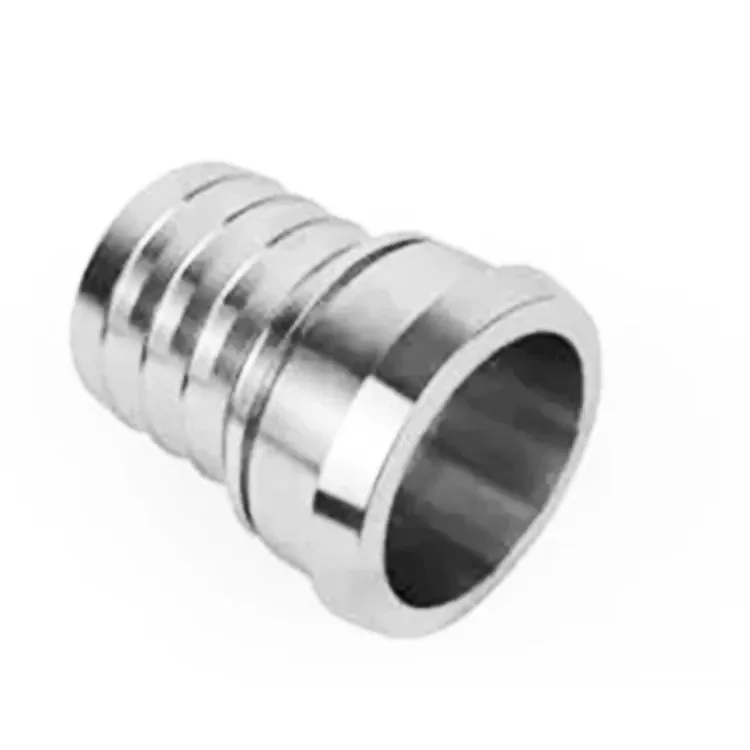

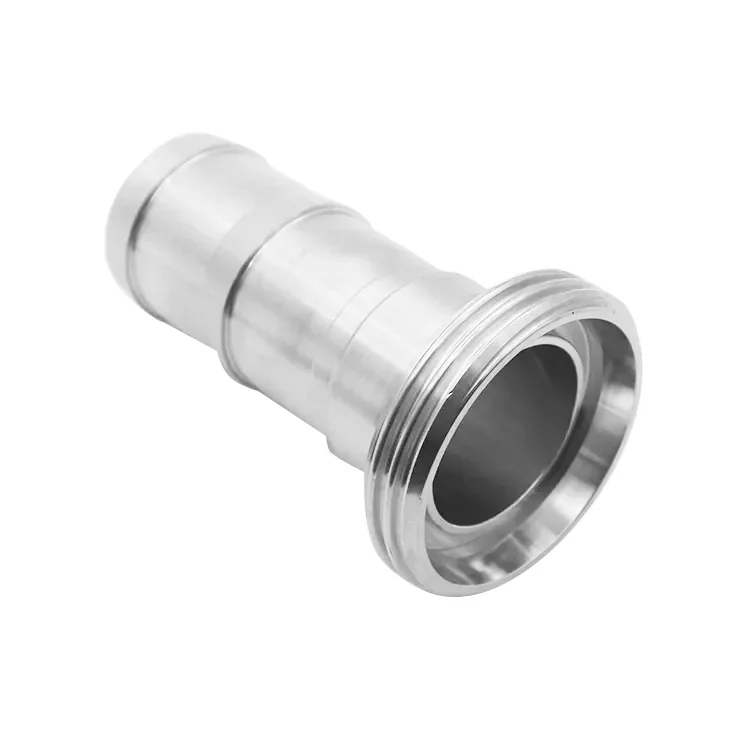

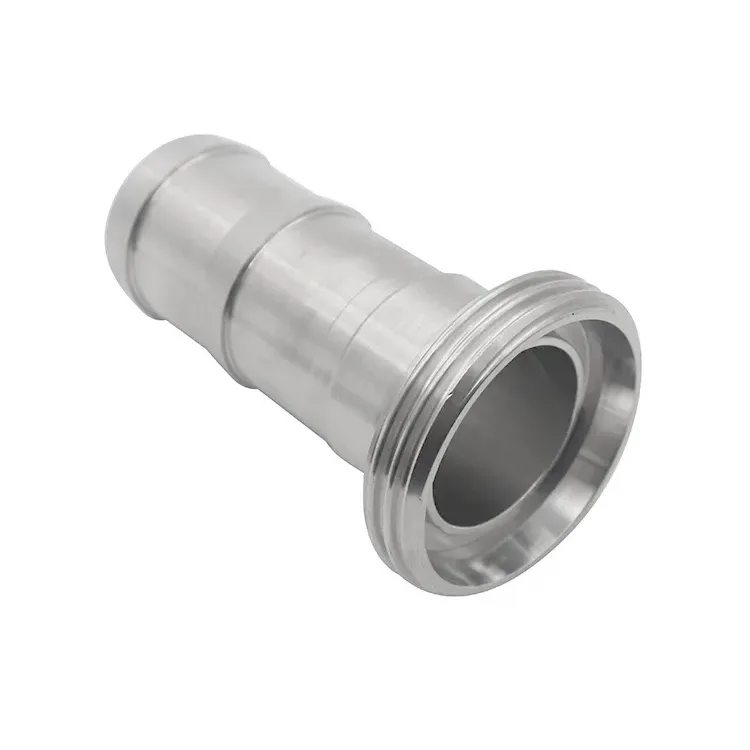

The sanitary hose adapter from VTY is used to connect sanitary flexible hoses to a process pipe line. These adapters are available in SS 304, 304L and 316L, and are widely used in Europe and North America. Every hose adapter is certified to meet the stringent criteria of the CE Sanitary Standards, ensuring the safety and purity of the transferred materials.
VTY can offer a wide range of sanitary hose adapters hygienically designed for food, beverage, dairy, cosmetics, and pharmaceutical industries.
Easy to assemble and disassemble
Enable various connections
help eliminate difficult alignment issues.
Before finalizing the model, be sure to check the following specifications:
The inner surface of Sanitary Hose Adapter must be polished.
Ordinary sanitary grade: Ra≤0.8µm
High purity/pharmaceutical grade: Ra≤0.4µm
Different media have different requirements for gasket swelling and temperature resistance:
EPDM: Good steam resistance, commonly used.
Silicone: Excellent flexibility and biocompatibility, commonly used in biopharmaceuticals.
Viton: Oil-resistant, high-temperature resistant, chemical-resistant.
PTFE: Most chemically stable, but less elastic.
Ensure that the working pressure of the fitting is higher than the maximum instantaneous pressure of the hose and pumping system.
Consider whether there is a SIP (Sterilize-in-Place with steam) requirement; fittings and seals must remain stable at 121℃or 135℃ during this process.
1.It is strictly forbidden to use fittings with burrs or exposed threads to come into contact with materials.
2.Pay attention to compatibility: Even if they are all clamp fittings, there are slight differences in size (outer diameter and wall thickness) between DIN, ISO, and SMS standards. Mixing them may create step dead angles.
3.Certification verification: Ensure that the supplier can provide FDA, USP Class VI, or 3A certification reports.

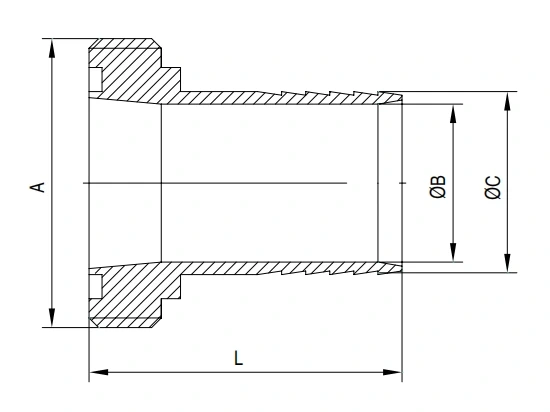

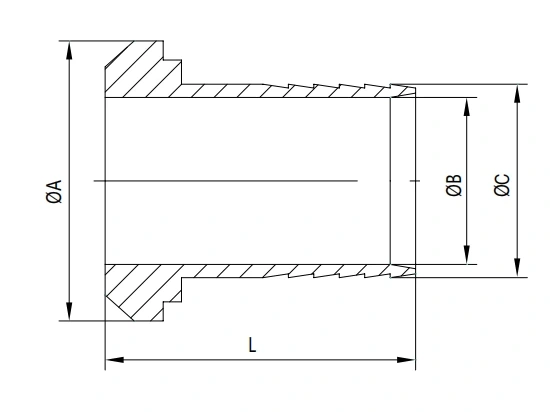

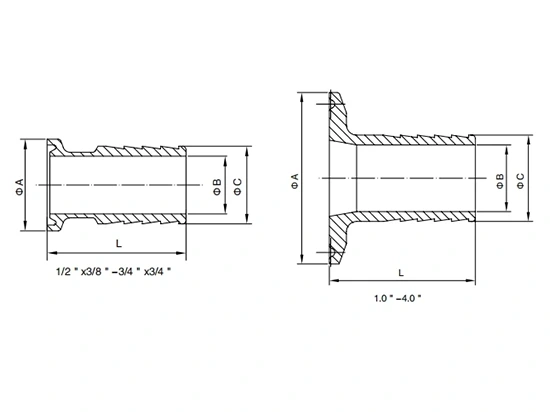

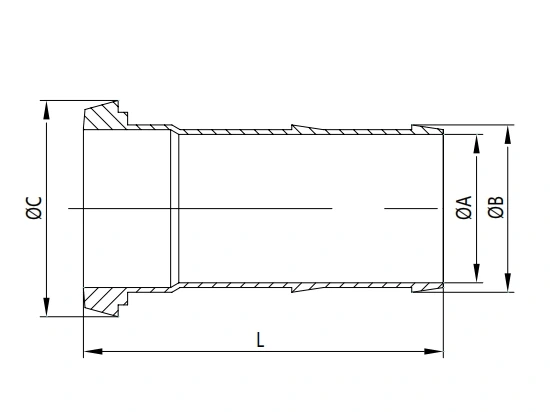

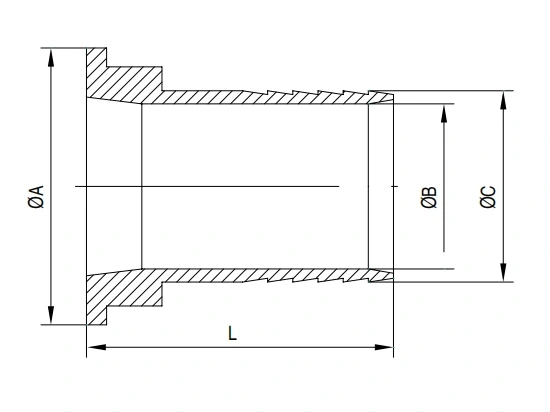

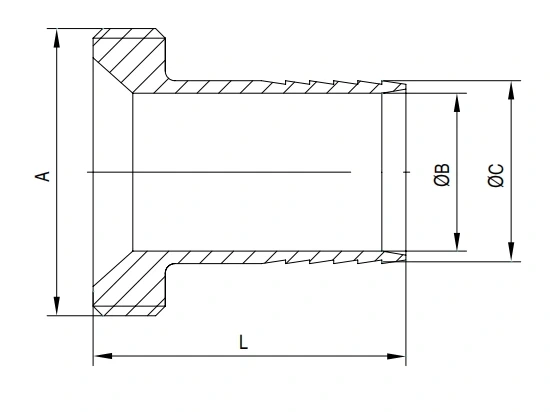

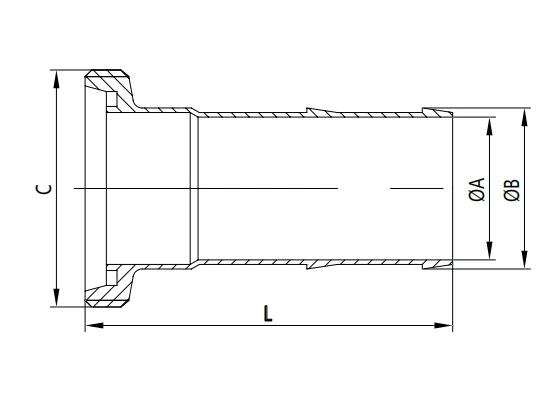

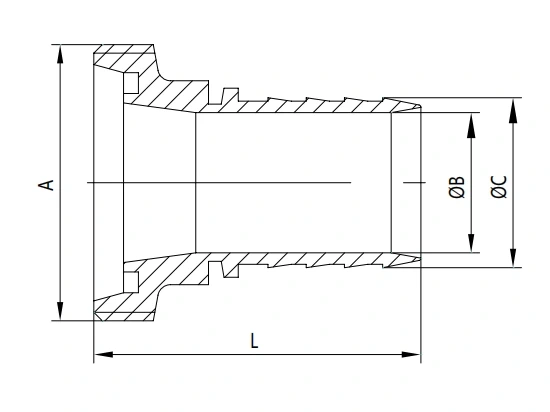

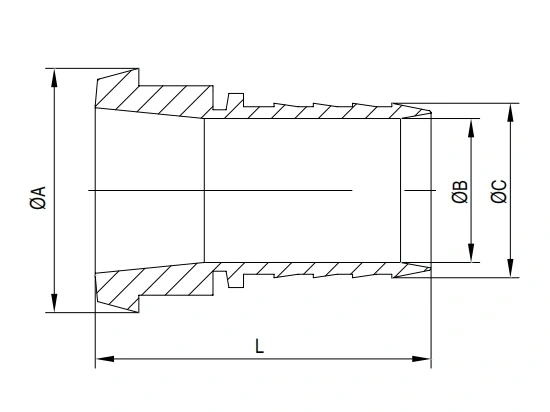

| Size | A | B | C | L |
|---|---|---|---|---|
| 1/2"×1/8" | 25.2 | 1.57 | 3.73 | 38.1 |
| 1/2"×1/4" | 25.2 | 4.75 | 7.92 | 38.1 |
| 1/2"×3/8" | 25.2 | 5.5 | 10.3 | 38.1 |
| 1/2"×1/2" | 25.2 | 9.5 | 13.7 | 38.1 |
| 1/2"×3/4" | 25.2 | 15.87 | 21.33 | 38.1 |
| 3/4"×1/8" | 25.2 | 1.57 | 3.73 | 38.1 |
| 3/4"×1/4" | 25.2 | 4.75 | 7.92 | 38.1 |
| 3/4×3/8" | 25.2 | 5.5 | 10.3 | 38.1 |
| 3/4"×1/2" | 25.2 | 9.5 | 13.7 | 38.1 |
| 3/4"×3/4" | 25.2 | 15.87 | 21.33 | 38.1 |
| 1. 0" | 50.5 | 20.6 | 25.4 | 42.9 |
| 1-1/2" | 50.5 | 33.3 | 38.1 | 42.9 |
| 2.0" | 64 | 46 | 50.8 | 58.7 |
| 2-1/2" | 77.5 | 58.7 | 63.5 | 59.5 |
| 3.0" | 91 | 72 | 76.2 | 78.6 |
| 4.0" | 119 | 97.4 | 101.6 | 96.5 |
| DN | A | B | C | L |
|---|---|---|---|---|
| 10 | 10 | 15 | Rd28X1/8" | 54 |
| 15 | 16 | 21 | Rd34X1/8" | 64 |
| 20 | 20 | 26 | Rd44X1/6" | 76 |
| 25 | 22 | 28 | Rd52X1/6" | 83 |
| 32 | 29 | 35 | Rd58X1/6" | 92 |
| 40 | 37 | 43 | Rd65X1/6" | 108 |
| 50 | 47 | 53 | Rd78X1/6" | 121 |
| 65 | 61 | 69 | Rd95X1/6" | 142 |
| 80 | 75 | 85 | Rd110X1/4" | 164 |
| DN | A | B | C | L |
|---|---|---|---|---|
| 10 | 10 | 15 | 22.5 | 50 |
| 15 | 16 | 21 | 28.5 | 60 |
| 20 | 20 | 26 | 36.5 | 70 |
| 25 | 22 | 28 | 44 | 76 |
| 32 | 29 | 35 | 50 | 85 |
| 40 | 37 | 43 | 56 | 101 |
| 50 | 47 | 53 | 68.5 | 114 |
| 65 | 61 | 69 | 86 | 134 |
| 80 | 75 | 85 | 100 | 156 |
| 100 | 95 | 105 | 121 | 175 |
| Size | A | B | C | L |
|---|---|---|---|---|
| 25 | RD40X1/6" | 21.4 | 25.4 | 49.2 |
| 38 | RD60X1/6" | 34.1 | 38.1 | 53.2 |
| 51 | RD70X1/6" | 44.8 | 50.8 | 69 |
| 63.5 | RD85X1/6" | 57.5 | 63.5 | 73.8 |
| 76.1 | RD98X1/6" | 70.3 | 76.3 | 92.9 |
| 101.6 | RD125X1/4" | 93.6 | 101.6 | 118.8 |
| Size | A | B | C | L |
|---|---|---|---|---|
| 25 | 35.5 | 21.4 | 25.4 | 45.2 |
| 38 | 55 | 34.1 | 38.1 | 50.2 |
| 51 | 65 | 44.8 | 50.8 | 66 |
| 63.5 | 80 | 57.5 | 63.5 | 70.8 |
| 76.1 | 93 | 70.3 | 76.2 | 89.9 |
| 101.6 | 117 | 93.6 | 101.6 | 113.8 |
| Size | A | B | C | L |
|---|---|---|---|---|
| 1" | 37. 13X8TPI ACME | 20.64 | 25.4 | 42.86 |
| 1. 5" | 50. 65X8TPI ACME | 33.34 | 38.1 | 42.86 |
| 2" | 64. 16X8TPI ACME | 46 | 50.8 | 58.74 |
| 2.5" | 77. 67X8TPI ACME | 58.74 | 63.5 | 59.53 |
| 3" | 91. 19X8PTI ACME | 71.44 | 76.2 | 88.9 |
| 4" | 119. 25X6TPI ACME | 96.84 | 101.6 | 101.6 |
| Size | A | B | C | L |
|---|---|---|---|---|
| 1" | 35.5 | 20.64 | 25.4 | 42.86 |
| 1. 5" | 55 | 33.34 | 38.1 | 42.86 |
| 2" | 65 | 46 | 50.8 | 58.74 |
| 2.5" | 80 | 58.74 | 63.5 | 59.53 |
| 3" | 93 | 71.44 | 76.3 | 88.9 |
| 4" | 117 | 96.84 | 101.6 | 101.6 |

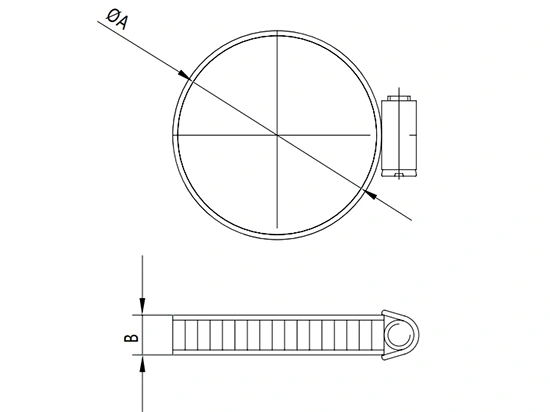

| A | B |
|---|---|
| 12-20 | 12 |
| 16-25 | 12 |
| 20-32 | 12 |
| 25-40 | 12 |
| 32-50 | 12 |
| 40-60 | 12 |
| 50-70 | 12 |
| 60-80 | 12 |
| 70-90 | 12 |
| 80-100 | 12 |
| 90-110 | 12 |
| 100-120 | 12 |
| DN | A | B | C | L |
|---|---|---|---|---|
| 25 | RD52X1/6" | 20 | 27 | 77 |
| 32 | RD58X1/6" | 27 | 34 | 77 |
| 40 | RD65X1/6" | 35 | 42 | 77 |
| 50 | RD78X1/6" | 45 | 51.9 | 83 |
| 65 | RD95X1/6" | 60 | 67 | 97 |
| 80 | RD110X1/4" | 75 | 82 | 116 |
| 100 | RD130X1/4" | 94 | 102 | 131 |
| DN | A | B | C | L |
|---|---|---|---|---|
| 25 | 44 | 20 | 27 | 77 |
| 32 | 27 | 34 | 34 | 77 |
| 40 | 56 | 35 | 42 | 77 |
| 50 | 68.5 | 45 | 51.9 | 83 |
| 65 | 86 | 60 | 67 | 97 |
| 80 | 100 | 75 | 82 | 116 |
| 100 | 121 | 94 | 102 | 131 |

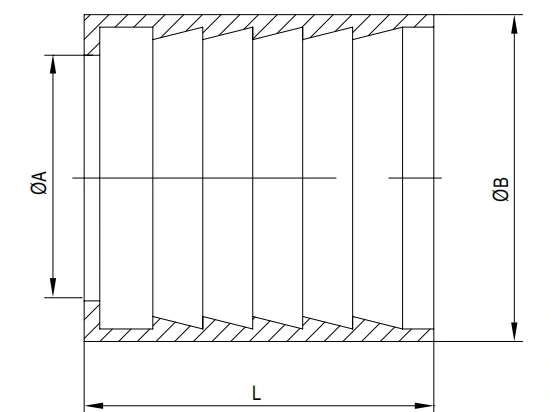

| DN | A | B | L | |
|---|---|---|---|---|
| 25 | 35 | 47 | 60 | |
| 32 | 41 | 54 | 60 | |
| 40 | 48 | 65 | 60 | |
| 50 | 60 | 77 | 65 | |
| 65 | 78.5 | 101 | 75 | |
| 80 | 92.5 | 108 | 90 | |
| 100 | 113 | 142 | 99 |
