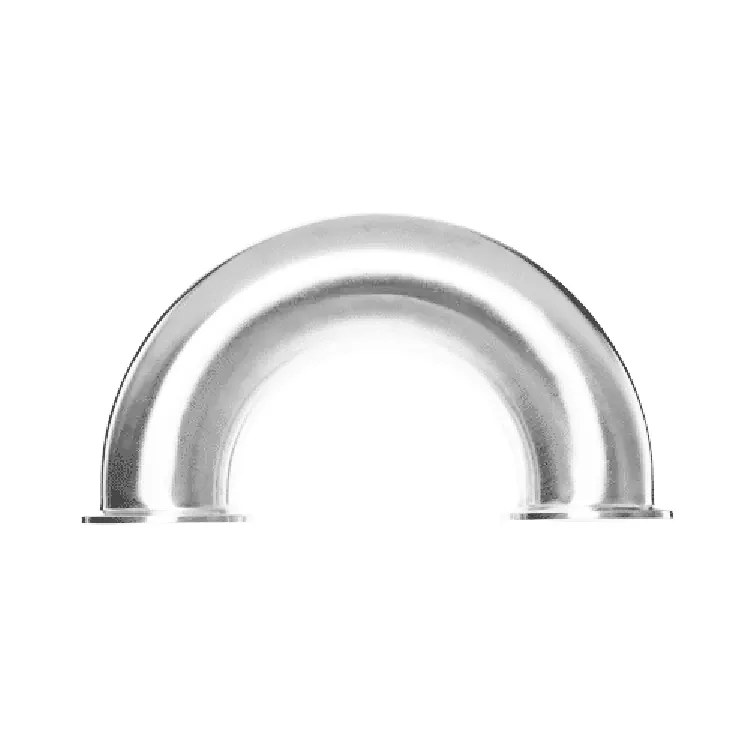

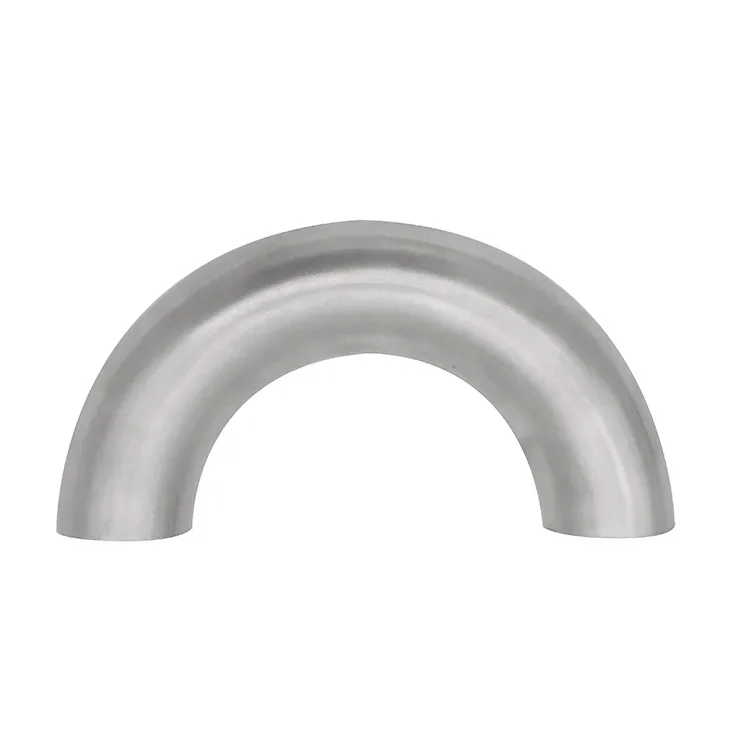

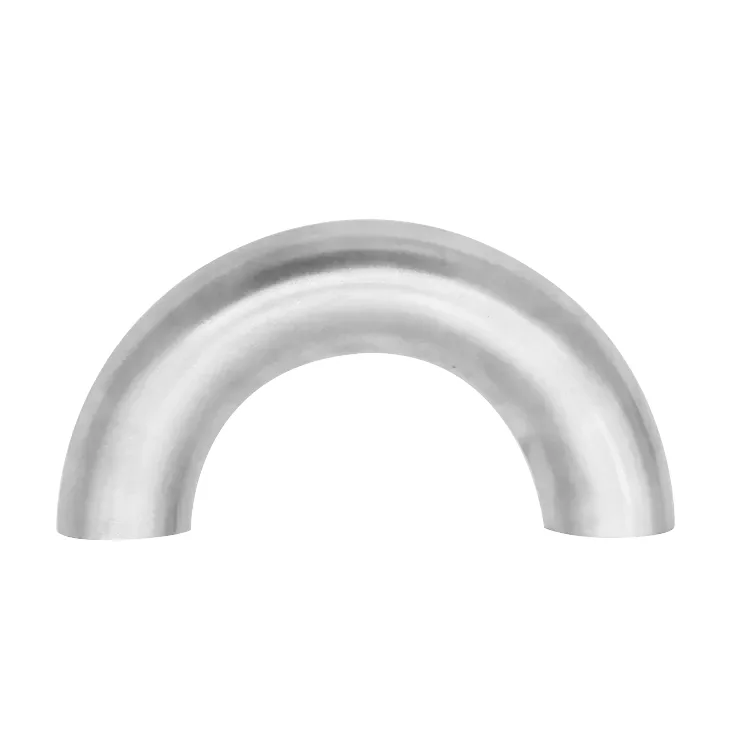

Sanitary Stainless Steel 180 Degree U Type Bend

The Sanitary Stainless Steel 180 Degree U Type Bend from VTY is a 180 degree elbow used to be installed between two lengths of pipe or tube to change the fluid direction in the process system. The U bend shape allows the fluid to flow back in the opposite direction.

These bends are particularly useful in systems where you need to reverse the flow direction without adding extra components. They provide a smooth U-turn in process piping, ideal for compact layouts and flow redirection in sanitary systems.

VTY can provide a full range of Sanitary Stainless Steel 180 Degree U Type Bends suitable for use in applications ranging from food and beverage to dairy, and pharmaceutical, marine, and automotive.

Manufactured by Wenzhou Tianyue Fluid Equipment Co., Ltd., all return bends are produced under strict ISO 9001 quality control system and comply with international standards including DIN, SMS, 3A, ISO, RJT, and IDF.

Key Features

1.Material Selection: Stainless steel return bends are typically crafted from high-quality stainless steel alloys. This material is chosen for its exceptional resistance to corrosion, rust, and staining.

2.Design: These bends are designed with a U-shaped or semi-circular configuration. This design allows for a 180-degree change in the direction of fluid flow.

3.Sizing: Stainless steel return bends are available in various sizes, allowing them to be used in a wide range of pipe diameters.

4.Welded or Seamless: Depending on the application, return bends can be either welded or seamless. Welded versions are created by joining two pieces of stainless steel, while seamless bends are made from a single piece, reducing the risk of leaks.

Application

1.Chemical and Petrochemical Industry: These bends are used in the conveyance of corrosive chemicals and gases, where maintaining the integrity of the piping system is essential.

2.Oil and Gas Industry: Return bends are found in pipelines that transport oil, natural gas, and other hydrocarbons.

3.Food and Beverage Industry: They are essential in food processing plants, breweries, and dairies, where sanitation and corrosion resistance are vital.

4.Pharmaceutical Industry: In the pharmaceutical sector, return bends are used to maintain the purity of fluids during the manufacturing process.

5.Marine Applications: Due to their resistance to saltwater corrosion, stainless steel return bends are employed in marine piping systems.

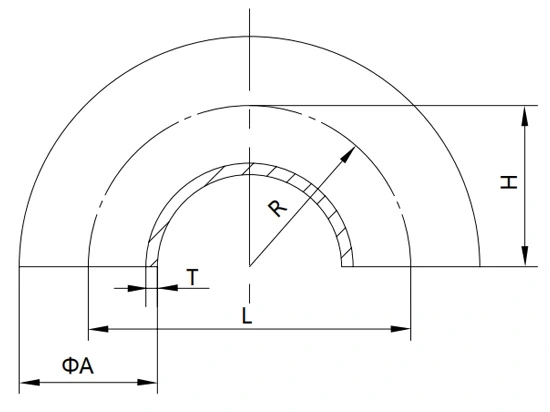

D.3WS-180°

DIN 180°Elbow, Short End, Welded

DN	A	L	R	H	T
20	22/23	80	40	40	1.5
25	28/29	100	50	50	1.5
32	34/35	110	55	55	1.5
40	40/41	120	60	60	1.5
50	52/53	140	70	70	1.5
65	70	160	80	80	2.0
80	85	180	90	90	2.0
100	104	200	100	100	2.0
125	129	375	187.5	187.5	2.0
150	154	450	225	225	2.0

D.L2WS-45°

DIN 45° Elbow, Straight End, Welded

ISO	A	L	T
13.5	13.5	40	1.6
17.2	17.2	56	1.6
21.3	21.3	60	1.6
26.9	26.9	56	1.6
33.7	33.7	76	2
42.4	42.4	95	2
48.3	48.3	114	2
60.3	60.3	152	2
76.1	76.1	191	2
88.9	88.9	229	2.3
101.6	101.6	267	2.3
114.3	114.3	305	2.3
