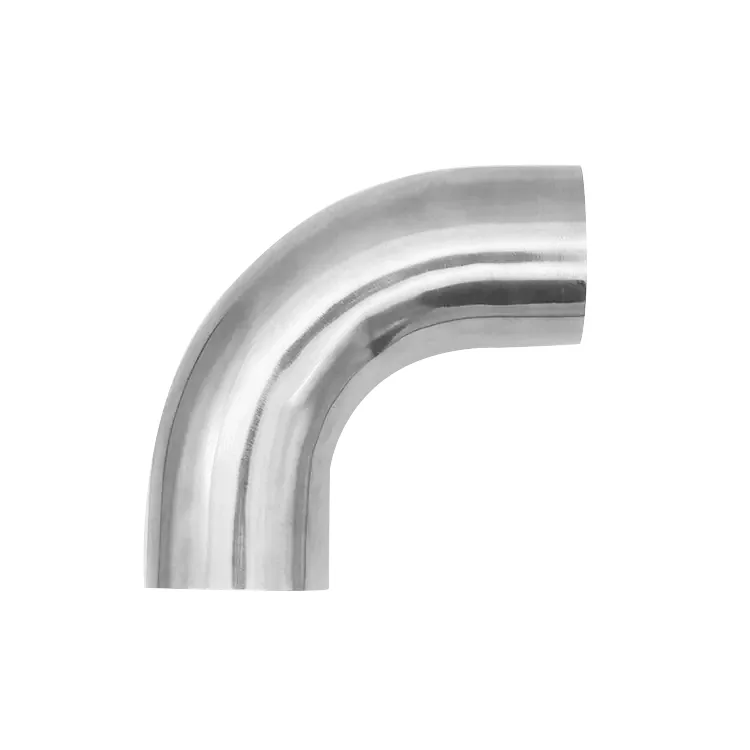

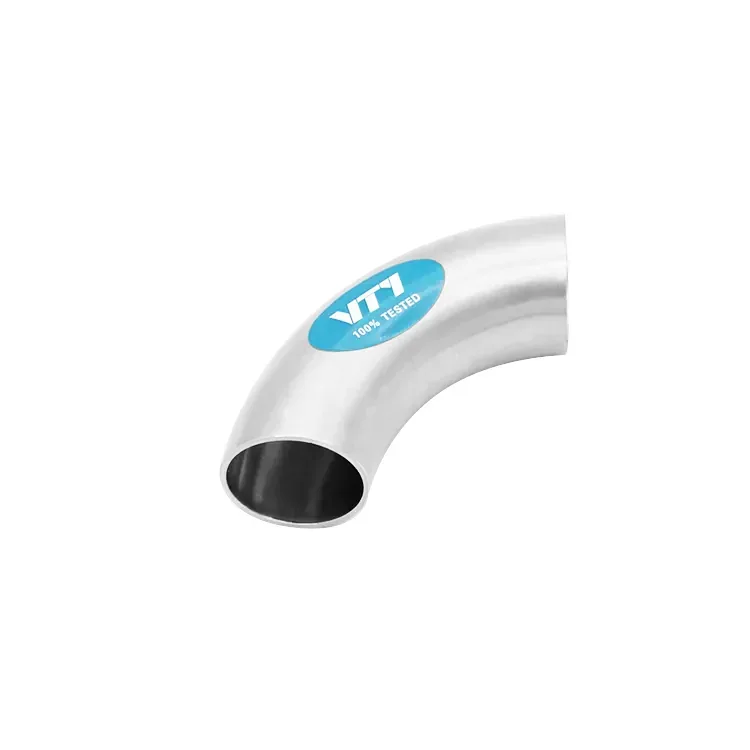

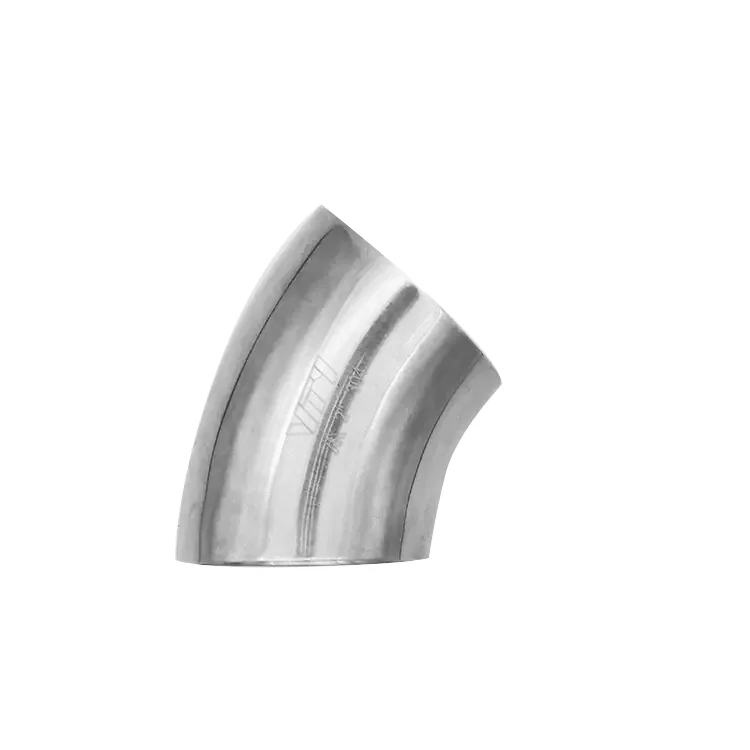

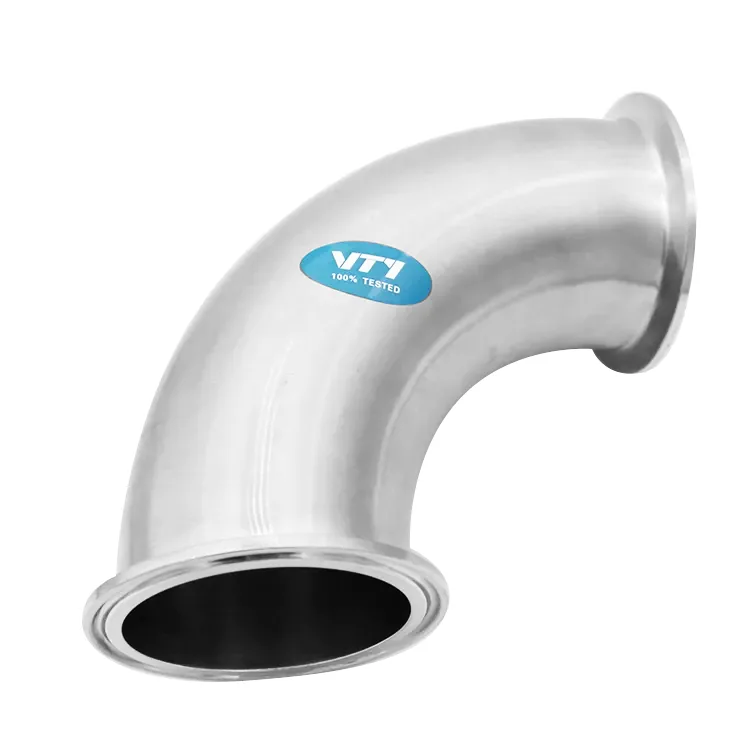

Sanitary Stainless Steel Elbow

VTY Sanitary Stainless Steel Elbow refers to a type of sanitary fitting installed between two pipe or tubing sections. It is designed to enable a directional change. These corner fittings typically form a 90-degree or 45-degree angle, and can be divided into the long elbow and the short elbow.

Sanitary elbow fittings are tailored for single-use fluid transfer scenarios where maintaining sanitary processing is important. They find extensive applications in industries such as petroleum, chemicals, electric power, pharmaceuticals, beer brewing, food processing, dairy beverages, cosmetics, and more.

Additionally, VTY has the capability to offer customized Sanitary Stainless Steel Elbows and bends.

Key Features

Effortless, laminar flow with minimal disturbance.

Interior surfaces that are pristine and devoid of impurities.

Minimal bacterial attachment and growth.

Exceptional durability against acids, bases, and cleaning agents.

Specification

What is the classification of sanitary elbow fittings?

Sanitary elbows can also differ in their length. A long-radius or long elbow features a curvature radius that is 1.5 times the pipe's diameter. However, a short-radius or short elbow has a radius equal to the pipe's diameter.

Sanitary elbows can also differ in their joining methods. There are two types of sanitary elbows: welded elbows or clamp elbows. Welded elbows are connected to the piping system by welding or casting, whereas clamp elbows are designed with threads on both ends to be screwed into threaded pipes.

Custom Sanitary Stainless Steel Elbows

VTY offers full customization services including:

Special angle design

Non-standard sizes

High-polish surface (Ra ≤ 0.4μm optional)

OEM branding

Drawing-based manufacturing

Quality Control

Every sanitary elbow is tested under strict quality control procedures:

Material inspection

Dimensional tolerance check

Surface roughness testing

Hardness testing

Pressure and leakage testing

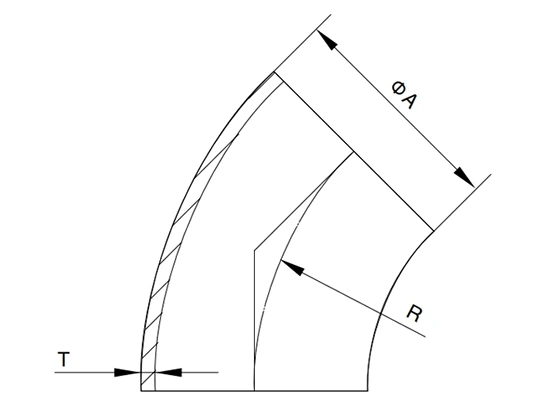

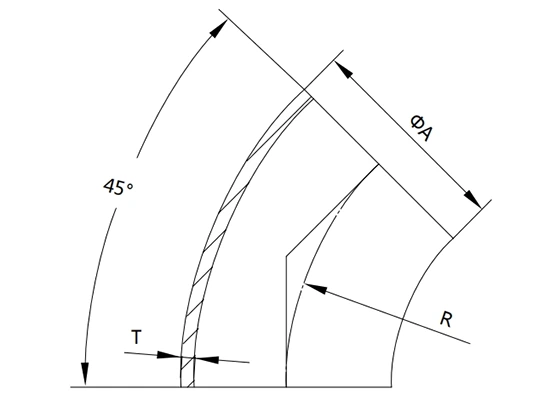

D.2WK-45°

DIN 45° Elbow, Short End, Welded

DN	A	R	T
10	12/13	26	1.5
15	18/19	35	1.5
20	22/23	40	1.5
25	28/29	50	1.5
32	34/35	55	1.5
40	40/41	60	1.5
50	52/53	70	1.5
65	70	80	2.0
80	85	90	2.0
100	104	100	2.0
125	129	187.5	2.0
150	154	225	2.0
200	204	300	2.0

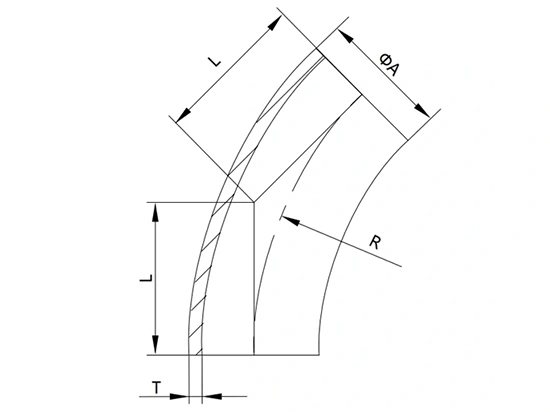

D.L2WS-45°

DIN 45° Elbow, Straight End, Welded

DN	A	R	L	T
10	12/13	26	35.8	1.5
15	18/19	35	39.5	1.5
20	22/23	40	41.6	1.5
25	28/29	50	60.7	1.5
32	34/35	55	62.8	1.5
40	40/41	60	64.9	1.5
50	52/53	70	69	1.5
65	70	80	73.0	2.0
80	85	90	92.3	2.0
100	104	100	96.4	2.0
125	129	187.5	135.2	2.0

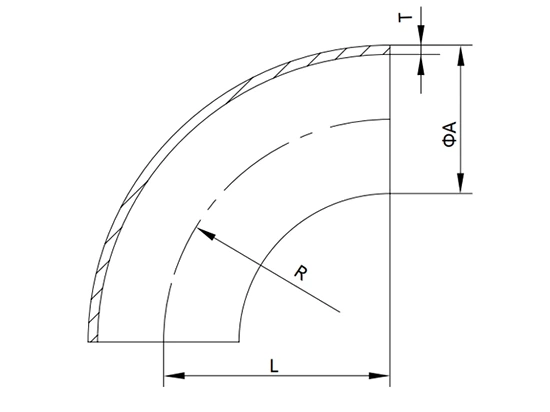

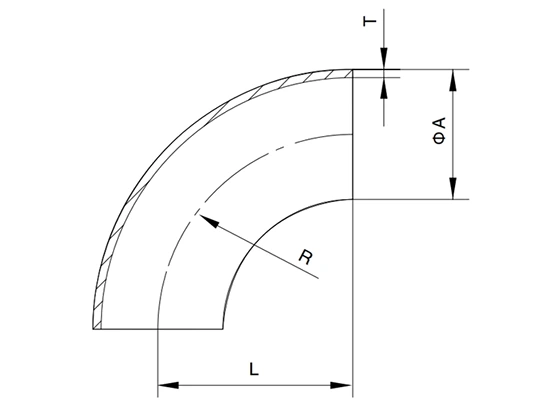

D.2WK-90°

DIN 90° Elbow, Short End, Welded

DN	A	R	L	T
10	12/13	26	26	1.5
15	18/19	35	35	1.5
20	22/23	40	40	1.5
25	28/29	50	50	1.5
32	34/35	55	55	1.5
40	40/41	60	60	1.5
50	52/53	70	70	1.5
65	70	80	80	2.0
80	85	90	90	2.0
100	104	100	100	2.0
125	129	187.5	187.5	2.0
150	154	225	225	2.0
200	204	300	300	2.0

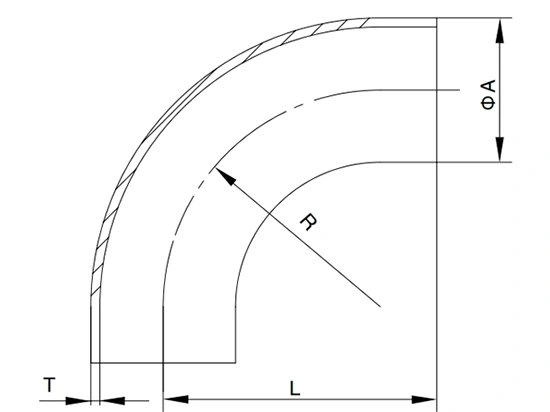

D.L2WS-90°

DIN 90° Elbow, Straight End, Welded

DN	A	R	L	T
10	12/13	26	51	1.5
15	18/19	35	60	1.5
20	22/23	40	65	1.5
25	28/29	50	90	1.5
32	34/35	55	95	1.5
40	40/41	60	100	1.5
50	52/53	70	110	1.5
65	70	80	120	2.0
80	85	90	145	2.0
100	104	100	155	2.0
125	129	187.5	245	2.0

S.2WK-45°

SMS 45° Elbow, Short End, Welded

Size	A	R	T
25	25	15.53	1.25
38	38	23.61	1.25
51	51	31.69	1.25
63.5	63.5	39.45	1.5
76	76.1	47.28	1.6
101.6	101.6	63.0	2.0

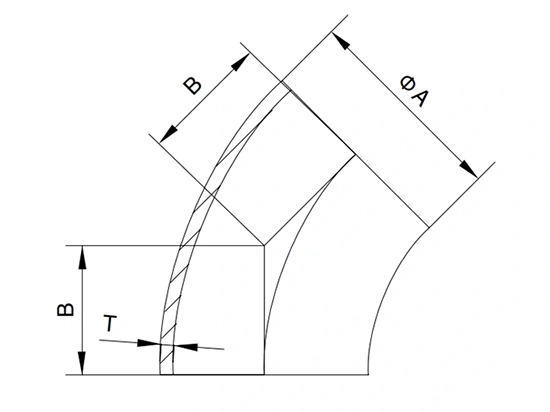

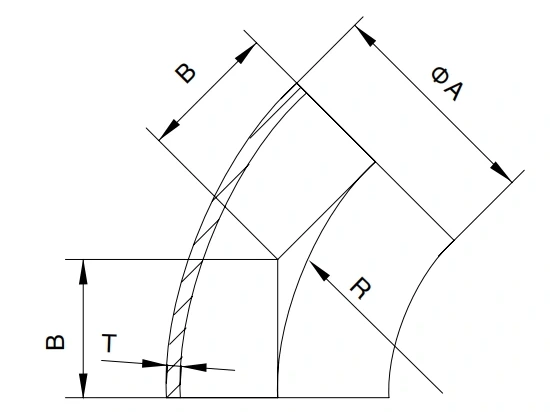

S.L2WS-45°

SMS 45° Elbow, Straight End, Welded

Size	A	B	T
25	25	42.53	1.25
38	38	56.61	1.25
51	51	68.69	1.25
63.5	63.5	78.45	1.5
76	76.1	85.28	1.6
101.6	101.6	103.0	2.0

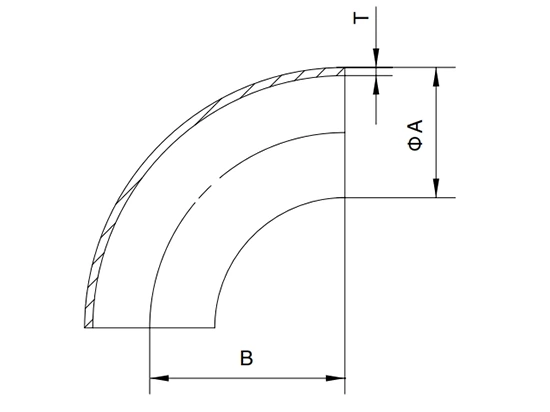

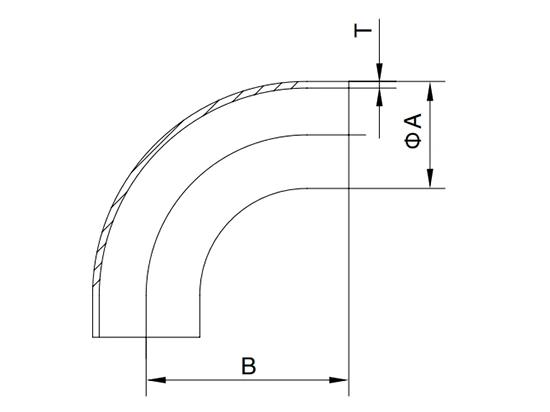

S.2WK-90°

SMS 90° Elbow, Short End, Welded

Size	A	B	T
25	25	37.5	1.25
38	38	57.0	1.25
51	51	76.5	1.25
63.5	63.5	95.25	1.5
76	76.1	114.15	1.6
101.6	101.6	152.1	2.0

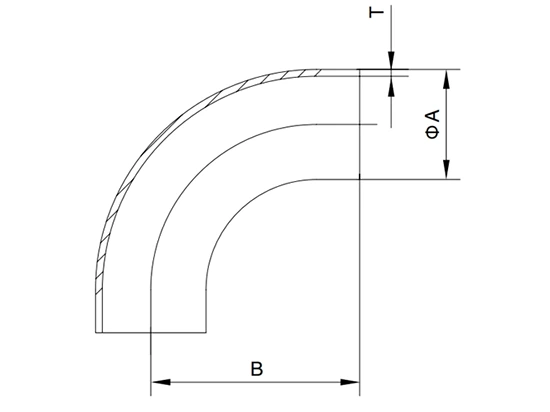

S.L2WS-90°

SMS 90° Elbow, Straight End, Welded

Size	A	B	T
25	25	52.5	1.25
38	38	72.0	1.25
51	51	91.5	1.25
63.5	63.5	113.25	1.5
76	76.1	132.15	1.6
101.6	101.6	172.1	2.0

A.2WK-45°

3A 45° Elbow, Short End, Welded

Size	A	B	T
1. 0"	25.4	15.8	1.65
1. 5"	38.1	23.8	1.65
2.0"	50.8	31.75	1.65
2.5"	63.5	39.6	1.65
3.0"	76.2	47.6	1.65
4.0"	101.6	63.5	2.11

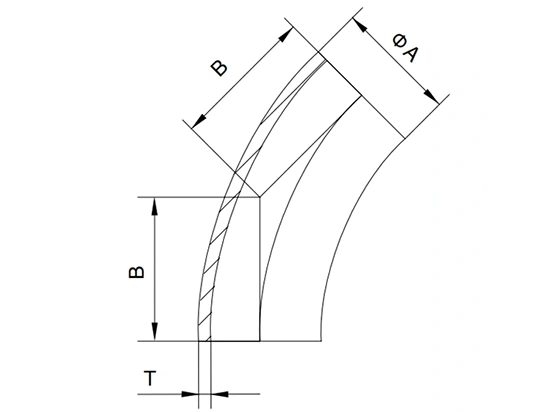

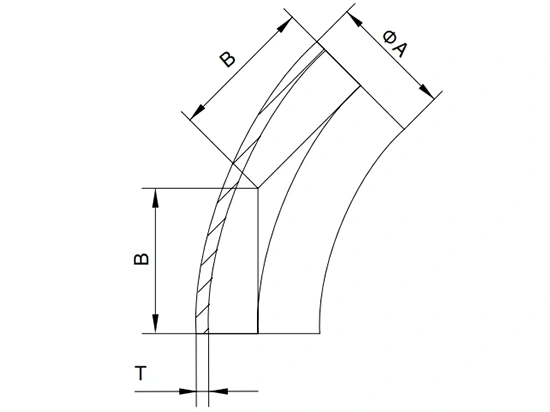

A.L2WS-45°

3A 45° Elbow, Straight End, Welded

Size	A	B	T
1. 0"	25.4	30.2	1.65
1. 5"	38.1	41.3	1.65
2.0"	50.8	58.7	1.65
2.5"	63.5	76.2	1.65
3.0"	76.2	93.7	1.65
4.0"	101.6	63.5	2.11

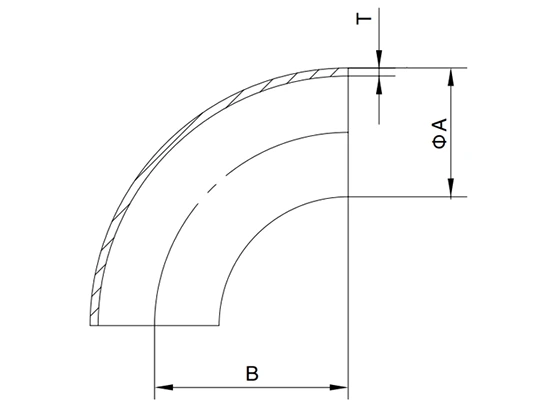

A.2WK-90°

3A 90° Elbow, Short End, Welded

Size	A	B	T
1. 0"	25.4	38.1	1.65
1. 25"	31.75	47.625	1.65
1. 5"	38.1	57.2	1.65
2.0"	50.8	76.2	1.65
2.5"	63.5	95.25	1.65
3.0"	76.2	114.3	1.65
4.0"	101.6	152.4	2.11

A.L2WS-90°

3A 90° Elbow, Straight End, Welded

Size	A	B	T
1. 0"	25.4	52.4	1.65
1. 5"	38.1	74.6	1.65
2.0"	50.8	103.2	1.65
2.5"	63.5	131.8	1.65
3.0"	76.2	160.3	1.65
4.0"	101.6	211.1	2.11

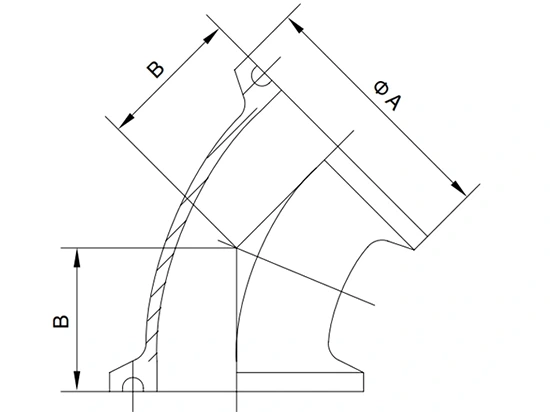

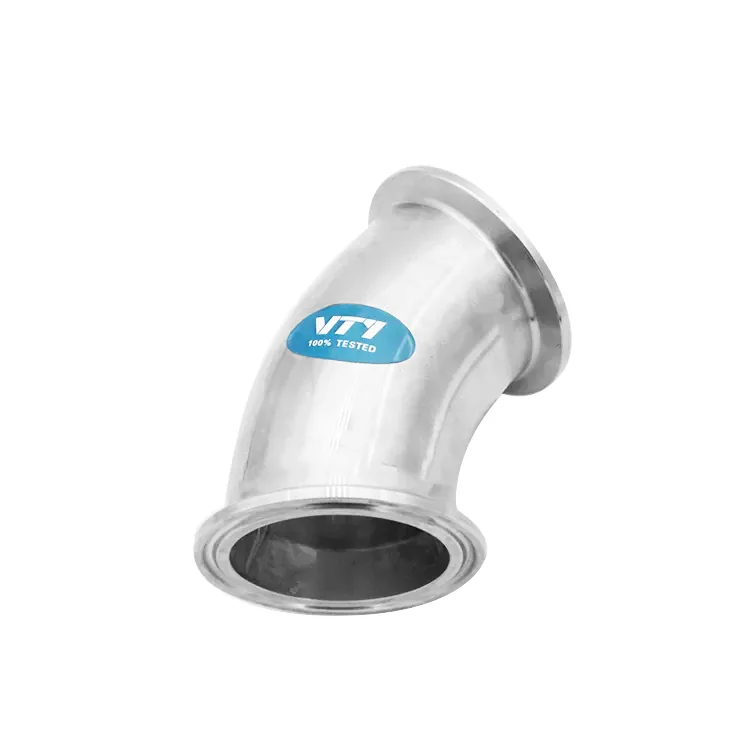

A.2KMP

3A 45° Elbow, Clamp

Size	A	B
1. 0"	50.5	28.5
1. 5"	50.5	36.5
2.0"	64.0	44.45
2.5"	77.5	52.3
3.0"	91.0	60.3
4.0"	119.0	76.2

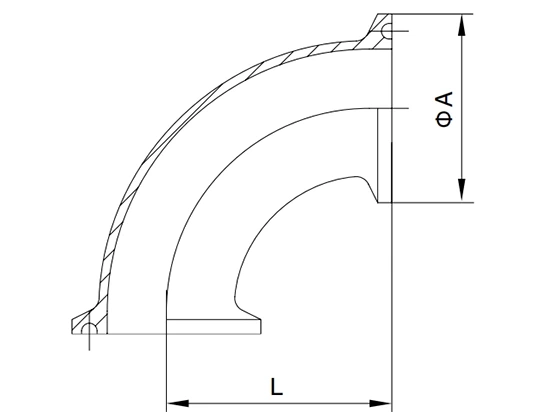

A.2CMP

3A 90° Elbow, Clamp

Size	A	B	L
1. 0"	50.5	30.2	50.8
1. 5"	50.5	41.3	69.9
2.0"	64.0	58.7	88.9
2.5"	77.5	76.2	107.95
3.0"	91.0	93.7	127.0
4.0"	119.0	63.5	168.2

I.2WK45°

ISO 45° Elbow, Short End, Welded

ISO	A	R	T
13.5	13.5	20	1.6
17.2	17.2	28	1.6
21.3	21.3	30	1.6
26.9	26.9	28(min)	1.6
33.7	33.7	38	2
42.4	42.4	47.5	2
48.3	48.3	57	2
60.3	60.3	76	2
76.1	76.1	95	2
88.9	88.9	114.5	2.3
101.6	101.6	133	2.3
114.3	114.3	152	2.3

I.2WK90

ISO 90° Elbow, Short End, Welded

ISO	A	R	L	T
13.5	13.5	20	20	1.6
17.2	17.2	28	28	1.6
21.3	21.3	30	30	1.6
26.9	26.9	28(min)	28(min)	1.6
33.7	33.7	38	38	2
42.4	42.4	47.5	47.5	2
48.3	48.3	57	57	2
60.3	60.3	76	76	2
76.1	76.1	95	95	2
88.9	88.9	114.5	114.5	2.3
101.6	101.6	133	133	2.3
114.3	114.3	152	152	2.3
