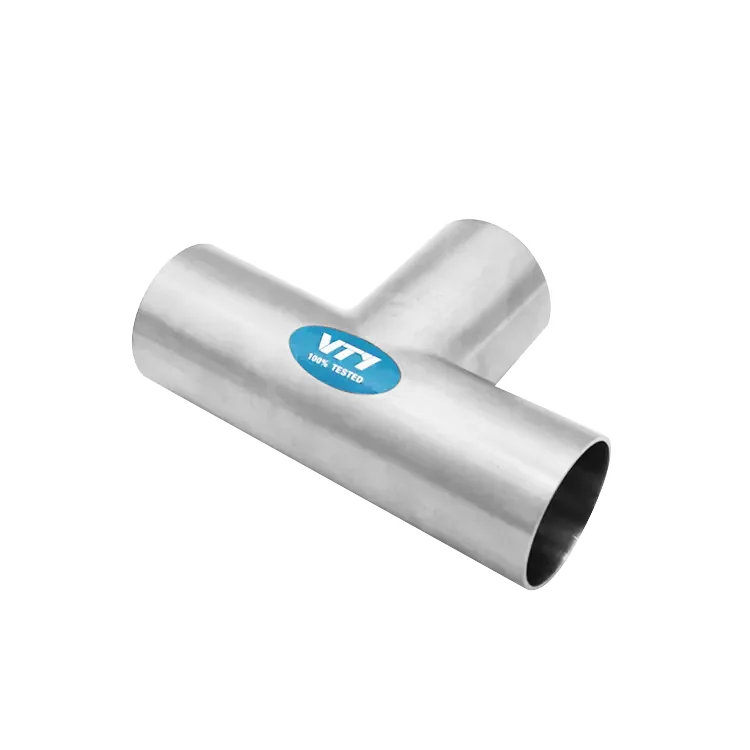

Sanitary Stainless Steel Tee

Protecting the original flavor and organoleptic properties of your product is the core benefit of VTY's Sanitary Stainless Steel Tee. As a large-scale China manufacturer and supplier, we engineer these tees with optimized flow dynamics and seamless interior transitions. This smart design successfully eliminates stagnant zones where fluids might pool or degrade.

Send Inquiry

Product Description

The Sanitary Stainless Steel Tee, also known the sanitary tee fitting, is a T-shaped component for sanitary piping systems. These tees from VTY are designed to allow for the distribution of fluids in multiple directions without contamination. These precisely manufactured fittings regulate flow, avert obstructions, and preserve product purity.

Sanitary tees boast smooth, rounded interiors and exact measurements to lessen turbulence, curb bacterial accumulation, and facilitate effortless cleaning. They can be crafted with uniform diameters or varying diameters to connect pipes or valves of different sizes.

Sanitary tees are particularly vital in hygiene-sensitive systems, such as those in food processing and pharmaceutical manufacturing. VTY can supply a full range of Sanitary Stainless Steel Tee tailored for industries demanding rigorous cleanliness standards, like the food and beverage, pharmaceutical, and biotech sectors.

Specification

Standard: DIN, 3A, SMS, BS ISO and Macon

Size Range: 1’’-6’’, DIN10-DN200, 17.2-168.3, Macon 43-103

Installation: Weld and Clamp

Material Grade: 304, 304L, 316, 316L

Roughness: 180 Grit, 240 Grit, 320 Grit, 420 Grit, and unpolished

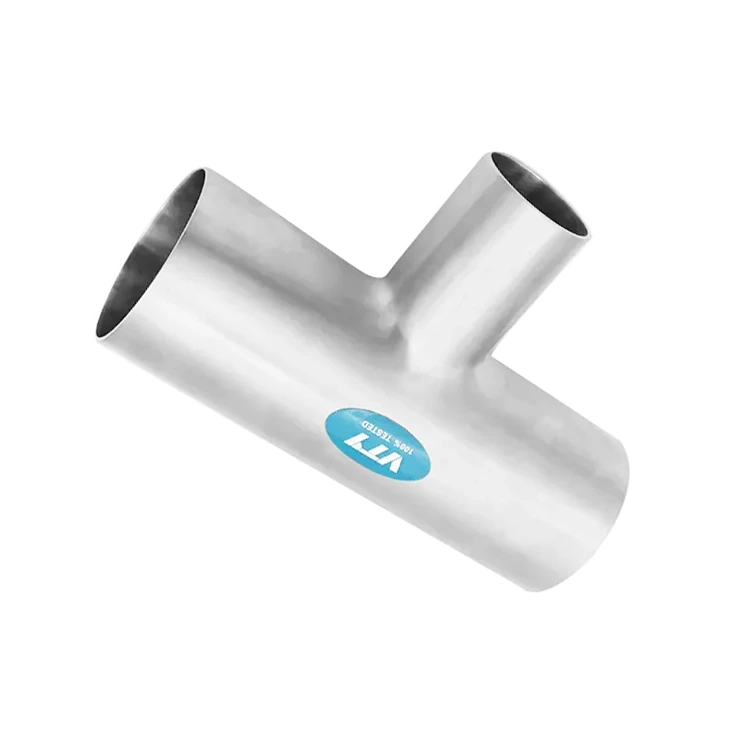

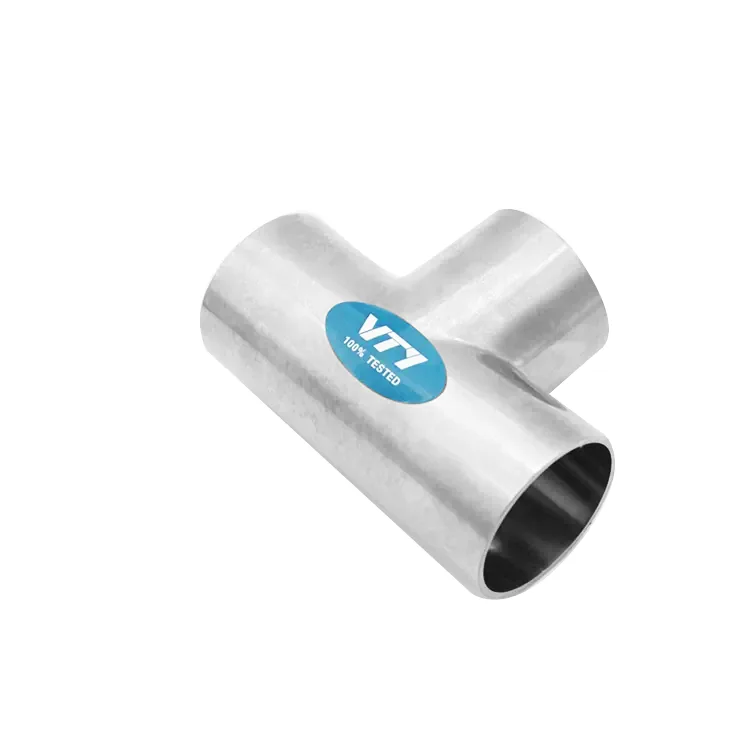

Stainless Steel Sanitary Tee

What is the classification of Tees?

1. Straight Tee or Equal Tee

Straight tees have the same diameter for the main pipe and branch pipe.

2. Reducing Tee

Reducing tees have a branch pipe diameter smaller than that of the main pipe.

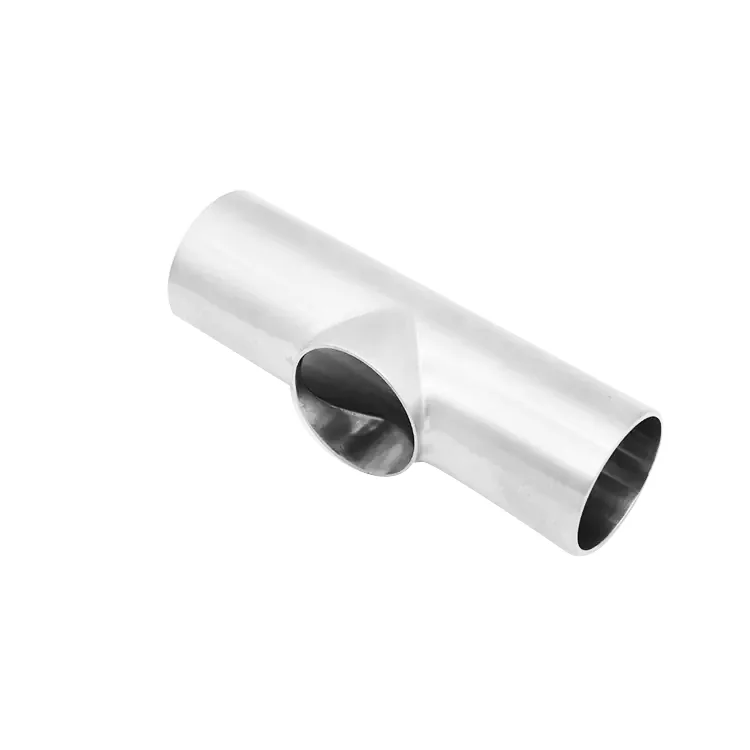

Stainless Steel Sanitary Tee

Why Choose VTY?

• Over 10+ years of experience in sanitary stainless steel fittings manufacturing

• Strict quality control under ISO 9001 system

• Full material traceability with SS304/SS316L certification

• Precision CNC machining ensures high dimensional accuracy

• OEM & ODM customization available

• Export experience to Europe, Southeast Asia, Middle East, and South America

D.7W

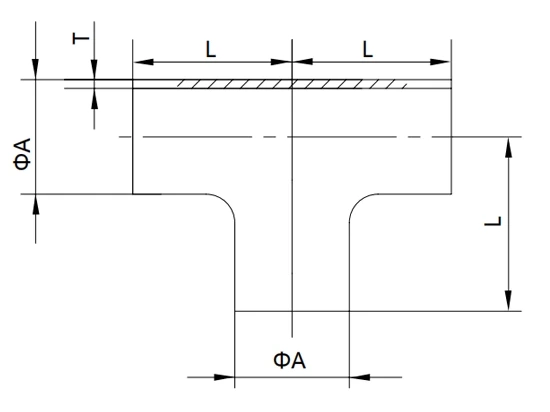

DIN Equal Tee, Straight End, Welded

DN	A	L	T
10	12/13	35	1.5
15	18/19	35	1.5
20	22/23	40	1.5
25	28/29	50	1.5
32	34/35	55	1.5
40	40/41	60	1.5
50	52/53	70	1.5
65	70	80	2.0
80	85	90	2.0
100	104	100	2.0
125	129	187.5	2.0
150	154	225	2.0
200	204	300	2.0

D.ES7WWW

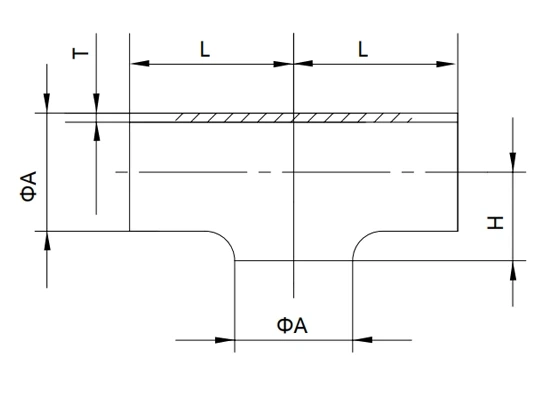

DIN Equal Tee, Short End, Welded

DN	A	L	H	T
10	12/13	35	9	1.5
15	18/19	35	11	1.5
20	22/23	40	13	1.5
25	28/29	50	16	1.5
32	34/35	55	19.5	1.5
40	40/41	60	23	1.5
50	52/53	70	30	1.5
65	70	80	40	2.0
80	85	90	47.5	2.0
100	104	100	58	2.0
125	129	187.5	74	2.0
150	154	225	90	2.0
200	204	300	115	2.0

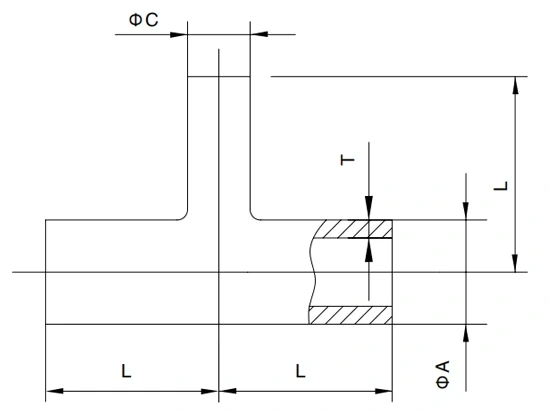

D.L7RW

DIN Reducing Tee, Straight End, Welded

DN	A	C	L	T
25-20	28	22	50	1.5
32-25	34	28	55	1.5
40-25	40	28	60	1.5
40-32	40	34	60	1.5
50-25	52	28	70	2.0
50-32	52	34	70	2.0
50-40	52	40	70	2.0
65-25	70	28	80	2.0
65-32	70	34	80	2.0
65-40	70	40	80	2.0
65-50	70	52	80	2.0
80-25	85	28	90	2.0
80-32	85	34	90	2.0
80-40	85	40	90	2.0
80-50	85	52	90	2.0
80-65	85	70	90	2.0
100-25	104	28	100	2.0
100-32	104	34	100	2.0
100-40	104	40	100	2.0
100-50	104	52	100	2.0
100-65	104	70	100	2.0
100-80	104	85	100	2.0
125-25	129	28	187.5	2.0
125-32	129	34	187.5	2.0
125-40	129	40	187.5	2.0
125-50	129	52	187.5	2.0
125-65	129	70	187.5	2.0
125-80	129	85	187.5	2.0
125-100	129	104	187.5	2.0
150-32	154	34	225	2.0
150-40	154	40	225	2.0
150-50	154	52	225	2.0
150-65	154	70	225	2.0
150-80	154	85	225	2.0
150-100	154	104	225	2.0
150-125	154	129	225	2.0

D.RS7W

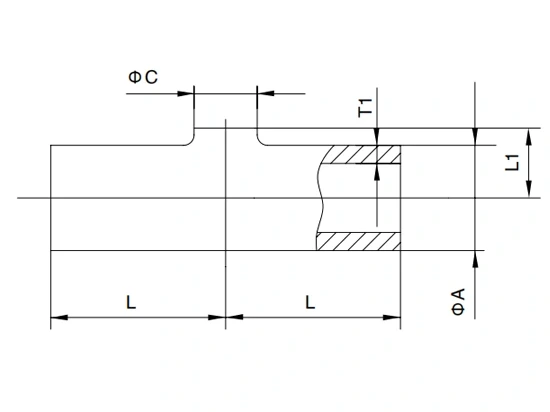

DIN Reducing Tee, Short End, Welded

DN	A	C	L	L1	T
25-20	28	22	50	17	1.5
32-25	34	28	55	19.5	1.5
40-25	40	28	60	22.5	1.5
40-32	40	34	60	22.5	1.5
50-25	52	28	70	29.5	2.0
50-32	52	34	70	29.5	2.0
50-40	52	40	70	29.5	2.0
65-25	70	28	80	39	2.0
65-32	70	34	80	39	2.0
65-40	70	40	80	39	2.0
65-50	70	52	80	39	2.0
80-25	85	28	90	46.5	2.0
80-32	85	34	90	46.5	2.0
80-40	85	40	90	46.5	2.0
80-50	85	52	90	46.5	2.0
80-65	85	70	90	46.5	2.0
100-25	104	28	100	56	2.0
100-32	104	34	100	56	2.0
100-40	104	40	100	56	2.0
100-50	104	52	100	56	2.0
100-65	104	70	100	56	2.0
100-80	104	85	100	56	2.0
125-25	129	28	187.5	68.5	2.0
125-32	129	34	187.5	68.5	2.0
125-40	129	40	187.5	68.5	2.0
125-50	129	52	187.5	68.5	2.0
125-65	129	70	187.5	68.5	2.0
125-80	129	85	187.5	68.5	2.0
125-100	129	104	187.5	68.5	2.0
150-32	154	34	225	81	2.0
150-40	154	40	225	81	2.0
150-50	154	52	225	81	2.0
150-65	154	70	225	81	2.0
150-80	154	85	225	81	2.0
150-100	154	104	225	81	2.0
150-125	154	129	225	81	2.0

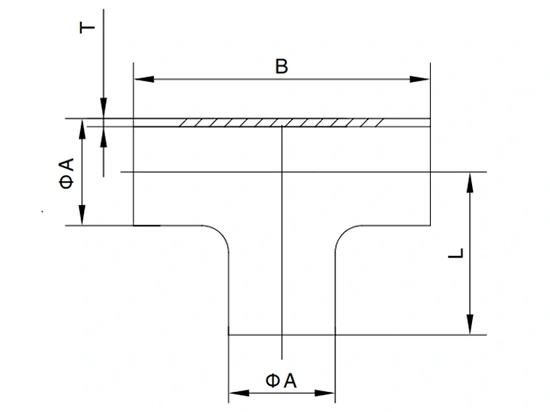

S.7W

SMS Equal Tee, Straight End, Welded

Size	A	B	L	T
25	25	110	55	1.25
38	38	140	70	1.25
51	51	164	81	1.25
63.5	63.5	210	105	1.5
76	76.1	220	110	1.6
101.6	101.6	300	150	2.0

S.L7WWW

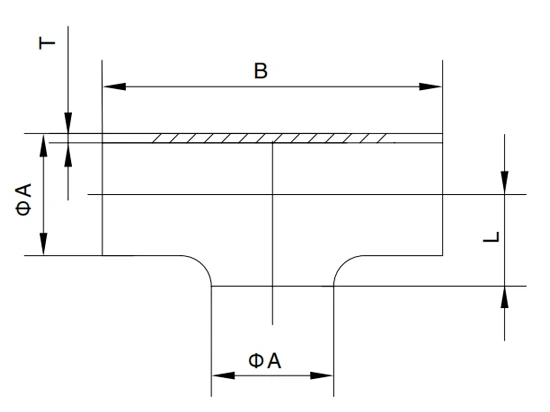

SMS Pulled Equal Tee, Short End, Welded

Size	A	B	L	T
25	25	110	15	1.25
38	38	140	21	1.25
51	51	164	29	1.25
63.5	63.5	210	36	1.5
76	76.1	220	44	1.6
101.6	101.6	300	58	2.0

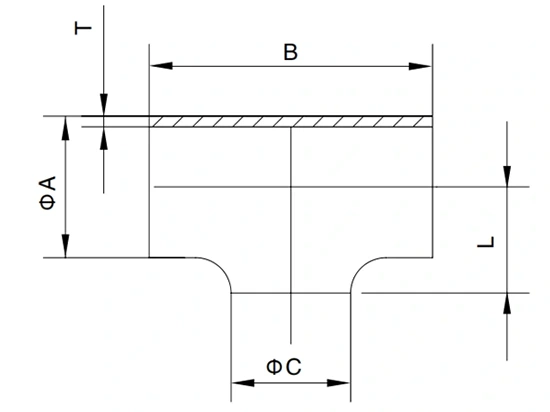

S.RS7W

SMS Reducing Tee, Short End, Welded

Size	A	B	C	L	T
38×25	38	140	25	21	1.25
51×25	51	164	25	29	1.25
51×38	51	164	38	29	1.25
63.5×25	63.5	210	25	36	1.5
63.5×38	63.5	210	38	36	1.5
63.5×51	63.5	210	51	36	1.5
76×25	76.1	220	25	44	1.6
76×38	76.1	220	38	44	1.6
76×51	76.1	220	51	44	1.6
76×63.5	76.1	220	63.5	44	1.6
101.6×25	101.6	300	25	58	2
101.6×38	101.6	300	38	58	2
101.6×51	101.6	300	51	58	2
101.6×63.5	101.6	300	63.5	58	2
101.6×76	101.6	300	76.1	58	2

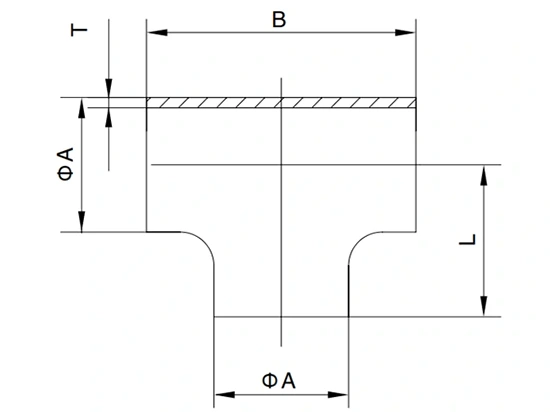

A.L7WWW

3A Short Equal Tee, Straight End, Welded

Size	A	B	L	T
1.0"	25.4	57.2	28.6	1.65
1.25”	31.75	73	36.5	1.65
1.5"	38.1	84.2	42.1	1.65
2.0"	50.8	104.8	52.4	1.65
2.5"	63.5	119.0	59.5	1.65
3.0"	76.2	131.8	65.9	1.65
4.0"	101.6	174.6	87.3	2.11

A.7W

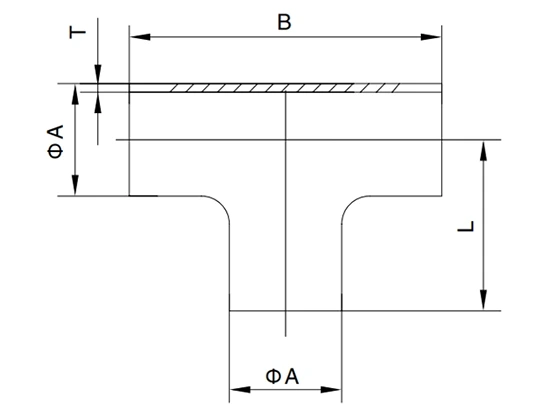

3A Long Equal Tee, Straight End, Welded

Size	A	B	L	T
1.0"	25.4	95.2	47.6	1.65
1.5"	38.1	84.2	57.2	1.65
2.0"	50.8	104.8	76.2	1.65
2.5"	63.5	152.4	76.2	1.65
3.0"	76.2	165.2	82.6	1.65
4.0"	101.6	196.8	98.4	2.11

A.L7RW

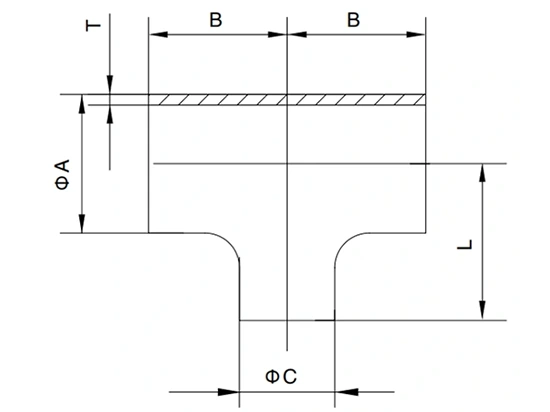

3A Long Reducing Tee, Straight End, Welded

Size	A	C	B	L	T
1.5"×1.0"	38.1	25.4	57.15	53.98	1.65
2.0"×1.0"	50.8	25.4	76.2	60.30	1.65
2.0"×1.5"	50.8	38.1	76.2	63.50	1.65
2.5"×1.5"	63.5	38.1	76.2	69.85	1.65
2.5"×2.0"	63.5	50.8	76.2	82.55	1.65
3.0"×1.5"	76.2	38.1	82.55	76.2	1.65
3.0"×2.0"	76.2	50.8	82.55	88.9	1.65
3.0"×2.5"	76.2	63.5	82.55	82.55	1.65
4.0"×2.0"	101.6	50.8	98.4	101.6	2.11
4.0"×2.5"	101.6	63.5	98.4	95.25	2.11
4.0"×3.0"	101.6	76.2	98.4	95.25	2.11

A.7MP

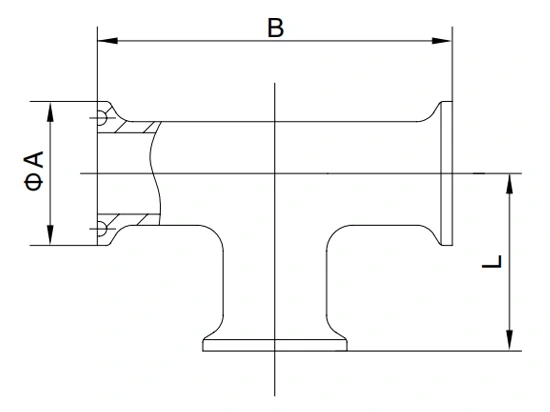

3A Equal Tee, Straight End, Clamp

Size	A	B	L
1. 0"	50.5	120.6	60.3
1. 5"	50.5	139.8	69.9
2.0"	64.0	177.8	88.9
2.5"	77.5	177.8	88.9
3.0"	91.0	190.6	95.3
4.0"	119.0	228.4	114.2

A.L7RMP

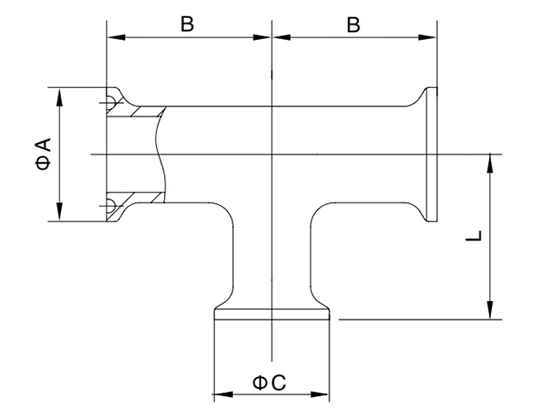

3A Reducing Tee,Straight End, Clamp

Size	A	C	B	L
1.5"×1.0"	50.5	50.5	69.85	66.68
2.0"×1.0"	64.0	50.5	88.90	73.0
2.0"×1.5"	64.0	50.5	88.90	76.20
2.5"×1.5"	77.5	50.5	88.90	82.55
2.5"×2.0"	77.5	64.0	88.90	95.25
3.0"×1.5"	91.0	50.5	92.58	88.90
3.0"×2.0"	91.0	64.0	95.25	101.6
3.0"×2.5"	91.0	77.5	95.25	95.25
4.0"×2.0"	119.0	64.0	114.2	114.3
4.0"×2.5"	119.0	77.5	114.2	107.95
4.0"×3.0"	119.0	91.0	114.2	107.95

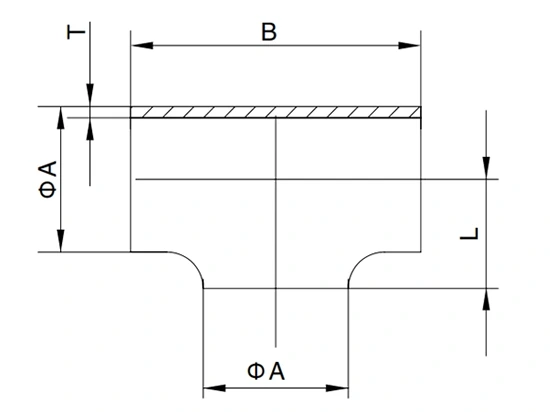

A.ES7WWW

3A Short Equal Tee, Short End, Clamp

Size	A	B	L	T
1. 0"	25.4	57.2	16	1.65
1. 5"	38.1	84.2	22	1.65
2.0"	50.8	104.8	29	1.65
2.5"	63.5	119.0	35	1.65
3.0"	76.2	131.8	41	1.65
4.0"	101.6	174.6	54	2.11

A.RS7WWW

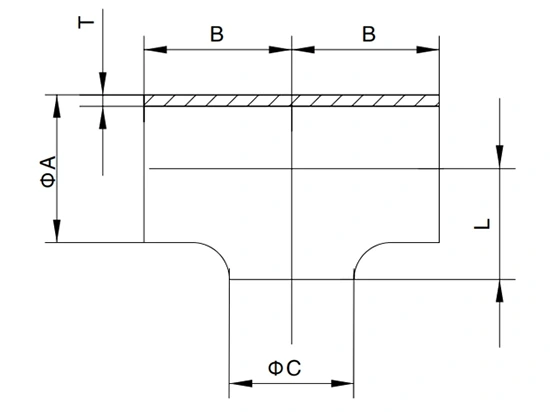

3A Reducing Tee,Short End, Clamp

Size	A	B	C	L	T
1.5"×1.0"	38.1	42.1	25.4	22	1.65
2.0"×1.5"	50.8	52.4	38.1	29	1.65
2.5"×2.0"	63.5	59.5	50.8	35	1.65
3.0"×2.0"	76.2	65.9	50.8	41	1.65
3.0"×2.5"	76.2	65.9	63.5	41	1.65
4.0"×2.0"	101.6	117.5	50.8	54	2.11
4.0"×2.5"	101.6	117.5	63.5	54	2.11
4.0"×3.0"	101.6	117.5	76.2	54	2.11

I.L7W

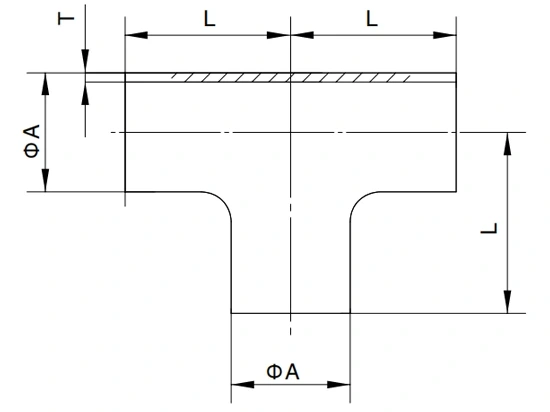

ISO Equal Tee, Straight End, Welded

ISO	A	L	T
13.5	13.5	20	1.6
17.2	17.2	28	1.6
21.3	21.3	30	1.6
26.9	26.9	28(min)	1.6
33.7	33.7	38	2
42.4	42.4	48	2
48.3	48.3	57	2
60.3	60.3	64	2
76.1	76.1	76	2
88.9	88.9	86	2.3
101.6	101.6	95	2.3
114.3	114.3	105	2.3

I.L7WWW

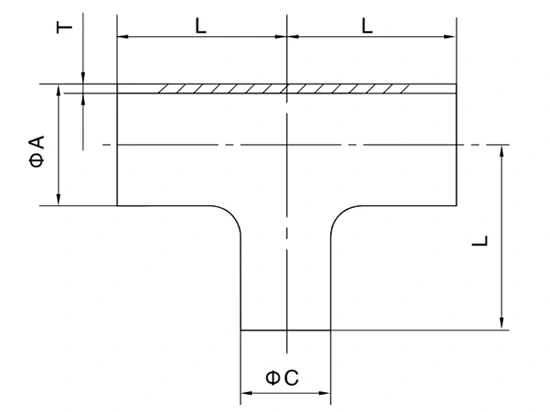

ISO Reducing Tee, Straight End, Welded

Size	A	C	L	T
26.9 x 21.3	26.9	21.3	29	1.6
33.7 x 21.3	33.7	21.3	38	2.0
33.7 x 26.9	33.7	26.9	38	2.0
42.4 x 21.3	42.4	21.3	48	2.0
42.4 x 26.9	42.4	26.9	48	2.0
42.4 x 33.7	42.4	33.7	48	2.0
48.3 x 21.3	48.3	21.3	57	2.0
48.3 x 26.9	48.3	26.9	57	2.0
48.3 x 33.7	48.3	33.7	57	2.0
48.3 x 42.4	48.3	42.4	57	2.0
60.3 x 26.9	60.3	26.9	64	2.0
60.3 x 33.7	60.3	33.7	64	2.0
60.3 x 42.4	60.3	42.4	64	2.0
60.3 x 48.3	60.3	48.3	64	2.0
76.1 x 33.7	76.1	33.7	76	2.0
76.1 x 42.4	76.1	42.4	76	2.0
76.1 x 48.3	76.1	48.3	76	2.0
76.1 x 60.3	76.1	60.3	76	2.0
88.9 x 42.4	88.9	42.4	86	2.3
88.9 x 48.3	88.9	48.3	86	2.3
88.9 x 60.3	88.9	60.3	86	2.3
88.9 x 76.1	88.9	76.1	86	2.3
101.6 x 42.4	101.6	42.4	95	2.3
101.6 x 48.3	101.6	48.3	95	2.3
101.6 x 60.3	101.6	60.3	95	2.3
101.6 x 76.1	101.6	76.1	95	2.3
101.6 x 88.9	101.6	88.9	95	2.3
114.3 x 48.3	114.3	48.3	105	2.3
114.3 x 60.3	114.3	60.3	105	2.3
114.3 x 76.1	114.3	76.1	105	2.3
114.3 x 88.9	114.3	88.9	105	2.3
114.3 x 104.6	114.3	104.6	105	2.3
