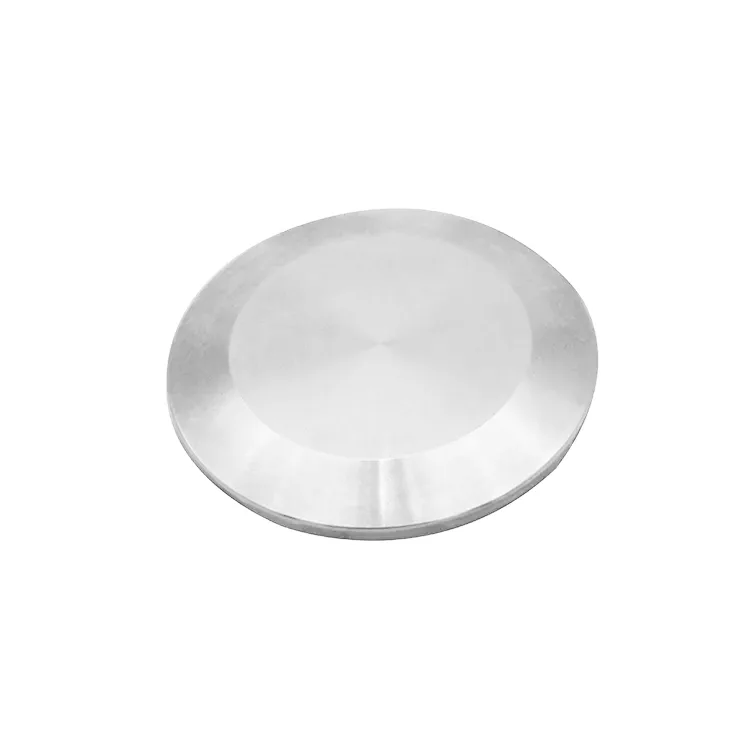

Sanitary 3A Clamp End Cap

The VTY factory manufactures the Sanitary 3A Clamp End Cap from premium 304 and 316L stainless steel alloys. Designed to clamp onto ferruled tubes with a clamp connection, this fitting provides a secure, non-permanent seal that allows easy breakdown and takedown access for process lines. Meeting all strict 3-A sanitary requirements, it is paired with lightweight or heavy-duty clamps and various gaskets (NBR, Silicone, EPDM, FPM, PTFE). This popular, easy-to-assemble cap is perfect for preventing contamination across the bakery, beverage, dairy, food, cosmetic, nutraceutical, and semiconductor industries.

Technical Data

FAQ

Q1: What does the "3A" designation mean for these sanitary end caps?

It confirms that the component is manufactured to rigorous 3-A Sanitary Standards, ensuring optimal cleanability and non-toxic material properties for high-purity industries.

Q2: Can this end cap be used in semiconductor or nutraceutical processing?

Yes, the smooth, crevice-free design and high-grade stainless steel construction make it compliant with the stringent safety requirements of semiconductor, pharmaceutical, and nutraceutical sectors.

Q3: Which gasket materials are compatible with the VTY 3A end cap?

These caps are designed to work with all standard sanitary gasket materials, including NBR, Silicone, EPDM, FPM, and PTFE, depending on your specific chemical and temperature requirements.

Q4: Does the factory offer these in both 304 and 316L stainless steel?

Yes, we provide both alloys; 304 is ideal for general food and beverage processing, while 316L is recommended for high-corrosion environments or aggressive cleaning cycles.

Q5: Are these end caps compatible with both lightweight and heavy-duty clamps?

Absolutely, the standardized flange geometry allows you to secure the end cap using either lightweight or heavy-duty sanitary clamps depending on your system's pressure needs.

3A-16AMP

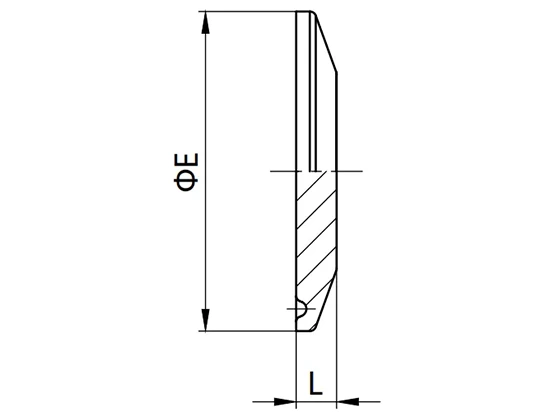

3A Cap

Size	E	L
1/2"	25.2	4.75
3/4"	25.2	4.75
1"	50.5	6.4
11/2"	50.5	6.4
2"	64.0	6.4
21/2"	77.5	6.4
3"	91.0	6.4
4"	119.0	7.9
6"	166.8	11.1
8"	217.7	11.1
10"	268.5	11.1
12"	319.3	11.1

3A Seal

Size	A	B
10	34.0	10.2
15	34.0	16.2
20	34.0	20.2
25	50.5	26.2
32	50.5	32.2
40	50.5	38.2
50	64.0	50.2
65	91.0	66.2
80	106.0	81.2
100	119.0	100.2
125	155.0	125.2
150	183.0	150.2
