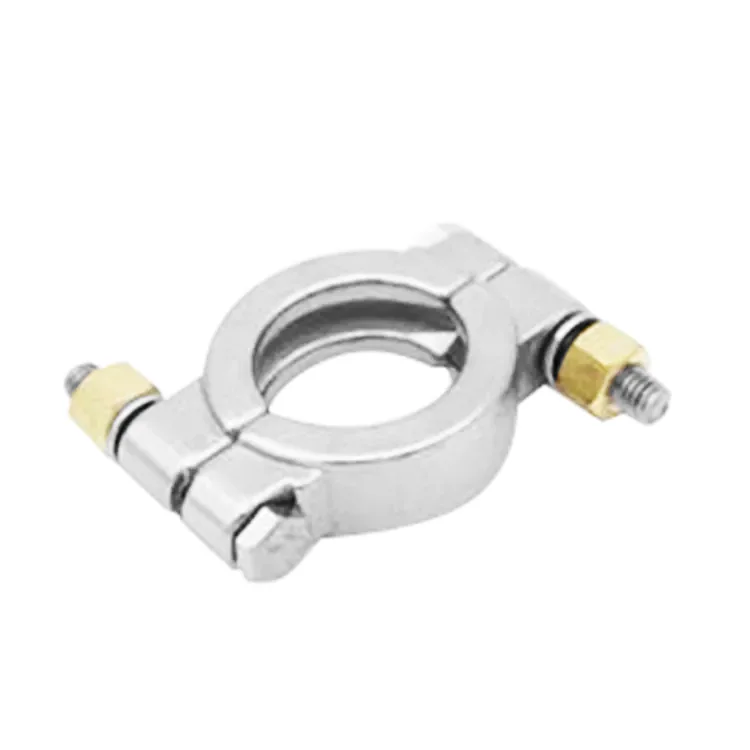

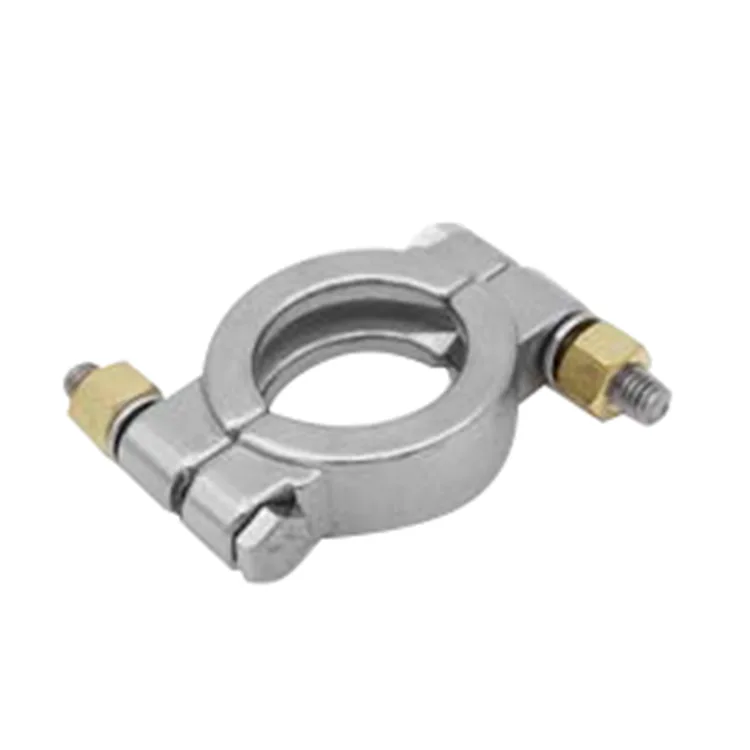

The VTY factory provides the heavy-duty Sanitary High Pressure Clamp for the pharmaceutical and biotech industries. Available in 304 or 316 stainless steel from 1/2" to 10", this hinge-free design consists of two semi-circle halves securely bolted together. Utilizing a dual-bolt configuration with brass hex nuts, it enables high-torque tightening to deliver exceptional clamping force and uniform pressure integrity. Capable of handling maximum working pressures from 300 to 1200 PSI at 180°C, it provides a leak-proof union for high-pressure tubing and fittings while ensuring complete operational safety.
|
Standard |
DIN, 3A, ISO, |
|
Size |
DN10-DN300, 1’’-10’’, 10.2-219.1 |
|
Material Grade |
304 |
|
Seal |
NBR, Silicone, EPDM, FPM, PTFE |
|
Roughness |
1.Ra≤1.6µm |
|
2.Ra≤1.6µm (external) |
|
|
3.Ra≤0.4µm (internal) |
Instead of using a single hinge pin and a manual wing nut, high-pressure clamps consist of two heavy-duty semi-circle halves bolted securely together to withstand extreme stress.
Depending on the physical size of the union, our 13MHP series safely maintains maximum working pressure ratings ranging between 300 and 1200 PSI at 121°C.
Yes, the uniform circumferential sealing force generated by the dual-bolt closure makes them excellent for both high-pressure containment and vacuum lines.
No, this specific model features a rigid, hinge-free design utilizing two separate pivoting bolts to maximize structural safety and clamping force.

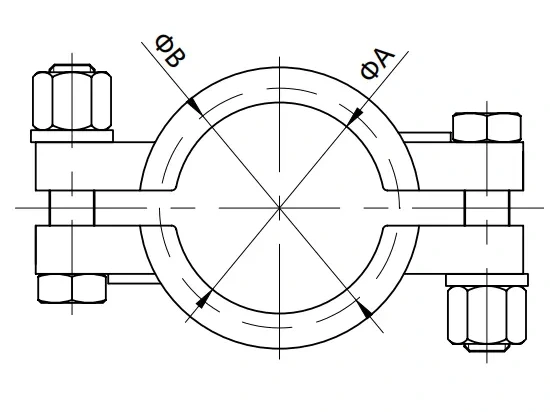

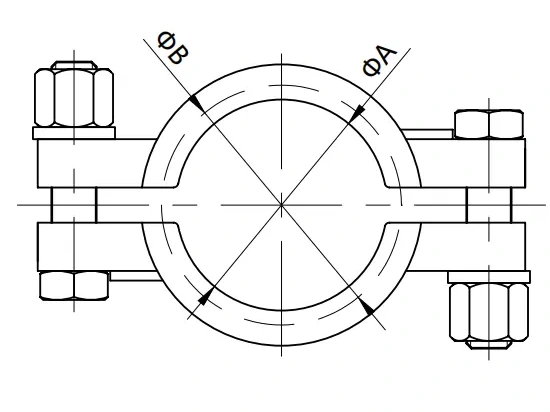

| Size | A | B |
|---|---|---|
| 1/2"-3/4" | 20.0 | 28.0 |
| 1.0"-1.5" | 44.4 | 53.6 |
| 2.0" | 57.8 | 67.0 |
| 2.5" | 71.4 | 80.6 |
| 3.0" | 84.0 | 94.2 |
| 3.5" | 99.0 | 109.2 |
| 4.0" | 110.0 | 122.2 |
| 4.5" | 123.0 | 133.2 |
| 5.0" | 129.0 | 147.8 |
| 6.0" | 155.4 | 170.4 |
| 8.0" | 205.0 | 220.0 |
| 10.0" | 257.0 | 272.0 |
| Size | A | B |
|---|---|---|
| 10-20 | 27.8 | 37.0 |
| 25-40 | 44.4 | 53.6 |
| 50 | 57.8 | 67.0 |
| 65 | 84.0 | 94.2 |
| 80 | 99.0 | 109.2 |
| 100 | 110.0 | 122.2 |
| 125 | 144.0 | 159.0 |
| 150 | 172.0 | 187.0 |
| 200 | 222.5 | 237.5 |
| 250 | 257.0 | 272.0 |
| 300 | 308.0 | 323.0 |
| Size | A | B |
|---|---|---|
| 10.2-21.3 | 27.8 | 37.0 |
| 26.9-42.4 | 44.4 | 53.6 |
| 48.3 | 57.8 | 67.0 |
| 60.3 | 71.4 | 80.6 |
| 76.1 | 84.0 | 94.2 |
| 88.9 | 99.0 | 109.2 |
| 114.3 | 123.0 | 133.2 |
| 139.7 | 144.0 | 159.0 |
| 168.3 | 172.0 | 187.0 |
| 219.1 | 222.5 | 237.5 |
