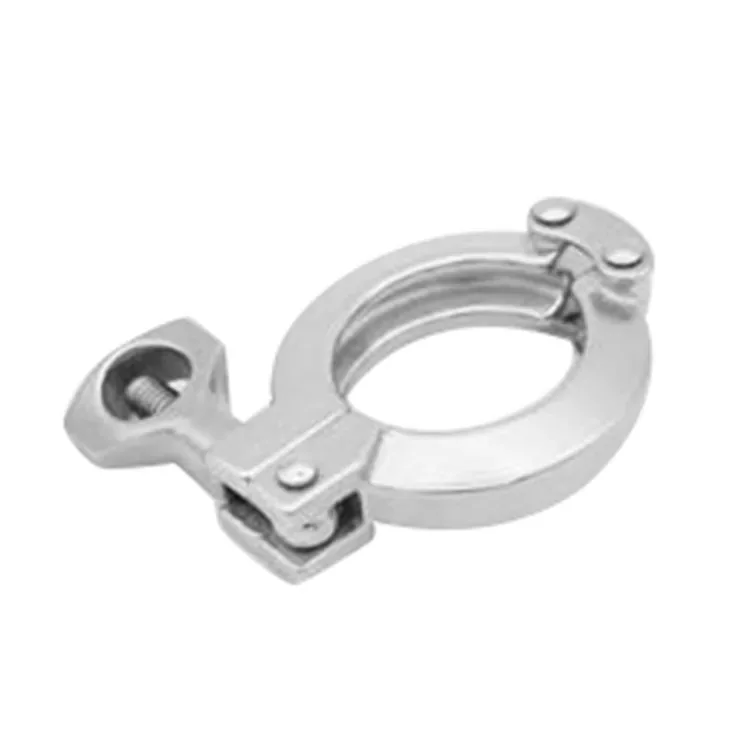

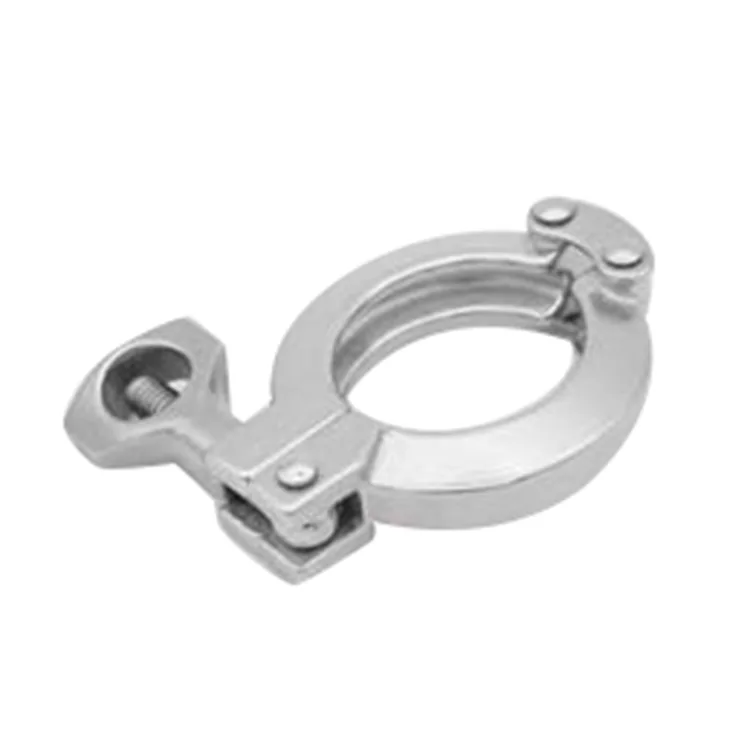

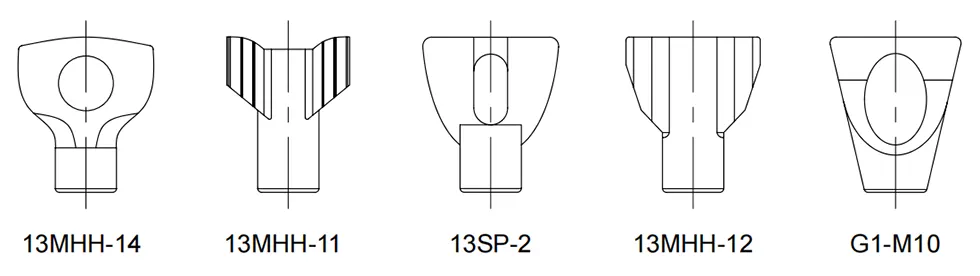

Sanitary Double Hinged Clamp

The VTY factory provides the upgraded sanitary double hinged clamp in sizes from 1/2" to 10". Featuring a dual-pin design, it flattens more than single-hinge versions, making installation in tight, hard-to-reach spaces effortless. By compressing two tapered ferrules and a gasket, it creates a superior, leak-free hygienic union. The tool-free wing nut ensures quick assembly and easy removal for frequent line checks. To ensure optimal sealing without damaging the gasket or stripping threads, we recommend tightening the clamp by hand, followed by a maximum of two additional turns using a manual screwdriver.

FAQ:

Q1: Does the double-hinged design handle less pressure than a single-hinged clamp?

No, despite its increased flexibility for tight spaces, the double-hinged design maintains the exact same dependable high-pressure ratings as standard single-hinge clamps.

Q2: Are these clamps suitable for high-vibration production environments?

Yes, the double-hinged layout wraps more uniformly around the pipe ferrules, providing excellent stability and reducing risk in high-vibration processing lines.

Q3: What is the main benefit of using a sanitary double-hinged clamp over a single-hinged clamp?

The dual-pin mechanism allows the clamp segments to flatten out further, making installation and removal in tight, hard-to-reach spaces much easier.

Q4: What size options do you offer for sanitary double-hinged clamps?

Our standard double-hinged clamps range from 1/2" to 10", with larger custom dimensions manufactured directly by our factory.

Q5: Can your factory provide material traceability certifications for pharmaceutical compliance?

Yes, our factory provides full Material Test Reports (MTRs) upon request to verify the stainless steel grade and ensure strict compliance.

Clamp Working Pressure and Temperature

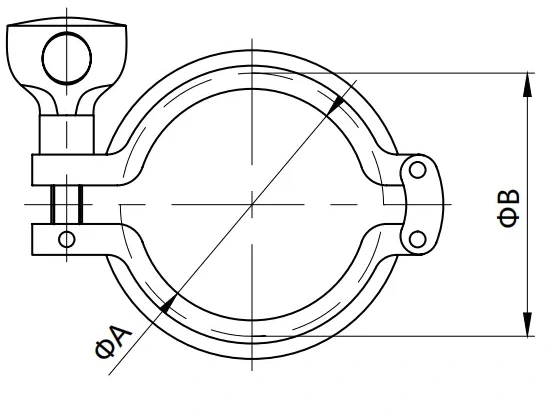

3A-13MHHM

3A Clamp

Size	A	B
1/2"-3/4"	20.0	28.0
1.0"-1.5"	44.4	53.6
2.0"	57.8	67.0
2.5"	71.4	80.6
3.0"	84.0	94.2
3.5"	99.0	109.2
4.0"	110.0	122.2
4.5"	123.0	133.2
5.0"	129.0	147.8
6.0"	155.4	170.4
8.0"	205.0	220.0
10.0"	257.0	272.0

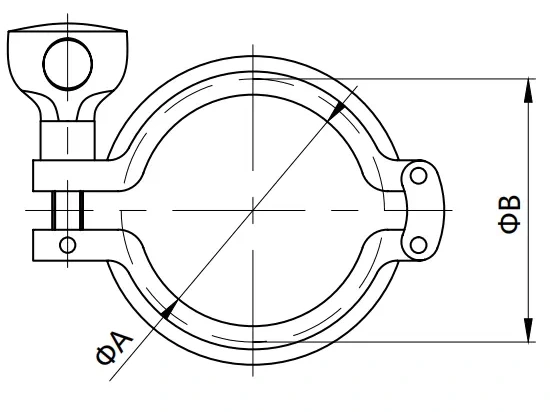

DIN-13MHHM

DIN Clamp

Size	A	B
10-20	27.8	37.0
25-40	44.4	53.6
50	57.8	67.0
65	84.0	94.2
80	99.0	109.2
100	110.0	122.2
125	144.0	159.0
150	172.0	187.0
200	222.5	237.5
250	257.0	272.0
300	308.0	323.0

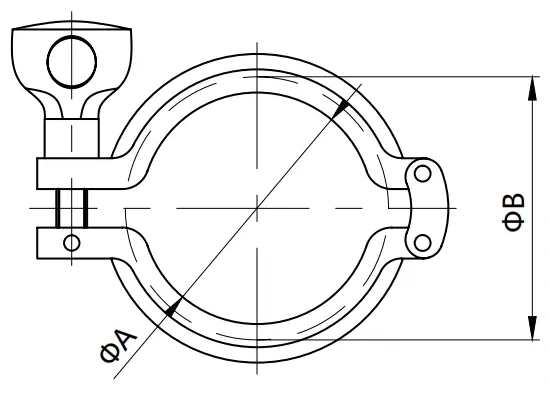

ISO-13MHHM

ISO Clamp

Size	A	B
10.2-21.3	27.8	37.0
26.9-42.4	44.4	53.6
48.3	57.8	67.0
60.3	71.4	80.6
76.1	84.0	94.2
88.9	99.0	109.2
114.3	123.0	133.2
139.7	144.0	159.0
168.3	172.0	187.0
219.1	222.5	237.5
