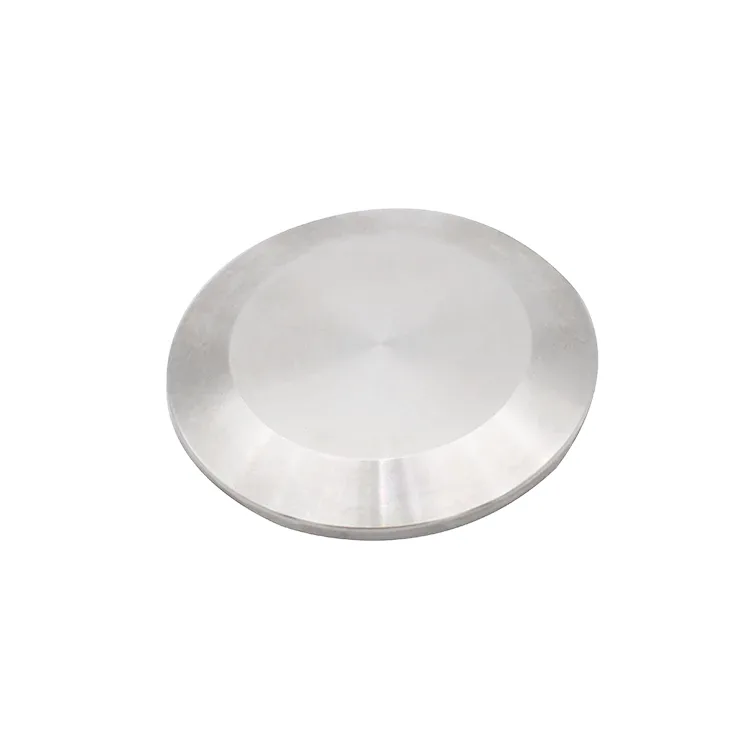

Sanitary DIN Clamp End Cap

The VTY factory manufactures the Sanitary DIN Clamp End Cap using high-grade 304 and 316L stainless steel alloys to effectively terminate existing process lines. Produced in strict accordance with DIN standards, these premium caps are designed to close off one end of a tri-clamp union where contamination must be prevented at all costs. Available in a wide selection of sizes from DN10 to DN150, they provide a secure, ultra-hygienic seal for critical processing lines across the dairy, food, beverage, and pharmaceutical industries.

Technical Data

FAQ

Q1: Which stainless steel alloys does the VTY factory offer for these end caps?

Our factory manufactures them in both high-grade 304 and superior corrosion-resistant 316L stainless steel alloys to suit different chemical requirements.

Q2: What sizes are available for the Sanitary DIN Clamp End Cap range?

We supply a comprehensive selection of standard metric sizes ranging from small DN10 all the way up to large-diameter DN150.

Q3: What additional components are required to ensure a leak-proof seal with the end cap?

You must place a matching DIN sanitary rubber gasket between the ferrule and the end cap before tightening them down with a standard tri-clamp.

Q4: How do I choose between a 304 and a 316L stainless steel end cap?

Choose 304 for general food and dairy processing, but opt for 316L if your lines handle highly acidic fluids, aggressive cleaning chemicals, or high-salinity products.

Q5: How should these end caps be stored when they are removed from a processing line?

They should be stored in a clean, dry area inside protective packaging to prevent the polished sealing face from getting scratched or dinged, which could cause future leaks.

DIN-16AMP

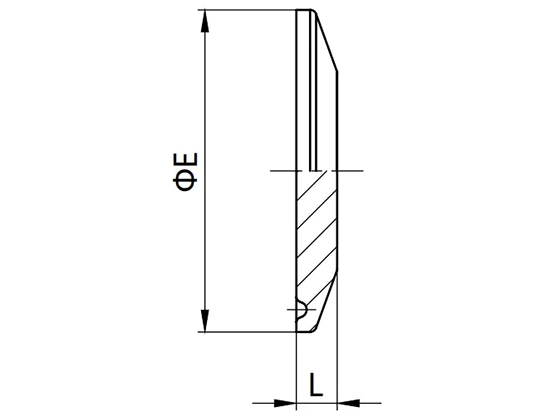

DIN Cap

Size	E	L
10	34.0	6.4
15	34.0	6.4
20	34.0	6.4
25	50.5	6.4
32	50.5	6.4
40	50.5	6.4
50	64.0	6.4
65	91.0	6.4
80	106.0	7.9
100	119.0	7.9
125	155.0	11.1
150	183.0	11.1

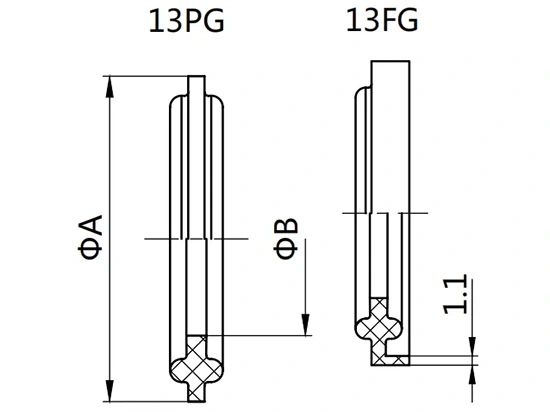

DIN Seal

Size	A	B
10	34.0	10.2
15	34.0	16.2
20	34.0	20.2
25	50.5	26.2
32	50.5	32.2
40	50.5	38.2
50	64.0	50.2
65	91.0	66.2
80	106.0	81.2
100	119.0	100.2
125	155.0	125.2
150	183.0	150.2
