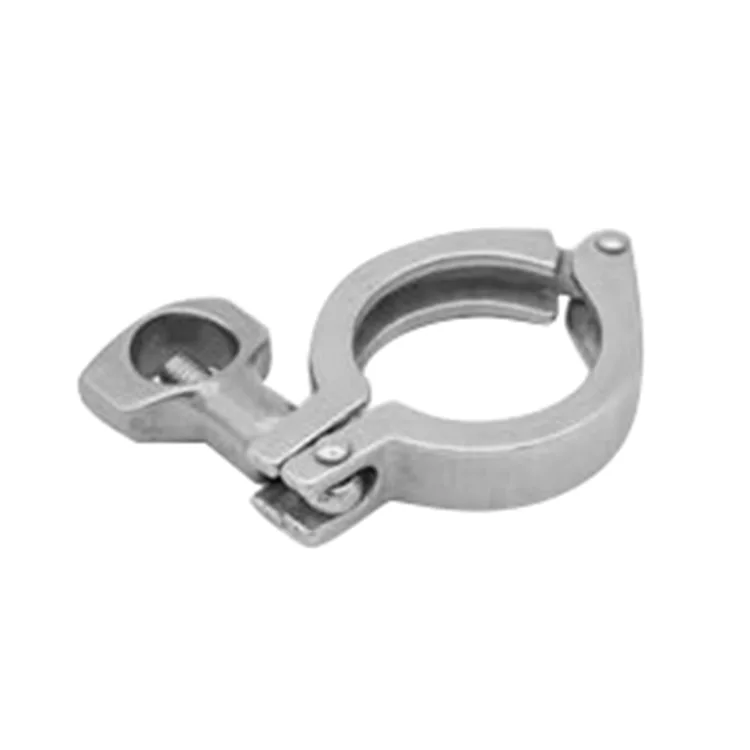

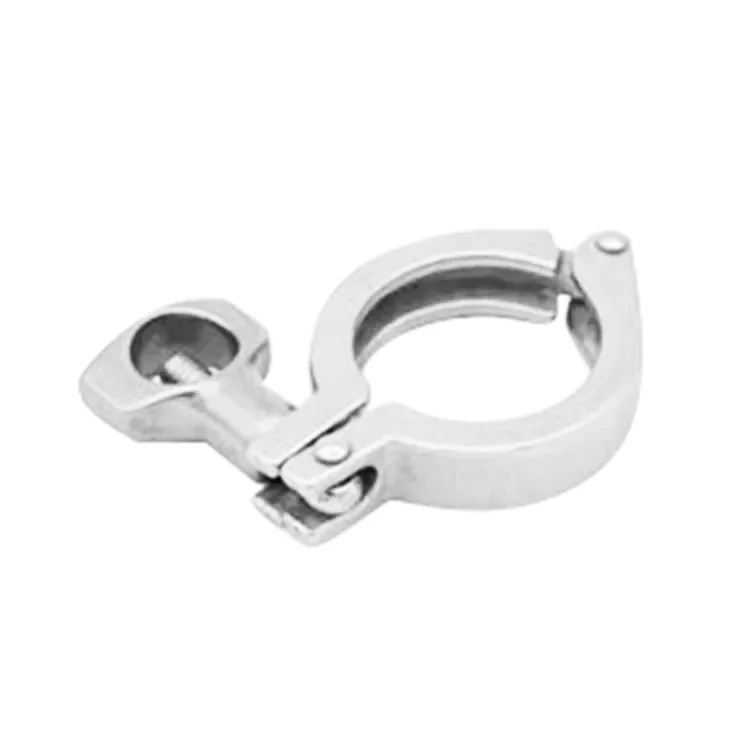

Sanitary Single Hinged Clamp

The VTY factory offers the Sanitary Single Hinged Clamp in sizes from 1/2" to 10" (with custom larger sizes available). Made from 304 or 316L stainless steel, these heavy-duty clamps compress two tapered ferrules and a gasket to form a superior, leak-free hygienic union perfect for FDA and biotech applications. The convenient wing nut design allows for quick, tool-free assembly and frequent line checks. For an optimal seal without over-compressing the gasket or stripping the threads, we recommend tightening the clamp by hand, followed by a maximum of two additional turns with a screwdriver.

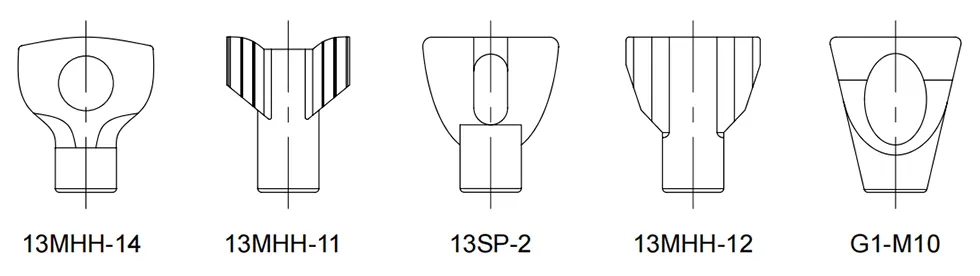

Technical Data

FAQs

Q1: What sizes are VTY sanitary single-hinged clamps available in?

Our clamps are available from 1/2 to 10 inches, with larger custom sizes available by special order from our factory.

Q2: Can I tighten the clamp with power tools?

Clamps should be tightened by hand plus a maximum of two screwdriver turns to prevent gasket damage and thread stripping.

Q3: What is the difference between 304 and 316L stainless steel options?

We offer 304 stainless steel for standard food applications and 316L stainless steel for high-corrosion biotech and pharmaceutical environments.

Q4: How does a single-hinged clamp create a hygienic, leak-proof seal?

The clamp compresses two tapered ferrules against a sanitary gasket to create a completely seamless, leak-proof union.

Q5: Why choose a single-hinged design over a double-hinged clamp?

The single-pin hinge design allows the clamp to open wide for fast, tool-free installation and frequent line maintenance.

Clamp Working Pressure and Temperature

3A-13MHH

3A Clamp

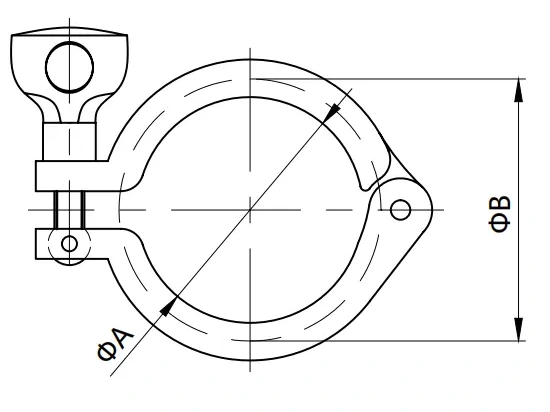

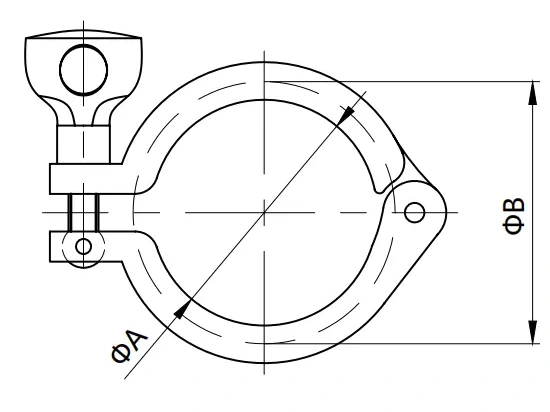

Size	A	B
1/2"-3/4"	20.0	28.0
1.0"-1.5"	44.4	53.6
2.0"	57.8	67.0
2.5"	71.4	80.6
3.0"	84.0	94.2
3.5"	99.0	109.2
4.0"	110.0	122.2
4.5"	123.0	133.2
5.0"	129.0	147.8
6.0"	155.4	170.4
8.0"	205.0	220.0
10.0"	257.0	272.0

DIN-13MHH

DIN Clamp

Size	A	B
10-20	27.8	37.0
25-40	44.4	53.6
50	57.8	67.0
65	84.0	94.2
80	99.0	109.2
100	110.0	122.2
125	144.0	159.0
150	172.0	187.0
200	222.5	237.5
250	257.0	272.0
300	308.0	323.0

ISO-13MHH

ISO Clamp

Size	A	B
10.2-21.3	27.8	37.0
26.9-42.4	44.4	53.6
48.3	57.8	67.0
60.3	71.4	80.6
76.1	84.0	94.2
88.9	99.0	109.2
114.3	123.0	133.2
139.7	144.0	159.0
168.3	172.0	187.0
219.1	222.5	237.5
