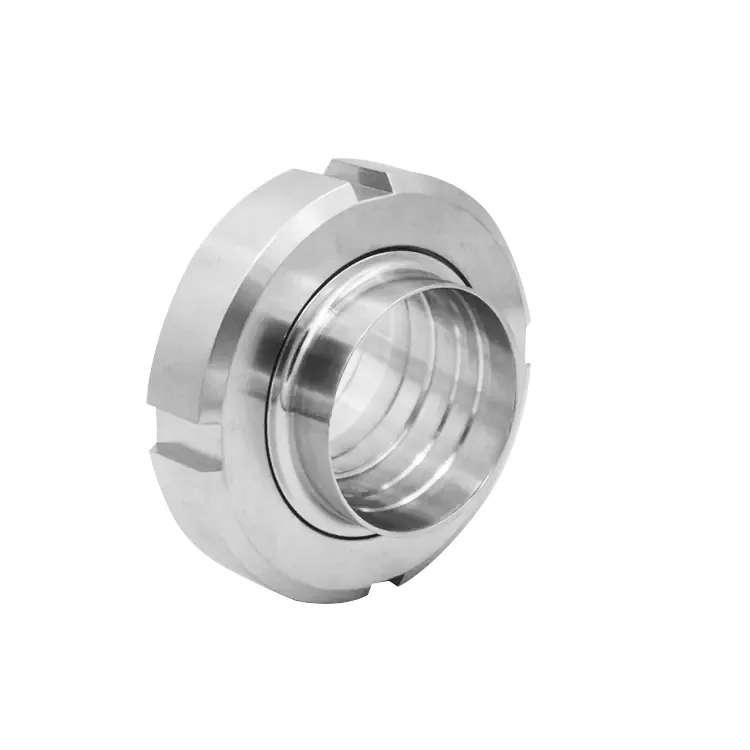

Sanitary IDF Unions

The Sanitary IDF Unions from VTY factory is believed to be a superior hygienic fitting compared to RJT ones. It features a smoother, cleaner bore to reduce the possibility of bug traps. The IDF union is manufactured in accordance with ISO 2853 and BS 4825 part 4. It consists of a nut, a male, a liner, and a gasket.

IDF unions are manufactured to suit imperial and metric tubes, making them widely used in the global fluid processing industry. VTY can offer a full range of Sanitary IDF Unions widely used in Europe, including Germany, France and Britain.

Specification

How do sanitary unions work?

The Sanitary IDF Union is composed of a nut, a male, a liner and a gasket. First, screw the flat-threaded part of the liner into the round thread of the male, achieving the initial connection between the two by rotation. Then, use a nut to fasten the male part and the liner together, forming a complete connection unit.

Seals fill the gaps between threads under pressure, forming a reliable sealing effect. The in-line channel design ensures unobstructed fluid flow, reduces residual risk, and meets the cleanliness requirements of sanitary standards.

Why is it important to inspect unions on a regular basis?

Sanitary IDF Unions should be checked regularly. It is advised that we check for any signs of leakage, inspect for aging or deformation of the gasket, and observe for any abnormal corrosion on the surface of the pipe fittings.

When the gasket's elasticity decreases or the surface is damaged, we need to replace it in the due course. In disassembly and reinstallation, it is recommended to use a new gasket to ensure the desired sealing effect.

Applications

VTY IDF unions are widely used in:

Dairy processing systems

Beer and brewery pipelines

Beverage production lines

Pharmaceutical fluid systems

Wine processing equipment

Industrial liquid cooling systems

Why Choose VTY as Your IDF Union Supplier?

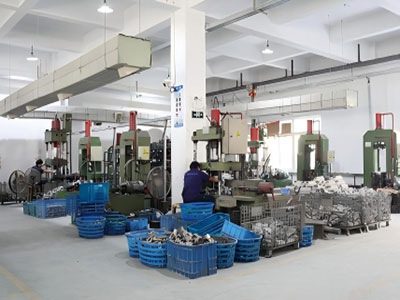

VTY is a manufacturer with in-house engineering and production capabilities.

• OEM / ODM custom manufacturing
• Sample confirmation before mass production
• ISO quality control system

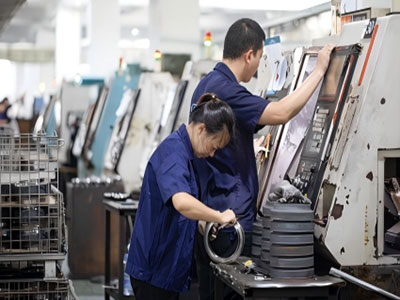

• Fast delivery supported by automated CNC production
• Technical communication in English

We focus on stable quality, hygienic requirements, and long-term performance for global clients.

Regular Maintenance Recommendation

• Inspect sealing gasket regularly
• Check for leakage or deformation
• Replace gasket if elasticity decreases
• Use a new gasket during reassembly

Contact VTY

Looking for a Sanitary IDF Union manufacturer in China?

VTY supplies hygienic fittings with export experience and engineering support for industrial applications.

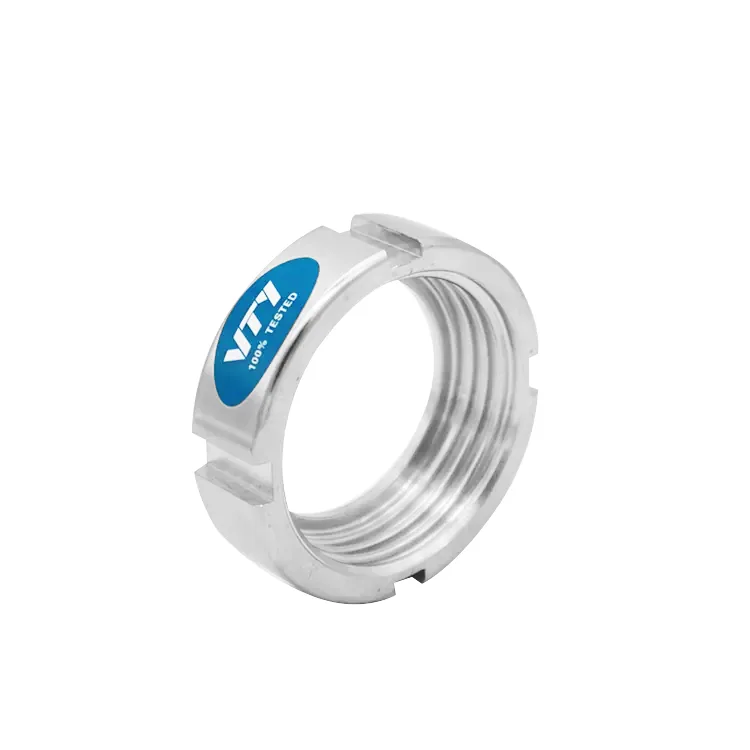

IDF-13R

Nut

Size	A			B		C				H
1.0"	30.5			48		34.34×8TPIACME				30
1.5"	43.5			64		47.86×8TPIACME				30
2.0"	57.0			77		61.37×8TPIACME				30
2.5"	70.7			91		74.88×8TPIACME				30
3.0"	83.3			106		88.40×8TPIACME				30
4.0"	112			142		122.05×6TPIACME				35

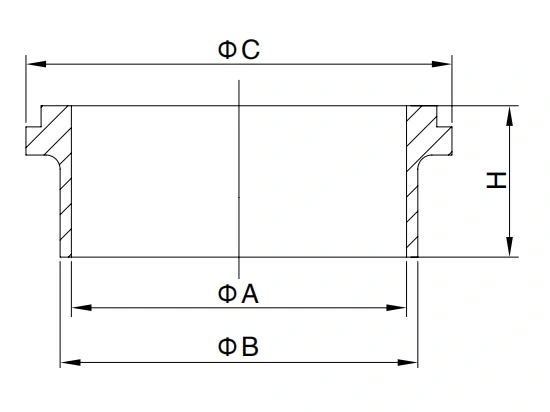

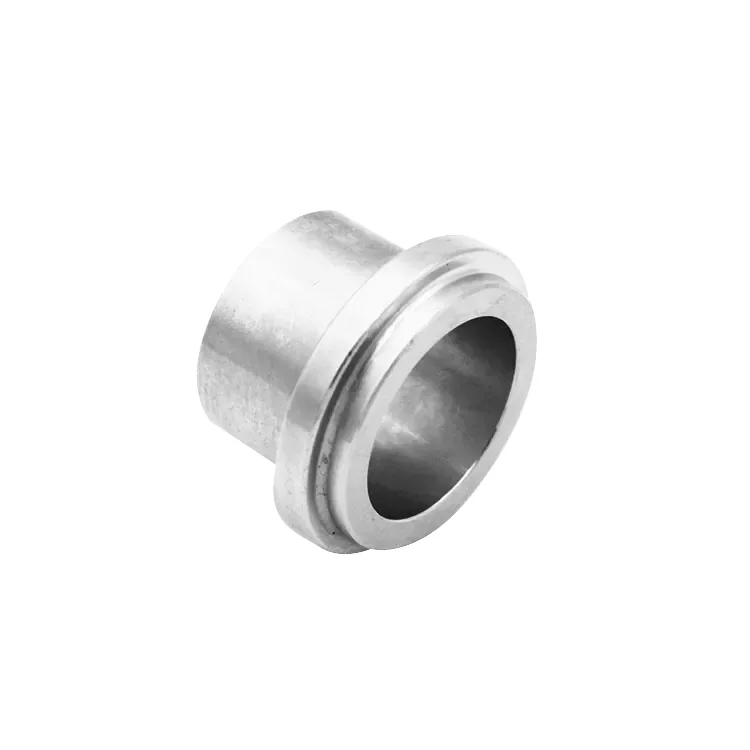

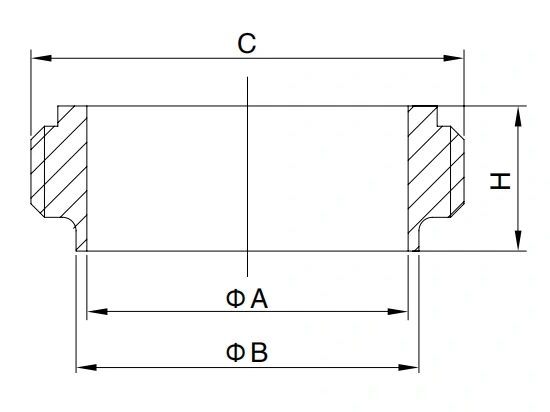

IDF-14

Welding Liner

Size		A		B			C		H
1.0"		22.2		25.4			33.8		21.5
1.5"		34.9		38.1			47		21.5
2.0"		47.6		50.8			60.5		21.5
2.5"		60.3		63.5			74		21.5
3.0"		73.0		76.2			87.5		21.5
4.0"		97.6		101.6			120.6		30

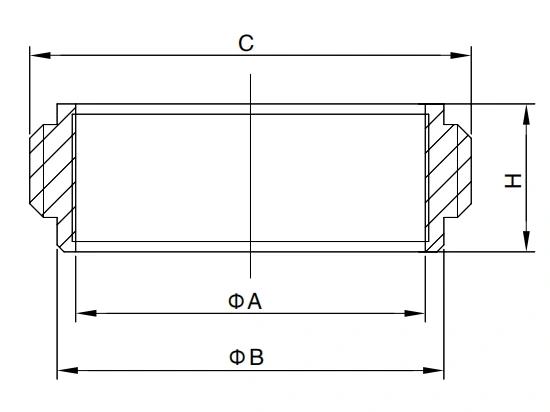

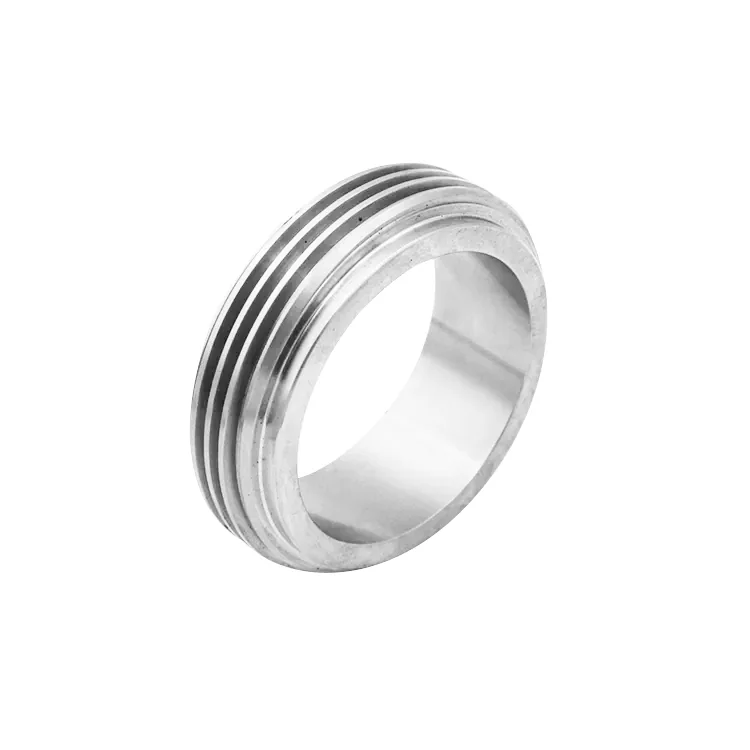

IDF-15

Welding Male

Size		A		B		C				H
1.0"		22.2		25.4		37.13×8TPIACME				21.5
1.5"		34.9		38.1		50.65×8TPIACME				21.5
2.0"		47.6		50.8		64.16×8TPIACME				21.5
2.5"		60.3		63.5		77.67×8TPIACME				21.5
3.0"		73.0		76.2		91.19×8TPIACME				21.5
4.0"		97.6		101.6		125.9×6TPIACME				30

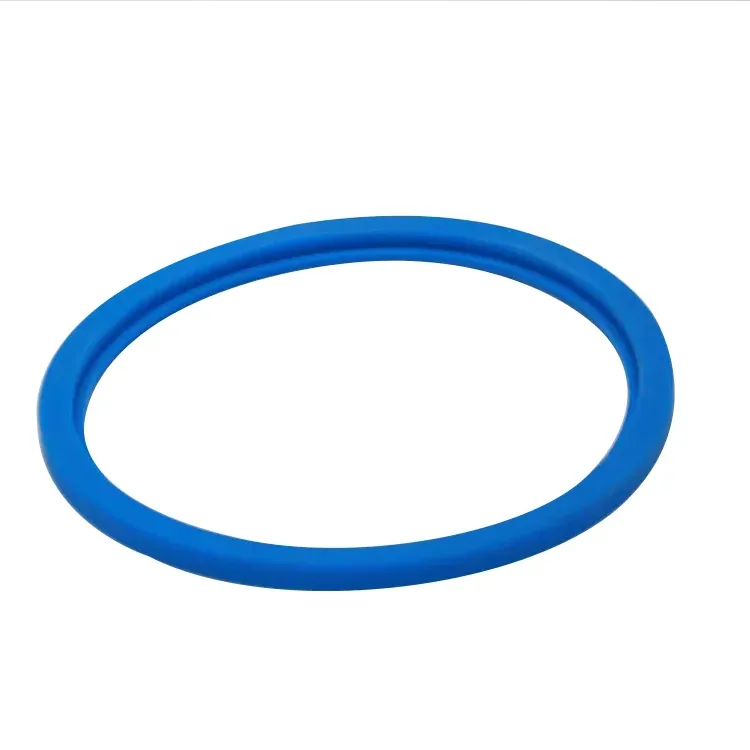

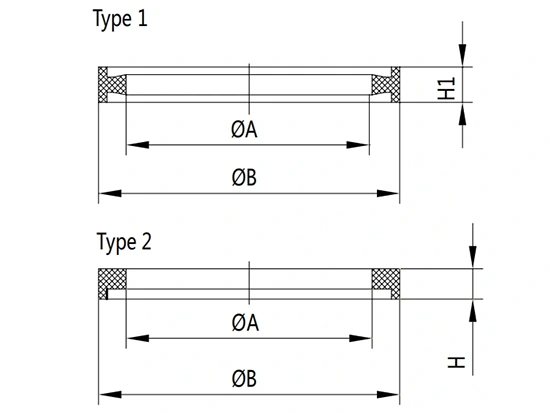

Seal Ring

Size	A		B		C			H	H
1"	23.2		32.5		32.2			7	6
1.5”	35.9		46		45.7			7	6
2"	48.6		59.5		59.2			7	6
2.5"	61.3		73.2		72.9			7	6
3"	74		86.5		85.6			7	6
4"	98.6		119		118			9.6	6

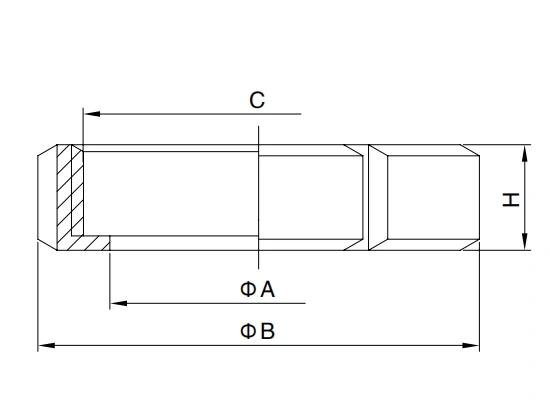

IDF-13H

Hexagonal Nut

Size	A		B					H		SW
1.0"	30.5		34.34×8TPIACME					30		46
1.5"	43.5		47.86×8TPIACME					30		60
2.0"	57.0		61.37×8TPIACME					30		75
2.5"	70.7		74.88×8TPIACME					30		90
3.0"	83.3		88.40×8TPIACME					30		105
4.0"	112		122.05×6TPIACME					35		133

IDF-14R

Expanding Liner

Size	A			B			C			H
1.0"	25.7			29			33.8			20
1.5"	38.4			42.5			47			20
2.0"	51.2			56			60.5			20
2.5"	63.9			69.7			74			25
3.0"	76.6			82.3			87.5			30
4.0"	102			111.1			120.6			30

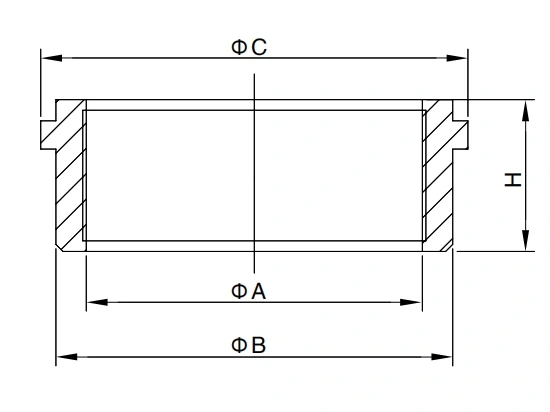

IDF-15R

Expanding Male

Size	A			B		C					H
1.0"	25.7			29		37.13×8TPIACME					21.5
1.5"	38.4			42.5		50.65×8TPIACME					21.5
2.0"	51.2			56		64.16×8TPIACME					21.5
2.5"	63.9			69.7		77.67×8TPIACME					21.5
3.0"	76.6			82.3		91.19×8TPIACME					21.5
4.0"	102			111.1		125.9×6TPIACME					30

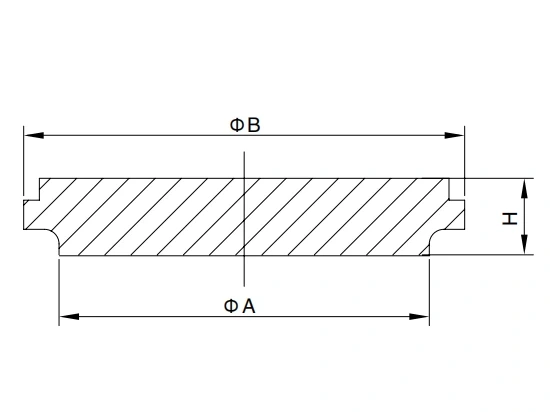

IDF-14B

Blank Liner

Size		A			B				H
1.0"		29			33.8				10.5
1.5"		42.5			47				10.5
2.0"		56			60.5				10.5
2.5"		69.7			74				10.5
3.0"		82.3			87.5				10.5
4.0"		111.1			120.6				10.5

IDF-13RB

Blank Nut

Size		A	B			H
1.0"		48	34.34×8TPIACME			30
1.5"		64	47.86×8TPIACME			30
2.0"		77	61.37×8TPIACME			30
2.5"		91	74.88×8TPIACME			30
3.0"		106	88.40×8TPIACME			30
4.0"		142	122.05×6TPIACME			35

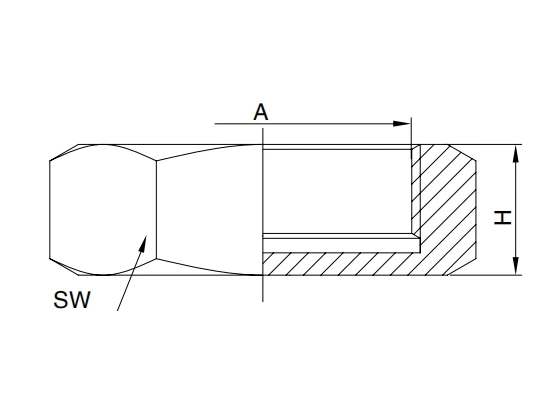

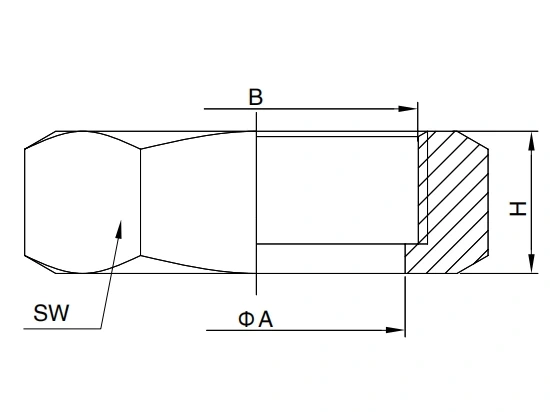

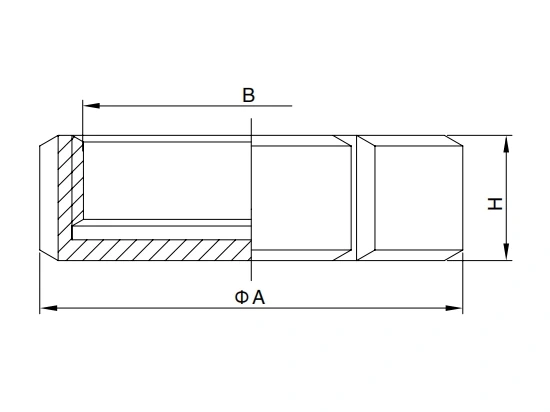

IDF-13HB

Hexagonal Blank Nut

Size	A			H	SW
1.0"	34.34×8TPIACME			30	46
1.5"	47.86×8TPIACME			30	60
2.0"	61.37×8TPIACME			30	75
2.5"	74.88×8TPIACME			30	90
3.0"	88.40×8TPIACME			30	105
4.0"	122.05×6TPIACME			35	133

IDF-13RBN

Blank Nut with Boss

Size		A	B			H
1.0"		48	34.34×8TPIACME			37
1.5"		64	47.86×8TPIACME			37
2.0"		77	61.37×8TPIACME			37
2.5"		91	74.88×8TPIACME			37
3.0"		106	88.40×8TPIACME			37
4.0"		142	122.05×6TPIACME			42

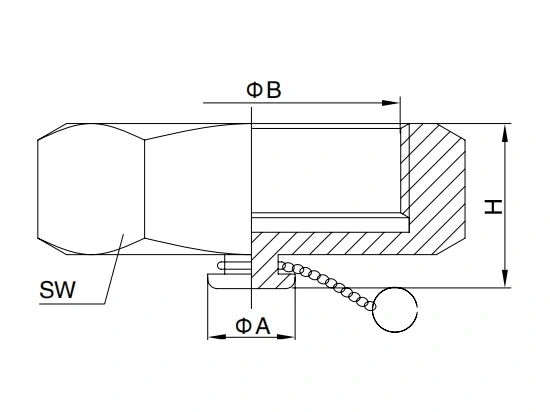

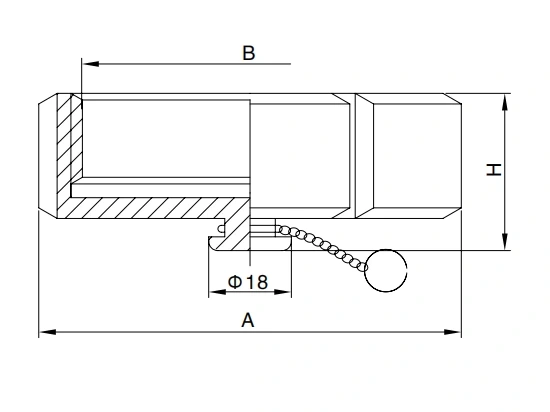

IDF-13HBN

Hexagonal Blank Nut with Boss

Size	A			B	SW
1.0"	34.34×8TPIACME			37	46
1.5"	47.86×8TPIACME			37	60
2.0"	61.37×8TPIACME			37	75
2.5"	74.88×8TPIACME			37	90
3.0"	88.40×8TPIACME			37	105
4.0"	122.05×6TPIACME			42	133
