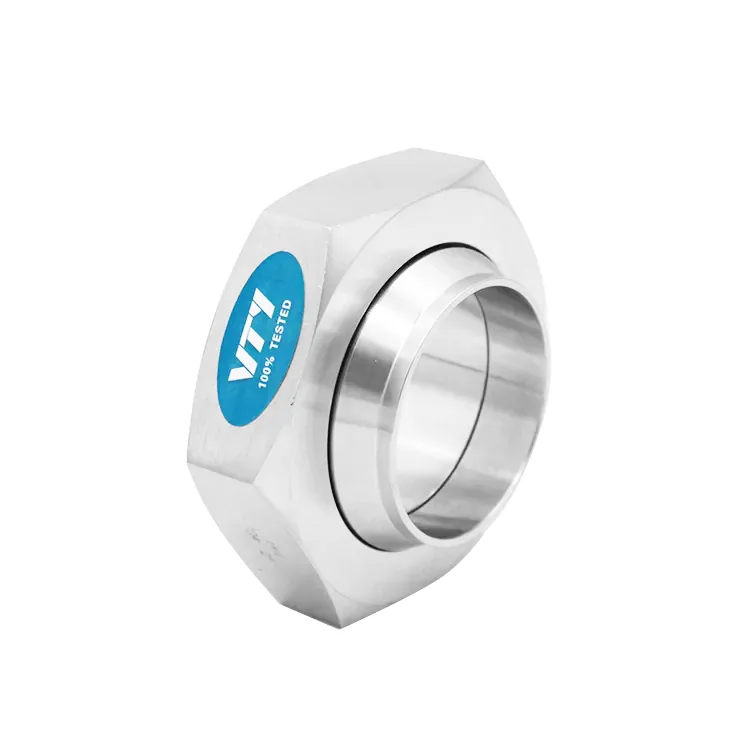

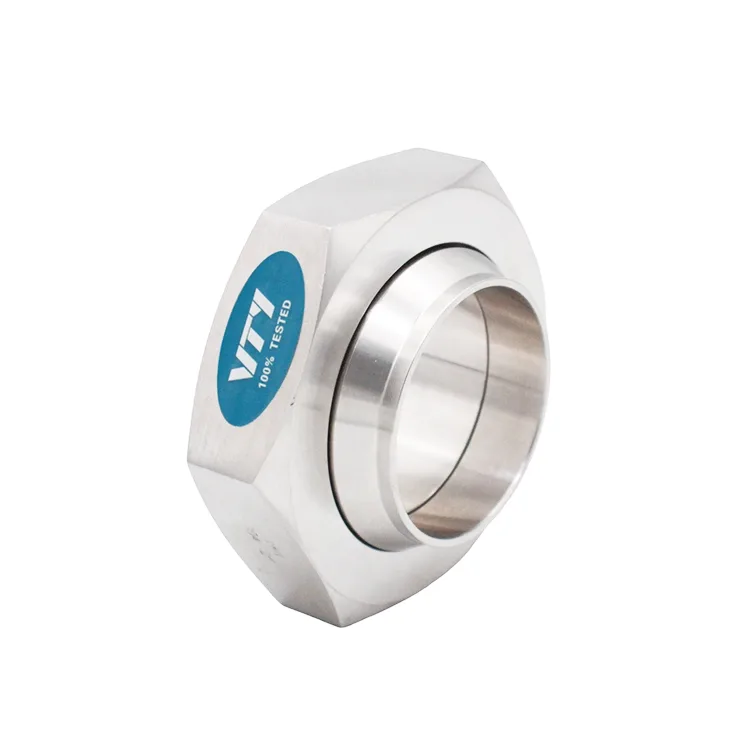

Sanitary RJT Union

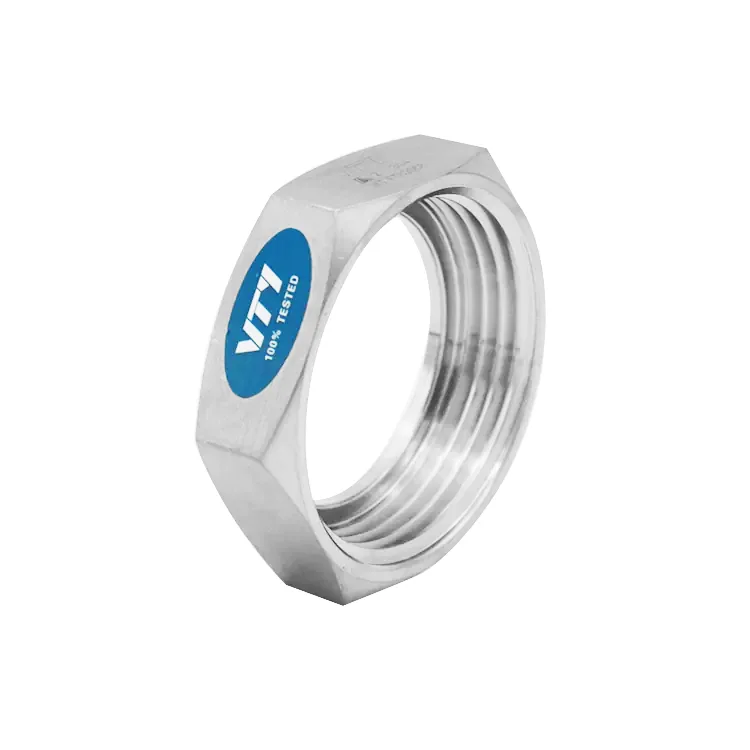

The Sanitary RJT Union from VTY factory is used for frequently dismantled sections of pipework or hosing. It is a hygienic pipe fitting designed according to BS 4825 Part 5 standard, widely used in UK and European legacy piping systems.

Key Advantages of VTY RJT Union

Designed for BS 4825 Part 5 compliant systems

Compatible with existing UK & EU RJT piping networks

Forgiving design for pipe misalignment in long pipeline systems

Suitable for frequent dismantling and maintenance

High hygiene surface finish for CIP/SIP cleaning systems

Parameter Specification

·Size Range: 1’’-4’’

·Specification: BS 4825 Part 5 standard

·Mat: 304, 304L, 316L (forged)

·Seal: NBR, Silicone, EPDM, FPM, PTFE

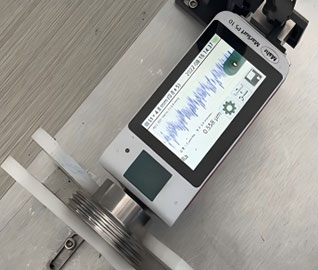

·Roughness: Ra=0.4~0.8µm (internal), Ra≤1.6µm (external)

What is the lifespan and maintenance cost?

The lifespan of stainless steel Sanitary RJT Unions is comparatively long under normal use and regular maintenance. The lifespan can be several years and even longer. Maintenance costs mainly arise from the replacement of gaskets and surface polishing needed on occasion. The investment in sanitary unions is somewhat higher at the beginning, compared with other types of fittings. In the long run, since they can be dismantled and it have high durability, the overall cost of use is lower.

What should be noted for installation?

When installing Sanitary RJT Unions, ensure that the pipe end is flat and clean to avoid debris entering the connection area. Use a proper tool, like a wrench, to tighten the nuts. Do not tighten them with excessive force to protect seals and threaded parts. These unions are designed for quick dismantling, making them easy to clean and maintain.

RJT-13R

Round Nut

Size	A	B	C				H
1.0"	33.3	58.5	42.266×8TPI WHIT				22.2
1.5"	46	74	54.966×8TPIWHIT				22.2
2.0"	58.7	85.5	67.920×6TPIWHT				22.2
2.5"	71.4	98.5	80.620×6TPIWHIT				22.2
3.0"	84.1	111.6	93.320×6TPI WHIT				22.2
4.0"	109.5	138	118.720×6TPI WHIT				22.2

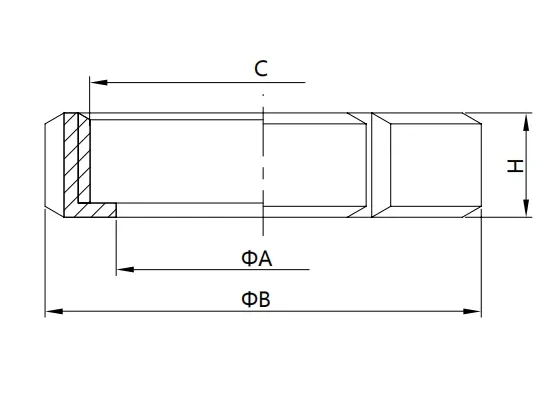

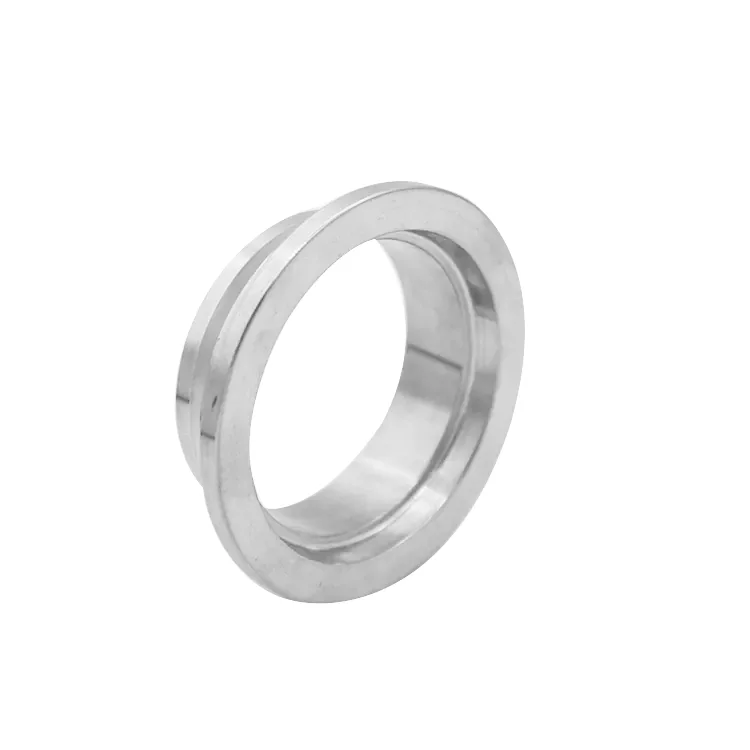

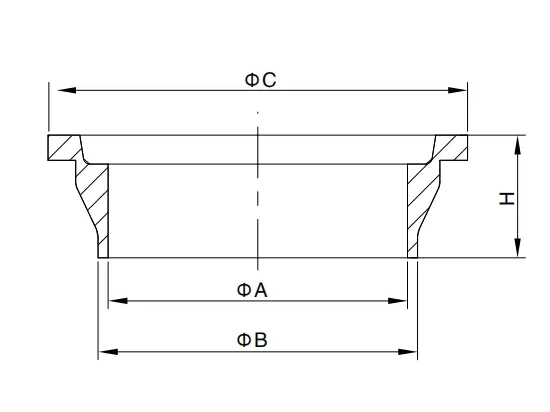

RJT-14

Welding Liner

Size	A	B		C		H
1.0"	22.2	25.4		41.3		19.5
1.5	34.9	38.1		54		19.5
2.0"	47.6	50.8		66.7		19.5
2.5"	60.3	63.5		79.4		19.5
3.0"	73.0	76.2		92.1		19.5
4.0"	97.6	101.6		117.5		19.5

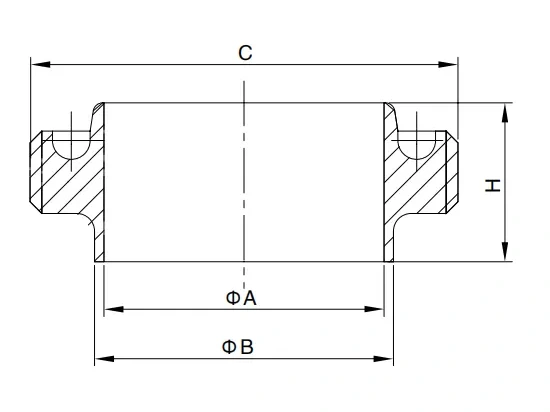

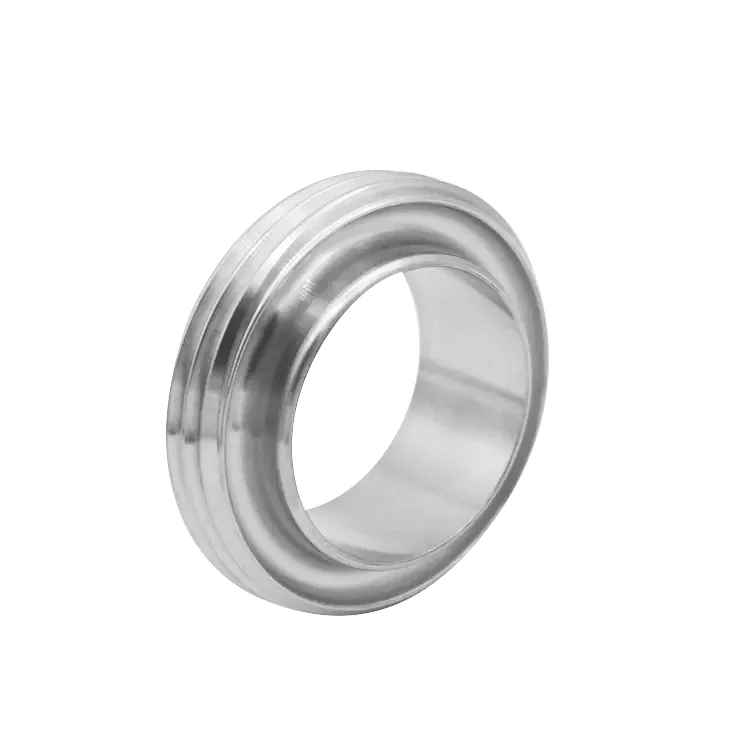

RJT-15

Welding Male

Size	A	B	C				H
1.0"	22.2	25.4	45.72×8TPIWHIT				27
1.5"	34.9	38.1	58.42×8TPIWHIT				27
2.0"	47.6	50.8	72.72×6TPI WHIT				27
2.5"	60.3	63.5	85.42×6TPI WHIT				27
3.0"	73	76.2	98.12×6TPIWHIT				27
4.0"	97.6	101.6	123.52×6TPI WHIT				27

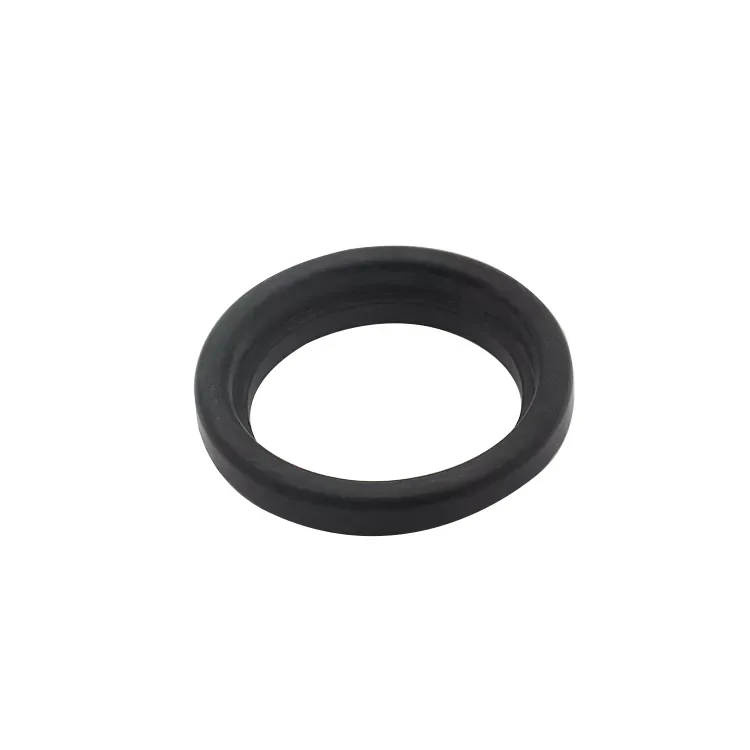

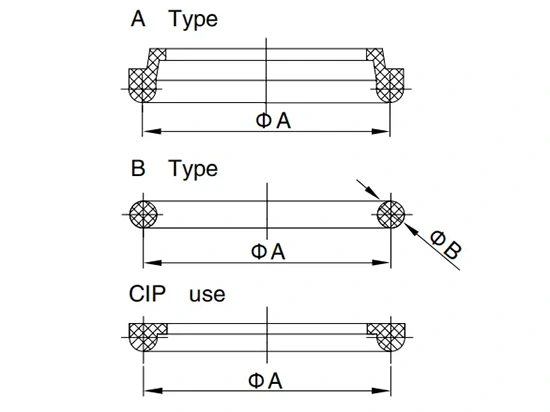

Seal Ring

Size	A	B
1.0"	33.3	6.4
1.5	46	6.4
2.0"	58.7	6.4
2.5"	71.4	6.4
3.0"	84.1	6.4
4.0"	109.5	6.4

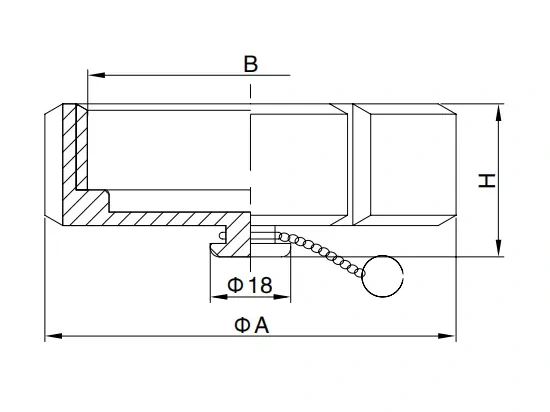

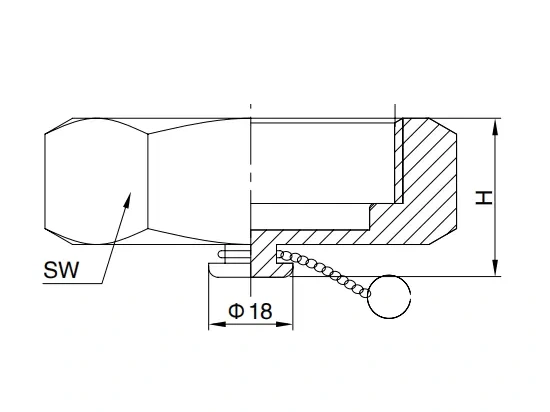

RJT-13RBN

Blank Nut with Boss

Size		A		B		H
1.0"		58.5		42.266×8TPI WHIT		29.2
1.5"		74		54.966×8TPI WHIT		29.2
2.0"		85.5		67.920×6TPI WHIT		29.2
2.5"		98.5		80.620×6TPI WHIT		29.2
3.0"		111.6		93.320×6TPI WHIT		29.2
4.0"		138		118.720×6TPI WHIT		29.2

RJT-13HBN

Hexagonal Blank Nut with Boss

Size	A		B		H	SW
1.0"	42.266×8TPI WHIT		48.3		29.2	50.8
1.5"	54.966×8TPI WHIT		53.3		29.2	65
2.0"	67.920×6TPI WHIT		63.3		29.2	79.4
2.5"	80.620×6TPI WHIT		73.3		29.2	92.1
3.0"	93.320×6TPI WHIT		83.3		29.2	104.8
4.0"	118.720×6TPI WHIT		104.2		29.2	130.2
