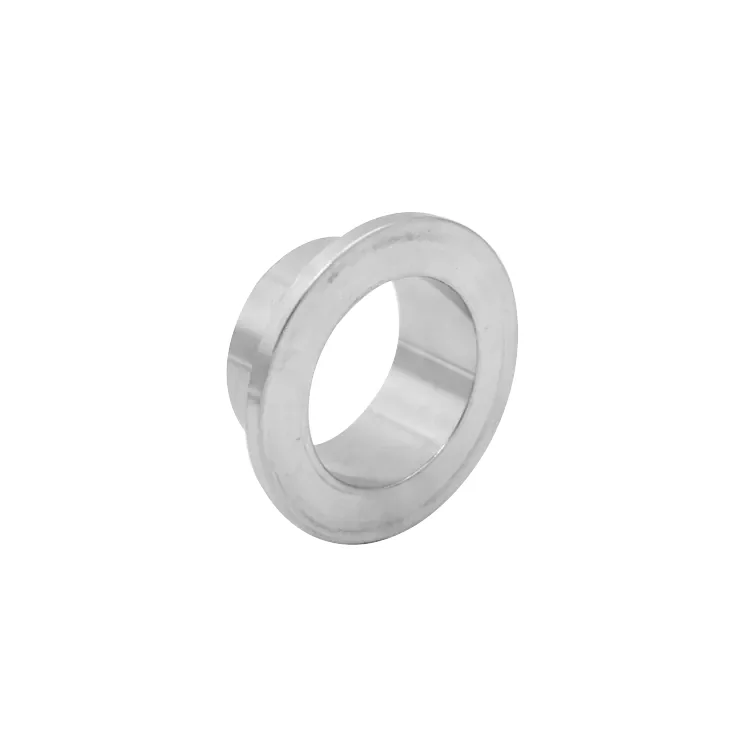

Sanitary SMS Union

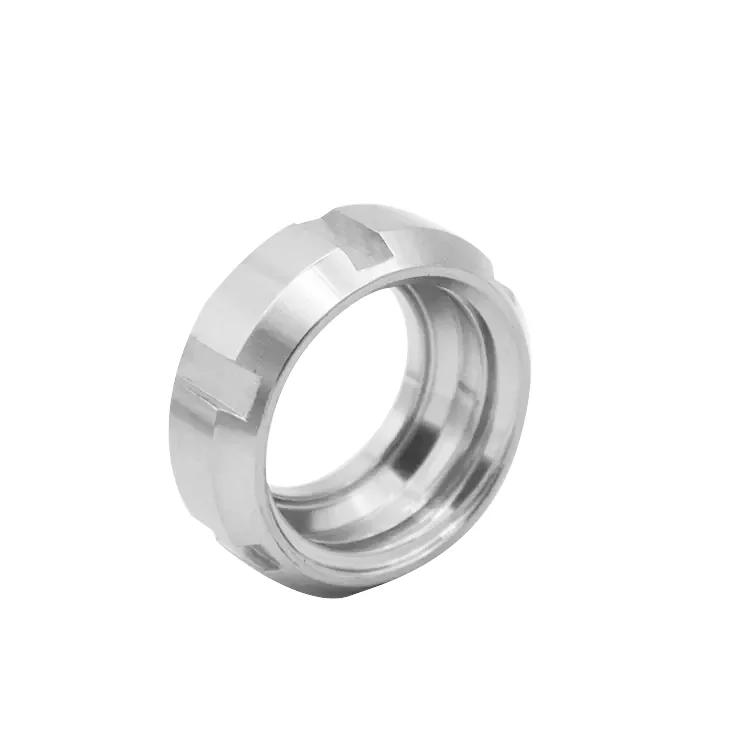

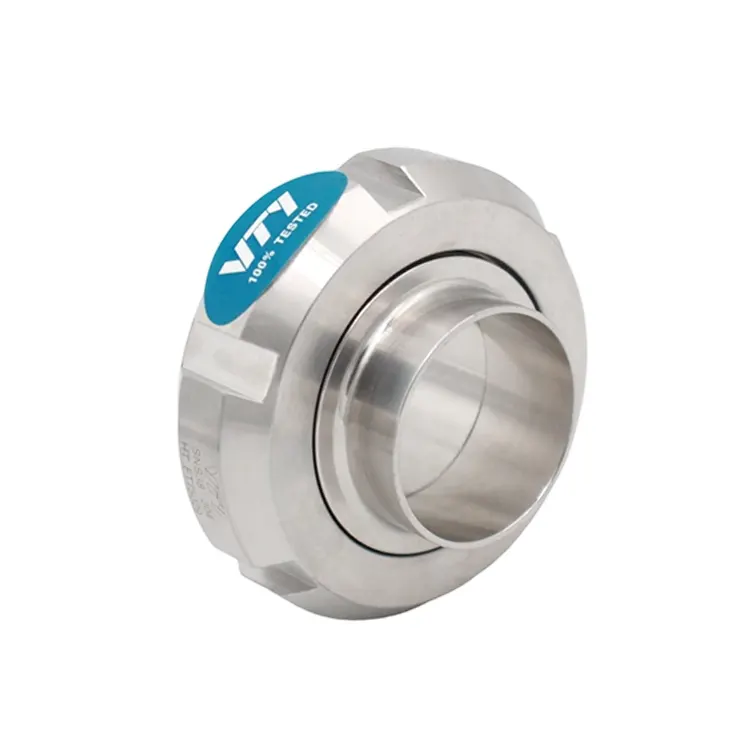

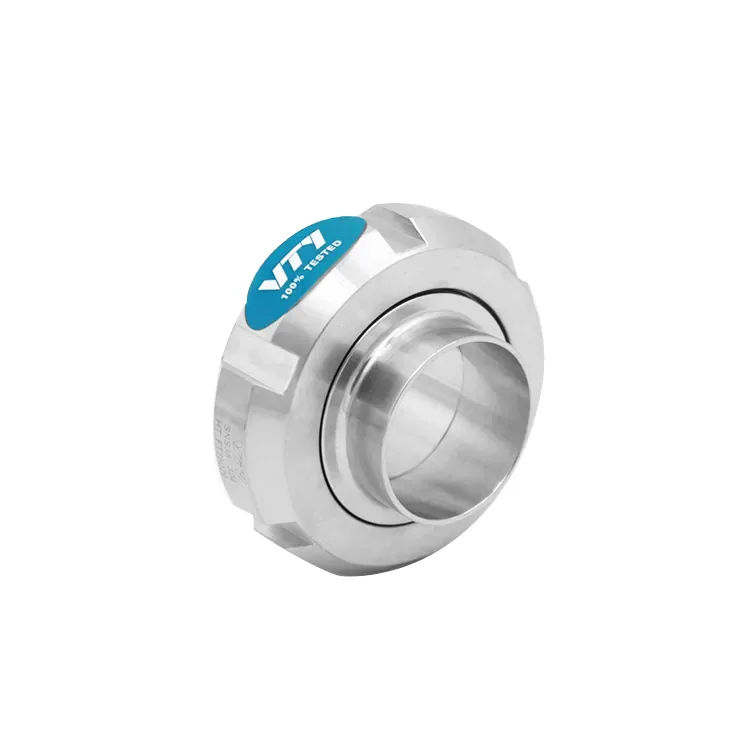

VTY Sanitary SMS Union is a sanitary fitting used to connect pipelines and equipment. They are designed in accordance with Swedish Manufacturing Standard - SMS 1145 standard. Each SMS Union is made up of a round slotted nut, weld liner, weld male and a seal. The SMS unions are forged in stainless steel 1.4301 and 1.4404 and are machined by CNC.

VTY can supply a wide range of Sanitary SMS Unions suitable for industries such as Pharmacy, Beer, Food, Petroleum, Dairy, Beverage, Biotech, Cosmetics, and so on. We are able to fabricate SMS Unions according to customer drawings and specifications.

Key Features

1.Optimum Performance, Low Maintenance, and Ultra-modern Technology Use.

2.Durable and Easy to Use

3.Resistant to a High Corrosive Environment

Parameter Specification

1.Size Range: 1’’~4’’

2.Specification: SMS 1145 standard

3.Mat: 304, 316L (forged)

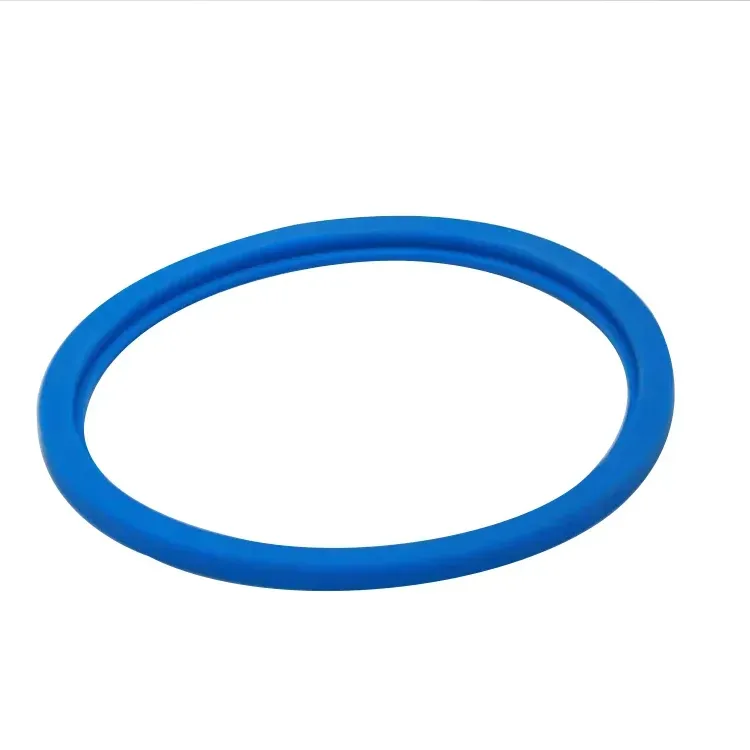

4.Seal: NBR, Silicone, EPDM, FPM, PTFE

5.Roughness: Ra=0.4~0.8µm (internal), Ra≤1.6µm (external)

How to Clean and Maintain？

When cleaning Sanitary SMS Unions, please use mild detergents, especially neutral detergents, and soft cloths to wipe them. Do not use hard brushes or corrosive chemicals to avoid damage to their coatings. Please dismantle these unions regularly before use to ensure there are no residues. Unlike other types of ferrules, sanitary unions are designed for quick disassembly, reducing downtime. For instance, normal welded ferrules are hard to clean, and we should replace the entire pipe sections when cleaning is necessary. In contrast, sanitary unions require local treatment. This will reduce maintenance costs. It should be noted that frequent disassembly will accelerate the wear of seals, so we have to make a maintenance plan according to frequency of use.

What is the Applicable Range of Temperature and Pressure?

In general, Sanitary SMS Unions are suitable for temperatures ranging from -20℃ to 150℃. Generally the working pressure is between 0-1.6 MPa, and it can vary according to changes in specifications. At high temperatures, PVC ferrules may become deformed or release harmful substances. Compared with PVC material, stainless steel unions have better resistance to high temperatures.

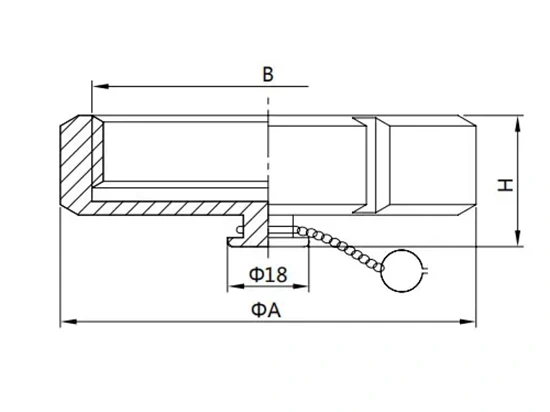

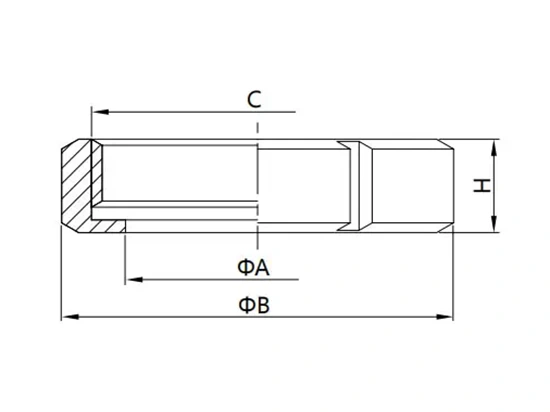

SMS-13

Nut

Size	A	B	C	H
25	32	51	Rd40×1/6"	20
32	40.5	60	Rd48×1/6"	22
38	48	74	Rd60×1/6"	25
51	61	84	Rd70×1/6"	26
63.5	74	100	Rd85×1/6"	30
76	87	114	Rd98×1/6"	32
101.6(Max)	117	154	Rd132×1/6"	45
101.6(Min)	113	140	Rd125×1/4"	32

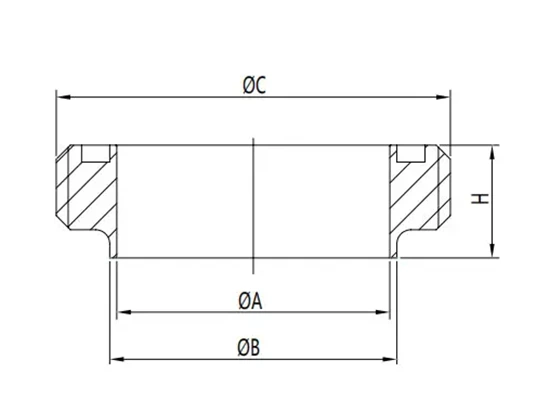

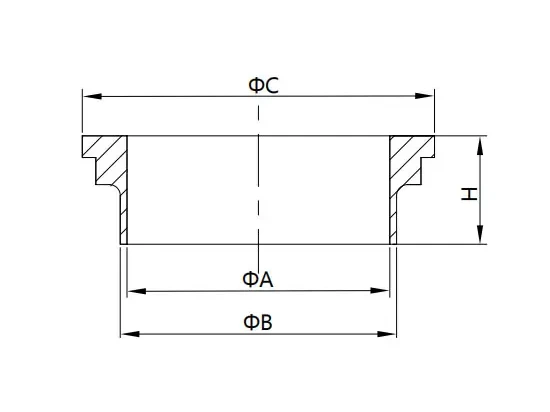

SMS-14

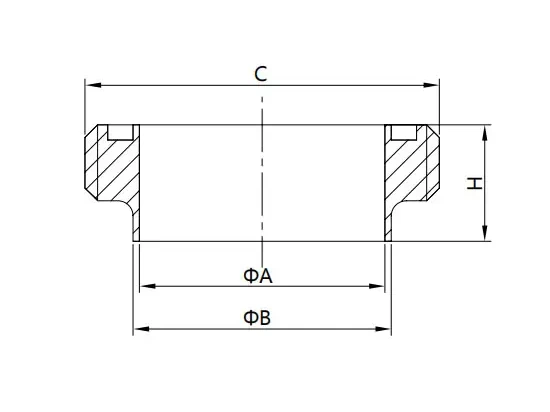

Welding Liner

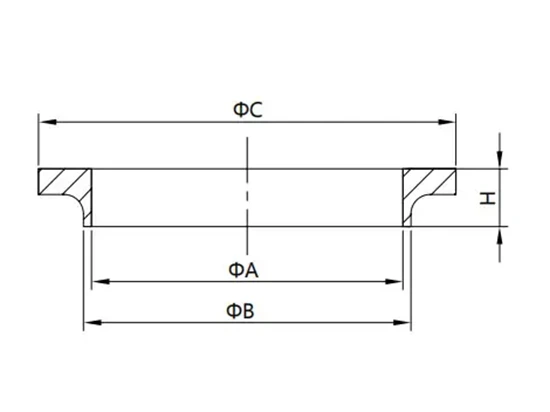

Size	A	B	C	H
25	22.5	25	35.5	15
32	29.5	32	43.5	15
38	35.5	38	55	20
51	48.5	51	65	20
63.5	60.5	63.5	80	24
76	72.9	76.1	93	24
101.6(Max)	97.6	101.6	127	30
101.6(Min)	97.6	101.6	118	30

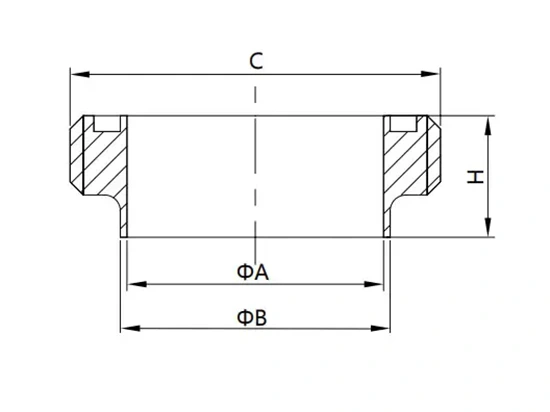

SMS-15

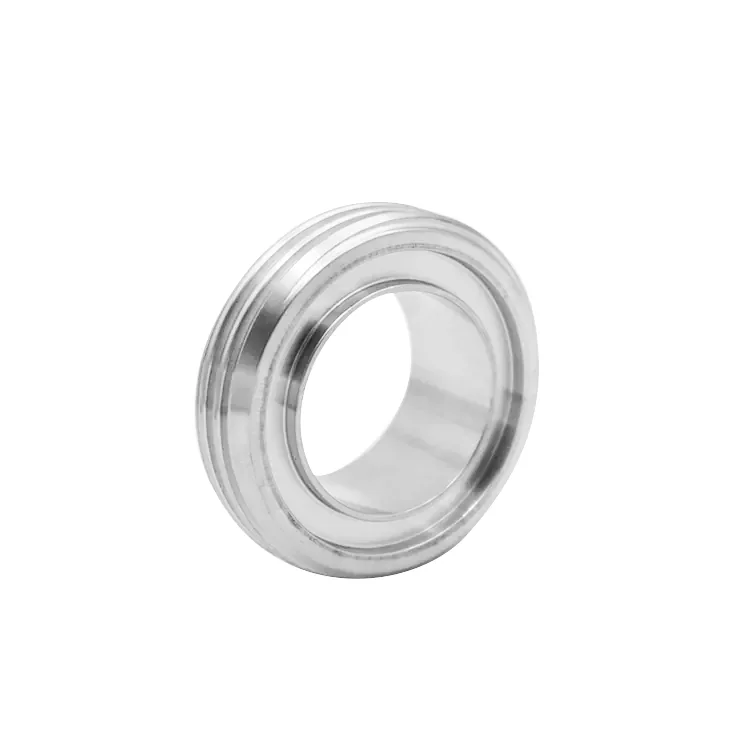

Welding Male

Size	A	B	C	H
25	22.5	25	Rd40×1/6"	19
32	29.5	32	Rd48×1/6"	20
38	35.5	38	Rd60×1/6"	23
51	48.5	51	Rd70×1/6"	23
63.5	60.5	63.5	Rd85×1/6"	27
76	72.9	76.1	Rd98×1/6"	27
101.6(Max)	97.6	101.6	Rd132×1/6"	35
101.6(Min)	97.6	101.6	Rd125×1/4"	30

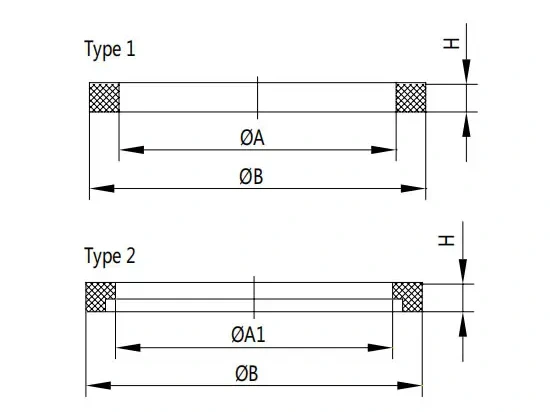

Seal Ring

Size	A	A1	B	H
25	25	22.7	31.8	5.3
32	32	29.7	39.8	5.3
38	38	35.7	47.8	5.3
51	51	45.5	60.8	5.3
63.5	63.5	60.7	73.2	5.3
76	76	72.3	85.8	5.3
101.6	101.6	97.8	103.8	5.3

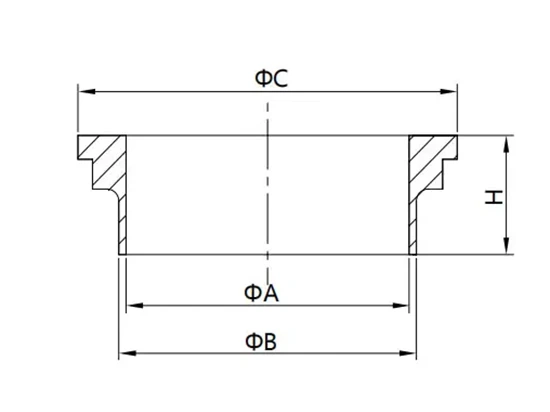

SMS-14S

Welding Liner

Size	A	B	C	H
25	22.5	25	35.5	10
32	29.5	32	43.5	10
38	35.5	38	55	11
51	48.5	51	65	13
63.5	60.5	63.5	80	13
76	72.9	76.1	93	14
101.6(Max)	97.6	101.6	127	16
101.6(Min)	97.6	101.6	118	16

SMS-15S

Welding Male

Size	A	B	C	H
25	22.5	25	Rd40×1/6"	15
32	29.5	32	Rd48×1/6"	18
38	35.5	38	Rd6O×1/6"	20
51	48.5	51	Rd70×1/6"	20
63.5	60.5	63.5	Rd85×1/6"	24
76	72	76	Rd98×1/6"	24
101.6(Max)	97.6	101.6	Rd132×1/6"	35
101.6(Min)	97.6	101.6	Rd125×1/4"	28

SMS-14SS

Welding Liner

Size	A	B	C	H
25	22.5	25	35.5	8
32	29.5	32	43.5	8
38	35.5	38	55	9
51	48.5	51	65	9
63.5	60.5	63.5	80	9
76	72	76	93	10
101.6(Max)	97.6	101.6	127	12
101.6(Min)	97.6	101.6	118	12

SMS-15SS

Short Welding Male

Size	A	B	C	H
25	22.5	25	RD40×1/6"	15
32	29.5	32	RD48×1/6"	15
38	35.5	38	RD60×1/6"	18
51	48.5	51	RD70×1/6"	20
63.5	60.5	63.5	RD85×1/6"	20
76	72.9	76.1	RD98×1/6"	21
101.6	97.6	101.6	RD125×1/4"	26

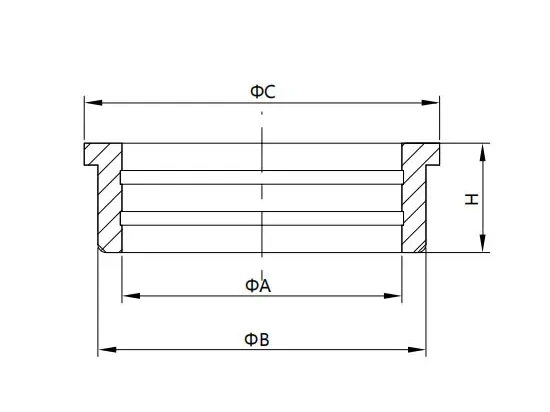

SMS-15R

Expanding Male

Size	A		B		C		H
25	25.2		31.5		Rd40×1/6"		19
32	32.2		40		Rd48×1/6"		19
38	38.2		47.5		Rd60×1/6"		23
51	51.2		60		Rd70×1/6"		23
63.5	63.7		73.5		Rd85×1/6"		27
76	76.3		86.5		Rd98×1/6"		27
101.6(Max)	101.8		116.5		Rd132×1/6"		35
101.6( Min)	101.8		112.5		Rd125×1/4"		30

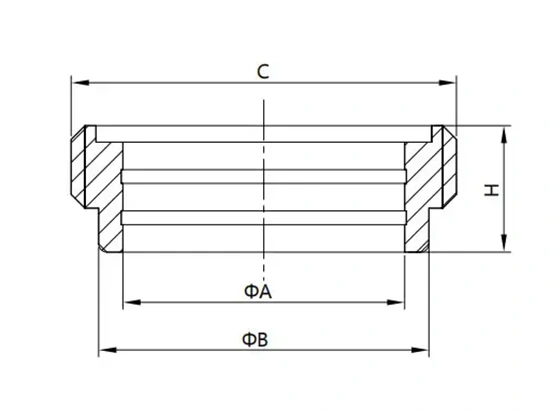

SMS-14R

Expanding Liner

Size	A		B		C		H
25	25.2		31.5		35.5		15
32	32.2		40		43.5		15
38	38.2		47.5		55		20
51	51.2		60		65		20
63.5	63.7		73.5		80		24
76	76.3		86.5		93		24
101.6(Max)	101.8		116.5		127		27
101.6(Min)	101.8		112.5		118		27

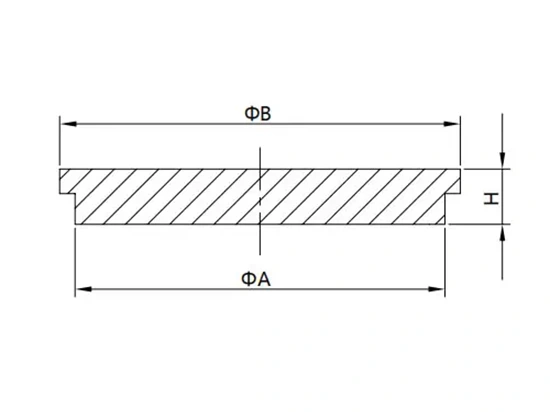

SMS-14B

Blank Liner

Size		A		B		H
25		31.5		35.5		7.5
32		40		43.5		8
38		47.5		55		8
51		60		65		8
63.5		73.5		80		9
76		86.5		93		11
101.6(Max)		116.5		127		12
101.6(Min)		112.5		118		12

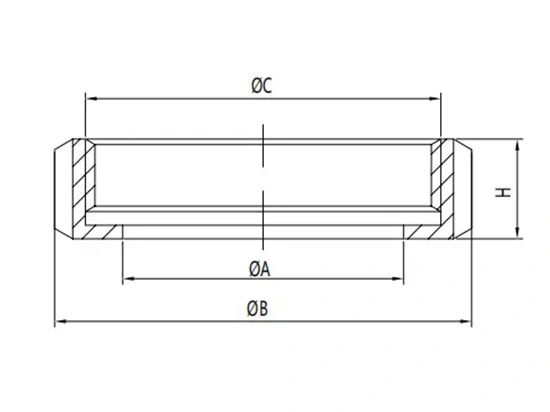

SMS-13RS

Nut

Size	A		B		C		H
25	32.3		50		Rd40×1/6"		18
32	40.3		58		Rd48×1/6"		18
38	48.5		72		Rd60×1/6"		21
51	60.5		82		Rd70×1/6"		23
63.5	74		98		Rd85×1/6"		23
76	87		111		Rd98×1/6"		26
101.6	113		138		Rd125×1/4"		30

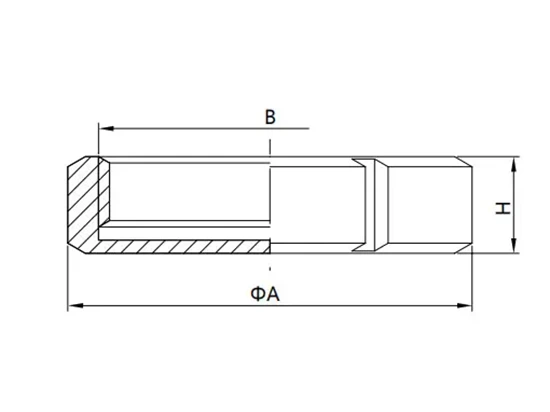

SMS-13RB

Blank Nut

Size	A	B	H
25	51	Rd40×1/6"	20
32	60	Rd48×1/6"	22
38	74	Rd60×1/6"	25
51	84	Rd70×1/6"	26
63.5	100	Rd85×1/6"	30
76	114	Rd98×1/6"	32
101.6(Max)	154	Rd132×1/6"	45
101.6( Min)	140	Rd125×1/4"	32

SMS-13RBN

Blank Nut with Boss

Size	A	B	H
25	51	Rd40×1/6"	27
32	60	Rd48×1/6"	29
38	74	Rd60×1/6"	32
51	84	Rd70×1/6"	33
63.5	100	Rd85×1/6"	37
76	114	Rd98×1/6"	39
101.6(Max)	154	Rd132×1/6"	52
101.6(Min)	140	Rd125×1/4"	39

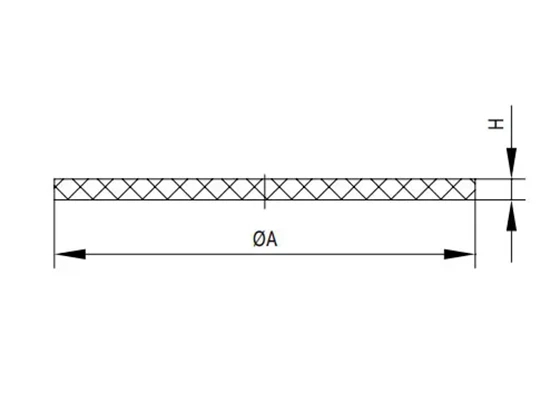

Plate Seal

Size	A	H	H(PTFE)
25	40	3	1.5
32	48	3	1.5
38	60	3	1.5
51	70	3	1.5
63.5	85	3	1.5
76	98	3	1.5
101.6	125	3	1.5
